1.Title:Automatic Downspout pipe roll forming machine
2. Properties of processed material：
Material： galvanized steel or Aluminum
Material thickness：0.5 -1.2mm
Yield strength:235-450mpa
3. Profile drawing

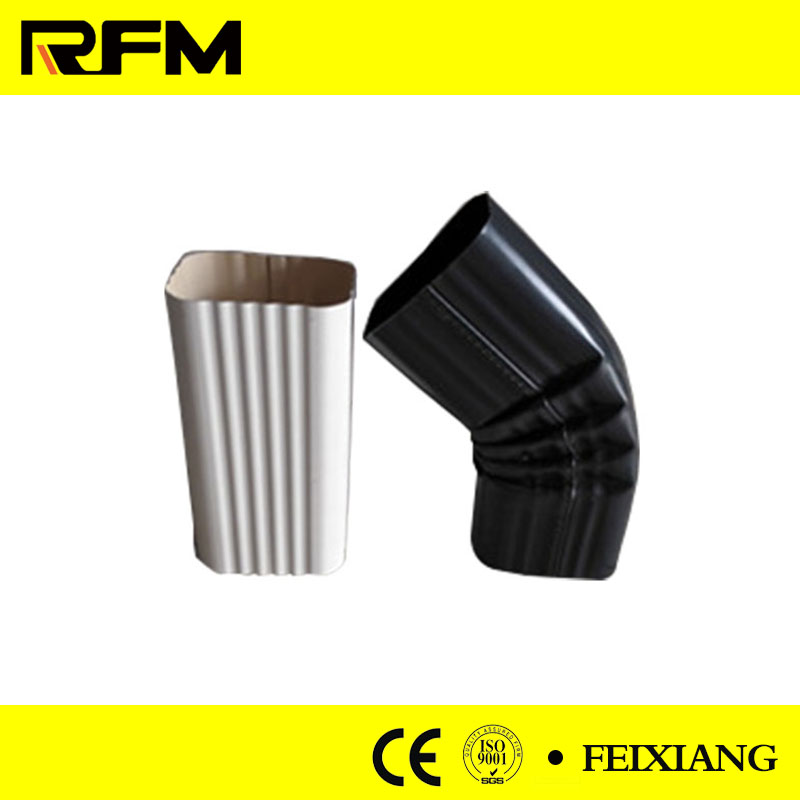

Products after roll forming
4.Machine details
Machine size: 8500*1000*1250mm
Weight: 5.5T
Voltage requirement: 380v50hz3p or request
Working speed：0-12 m/min
Electric support wires: 8m2
Labor request:2-3 workers
5. Whole line components
No. | Item | Qty |
1. | Deciler | 1set |
2. | Main forming machine | 1set |
3. | Control panel | 1pcs |
4. | Hydraulic pump | 1pcs |
5. | Manual holder | 1pcs |
6.Technical parameters
Machine base: steel plate welded
Frame: memorial arch frame
Forming stations: 18steps
Roller: 45#steel with quenching
Shaft: 45#steel,diameter 70mm
Transportation: chain
Motor:Siemens,11.0 kw
Pump: Yuken 4kw
Cutter: Cr12
7.Machine quick view

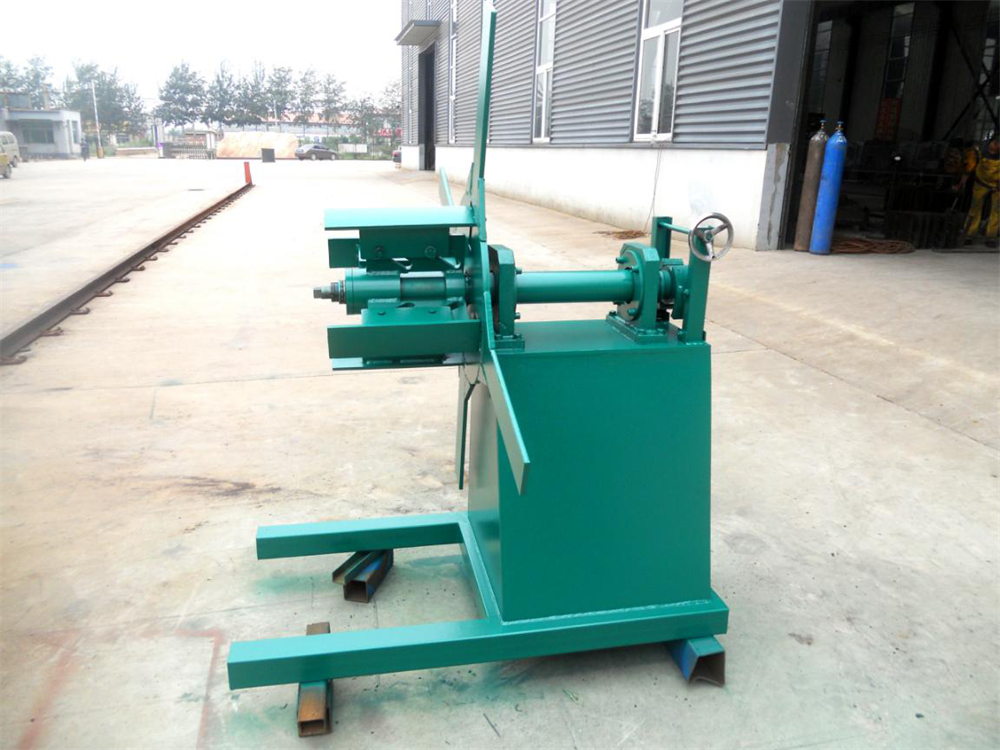

Decoiler：

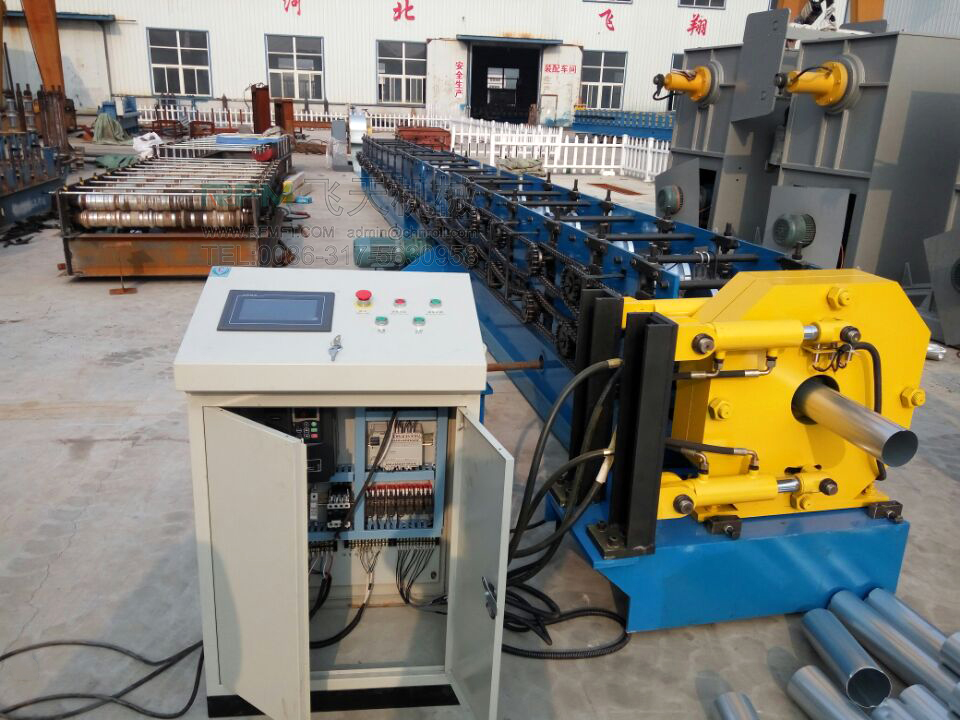

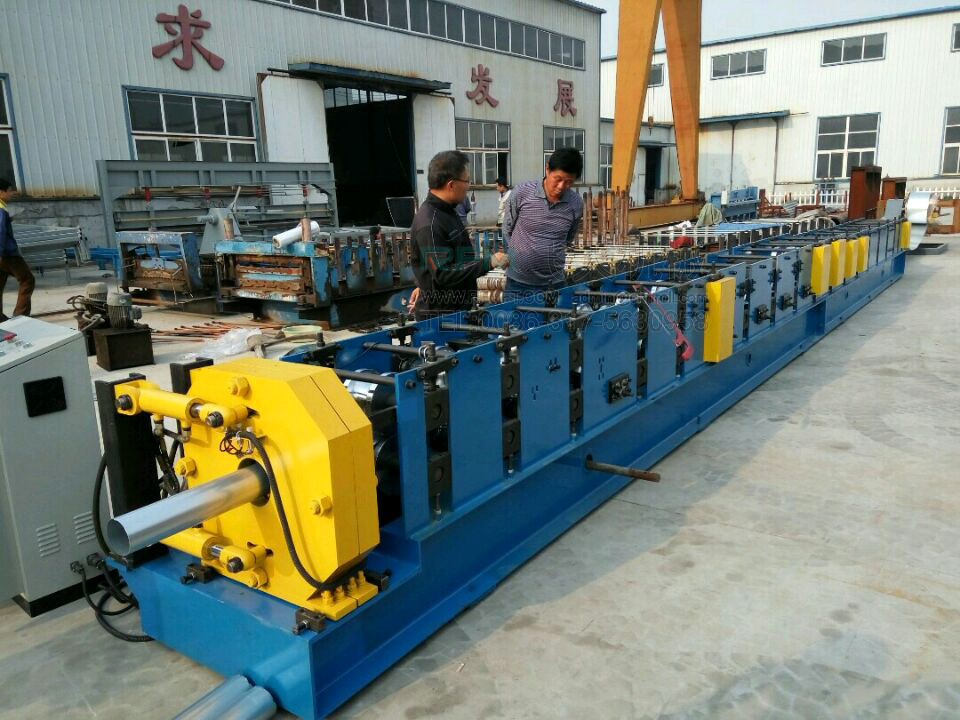

Main forming machine：

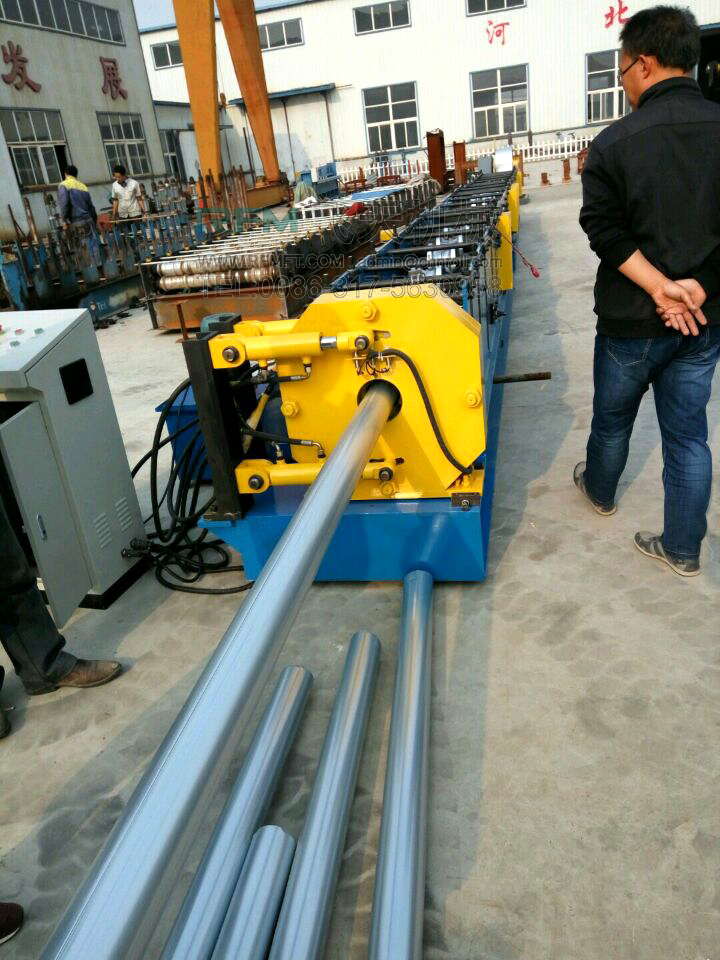

Front View，
Left side，
Right side，

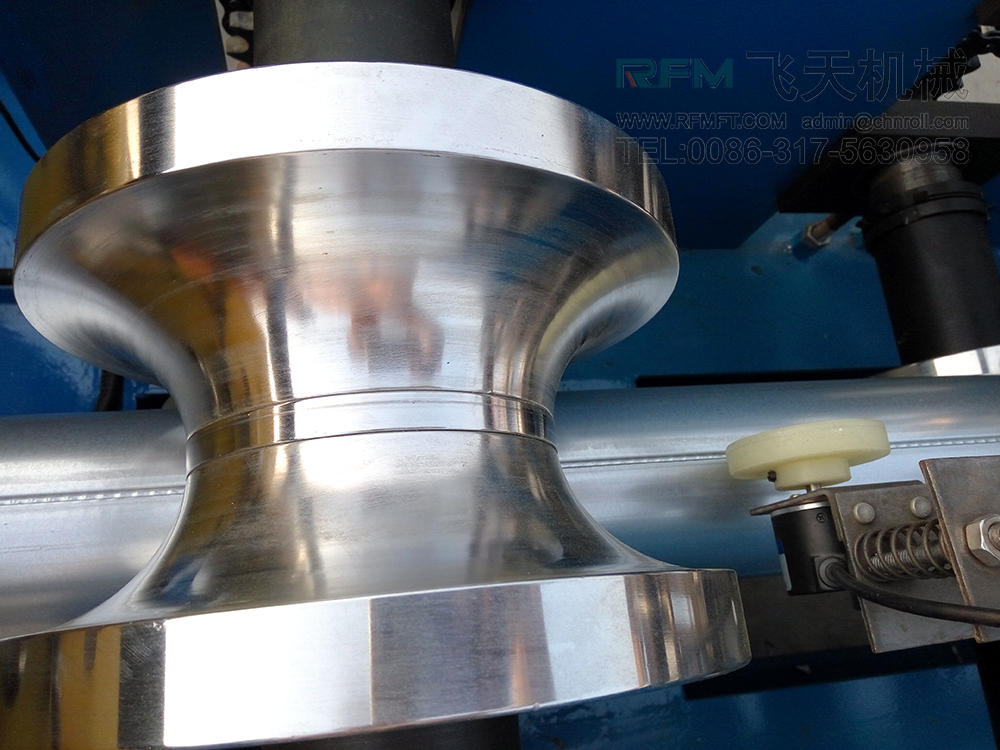

Roller，

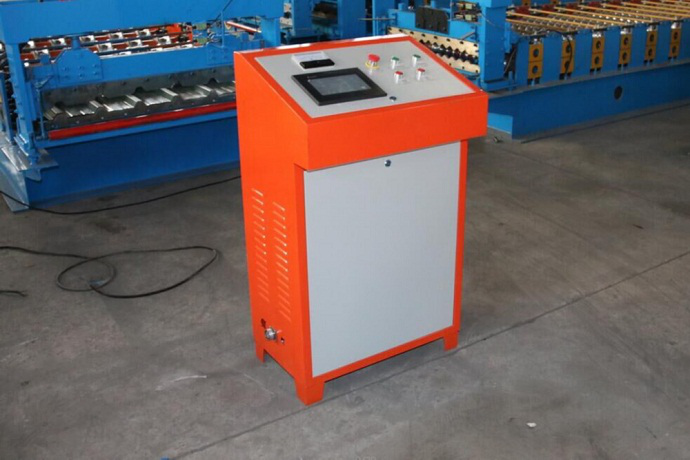

Control panel：

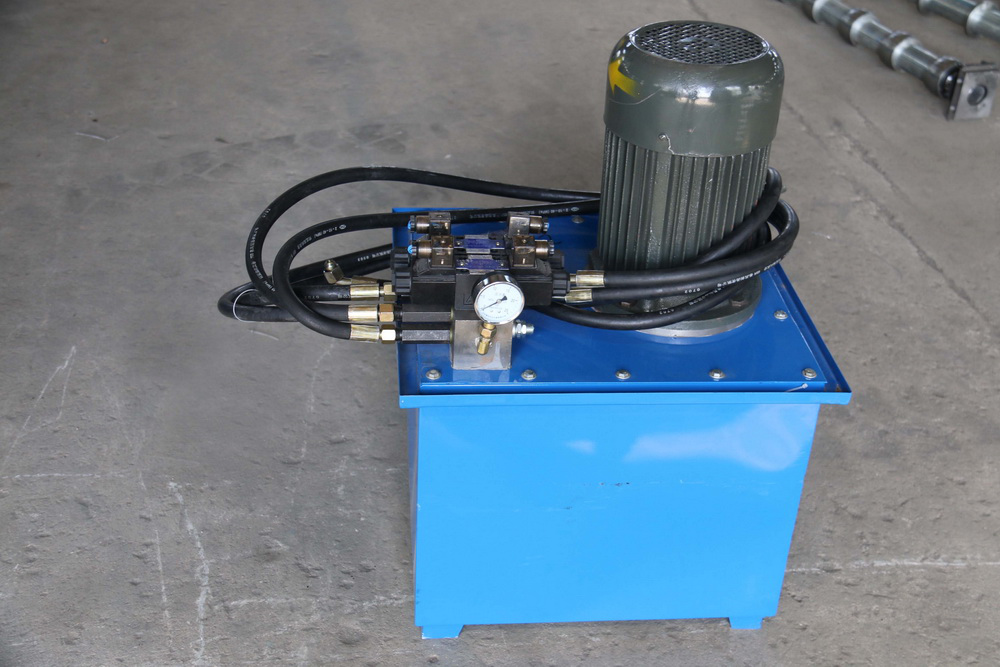

Hydraulic pump：

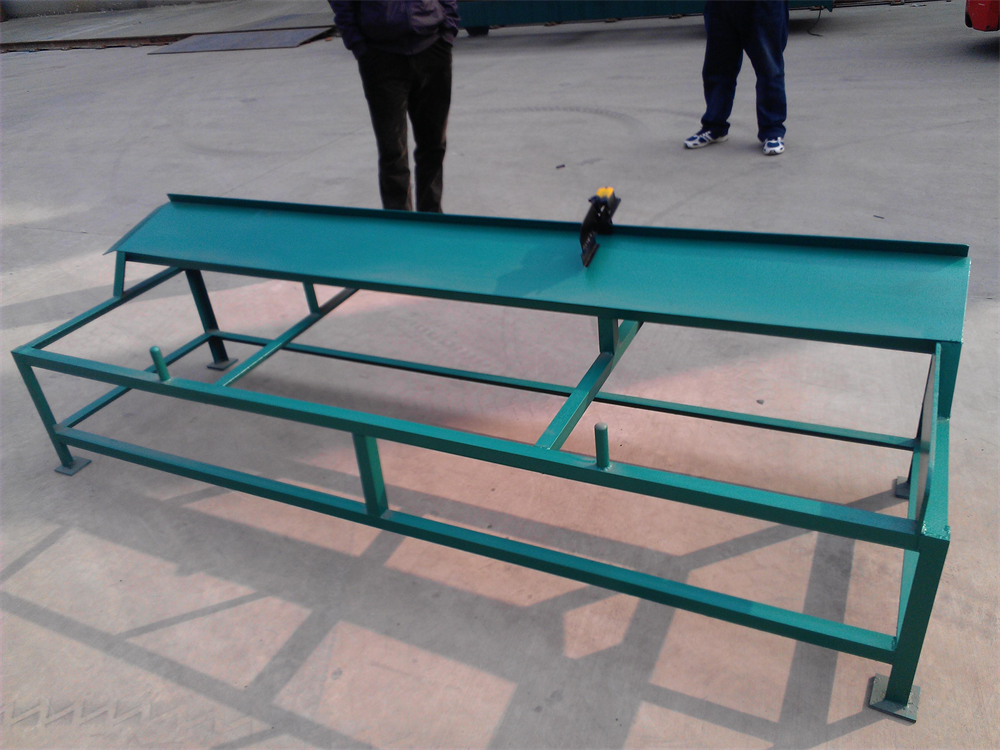

Manual holder：
More machine videos on Youtube:
8. CE and Letters patent
9.Duration and Service
Delivery time : 45 days after the receipt of deposit.
Warranty: 2 years
After-sales service: 24h*7days*1year’s on line and
engineer service overseas
Machine adjusting in customer’s factory
Machine adjusting on video call during Edidemic

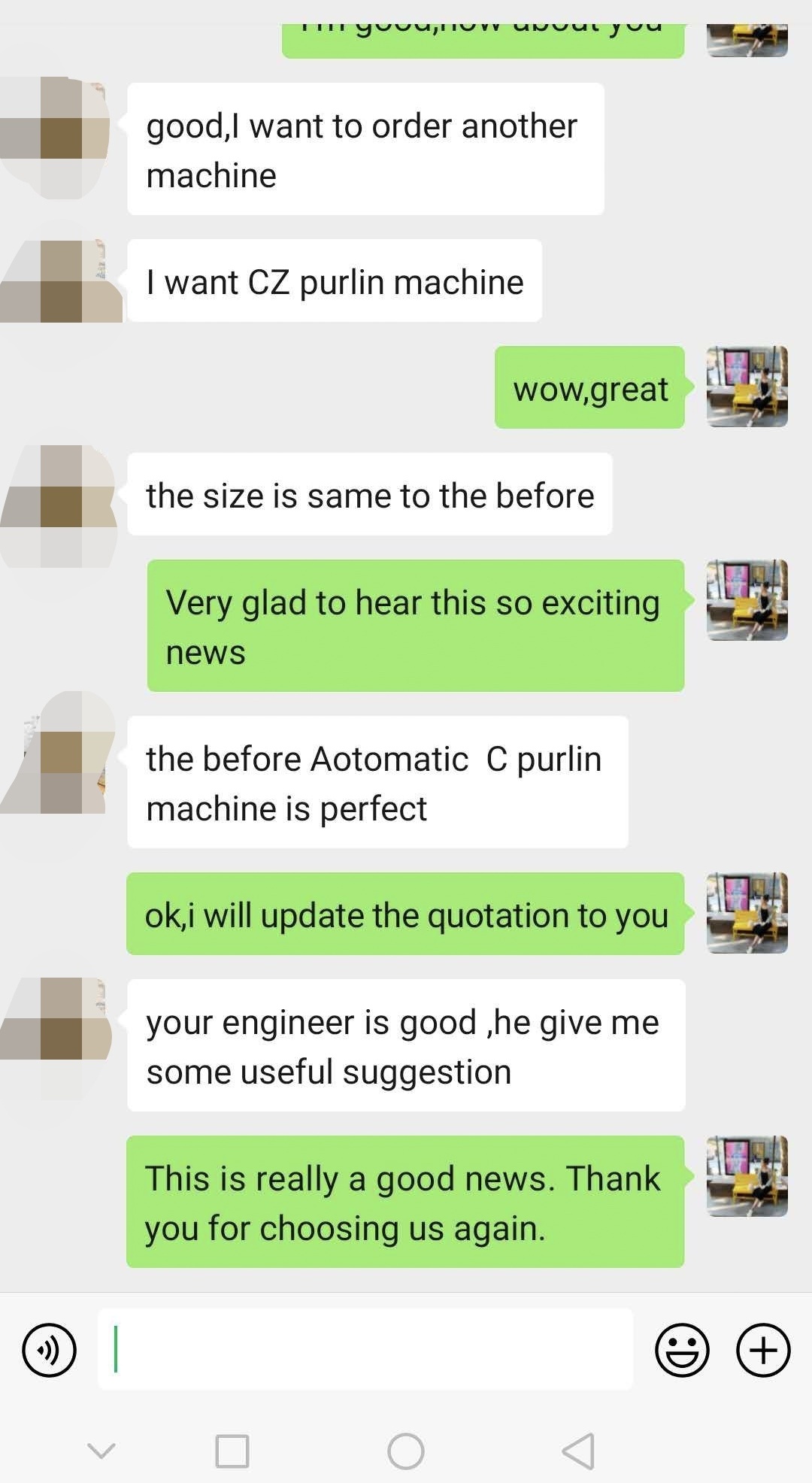

10.Client evaluation：
