Quotation Sheet:
Quote Subject: LTXG-12 Automatic Filling and Capping Machine
Item | Description of the goods | Quantity | Unit Price | Total Amount FOB Shanghai By sea | Remark |
1 | LTXG-12 Automatic Filling and Capping Machine | 1 Set | USD28,000.00 | USD28,000.00 | Include: 1.Filling system(12 filling nozzles) 2.Screw Capping System (two capping nozzles) |
Optional Parts | |||||
1 | Turn Table | 2 sets | USD1200.00 | USD2400.00 | |
Ⅰ Note: The validity of this quotation is 60 days
Ⅱ Delivery 40 working days after receiving 30% deposit.
Ⅲ Payment 30% in advance,70% of the total value by T/T before shipment.
Installation and after sales service:
Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.
Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.

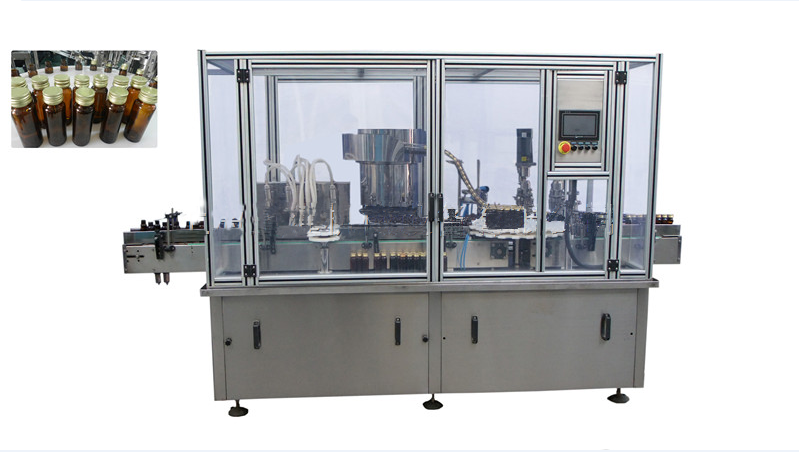

LTXG-12 Automatic Filling and Capping Machine
LTXG-12 machine comes with 12 nozzles of filling head and two nozzles of capping heads. The machine can automatically fill 30-150ml glass and plastic bottle with aluminum cap.
The machine adopts PLC control with touch screen operation which is easily input and display any production parameter while the machine running, such as production speed, filling volume, capping speed, etc.
All machines parts are made of Stainless steel 304 with Organic Glass cover which meets the requirement of GMP.
Main Technical Data
Type | LTXG-12 |
Range | 30ml-150ml |
Speed | 40-70bottles/minute |
Measurement precision | ±1% |
Rated power | 0.8KW |
Working voltage | 220V |
Working air pressure | 6-7kg/cm2 |
Air-consuming amount | 0.5m3/minute |
Net weight | 850kg |
Contour Sizes | 2200×970×1900mm |
Electronic List
NO. | ITEM | SUPPLIER | Brand |
1 | Touch screen | Taiwan | WEINVEIW |
2 | PLC | Japan | Mitsubishi |
3 | Photo sensor for bottles | Japan | OPTEX |
4 | solenoid valve | Taiwan | SHAKO |
5 | Level button | USA | JOHNSON CONTROLS |
6 | angle seat Valve | Jointed | BURKERT |
7 | Other divices | Taiwan | Airtac |
8 | Power button | France | Schneider |
9 | Button | France | Schneider |
10 | frequency converter | France | Schneider |
11 | bottle- transport motor | China | Huangyan |
12 | Speed reducer | China | Jiao xing |
13 | Relay | Japan | Omron |
Spare Parts List
Item | Model | Quantity |
Joint | APL-6-01 | 12 pieces |
Admission valve | ASL-6-01 | 6 pieces |
Admission valve | ASL-8-03 | 3 pieces |
Screw(inner and outer thread) | M6,M8,M10 | 3pcs |
Nut | M6,M8,M10 | 3pcs |
Spacer | 1pcs | |
Potentiometer | 10K? | 1 sets |
Electromagnetic valve | 2 sets | |
Crank | 1 piece | |
Tools kit | 1 set | |
Electromagnetism switch(AirTac) | 1set | |
Operation instruction of machine | 1 set | |
Instruction of frequency transformer | 1 set | |
Instruction of touch screen | 1 set | |
Instruction of PLC | 1 | |
Instruction of various photo electricity | 1 set |

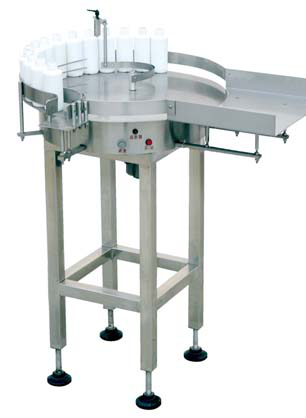

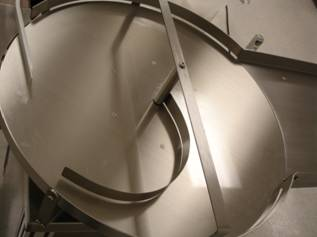

Turn tablet
Frame
? All Stainless Steel Construction to meet the GMP Standard
Specifications
? Feeding disk speed less control system
? Diameter of disk: option 900mm
? Turning disk motor power: 200W
? Variable Speed Control for motor
Capacity
? Production Capacity: 60-120 bottles per min.
? Production Capacity Speed can be adjusted.
Dimensions & Weight
? Machine dimension (L x W x H): 1400 x 990 x 1200mm
? Main Machine weight: 100kg
Power Source
? AC220V, 50Hz, 1 Phase
