Quotation Sheet:
Subject: LTRG-30 Semi Automatic Tube Filling and Sealing Machine
Item | Description of the goods | Quantity | Unit Price | Total Amount FOB Shanghai Port | Remark |
1 | LTRG-30 Semi Automatic Tube Filling and Sealing Machine | 1 Set | USD7,500.00 | USD7,500.00 | Include: One set of mould |
Optional Part: | |||||
1 | Extra Mould | 1 Set | USD400.00 | USD400.00 | |
Installation and after sales service:
Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.
Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After sales service: 1.we have seven technicians who gets passport ready to travel all over world to offer service to you.
2.We have 24hours hot line for Technical Support.
3.We get 18hours internet line for technical support.
4.Video camera in workshop to help you adjust and solve machine problem in working situation.

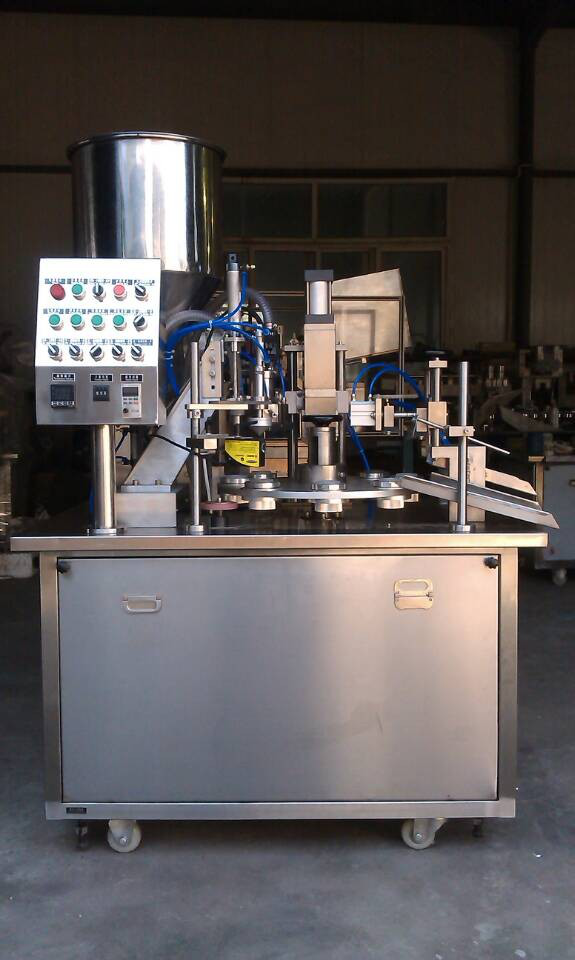

LTRG-30 Semi Automatic Tube Filling and Sealing Machine
Suitable for Plastic Tube/Laminated Tube
Product Specify
The machine is used for filling cream (paste)-like and liquid-like materials into plastic tube or plastic-aluminium laminated tube and then
sealing them, pressing data or product numbers on the end of the tube and cutting the end. This machine is widely used in daily cosmetics, medicine and food industries.
Characteristics: A high efficient heater and a stable flow meter imported from Germany are applied. They provide a reliable thermo-air heating system, which makes the seal firm and high efficient. The filling heads in different specifications are prepared for materials in different thickness.
Main technical parameters
Model | LTRG-30 | ||
Tube Material | Plastic tube, laminated tube | ||
Tube Diameter | Φ16mm-Φ50mm | ||
Filling Volume | 10-50ml | 50-100ml | 100-200ml |
Filling Accuracy | ≤±5% | ≤±3% | ≤±2% |
Product Capacity (Pcs/min) | 25-30 | ||
Air Consumption | 0.6m3/min | ||
Power | 4.2kw (380V/220V 50Hz) | ||
Overall Dimension(mm) | 1100*850*1500mm (L*W*H) | ||
Machine Weight (kg) | 350kg | ||
The product we packed:
