Quotation Sheet:
Quote Subject: LTRG-120 Laminated Tube Filling and Sealing Machine
Item | Description of the goods | Quantity | Unit Price | Total Amount FOB Shanghai | Remark |
1 | LTRG-120 Laminated Tube Filling and Sealing Machine | 1 Set | USD69,000.00 | USD69,000.00 | Include: 1.One set of plastic mould for tube diameter 16mm 2.One set of water chiller(for plastic tube) 3.With steel letter printing system (batch number and expire date printing) 4. Mechanical tube orientation 5. Fill from bottom 6. Whole body with stainless steel 304 7.Normal tank with 60L 8.Material contact part with stainless steel 316L 9.Material level sensor 10.Tube cleaning device |
2 | Extra mould for different diameter tubes changeable | 2 Sets | USD1,800.00 | USD3,600.00 | Includes: 1.Mould for tube diameter 22mm 2. Mould for tube diameter 25mm |
3 | Tube loader | 1 Set | USD11,500.00 | USD11,500.00 | Include the conveyor belt |
4 | Hopper with electric heating | USD2,000.00 | |||
5 | Temperature sensor alarm device | USD1,200.00 | |||
6 | Material auto loading pump | USD1,500.00 |
Ⅰ Note: The validity of this quotation is 90 days
Ⅱ Delivery 40 working days after receiving 30% deposit.
Ⅲ Payment 30% by T/T in advance,70% of the total value by T/T before shipment.
Installation and after sales service:
Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.
Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After sales service: 1.we have seven technicians who gets passport ready to travel all over world to offer service to you.
2.We have 24hours hot line for Technical Support.
3.We get 18hours internet line for technical support.
4.Video camera in workshop to help you adjust and solve machine problem in working situation.

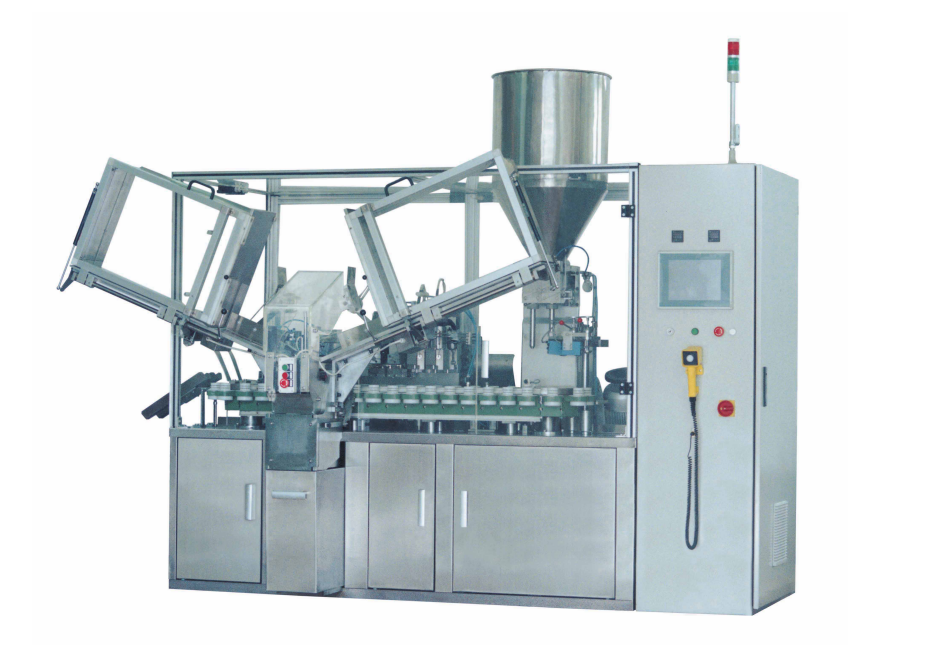

LTRG-120 Laminated Tube Filling and Sealing Machine

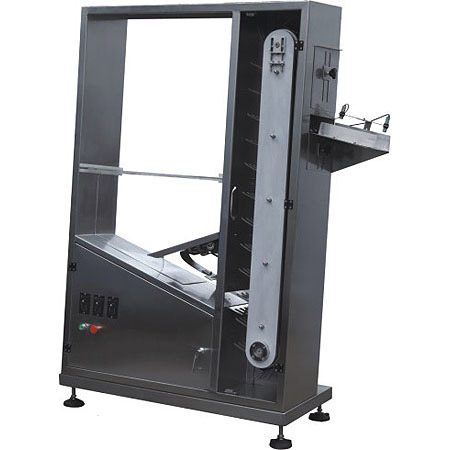

Auto Tube Loader
LTRG-120 | ||||||||
Configuration Standard | Technical Parameters | Remarks | ||||||
n Infrastructure | ||||||||
Main Machine Landing Area | (about) 4m2 | |||||||
Working Area | （about）20㎡ | |||||||
Water Chiller Landing Area | （about）1㎡ | |||||||
Working Area | （about）4㎡ | |||||||
Whole Machine (L×W×H) | 1950×1300×2400mm | |||||||
Integrated Structure | Union mode | |||||||
Weight | （about）1400Kg | |||||||
n Machine case body | ||||||||
Case Body Material | 304 | |||||||
Opening Mode of Safety Guard | Handle Door | |||||||
Safety Guard Material | Organic Glass | |||||||
Frame Below Platform | Stainless Steel | |||||||
Case Body Shape | Square-shape | |||||||
n Power, Main Motor etc. | ||||||||
Power Supply | 50Hz/380V 3P | |||||||
Main Motor | 2.2KW | |||||||
Hot Air Generator | 6KW | |||||||
Water Chiller | 1.5KW | |||||||
Jacket barrel heating power | 2 KW | Optional Additional price | ||||||
Jacket barrel blending power | 0.18 KW | Optional dditional price | ||||||
n Production Capacity | ||||||||
Operation Speed | 80-120/min/max | |||||||
Filling Range | 3-250ml | |||||||
Suitable Tube Length | 50-240mm | |||||||
Suitable Tube Diameter | 12-50mm | |||||||
n Pressing Device | ||||||||
Pressing Guiding Main Component | CHINA | |||||||
n Pneumatic Control System | ||||||||
Low Voltage Protection | SMC | |||||||
Pneumatic Component | SMC | |||||||
Working Pressure | 0.5-0.6MPa | |||||||
Compressed Air Consumption | 1.5m3/min | |||||||
n Electrical Control System | ||||||||
Control Mode | PLC＋Touch Screen | |||||||
PLC | SIEMENS | |||||||
Frequency inverter | SIEMENS | |||||||
Touch Screen | SIEMENS | |||||||
Coder | OMRON | |||||||
Temperature Controller | OMRON | |||||||
Filling detect Photo electric cell | SCHNEIDER | Optional Additional price | ||||||
Total Power Switch etc. | MOELLER | |||||||
Color Code Sensor | BANNA | |||||||
Hot Air Generator | LEISTER (Switzerland) | |||||||
n Suitable Packing Material & Other Devices | ||||||||
Suitable Packing Material | Aluminum-plastic composite tube and Plastic composite tube | |||||||
Obliquely Hanging Lining-up Tube Storehouse | Speed Adjustable | |||||||
Material contacting with filling material | 316L Stainless Steel | |||||||
Jacket layer hopper device | Temp. Setting according to material and filling demand | Optional Additional price | ||||||
Jacket layer stirring device | In case of no material mixing, it remains fixed in hopper | Optional Additional price | ||||||
Auto stamping device | Single side or double sides printing at the end of seal tube. | |||||||
Due to the continuous improvement of the equipment, if part of the electrical changes without notice.
