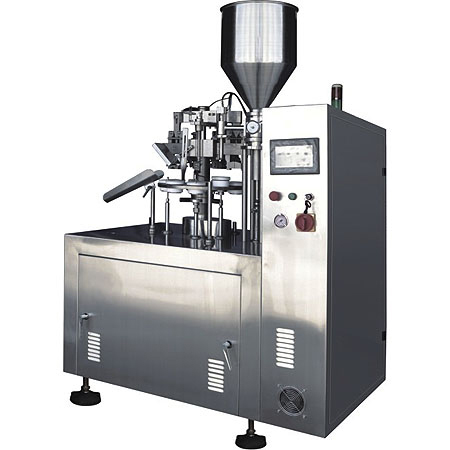

LTRG-60 Semi-Automatic Tube Filling and Sealing Machine
Suitable for aluminum tube/And Plastic Tube/Laminated Tube
Product Specify
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
Feature
1. With 12 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of Alu tube. It is a multi-purpose machine.
2. Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
3. Servo control makes it precise and convenient to adjust the filling amount by touch screen.
4. According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.
5. The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.
6. Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.
7. Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.
Main technical parameters
Model | LTRG-60 |
Tube Material | Plastic tube, laminated tube |
Tube Diameter | Φ5mm-Φ60mm |
Tube Length | 50-300mm (customizable) |
Filling Volume | 5-250ml/piece (Adjustable) |
Filling Accuracy | ≤±1% |
Product Capacity (Pcs/min) | 30-50 0.1m3/min |
Air Supply | 0.55-0.65Mpa |
Motor Power | 4kw (380V/220V 50Hz) |
Heat Sealing Power | 5kw |
Overall Dimension(mm) | 1600*1640*1900mm (L*W*H) |
Machine Weight (kg) | 1100kg |
u Quotation sheet
1. Price: 13,300USD FOB NINGBO (The price includes one complete set of mould, filling quantity is adjustable)
Optional Parts: 1. Chiller: 2,000USD/set
2. Level Sensor: 1,000USD
3. Heating and Blending System: 2,000USD
2. Payment: 30% for advance By T/T, 70% T/T to Seller’s Bank Account before shipment.
3. Validity: 20days
4. Overall Dimension: After packaging 6.5CBM
6. Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging& Boarding expenses shall be payable by you. In case the stay of our technician, the service charges @US $ 50 per day will be charged extra.
7. Warranty Period: one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life
The product we packed:
