Cartoning MachineAutomatic Cartoning MachineVertical Type
T/T
Quotation Sheet:
Quote Subject: ZH-120D Vertical Type Automatic Cartoning Machine
Item | Description of the goods | Quantity | Unit Price | Total Amount FOB NINGBO | Remark |
1 | ZH-120D Vertical Type Automatic Cartoning Machine | 1 Set | USD26,800.00 | USD26,800.00 | Include: 1.Siemens Brand PLC 2.Siemens Touch Screen 3.Siemens Inverter 4.Other electronic parts for imported brand 5.Automatic Blister Feeder 6.Whole body Organic-glass cover 7. Automatic detection and Rejection System |
Ⅰ Note: The validity of this quotation is 60 days
Ⅱ Delivery 25 working days after receiving 30% deposit.
Ⅲ Payment 30% in advance, and 70% of the total value by T/T before shipment.
Installation and after sales service:
Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.
Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
We have 24hours hot line for Technical Support.
We get 18hours internet line for technical support.
Video camera in workshop to help you adjust and solve machine problem in working situation.

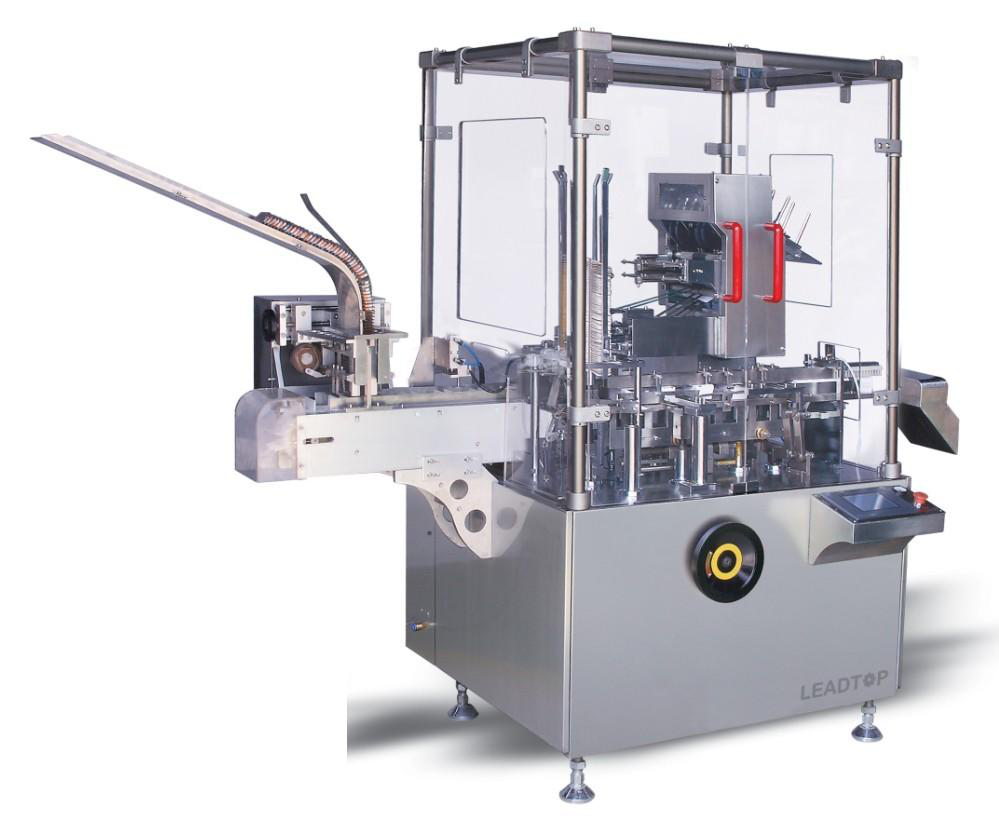

ZH-120D Vertical Type Automatic Cartoning Machine
General Description
This equipment is new model developing base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for automatic feeding product of multi-variety multi-specifications into carton (either for blister or bottle).Adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly. On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.
Technical Data
Type | ZH-120D |
Dimensions in mm | 2150mm×1140mm×1800mm (L×W×H) |
Weight in kg | 1100 |
Output & Speed
Steady production speed | 50-100 cartons/min |
Unfold Leaflets
Grammage | Between 60-70g/m2 |
Size range | (80-250) ×(90-170)mm (L×W) |
Fold range | (1-4 )fold |
Notice: The leaflet can be folded by the machine | |
Carton and blister
Grammage | Between 250-350g/m2 |
Carton Size mm | （65-125）×（30-85）×（12-50）mm |
Utilities
Standard power supply | 220V – 50Hz |
Power consumption in KW | 0.75 |
Air consumption | 120-160L/min |
Compressed Air Pressure | 0.6MPa |
Noise | ＜70 dB |
Features:
The cartoning machine includes an automatic station to form the cartons. The carton boxes are held by vacuum
No suction carton by missing blister
No suction carton by missing leaflet
Automatically displaying device for trouble, speed and finished products counting
Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
Adopt human-machine operation system.
International famous brand of electric components such for PLC touch screen, frequency inverters, etc
Stable performance, operation is easy Controls
Detection and Rejection System
l Blister presence detection sensor
l Leaflet presence detection sensor
l Carton present derection sens
Main Electronic Parts list | ||||
No | Name | Model and specification | Place of Origin or Brand | Qty |
1 | Main motor | R17DM80N4 0.75Kw/220V | Germany SEW | 1 |
2 | Frequency Converter | VLT2907PT4 | Denmark Danfoss | 1 |
3 | Touch screen | GP37WZ-BG41-24V | Japan Proface | 1 |
4 | PLC | S7-200 CPU224 | Germany Siemens | 1 |
5 | D/A Block | EM232 | Germany Siemens | 1 |
6 | VTE18-4N2212 | Germany SICK | 3 | |
Photoelectric Switch | WT100-N1439 | Germany SICK | 1 | |
8 | Sensor Proximity Switch | 1M12-04NNS-2W1 | Germany SICK | 6 |
9 | Power Switch | T0-2-1/EA | Germany Queensway Moeller | 1 |
10 | Switch Power | S-50-24 | Taiwan Mingwei | 1 |
11 | Moving Guider | BRH25B1L340NZO | Taiwan ABBA | 1 |
12 | Filter Reduce Valve | AW30-03BE | Japan SMC | 1 |
13 | Electromagnetic Valve | VQ21A1-5G-C8-F | Japan SMC | 4 |
14 | Vacuum occur device | ZH20DS-03-04-04 24V | Japan SMC | 2 |
15 | Silencer | AN402-04 | Japan SMC | 2 |
16 | Coder | E6B2-CWZ6C | Japan Omron | 1 |
17 | Relay | MY2NJ 220VAC | Japan Omron | 2 |
18 | Breaker | DZ47-D10/2P | China Yahua | 1 |
19 | Servo motor | MHMD022PIU/MSMDO82PIG | Japan Panasonic | 1 |
5. Packing list
No | Name | Specification | Uint | Qty | Remarks | |
1 | Automatic cartoning machine | ZH-120D | Uint | 1 | ||
Tool
List | 2 | Slotted head screwdriver | 4 | PCS | 1 | |
3 | Cruciform solt spanner | 4 | PCS | 1 | ||
4 | Movable spanner | 8 | PCS | 1 | ||
5 | Movable spanner | 10 | PCS | 1 | ||
6 | Inner hexagon spanner | Lengthen | Set | 1 | ||
7 | Pressure oil can | Pressureoilcan | PCS | 1 | ||
8 | Stiff spanner | 8-10 | PCS | 1 | ||
9 | Stiff spanner | 12-14 | PCS | 1 | ||
10 | Stiff spanner | 17-19 | PCS | 4 | ||
11 | Steel wire pliers（flat） | 8 | PCS | 1 | ||
12 | Steel wire pliers(acutilingual) | 4 | PCS | 1 | ||
13 | Spring | PCS | 4 | |||
Spare
Parts | 14 | Vacuum suction plate | Φ30 | PCS | 4 | |
15 | Vacuum suction plate | Φ16 | PCS | 4 | ||
16 | 0-Ring | Φ65*3.55 | PCS | 12 | ||
17 | Leaflet convey blet | 843*15*1 | PCS | 2 | ||
18 | Leaflet convey blet | 885*15*1 | PCS | 4 | ||
19 | Steel letter | (0-9)reverseword | PCS | Each 10 | ||
NO | Technical documentation | Unit | Qty | Remakes |
1 | ZH-120D Automatic cartoning machine Operation Manual | PCS | 1 | |
2 | Product qualified certificate | PCS | 1 |
Machine Installation Diagram:
