1000wog stainless steel female thread 1PC ball valve

ID:20082018285

Category: Manufacturing & Processing Machinery Pipeline Engineering & Equipment

FOB Price:US$ 5.000 / Piece(s)

MOQ:50.00 Piece(s)

Product Keywords:

stainless steel valvestainless steel ball valve1 piece ball valve

Payment Method:

L/CT/T

Product Category

Manufacturing & Processing Machinery > Pipeline Engineering & Equipment

Trademark

KEYUAN

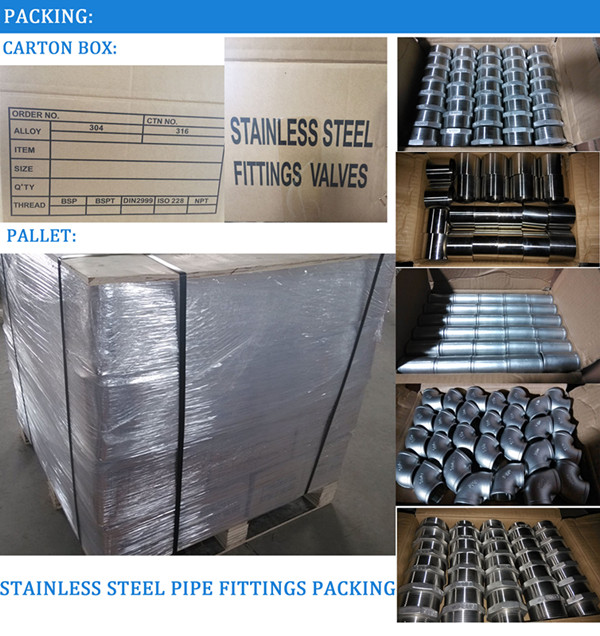

Product Package

纸箱+托盘

Specification

1/8"-4"

Place of Origin

China

Port

XINGANG

Specifications

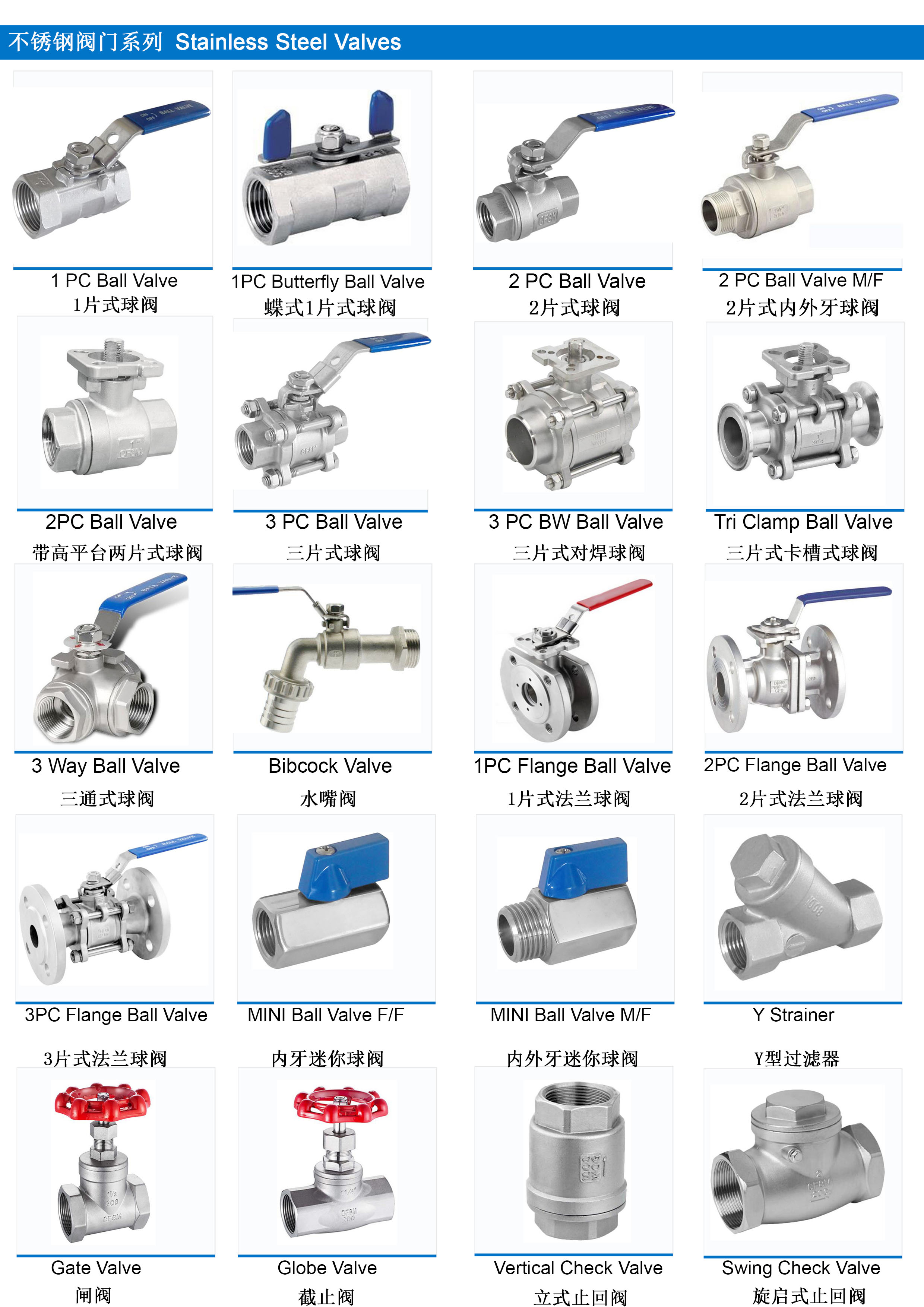

1-PC Stainless steel ball valve,2PC stainless steel ball valve,3PC Stainless steel ball valve
--API 6D certificated
--Thread End: BSPT, NPT, BSP,ISO228, DIN2999

3-pc stainless steel ball valves,2-pc stainless steel ball valves, 1-pc screwed ball valves with mouting pad, ball valves:

Features:
1) Small flow resistance
2) Swift opening and closing at 90° Angle
3) Compact structure
4) Excellent sealing performance
5) Easy maintenance
6) Widely used in water works, power generating factories, chemicals, food, paper making and pharmaceutical industries.

7) For chemical and industrial application.
High quality investment casting body and caps.

Product	1-PC ball valve
Material	SS304,316 ASTM A351-CF8M (DIN 1.4408) Stainless steel ASTM A351-CF8(DIN 1.4308) Stainless Steel
Size	1/4”-4”
Suitable temperature	-30-350 C
Suitable Medium	Water, air, oil products, corrosive liquid
Connection	BSP,BSPT,NPT,ISO228,DIN2999
Pressure temperature rating:	1/4" - 4" 1000 PSI (PN63) / 450deg. F 15% reinforced glass fibrous Teflon seats Blow-out proof stem S/S 316, adjustable stem packing. 100% tested air-under water at at 100 PSI (6 Bars) open & close position.
OPTIONS	Padlocking device, butterfly & oval handle
Working Pressure	1000PSI
