LTRJ-110 Main soft gel machine

Quotation and Solutions

Ⅰ  Note:     The validity of this quotation is 90 days

Ⅱ  Delivery  50 working days after receiving 30% deposit.

Ⅲ  Payment  30% of the total value by T/T in advance to start manufacture.

              70% of the total value by T/T before shipment.

Installation and after sales service:

Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.

Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.

After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

***Please check machine detailed information by following pages***

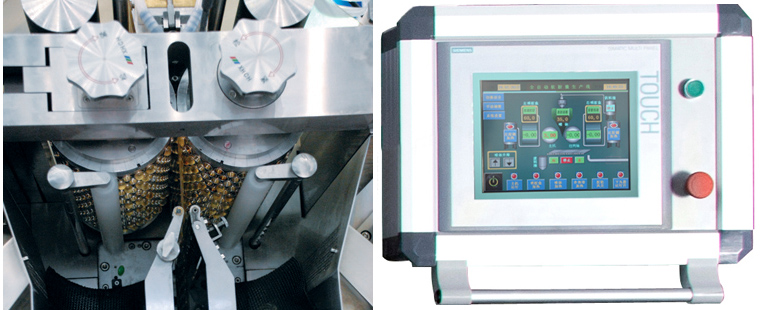

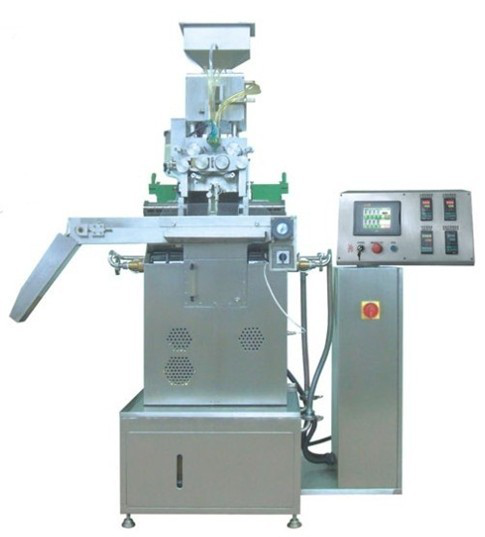

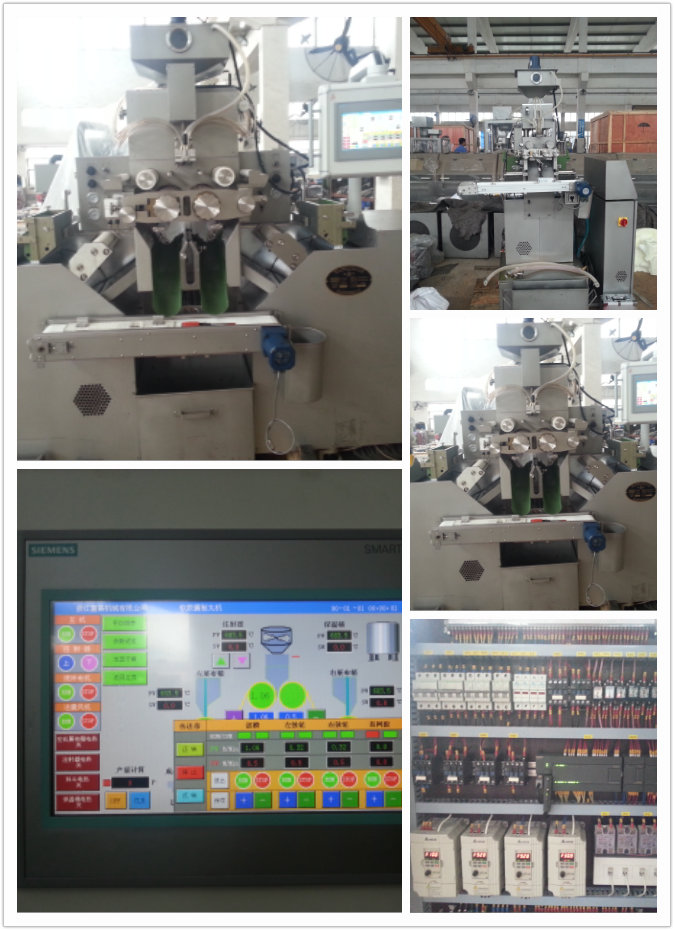

LTRJ-110 Lab Scale Soft Gelatin Encapsulation Machine

Application and Usage:

Soft gel encapsulation machine can quantificational inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of soft gel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the soft gel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favored by more and more manufacturers and used in the fields of medicine, health products, cosmetic and game-color ball and so on.
   This product has passed provincial-level appraisal of new product and the certification of EU adopted two items of patent technology in manufacturing with exquisite workmanship.

Main Technical Data:

Feature:

Strong product capacity, it can produce 5-9 million pieces per month (No.8 oval shape, 10hours/day, and 30days/month).

Injecting medicine part adopts advanced linearity driving system, and it makes sure that the precision of charging and filling is less than 2%.

Capsule package rate is up to 98%.

The gelatin ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil. The ribbon is lubricated by vegetable oil, so the capsules produced is free of wash.

High quality capsule deferent equipment adopts food conveyer belt authorized by American FDA, without poison and adhibition and easy to clean.

Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to insure the mould's service life.

Advanced process and assembly techniques make the complete appliance quality stabilization, high working rate, and good shape pill.

Adopt automatic system project of supplying capsule and material to reduce workers' labor intensity and improve the working environment, which accords with the requirement of GMP.

The liquid level in the gelatin box is fixed automatically in the constant position and the centigrade mater display the thickness of rubber, which is easy and accurate in adjustment.

The power of main motor is 1.5KW, which can avoid the phenomenon of insufficient driving power when the content is rather thick ( take 185 model for example).

Adopt the nonpoisonous materials to human body or now dropping matters into medicine liquid in this machine and medicine liquid, and the touching parts for gelatin.

Main Machine Specifications

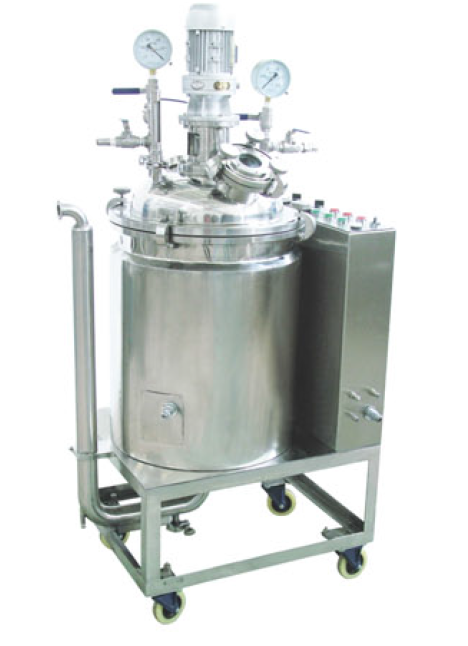

HJ-50B Gelatin Melting Tank

Application

This temperature control gelatin dissolving unit can be used in combination with laboratory soft gelatin encapsulation machine to provide gelatin liquid for making soft gelatin capsule.

The tank has a sealed three-layer structure. Electric heating is used for temperature control, multilayer shunt blade is used for agitating, and pneumatic conveyor top feeding system is used to the dissolve the gelatin liquid. Characterized by dual function of gelatin liquid dissolving and horizontal feeding, the tank has the merit of steady transmission, flexible propelling, easy handle and secure operation. It can be widely applied in dissolving small quantity of gelatin or mixing gelatins of different colors in the laboratory, or jointly works with small soft gelatin pill pressing machine and dripping pill machine.

Main Technical Data:
