LTRJ-200 Soft Gelatin Encapsulation Machine

Quotation Sheet:

Ⅰ  Note:     The validity of this quotation is 90 days

Ⅱ  Delivery  50 working days after receiving 30% deposit.

Ⅲ  Payment  30% of the total value by T/T in advance to start manufacture.

              70% of the total value by T/T before shipment.

Installation and after sales service:

Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.

Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.

After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

***Please check machine detailed information by following pages***

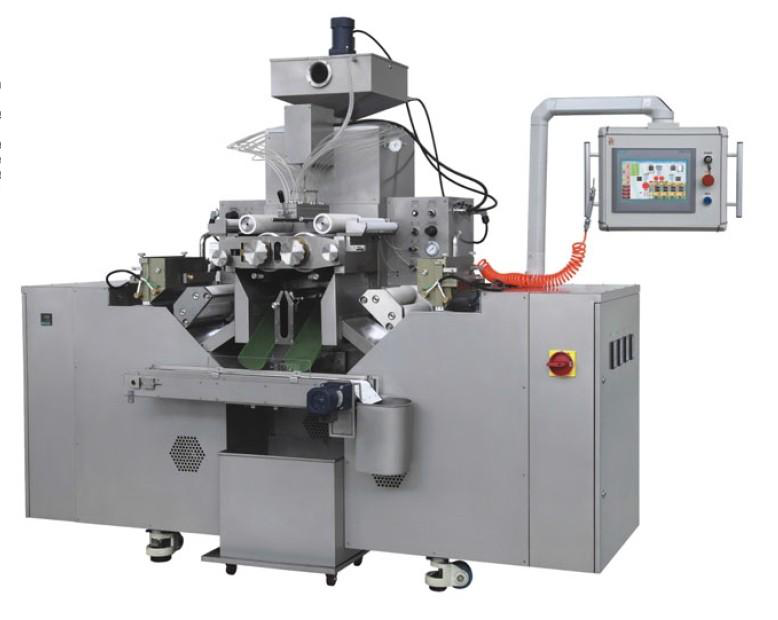

LTRJ-200 Soft Gelatin Encapsulation Machine Main machine Application and Usage:

Soft gel encapsulation machine can quantification ally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of soft gel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the soft gel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favored by more and more manufacturers and used in the fields of medicine, health products, cosmetic and game-color ball and so on.
   This product has passed provincial-level appraisal of new product and the certification of EU adopted two items of patent technology in manufacturing with exquisite workmanship.

Main Technical Data:

Feature:

 Strong product capacity, it can produce 300 million granules (No.8 oval shape, 3 revolutions/minute, 24 hours / day, 300 days/year).

 Injecting medicine part adopts advanced linearity driving system, and it makes sure that the precision of charging and filling is less than 2%.

 Capsule package rate is up to 98%.

 The gelatin ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil. The ribbon is lubricated by vegetable oil, so the capsules produced is free of wash.

 High quality capsule deferent equipment adopts food conveyer belt authorized by American FDA, without poison and adhibition and easy to clean.

 Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to insure the mould's service life.

 Advanced process and assembly techniques make the complete appliance quality stabilization, high working rate, and good shape pill.

 Adopt automatic system project of supplying capsule and material to reduce workers' labor intensity and improve the working environment, which accords with the requirement of GMP.

 The liquid level in the gelatin box is fixed automatically in the constant position and the centigrade mater display the thickness of rubber, which is easy and accurate in adjustment.

 The power of main motor is 1.5KW, which can avoid the phenomenon of insufficient driving power when the content is rather thick ( take 185 model for example).

 Adopt the nonpoisonous materials to human body or now dropping matters into medicine liquid in this machine and medicine liquid, and the touching parts for gelatin.

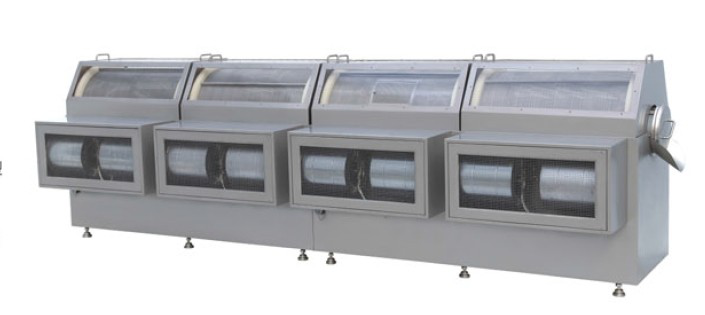

 ZL-470A Tumble Dryer

Feature of the Dryer:

 Tumble dryer is made of stainless steel with 4 sections in each line. Each drum is provided with an independent transmission system, which can run clockwise(drying) or anticlockwise(delivering materials)at your will.

 It is made of material without lubrication oil, avoiding the pollution aroused from the lubrication oil thoroughly, which can keep the whole machine clean during.

 It is made of stainless steel plates, with smooth inner wall and capsules while the drums are drying them, and raised the standard rate of soft capsules.

 A mass-rate air fan has been provided to its tumble dryer, forming fluidized bed reduce swiftly the water in the shell of capsules.

 The whole machine has been designed according to the idea that t is easy to clean and dismount, do not need to use a tool in machine and reduce operators’ labor  intensity. Any part of the machine can also be dissembled easily at your will, without affecting normal turning of each of drums.

Main Technical Data:

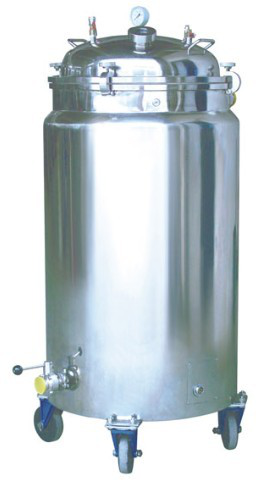

BW-170 Jacket Gelatin Storage Tank

This tank is used for storage the gelatin with Warm Keeping function.

Main technical Data:

Volume:      200L

Water Storage Volume:  70L

Power:       220V 3Kw

Dimension:     Dia.690mm*height.1420mm

Net Weight:     170Kg

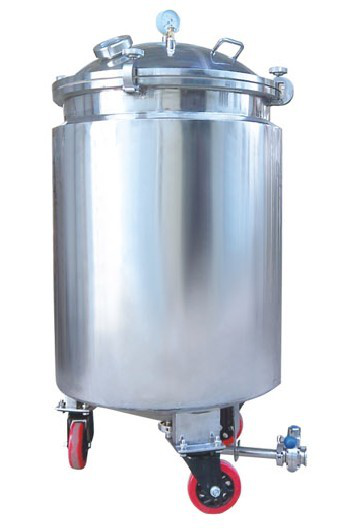

YL-200 Material Tank

This is Raw Material Storage tank.

Main Technical Data:

Volume:   200L

Dimension:  Dia.600mm*height.1250mm

Net Weight:  80Kg

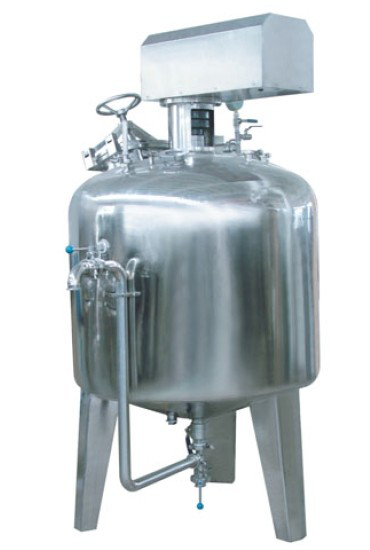

HJ-450B Gelatin Melting Tank

Flange connection, easy to clean, holistic heat preservation and economy in sources, three feet support, out put by pneumatic for reducing the tank height.

Main Technical Data:

Efficiency Volume:     450L

Jacket layer hot water volume:  150L

Motor Power:       380V 50Hz 2.2Kw

Heating Power:      220V 9KW

Dimension:       Dia.1200*2400mm

Net Weight:       1100kg

Total Power:       11.2kw

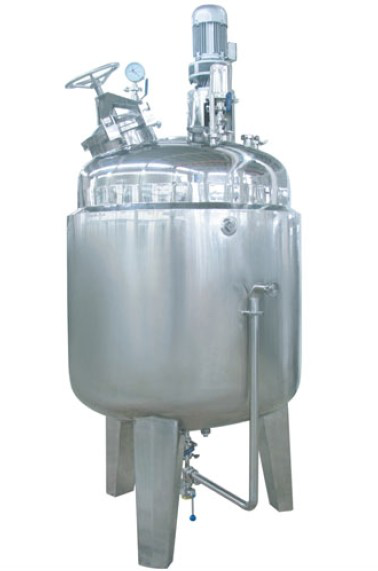

BPY-450 Material Preparation Tank

Flange connection, easy to clean, holistic heat preservation and economy n sources, three feet support, out put by pneumatic for reducing the tank height.

Main Technical Data:

Efficiency Volume:      450L

Jacket layer hot water volume:   150L

Motor Power:        380V 50Hz 1.1kw

Heating Power:       220V 6Kw

Dimension:        Dia.1100*height.2650mm

Net Weight:        900Kg

Total Power:        7.1Kw

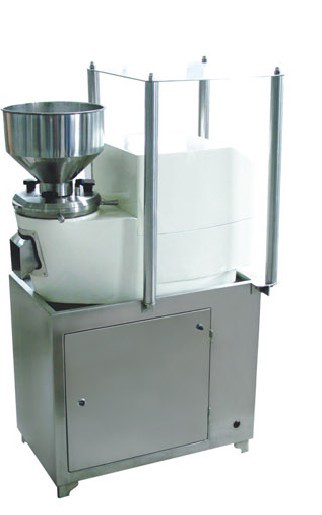

JTM-130 Colloid Mill

Main Technical Data:

Rotary Speed: 6000r/min

Power Supply: 380V 50Hz

Dimension: 760*490*1260mm

Net Weight: 235Kg

FS-100 Gelatin Puverizer

Main Technical Data:

Shattering Rotary Speed: 120r/min

Power Supply:    380V 50Hz

Dimension:     1180*570*630mm

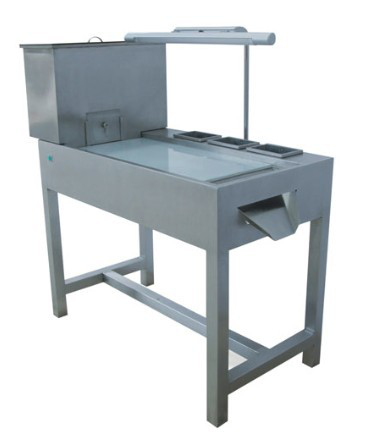

JYT-A Inspection Table

Main Technical Data:

Power Supply: 220v 50hz

Dimension: 1200*550*1200mm

Net Weight: 65Kg

Who we are:

       China Ruian City LeadTop Pharmaceutical Machinery Co., LTD (LTPM)  is recognized as a major pharmaceutical equipment manufacturer and supplier. Our company is founded in Ruian, China, with a base of 18 years of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines at competitive prices.

 Faith of LTPM:

       Supply--Manufacturing--Technology--Quality Control--Warehouse Management--Sales--After Sales Service

       LTPM offer whole pharmaceutical machinery solutions from raw material to finished product.

Supply:

     We adopt World Top Brand electronic parts and mechanical parts.
