Encapsulation MachineLTRJLTRJ-250Soft GelatinPacking Machine
T/T
LTRJ-250 Soft Gelatin Encapsulation Machine
Quotation Sheet:
Quote Subject: LTRJ-250 Soft Gelatin Encapsulation Machine
Item | Description of the goods | Quantity | FOB Shanghai Or Ningbo | Total Price
| Remark |
1 | Main Machine(Encapsulation Machine) | 1 | USD61,500 | USD61,500 | |
2 | Tumble Dryer (Model: ZL-650A) | 1 | USD16,200 | USD16,200 | |
3 | Gelatin Storage Tank (Model:BW-200) | 2 | USD3,270 | USD6,540 | |
4 | Raw Material Tank (YL-200) | 2 | USD1,630 | USD3,260 | |
5 | Gelatin Melting Tank (HJ-450B) | 1 | USD11,930 | USD11,930 | |
6 | Hot Water Exchanger(RJ-300) | 1 | USD3,230 | USD3,230 | |
7 | Vacuum Pump | 1 | USD660 | USD660 | |
8 | Hot water circulating pump | 1 | USD230 | USD230 | |
9 | Material Preparation Tank | 1 | USD9,260 | USD9,260 | |
10 | Colloid Miller | 1 | USD4,000 | USD4,000 | |
11 | Drying Tray | 1000 | USD13.55 | USD13,550 | |
12 | Tray Trolley | 30 | USD155 | USD4,650 | |
13 | Gelatin Pulverizer(FS-100) | 1 | USD2,280 | USD2,280 | |
14 | Centrifuge（SS-600） | 1 | USD2,770 | USD2,770 | |
15 | Inspection Desk (JYT-A) | 3 | USD1,110 | USD3,330 | |
Total Price | USD 143,390 |
Ⅰ Note: The validity of this quotation is 90 days
Ⅱ Delivery 60 working days after receiving 30% deposit.
Ⅲ Payment 30% by T/T in advance, 70% of the total value by T/T before shipment.
Installation and after sales service:
Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.
Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.

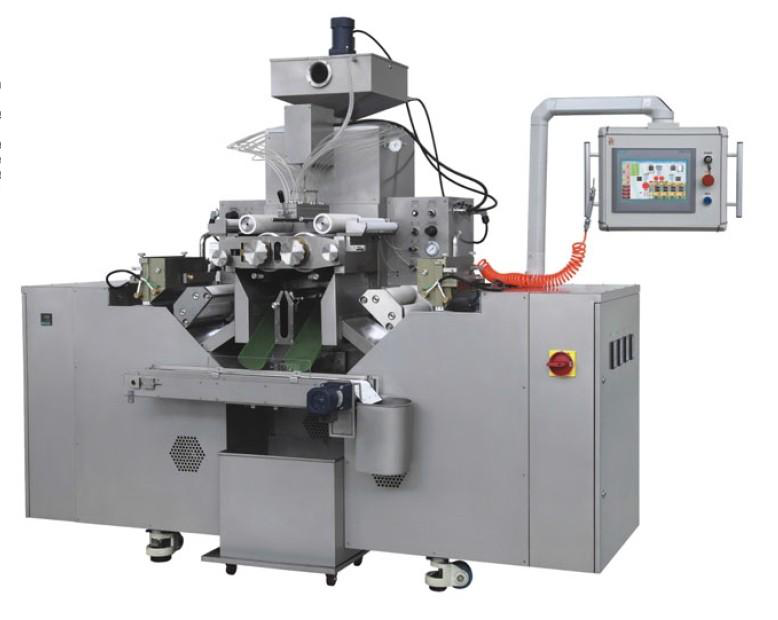

LTRJ-250 Soft Gelatin Encapsulation Machine
Main machine Application and Usage:
Softgel encapsulation machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the softgel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favoured by more and more manufacturers and used in the fields of medicine, health products, cosmetic and game-color ball and so on.
This product has passed provincial-level appraisal of new product and the certification of EU adopted two items of patent technology in manufacturing with exquisite workmanship.
Main Technical Data:
ITEM/MODEL | LTRJ-250 |
Rotary speed of die roll | 0-5rpm |
Supplying Volume for flow single-pillar pistol | 0-2ml |
Difference among filling volume | ±2% |
Power for whole machine | 17 KW |
Power supply | 380V 50HZ |
Dimention | 2420×1180×2210mm |
Weight of whole machine | 1800Kg |
Feature:
Strong product capacity, it can produce 300 million granules (No.8 oval shape, 3 revolutions/minute, 24 hours / day, 300 days/year).
Injecting medicine part adopts advanced linearity driving system, and it makes sure that the precision of charging and filling is less than 2%.
Capsule package rate is up to 98%.
The gelatin ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil. The ribbon is lubricated by vegetable oil, so the capsules produced is free of wash.
High quality capsule deferent equipment adopts food conveyer belt authorized by American FDA, without poison and adhibition and easy to clean.
Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to insure the mould's service life.
Advanced process and assembly technics make the complete appliance quality stabilization , high working rate, and good shape pill.
Adopt automatic system project of supplying capsule and material to reduce workers' labor intensity and improve the working environment, which accords with the requirement of GMP.
The liquid level in the gelatin box is fixed automatically in the constant position, and the centigrade mater display the thickness of rubber, which is easy and accurate in adjustment.
The power of main motor is 1.5KW, which can avoid the phenomenon of insufficient driving power when the content is rather thick ( take 185 model for example).
Adopt the nonpoisonous materials to human body or now dropping matters into medicine liquid in this machine and medicine liquid, and the touching parts for gelatin.

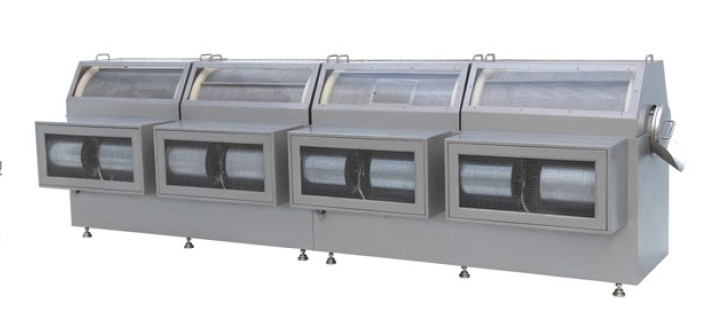

ZL-650A Tumble Dryer
Feature of the Dryer:
Tumble dryer is made of stainless steel with 4 sections in each line. Each drum is provided with an independent transmission system, which can run clockwise(drying) or anticlockwise(delivering materials)at your will.
It is made of material without lubrication oil, avoiding the pollution aroused from the lubrication oil thoroughly, which can keep the whole machine clean during.
It is made of stainless steel plates, with smooth inner wall and capsules while the drums are drying them, and raised the standard rate of soft capsules.
A mass-rate air fan has been provided to its tumble dryer, forming fluidized bed reduce swiftly the water in the shell of capsules.
The whole machine has been designed according to the idea that t is easy to clean and dismount, do not need to use a tool in machine and reduce operators’ labor intensity. Any part of the machine can also be dissembled easily at your will, without affecting normal turning of each of drums.
Main Technical Data:
Item/Model | ZL-650A |
Rotary cage quantity | 6 sections |
Speed of Tumble Dryer | 10rpm |
Total Power | 5.4kW |
Power supply | 380V 50HZ |
Fan Volume | 12×1000M3/H |
Fan power | 220V 70W ×12 |
Net weight | 650kg |
Overall Dimensions | 4200×1060×1200mm |

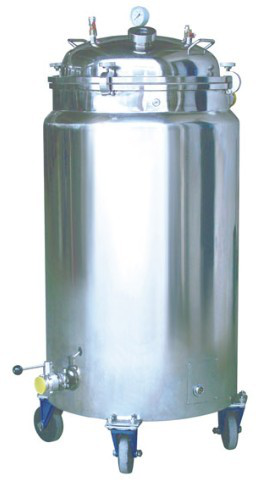

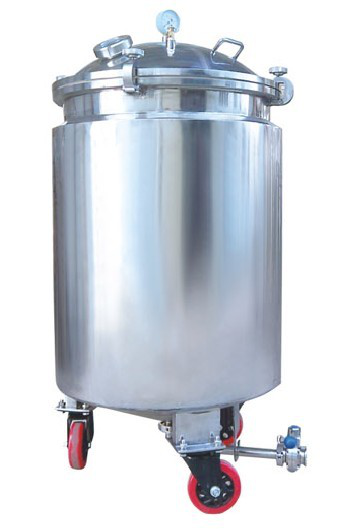

BW-200 Jacket Gelatin Storage Tank
This tank is used for storage the gelatin with Warm Keeping function.
Main technical Data:
Volume: 200L
Water Storage Volume: 70L
Power: 220V 3Kw
Dimension: Dia.690mm*height.1420mm
Net Weight: 170Kg
YL-200 Material Tank
This is Raw Material Storage tank.
Main Technical Data:
Volume: 200L
Dimension: Dia.600mm*height.1250mm
Net Weight: 80Kg

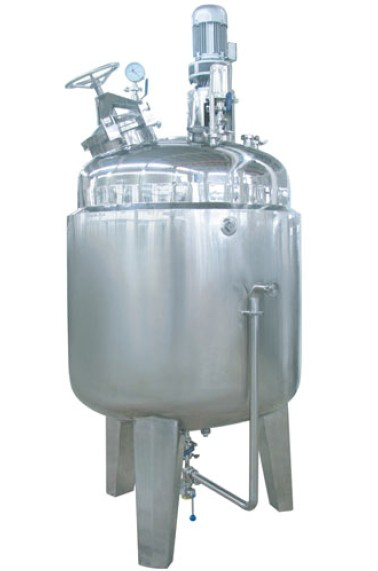

HJ-450B Gelatin Melting Tank
Flange connection, easy to clean, holistic heat preservation and economy in sources, three feet support, out put by pneumatic for reducing the tank height.
Main Technical Data:
Efficiency Volume: 450L
Jacket layer hot water volume: 150L
Motor Power: 380V 50Hz 2.2Kw
Heating Power: 220V 9KW
Dimension: Dia.1200*2400mm
Net Weight: 1100kg
Total Power: 11.2kw

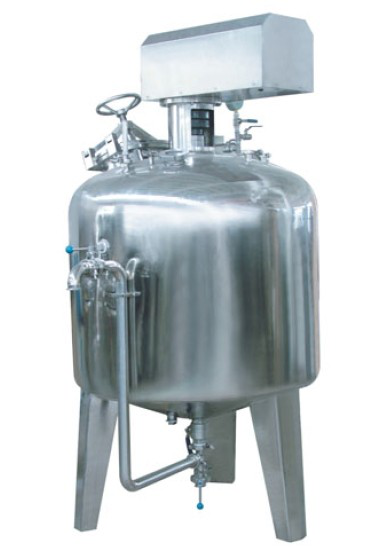

BPY-450 Material Preparation Tank
Flange connection, easy to clean, holistic heat preservation and economy n sources, three feet support, out put by pneumatic for reducing the tank height.
Main Technical Data:
Efficiency Volume: 450L
Jacket layer hot water volume: 150L
Motor Power: 380V 50Hz 1.1kw
Heating Power: 220V 6Kw
Dimension: Dia.1100*height.2650mm
Net Weight: 900Kg
Total Power: 7.1Kw

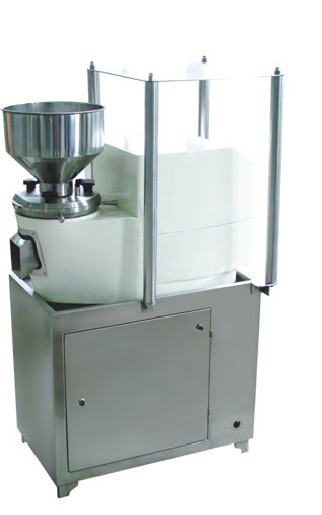

JTM-130 Colloid Mill
Main Technical Data:
Rotary Speed: 6000r/min
Power Supply: 380V 50Hz
Dimension: 760*490*1260mm
Net Weight: 235Kg

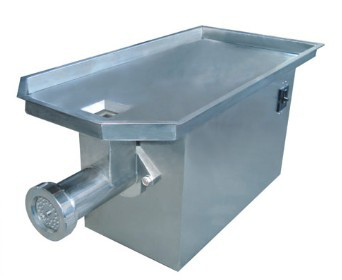

FS-100 Gelatin Puverizer
Main Technical Data:
Shattering Rotary Speed: 120r/min
Power Supply: 380V 50Hz
Dimension: 1180*570*630mm

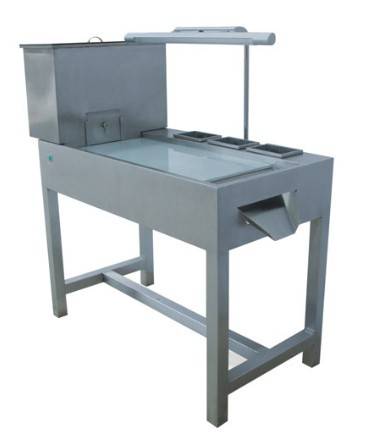

JYT-A Inspection Table
Main Technical Data:
Power Supply: 220v 50hz
Dimension: 1200*550*1200mm
Net Weight: 65Kg
