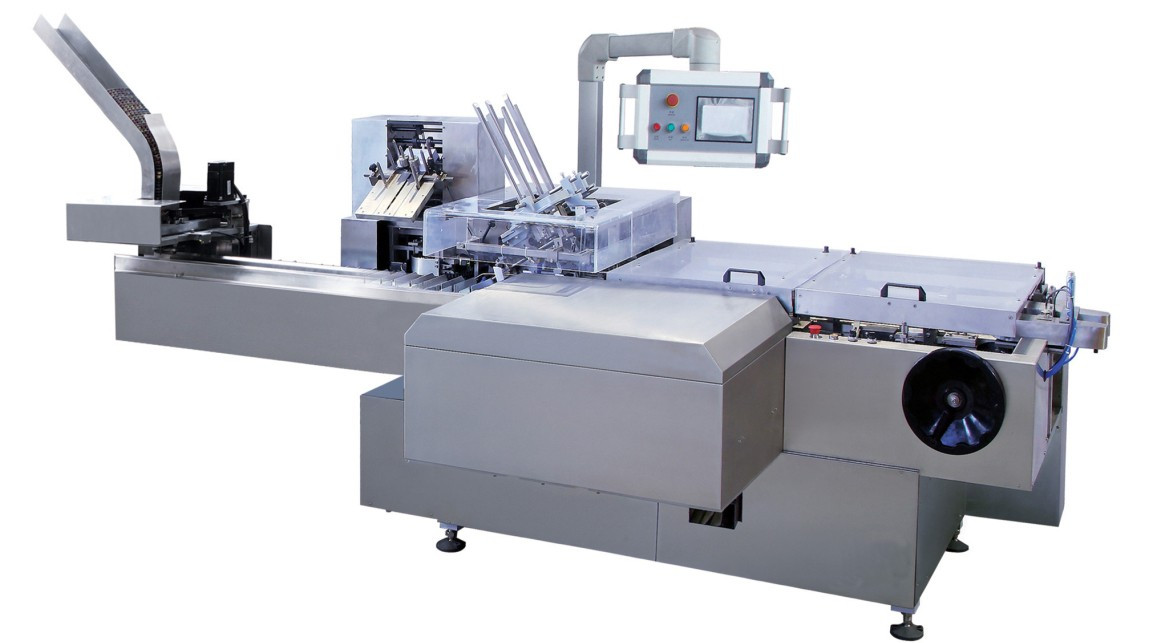

WZH-200 Multifunctional Automatic Cartoner
=
Quotation Sheet:
Product and Model: WZH-200 Multifunctional Automatic Cartoner
Price: 55,000 USD CNF KARACHI include 10% commission (Include Siemens Brand PLC, Touch Screen, Inverter and other electronic parts for imported brand, Automatic Blister Feeder, Whole body Organic-glass cover, Automatic detection and Rejection System).
Payment: 30% for advance By T/T, 70% T/T before shipment.
Delivery Time: within 45 days when receive your T/T.
General Description
WZH-200 Multifunctional Automatic Cartoner is new model which innovation design base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry “GMP “standard to manufacture. With high efficiency, high performance production capacity, leaflet folding and conveying, carton opening and forming, posterior pushing structure and related technology all reach Europe and USA standards; Simple design and posterior continuous pushing structure makes operation and maintenance more convenient; three equal rotation opening carton and under twice pre-forming device to ensure that carton open and form completely
This model is automatic high speed continuous cartoning machine which is high performance product incorporates pneumatic-photo-electro-mechanic. It suitable for automatic inserting ALU-PVC blister, bottle, soft tube, soft AL/AL strips and pouch into carton, also can link to matching machine to form production line
Functions and Options
1. No product no suck leaflet, no leaflet no suck carton
2. Less load or no load product from magazine, machine empty run, product pushing missing, machine stop with alarm
3. No suck leaflet continuous many times, machine automatic stop.
4. Compress air and vacuum negative pressure too low, machine stop with alarm
5. Posterior pusher make operating more convenient.
6. Quick and easy changeover product different size by handwheel though dial plate scale,
7. Main drive with overload protection device
8. Servo drive loading system
9. Electrical and pneumatic components are famous international brand
10. Automatic display speed, fault alarm and counter on touch screen
Technical Data
Item | Parameters | |
speed | 200box/min | |
Carton | Grammage | Between 250-350g/m2 |
Size | （78-150）mm×（33-70）mm×（15-60）mm | |
Instructions | Grammage | Between( 50-70)g/m2 |
Size range | (130-160) ×(100-130)mm (L×W) | |
Fold range | (1-4 )fold | |
Air Compressor | Compressed Air Pressure | ≥0.6mpa |
Air consumption | ≥0.3m3/min | |
Standard power supply | 380V 50HZ | |
Power consumption in KW | 1.5 kw | |
Dimensions in mm | 4300㎜×1440㎜×1600㎜ | |
Weight in kg | 1500kg | |
Component list 1
No | Name | Model and Specification | Place of Origin or place | Qty |
1 | Main Motor | R57+DRE100M4 2.2KW/220V/380V | Germany SEW | 1 |
2 | Frequency Convertor | FC-051P2K25S2E20H | Denmark Danfoss | 1 |
3 | Vacuum Pump | 40P103278 | Germany Busch | 1 |
4 | Breaker | DZ47-D63/4P | Chinese Yaohua | 1 |
5 | Breaker | DZ47-D63/3P | Chinese Yaohua | 2 |
6 | Breaker | DZ47-D63/1P | Chinese Yaohua | 3 |
7 | AC Contactor | CJX2 3210 | China CHNT | 1 |
8 | AC Contactor | CJX2 1210 | China CHNT | 1 |
9 | Switch Power | SOTOP PS207 | Siemens | 1 |
10 | Power Switch | T0-2-1/EA/SVB | Germany Queensway Moeller | 1 |
11 | Emergency Stop Button | ZB2-BE102C | French Schneider | 2 |
12 | Button | ZB2-BE102C | French Schneider | 4 |
13 | Relay | MY2NJ/24V | Japan Omron | 19 |
14 | Touch Screen | Smart 1000 IE | Siemens Smart | 1 |
15 | PLC | Smart ST60 | Siemens 200 Smart | 1 |
16 | Coder | E6B2-CW26C | Japan Omron | 1 |
17 | Optical Fiber Amplifier | E3X-NA11 | Japan Omron | 4 |
18 | Optical Fiber | E32-ZD200 | Japan Omron | 4 |
19 | Photoelectric Switch | D-73277 | Germany Leuze | 3 |
20 | Proximity Switch | TL-Q5MC1 | Japan Omron | 1 |
21 | Press Switch | QPM11-N0 | AEK | 1 |
Component list 2
No | Name | Model and Specification | Place of Origin or place | Qty |
22 | Filter Pressure Reduce Valve | AW30-03E | Japan SMC | 2 |
23 | Electromagnetic Valve | VP542R-5GD1-03A | Japan SMC | 5 |
24 | Electromagnetic Valve | VQ2321-5G1-02 | Japan SMC | 6 |
25 | Servo Motor Drive | MBDHT2510E 400W | Panasonic | 1 |
26 | Servo Motor | MHMD042G1C 400W | Panasonic | 1 |
27 | Servo Reducer | NS60-010 | Naif Technology | 1 |
28 | Ac Speed Controller | US620002 | WanLi | 2 |
29 | Ac Motor | 100YYJR-200W | WanLi | 2 |
30 | Signal Light | XVGB3SMA 24V | French Schneider | 1 |
31 | Safety Door | XCS-PA592 | French Schneider | 3 |
32 | Cylinder | MI20*20-CA | Airtac | 1 |
33 | Cylinder | MI20*15-CA | Airtac | 1 |
34 | Cylinder | MAL40*40 | Kaogeer | 1 |
35 | Cylinder | MAL40*25 | Kaogeer | 1 |
36 | Cylinder | SBA32*20 | Kaogeer | 1 |
37 | Cylinder | SBA32*10 | Kaogeer | |
38 | Hand Valve | 4R210-08 | Kaogeer | 1 |
39 | Cylinder | TR16*20-S | 亚德客 | 1 |
40 | Gas spring | YQ12/25-110-440/1000N B-B | Zhenghe | 4 |
41 | Gas spring | YQ8/30-238/400N B-B | Zhenghe | 2 |
42 | Gas spring | QB16/300N | JINGYE | 2 |
No. | Name | Specification | Unit | Qty | Remark | |||
1 | Automatic Cartoning Machine | WZH-200 | SET | 1 | ||||
2 | Leaflet Flat Conveying Belt | 1500*18*1 | PCS | 2 | ||||
3 | Leaflet Flat Conveying Belt | 1390*18*1 | PCS | 2 | ||||
4 | Wire-Cutter | 8″ | PCS | 1 | ||||
5 | Long Nose Pliers | 4″ | PCS | 1 | ||||
6 | Screwdriver | Flat blade | PCS | 1 | ||||
7 | Screwdriver | Cruciform | PCS | 1 | ||||
8 | Inner Hexagon Spanner | lengthening | PCS | 1 | ||||
9 | Movable Spanner | 8 Inch | PCS | 1 | ||||
10 | Movable Spanner | 12 Inch | PCS | 1 | ||||
11 | Open Spanner | 8-10 | PCS | 1 | ||||
12 | Open Spanner | 12-14 | PCS | 1 | ||||
13 | Pressure Oil Can | Pressure Oil Can | PCS | 1 | ||||
14 | Steel Letter Batch Number | 0-9 | PCS | Each of 10 PCS | ||||
15 | Suck Plate | ￠32 | PCS | 3 | ||||
16 | Product Conveyor | Plastic | PCS | 10 | ||||
No. | Technical documentation | Unit | Qty | Remark | ||||
1 | WZH-200 Multifunctional Automatic Cartoner Manual | PCS | 1 | |||||
2 | Product qualified certificate | PCS | 1 | |||||
3 | Frequency Converter Operation Manual | PCS | 1 | |||||
Packing list
Installation and after sales service:
n Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you.
n Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
