Roll Forming MachineHighway Guardrail Machineguardrail bending machine express way making machine
L/CT/TD/POthers
1.Title:PV support bracket
2. Properties of processed material：
Material： galvanized steel
Material thickness：2.5-3.2mm
Yield strength:235-450mpa

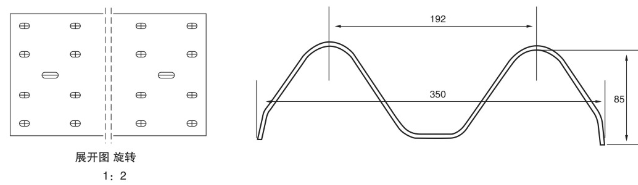

3. Profile drawing
4.Machine details
Flattening part | Upper leveling roller | 3 stations | |
Lower leveling roller | 4 stations | ||
Shaft material | 45# steel | ||
Roll material | 45# steel and 90mm diameter with heat treatment | ||
Hydraulic Cutting and punching system | Type of cutting | Hydraulic cutting | |
Punching type | Hydraulic punching | ||
Punching die | Cr 12 with quenching | ||
Punching speed | Synchronized with whole production line | ||
Oil pump | 18.5KW | ||
Main Forming machine | Machine stand | Cast iron memorial arch | |
Forming steps | 16 steps | ||
Shaft diameter | 90mm | ||
Machine frame | 350# H steel welded | ||
Roller material | GB Cr15 | ||
Shaft material | GB 45# steel | ||
Work speed | 0-8m/min | ||
Transmission | By gear box(18 units) | ||
Power of motor | 30kw | ||
Voltage | 380V 50HZ 3Phase | ||
Machine production line | 25m*1.6*1.3m | ||
Run out of table | Length | 3m |

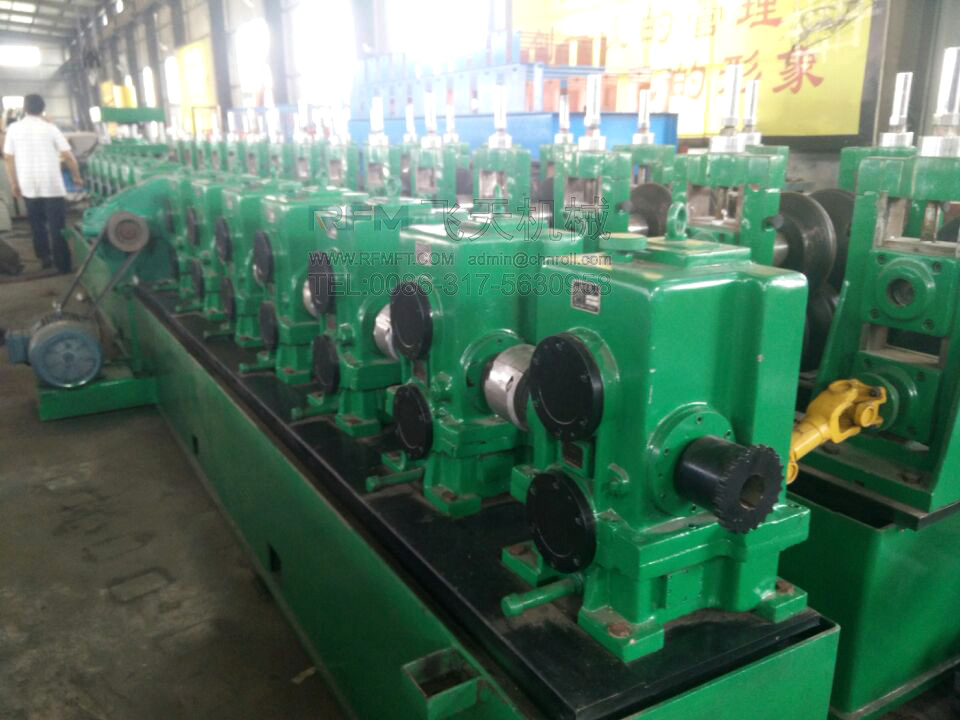

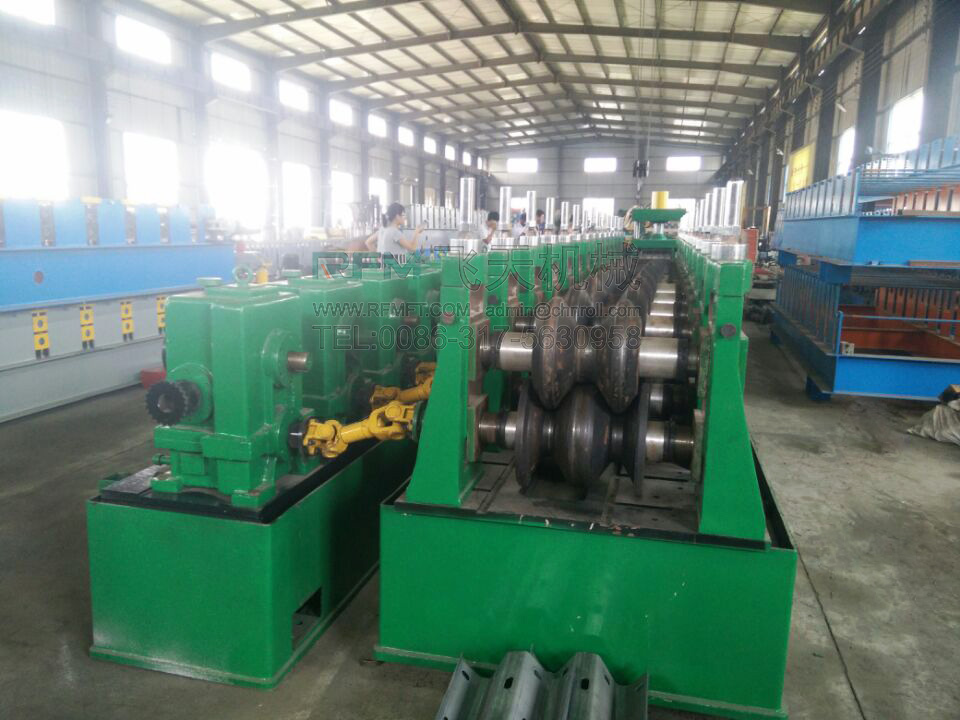

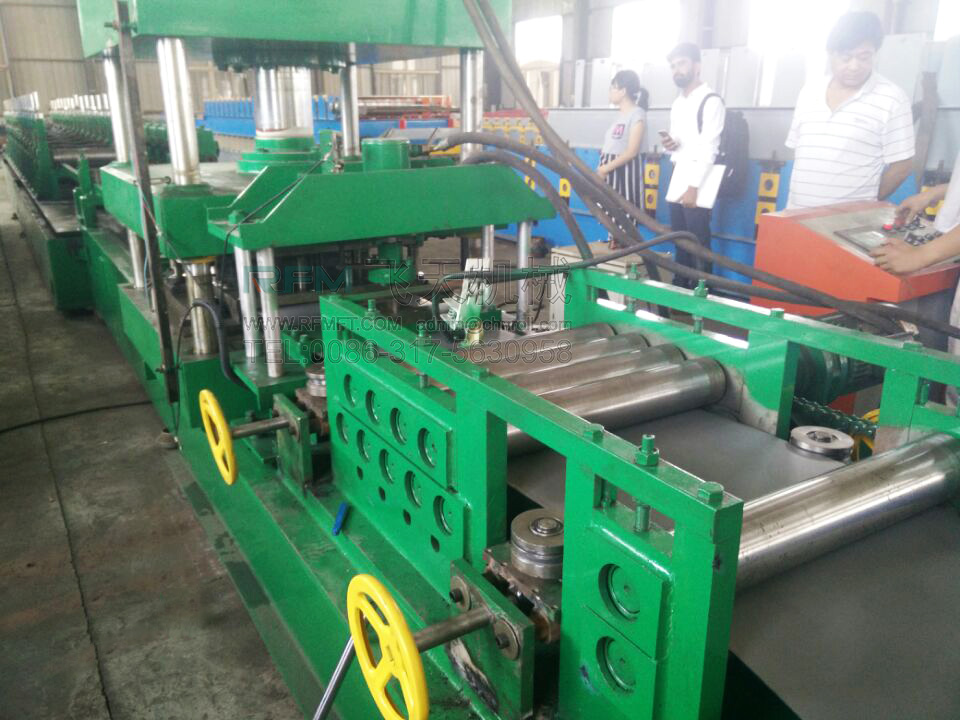

5.Machine quick view
5.Duration and Service
Delivery time : 45 days after the receipt of deposit.
Warranty: 2 years
After-sales service: 24h*7days*1year’s on line and
engineer service overseas
Machine adjusting in customer’s factory
Machine adjusting on video call during Edidemic
6. Contact me
If you are interested in our machine,please contact me in whatsapp 008613582478685.
