DPHDPH-220Packing MachineBlister Packing Machine Plastic Packing MachineAluminum PlasticHigh Speed Packing MachineHigh Speed
T/T
Quotation Sheet:
Quote Subject: DPH-220 High Speed Aluminum Plastic Blister Packing Machine And Cartoning Production Line
Item | Description of the goods | Quantity | Unit Price | Total Amount FOB Ningbo | Remark |
1 | DPH-220 High Speed Aluminum Plastic Blister Packing Machine | 1 Set | USD44,800.00 | USD44,800.00 | Include: 1.Contact Part with stainless steel 316L 2.Siemens touch screen and PLC control 3.One set of plastic-aluminum mould 4.One set of Aluminum-Aluminum mould 5.Vibration Feeding Tracks 6.50 Receipts for storage 7.One set of water chiller 8.Product auto lifting
|
2 | Control and Connect conveyor for DPH-220 And ZH-100 Cartoning Machine | USD15,000.00 | Includes: 1.Conveyor belt 2.Auto feeding system 3.Mechanical inspection System, rejection System | ||
3 | ZH-100 Cartoning Machine | 1 Set | USD28,800.00 | USD28,800.00 | Include: 1.Siemens Brand touch screen,PLC,and Inverter 4.Automatic detection and Rejection System 5. Automatic Blister Feeder 6.Whole body stainless steel 304 7.Automatic Leaflet folding device |
4 | The carton glueing system with American Norson brand | 1 Set | USD13,500.00 | USD13,500.00 | For cartoning glue sealing |
5 | LTK68C Ink Jet Printing Machine | 1 Set | USD4,500.00 | USD4,500.00 | Include: 2 meters of conveyor belt |
Optional part | |||||
1 | Camera inspection system | USD13,800.00 | |||
Ⅰ Note: The validity of this quotation is 60 days
Ⅱ Delivery 50 working days after receiving 30% deposit.
Ⅲ Payment 30% by T/T in advance, 70% of the total value by T/T before shipment.
Installation and after sales service:
Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.
Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.

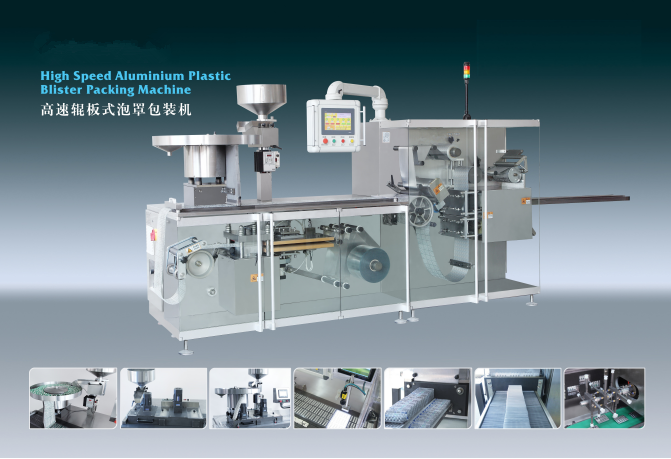

DPH-220 High Speed Aluminum Plastic Blister Packing Machine
Simple Introduction:
DPH-220 blister packing machine is a machine adopts in the lead position of quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable.
DPH-220 combines the advantages of good forming of flat pattern packing machine and high speed of roller pattern machine. The forming could be done in low speed through reasonable speed matching. And the sealing station, compressing station and punching station could achieve a speed of 120 cutting per minute. High speed is with perfect function
This series machine is at high precise and the latest roller and plate type blister packing machine, developed by our company. It applies to pharmaceutical industry, food industry, medical appliance and electronically area. It is suitable for packing capsules, tablets, milk pieces, candy, electronically element and similar material, with sealing packing in aluminum PVC, paper PVC Blister Package.
Main Technical Data:
Model | DPH-220 |
PVC Non-toxic PVC | Thickness 0.25 X Width≤220（mm） |
PTP Aluminum Foil | Thickness0.02 X Width ≤220（mm） |
Cutting speed(3 Gears) | 40～120times/min |
Packing Efficiency | Capsules：11-17 ten thousand/h |
Overall Dimensions | （LXWXH）3140mmX940mmX1600 |
Weight | 4000Kg |
Installed Power | 12.5Kw 380V 50Hz/220V 60Hz |
Feature:
Plate-type universal feeder although easy and not high effective, it is very extensively applied and suitable for large size and small size capsule, various tablets and pills.
High speed vibrating feeding. The feeder can suitable for any speed of the machine. Our Vibration Feeder adopts Stainless Steel tube for feeding, Suitable for GMP Standard.
High-precise servo stepping. The machine adopts Servo Motor for Running. So the speed adjusting and running will be more accuracy.
The machine is equipped Double Sealing makes the Sealing Perfect, no air run trough the seal.
Whole Body Stainless steel with Flexi Glasses. Better Appearance.
Machine Consist:

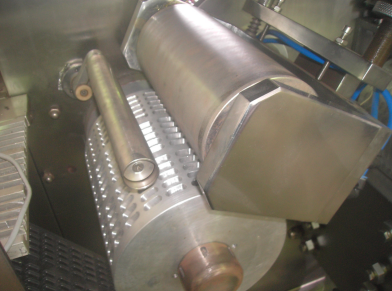

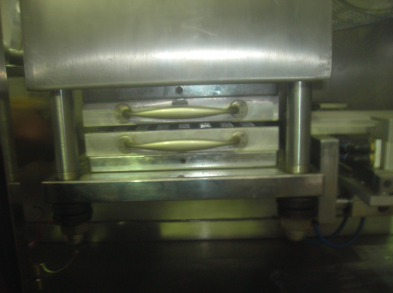

Touch Screen: Forming Mould:

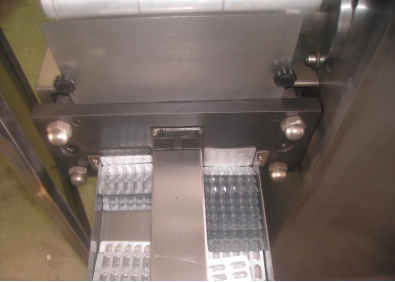

Sealing Mould: Cutting Mould:

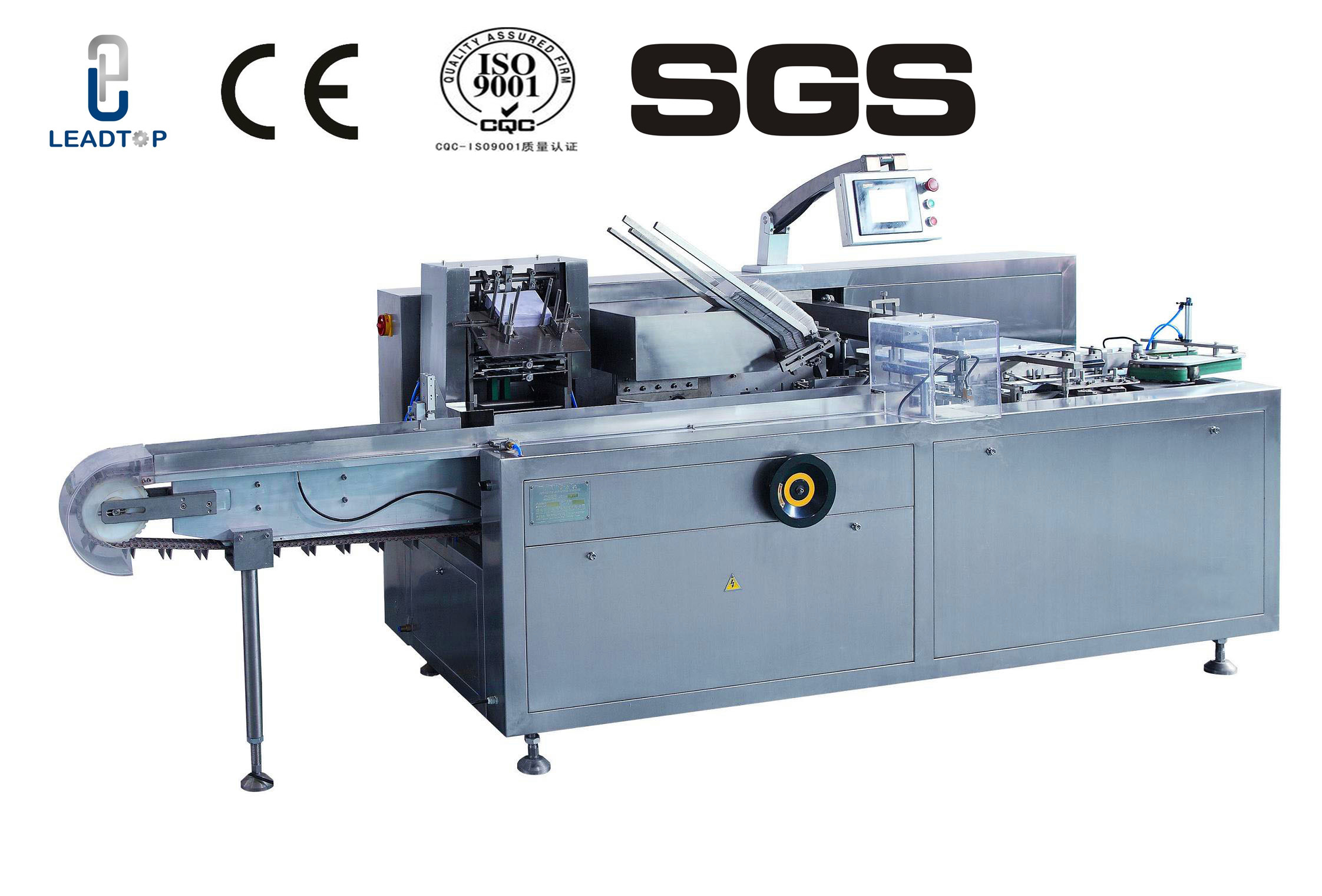

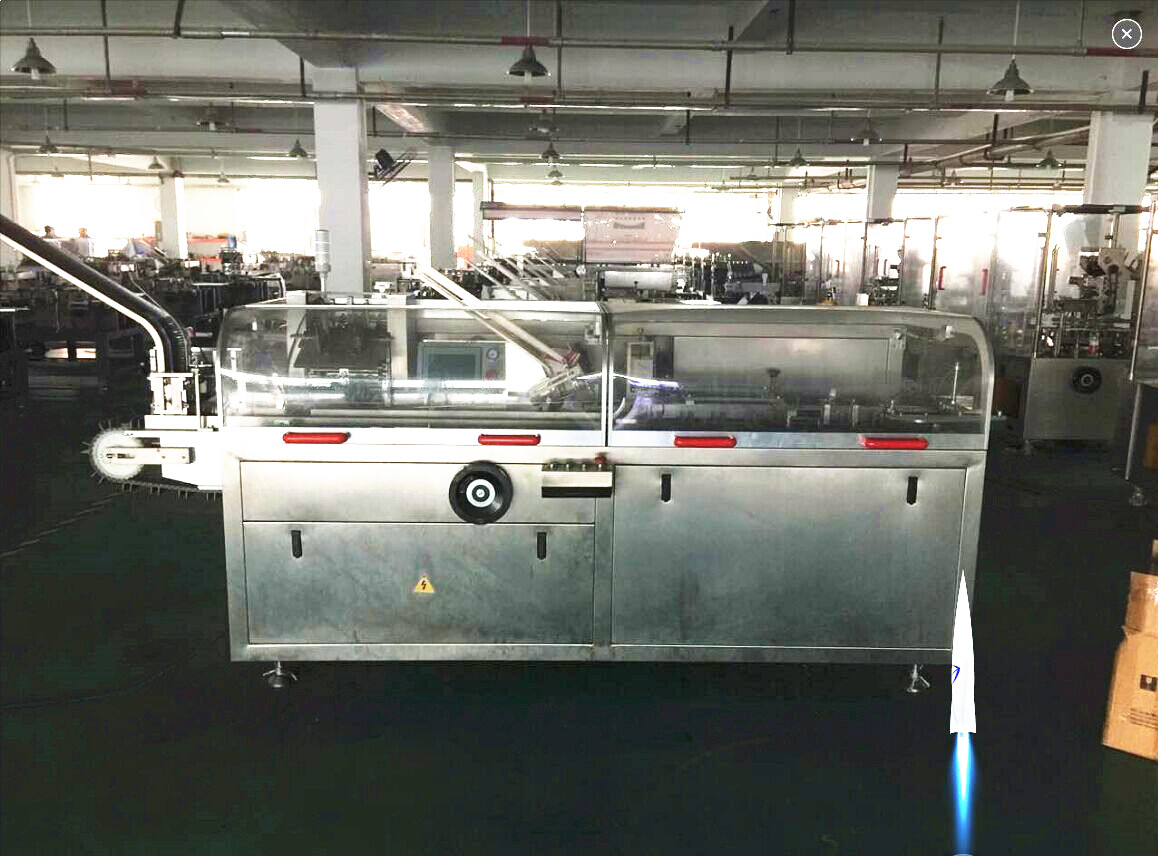

ZH-100 Multifunction automatic horizontal Cartoning Machine
Simple Instruction:
This machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes. (Options hot-glue device extra)
The machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.
Main Technical Data
Model | ZH-100 |
Weight in kg | 1100 |
Output & Speed
Steady production speed | 50-100 cartons/min |
Unfold Leaflets
Grammage | Between 65-80g/m2 |
Size range | (80-210) ×(70-210)mm (L×W) |
Fold range | (1-4 )fold |
Notice: The leaflet can be folded by the machine | |
Carton (Card Board)
Grammage | Between 250-350g/m2 |
Carton Size mm | （40-125）×（12-85）×（16-70）mm |
Utilities
Standard power supply | 220V – 50Hz |
Power consumption in KW | 1.5 |
Air consumption | 120-160L/min |
Compressed Air Pressure | 0.5-0.8MPa |
Noise | ＜70 B |
Capacity and Characteristic:
1. Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.
2. When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.
3. Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
4. Vibrating material categorizing and feeding mechanism is stable and reliable.
5. Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
6. It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
7. Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.
8. Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure
Feature:
1. Rejection automatically if no product, nonstandard height or lack of leaflet.
2. Stop automatically if incorrect position of products into carton.
3. Stop automatically if no cartons or out of leaflet continues.
4. Easy to change to different products.
5. Protecting automatically for overloading.
6. Automatically display device for speed and finished products counting.

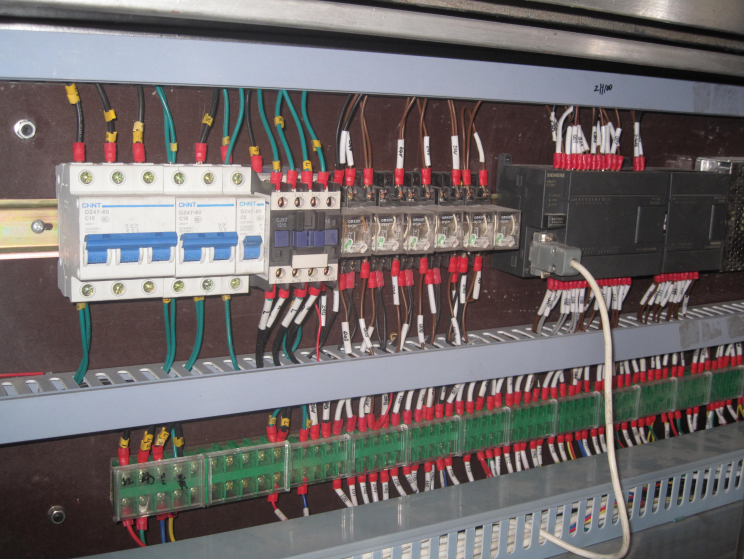

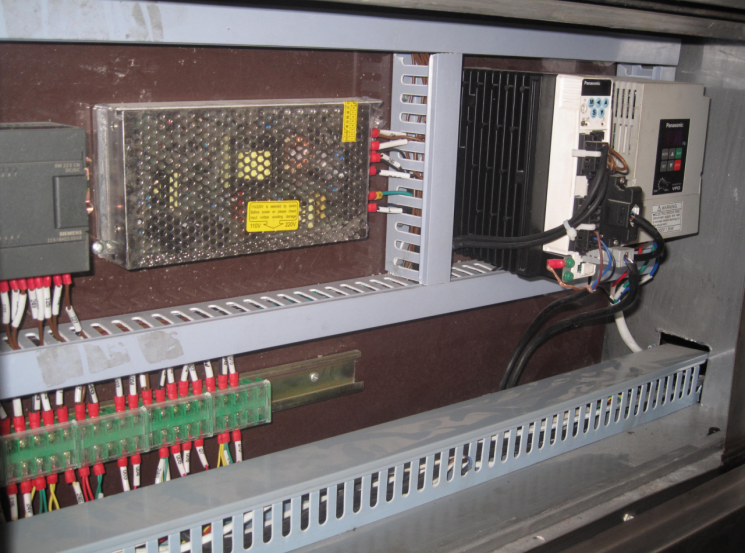

Electronic Box:
Electronic Part List: (It can required by you)
No. | Name | Model | Location and Brand | QTY |
1 | Touch Screen | GP37W-2 | Japan | 1 |
2 | Single Controller | EM223 | Germany, Siemens | 1 |
3 | Transducer | VLT 2815 | Denmark | 1 |
4 | PLC | DC224 | Germany, Siemens | 1 |
5 | Encoder | E6B2-CW26C | Japan, Omron | 1 |
6 | Main Motor | YZ-80MZ-4 1.5kw | Omaite | 1 |
7 | Intermediate Relay | ARM2F | Hong Kong,AIKS | 4 |
8 | Breaker | 3P20/ 2P10A/ 1P10A/1P6A | China, CHNT | 1,1 |
9 | Switch | NP2-BE102 | China, CHNT | 3 |
10 | Urgent Switch | ZB2-BS54C | Schneider, Germany | 1 |
11 | Solenoid Valve | SY5120-5G-01 | Japan, SMC | 2 |
12 | AC Contactor | CJX2 1210 | China, CHNT | 1 |
13 | Electronic Switch | E3F3-D61 | Japan, Omron | 4 |
14 | Vacuum | VTM20-C | Korea | 2 |
15 | Servo Motor | R88M-G4003OH-S2-Z | Japan, Mitsubishi | 1 |
16 | Driver | ZM-860 | Shenzhen, China | 1 |
17 | Electric Power | S-100-24 | Hong Kong | 1 |
18 | Other Switch | GLD11-25A | Gree, China | 1 |

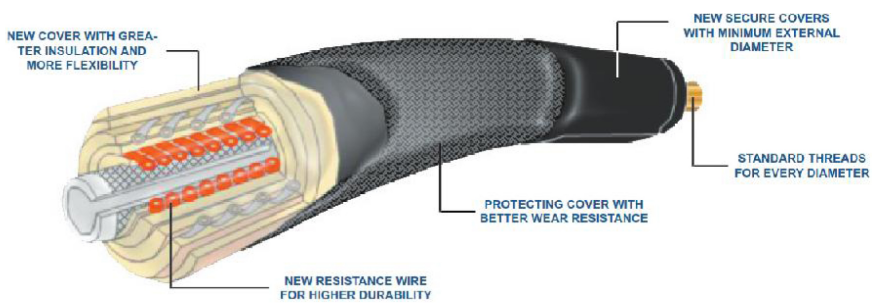

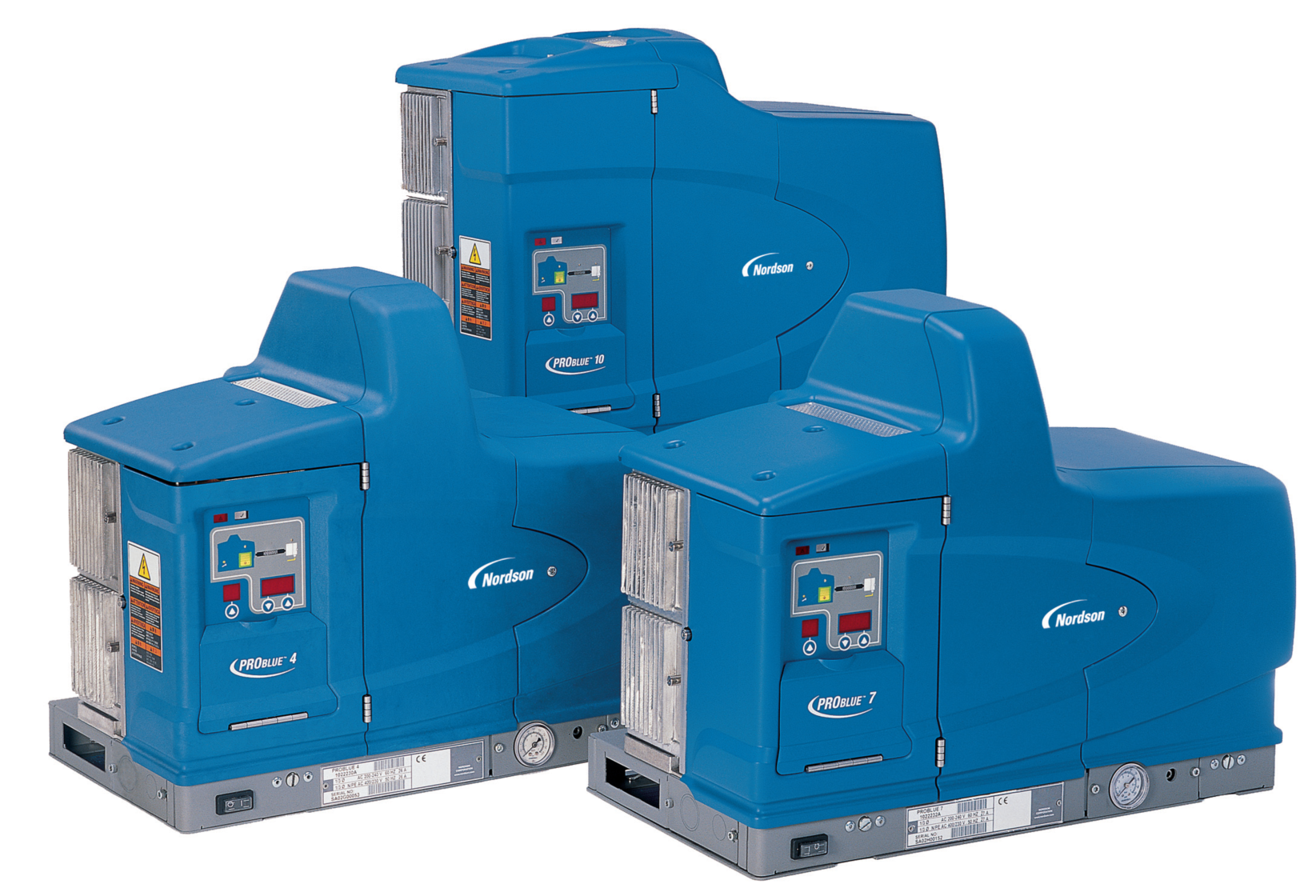

Hot Glue Sealing System：Norson PROBLUE 4
Description:
Installation is quick and easy. Compact size and a patented,centrally located manifold that allows hoses to run right or left means ProBlue melters fit on virtually any packaging line.
Quick-disconnect power and I/O plugs and a patented,quick-release base design further simplify set up.
Plus, plug-in modules let you add or subtract hoses and guns to meet changing production needs.
Daily operation and maintenance are simple. A non-stick,coated tank with three-sided access allows easy, clean filling.
Graphical controls feature service indicators for maintenance scheduling and status-at-a-glance indicators for ready, fault and service as well as tank, hose and gun temperature.
A disposable filter eliminates the need for routine filter flushing while helping prevent debris and contaminants in adhesive from reaching your products.
Operator safety is improved with a patented automatic pressure discharge (APD) valve that relieves pressure into the melter tank in seconds.
Main Technical Data :
Brand | Norson |
Model No. | PROBLUE 4 |
Tank Capacity | 4L |
Melting Rate | 6kg/hour |
Pump Rate | 32.7kg/hour |
Type of System | Non-circulating tank (15:1 SP-style piston pump) |
Temperature Range | 40-230celcius |
Maximum Working Hydraulic Pressure | 8.7 MPa (1260 psi) |
Power | 220v 50/60hz |
Machine details:
Machine with Glass cover（Optional）

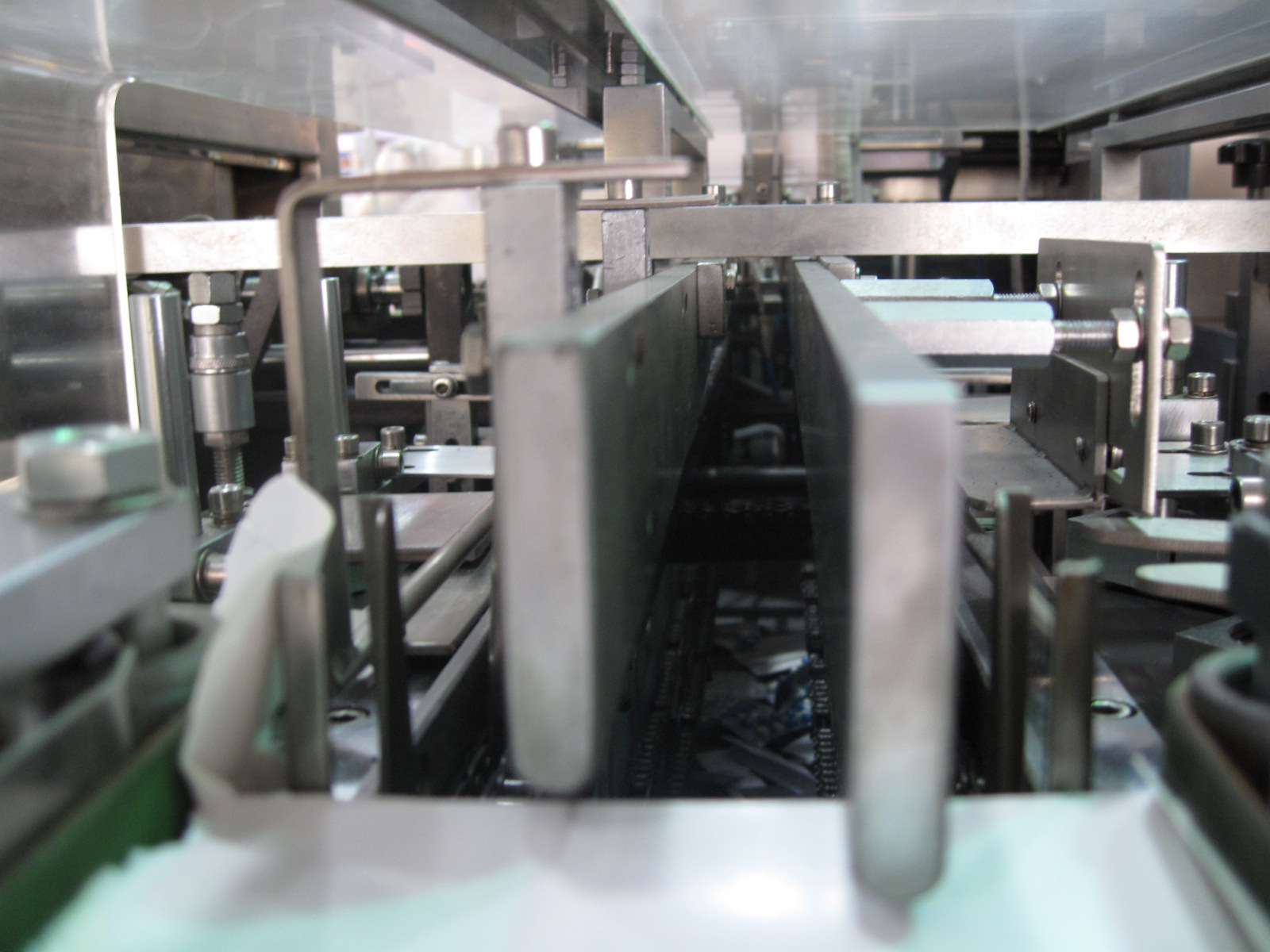

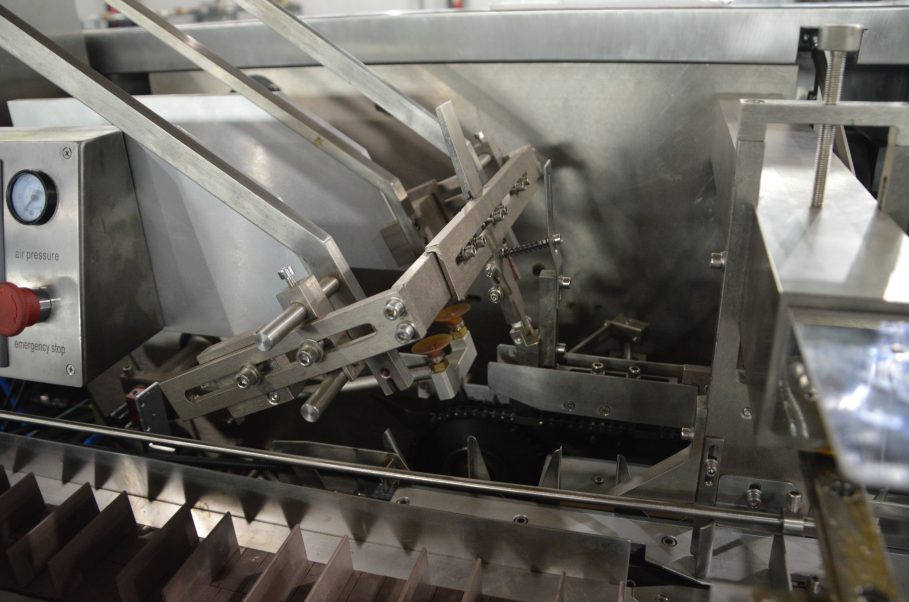

Carton Suction Station:
Closing Cartons:
This is the station for closing the cartons by two sides with fully automatic. The working station is closed by Plexiglas for keeping safely running.

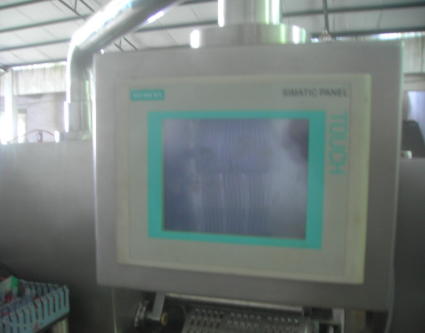

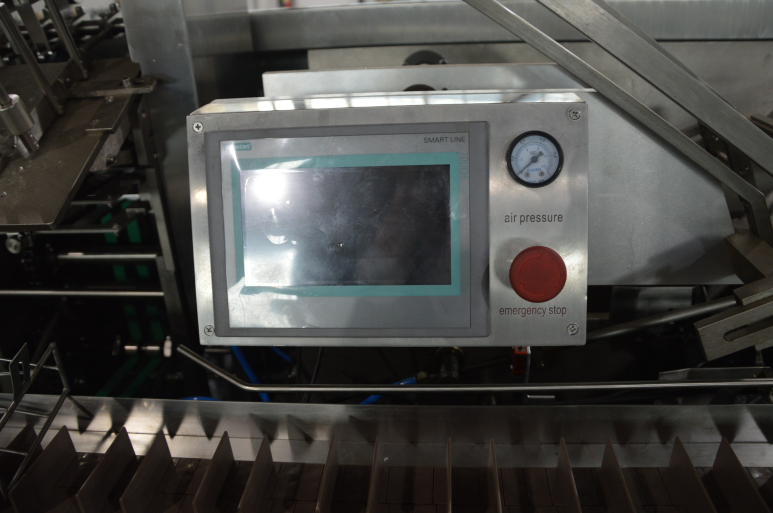

Touch Screen: Siemens Brand

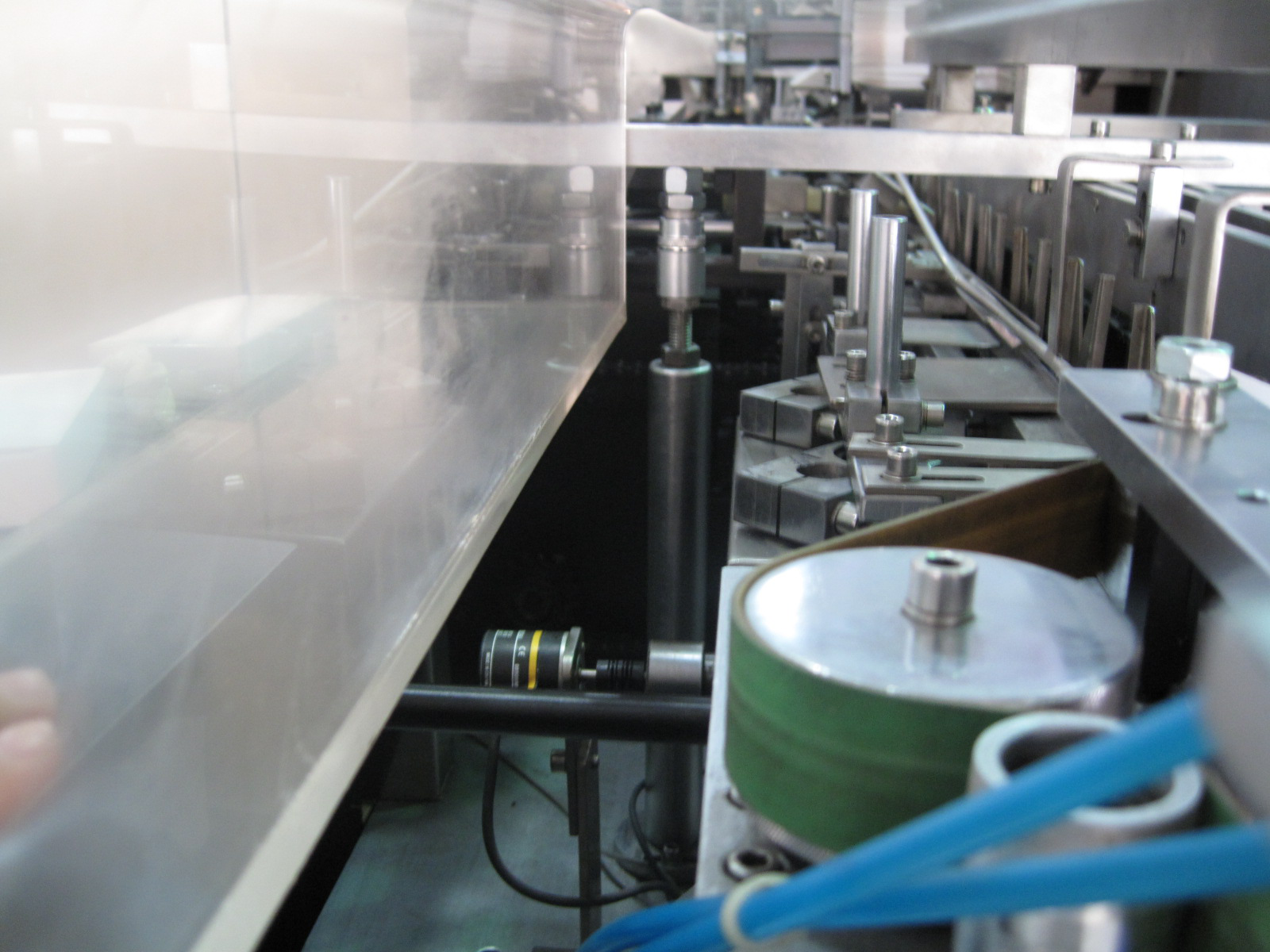

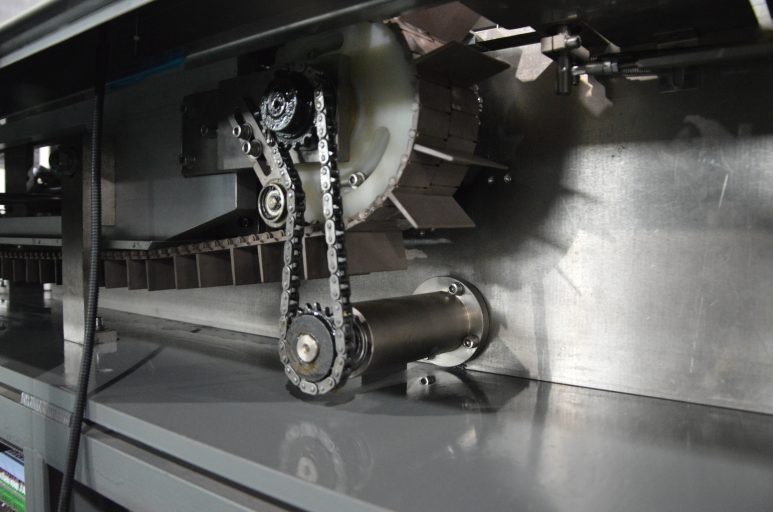

Transmission System:

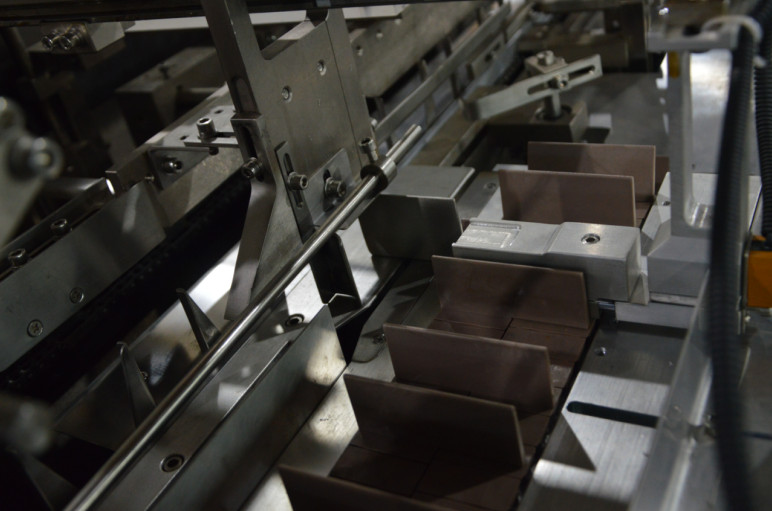

Object Inserting Station:

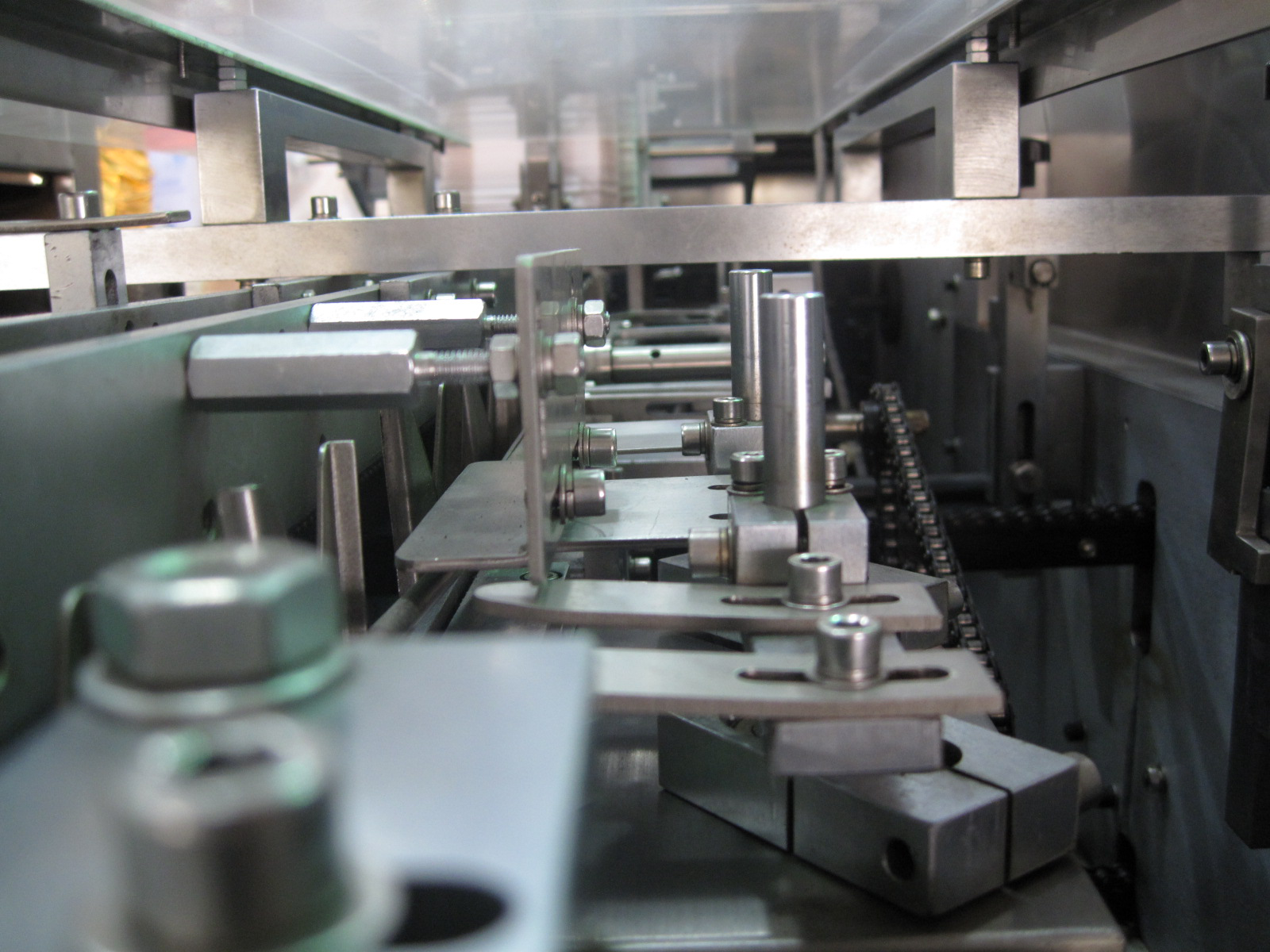

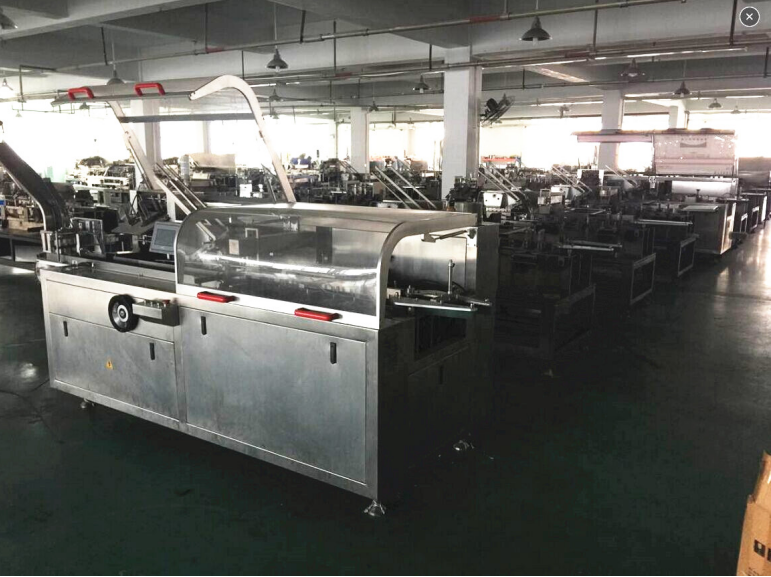

Main Machine:
Different products we packed:

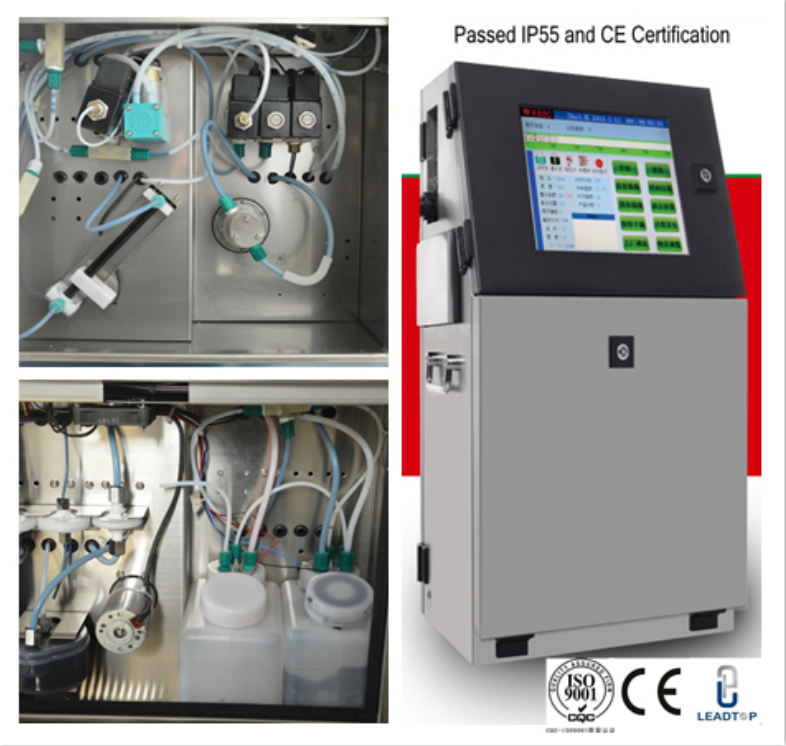

LTK68C Ink Jet Printing Machine
Stable Software Instruction:
High efficiency, High Speed, Fully Automatic, Highly Intelligent
It adopts Module Style Design with low power supply electricity system.
The hardware is highly integrated with reasonable structure for anti-interference purpose.
The printing content can be changed and amended while printing, no need to stop the production.
For special requirements, our Software can be highly customerized by clients.
It adopts advanced Ball Style viscosity controlling technology for detecting and adjusting the viscosity of ink.
High Quality Hardware:
High Quality and HD 10.4 inches Touch Screen.
The machine adopts High efficiency CUP for accurate controlling every ink drop.
The power switch and main parts are supplied from Chinese Air Space Industrial Ministry directly.
It gets Original imported build-in pump with long time use and easy maintenance.
Whole body stainless steel up to IP55 Grade protection standard.
Humanity Design：
The machine gets function of automatic pipe and print head washing, Automatic detection system and alarm system.
Colorful touch screen with high efficiency working, and the language can be set by Chinese or English. The machine can link to USB, Computer and other outer data hardware.
One Touch Starting, intelligent automatic control.
The machine comes with problem shooting function and alarming function.
The way of input can be adjusted by clients.
Big storage space with 200message storage.
Main Technical Data:
Print head Dia: | 55micron/65micron | |
Print Height: | 2-17mm (adjustable) | |
Print Lines: | 1-4lines under 36 points square. | |
Enlarge Times: | 1-9 | |
Print Quantity per second: | 3600pcs (size: 5*7) | |
Print Speed: | 2.5m/s | |
Operation System: | 10.4 inches touch screen | |
Output Letters： | English【5x5、5x7、4x7、7x9、6x12、8x16、12x16、9x16、12x12、16x18、11x24】 Chinese【12x12、16x16、24x24、8x7】 Special size can be required by clients. | |
Ink Style: | Ketone Base or Alcohol Base | |
Ink Color: | Black | |
Drying Time: | 1second | |
Ink Consumption: | 7ml/h (20℃) | |
Power Supply: | 220v 50hz/60Hz | |
Total Power: | 100W | |
Connection: | 1 | |
Working Temperature: | -5-45℃ | |
Working Moisture Rate: | 30-90% | |
Maintenance Period: | every 2000hours. | |
Spare Parts Includes: | Senor, maintenance kit, machine holder, print head holder. | |
