Cartoning MachineHigh Speed Cartoning MachineAutomatic Cartoning MachineZHZH-220
T/T
Quotation Sheet:
Quote Subject: ZH-220 Automatic High Speed Cartoning Machine
Item | Description of the goods | Quantity | Unit Price | Total Amount FOB Ningbo By sea | Remark |
1 | ZH-220 Automatic High Speed Cartoning Machine | 1 Set | USD123,300.00 | USD123,300.00 | Include: 1.Siemens Touch Screen and PLC control 2.Main motor with inverter 3.Servo Feeding Device with Panasonic brand 4. GUK leaflet folder(Germany imported) 5.Check Weigher 5.Whole Body stainless steel 304 |
Ⅰ Note: The validity of this quotation is 90 days
Ⅱ Delivery 30 working days after receiving 30% deposit.
Ⅲ Payment 30% in advance,70% of the total value by T/T before shipment.
Installation and after sales service:
Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.
Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.

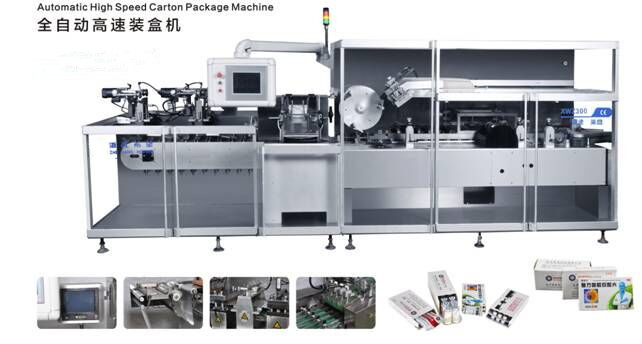

ZH-220 Automatic High Speed Cartoning Machine
Main Feature:
1. Whole body with safety covers for safe running purpose.
2. Suitable for Blister Strip, injectable, Bottles, tubes, sachet, stick packs, etc.
3. The machine adopts Siemens Controlling system and operation system, Touch Screen with PLC.
4. Maximum speed 220boxes/min.
5. Object feeding quantity is adjustable.
6. All working stations are equipped by adjustable tightening screw which makes sizes exchanging no need extra tools or mechanical changing.
7. The machine comes with Production Alarming, Production recording, leaflet folding (1-4folds) batch number embossing, detection and rejection system.
Main Technical Data:
Model: ZH-220 | |
Item | Data |
Capacity | 100-220boxes/min |
Blister Size（L*W*H） | （65-190）*（30-115）*（4-12）mm |
Carton Size（L*W*H） | （70-200）*（35-120）*（20-70）mm |
Leaflet Size（L*W） | （100-250）*（100-170）mm |
Air Consumption | ≥0.2m3/min |
Compressed air | 0.5-0.7Mpa |
Power | 7.5KW |
Machine Size | 4950X1600X1700mm |
Weight | 3500Kg |
Main Electronic Parts List:
No. | Item | Specification | QTY | Unit | Brand |
1 | Touch Screen | Smart700 7inches | 1 | Set | Siemens |
2 | PLC | CPU224XP | 1 | Set | Siemens |
3 | Moudule | EM223 | 1 | Set | Siemens |
4 | Moudule | EM221 | 1 | Set | Siemens |
5 | Vacuum Pump | KVT3.60 | 1 | Set | Becker, German |
6 | Main Motor | R67DV100M4/2.2KW | 1 | Set | SEW, German |
7 | Inverter | FC51P2K2T | 1 | Set | Danfoss |
8 | Power Switch | S-100-24 | 1 | Pcs | Mingwei |
9 | Emergency Button | ZB2-BE102C | 1 | Pcs | Schneider |
10 | Button | XB2-BA31 | 1 | Pcs | Schneider |
11 | Button | XB2-BA41 | 1 | Pcs | Schneider |
12 | Contactor | LC1-E0910 220VAC | 1 | Pcs | Schneider |
13 | Hot Relay | LRE10 | 1 | Pcs | Schneider |
14 | Relay | RJ1S-CL 24VDC | 16 | Pcs | Omron |
15 | Encoder | DBS36E | 1 | Pcs | SICK |
16 | Sensor | HRTR-3B | 4 | Pcs | Leuze |
17 | Sensor | IM12-Q4N | 4 | Pcs | SICK |
18 | Sensor | IM8-Q2N | 2 | Pcs | SICK |
19 | Breaker | C25/4P | 1 | Set | SICK |
20 | Breaker | C10/1P | 1 | Set | SICK |
21 | Solenoid Valve | 411A-DOA-DM-DDAA-1BA | 4 | Pcs | MAC |
22 | Vacuum Valve | 52A-DOB-DM-DDAA-1BA | 3 | Pcs | MAC |
Main Machine Working Station:

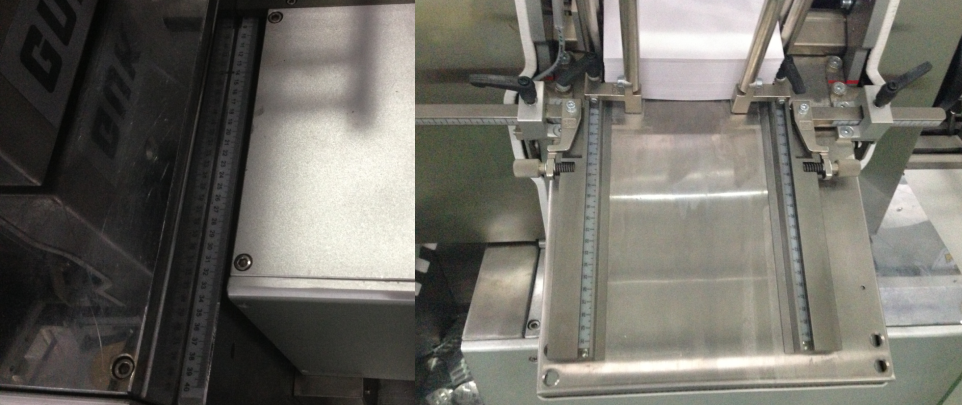

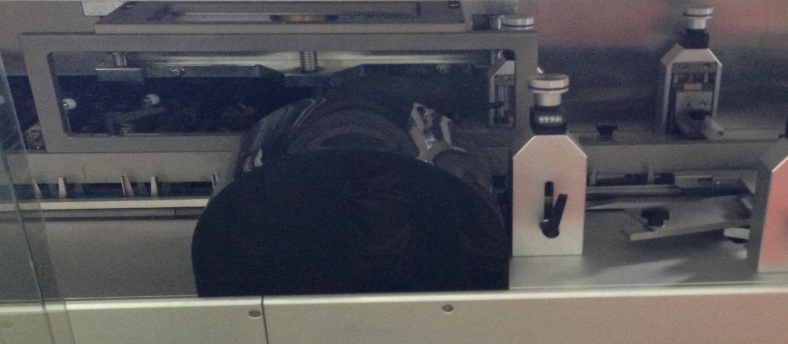

Blister Strip Detection Device

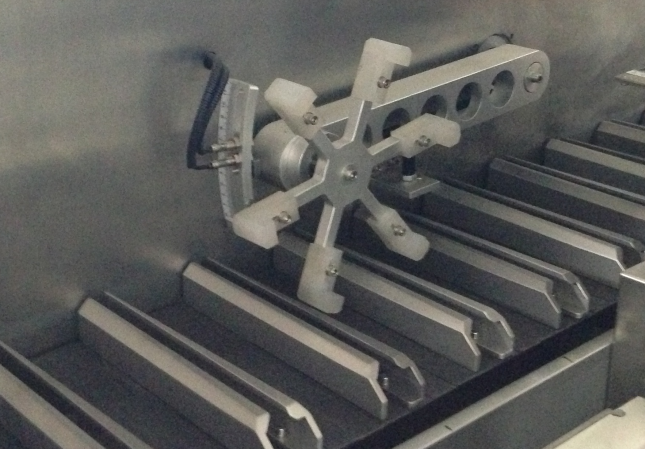

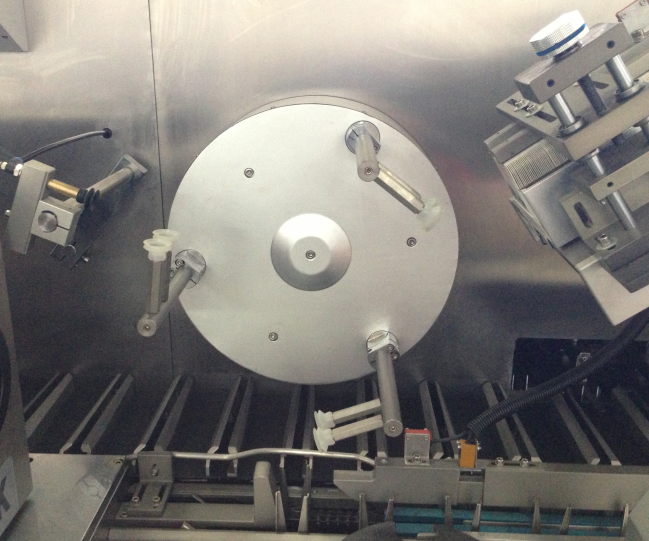

Carton Feeding and Opening Station:

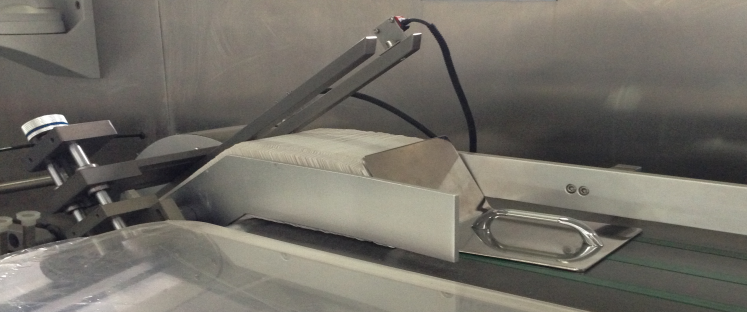

Carton Conveyor Feeder
Batch Number Embossing Station

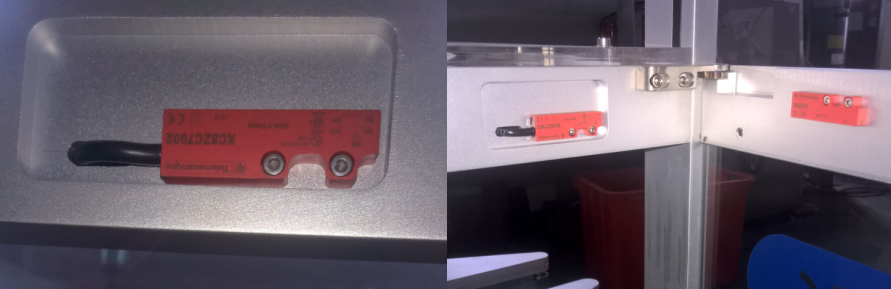

Safety Cover Protection Sensor: CE Certified

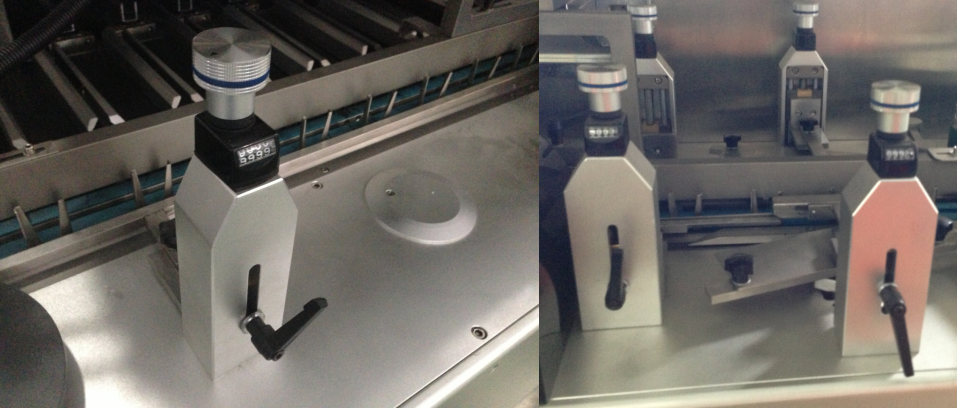

All adjusting place comes with value for easy and convenient adjusting purpose.

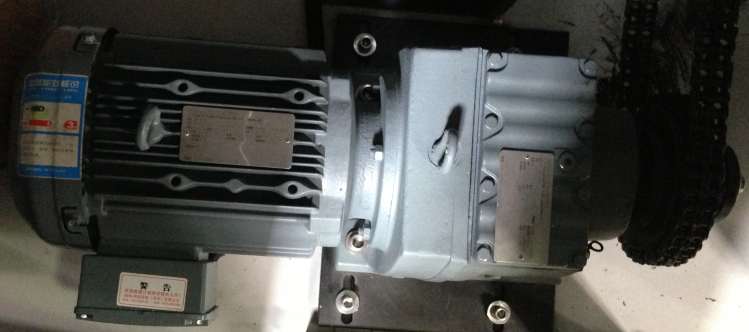

Main motor adopts German SEW

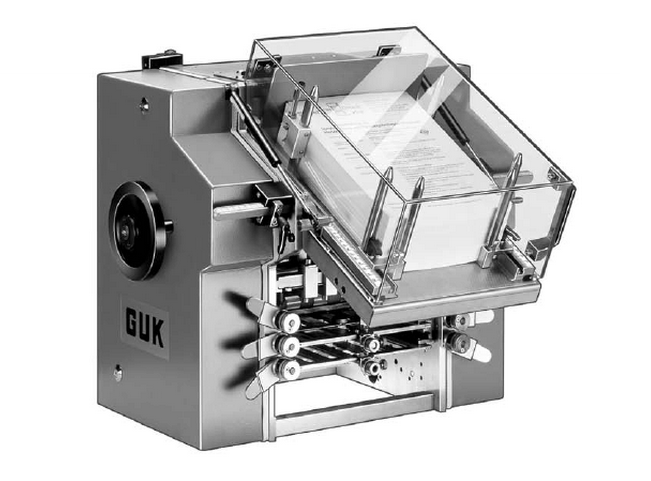

GUK Folder

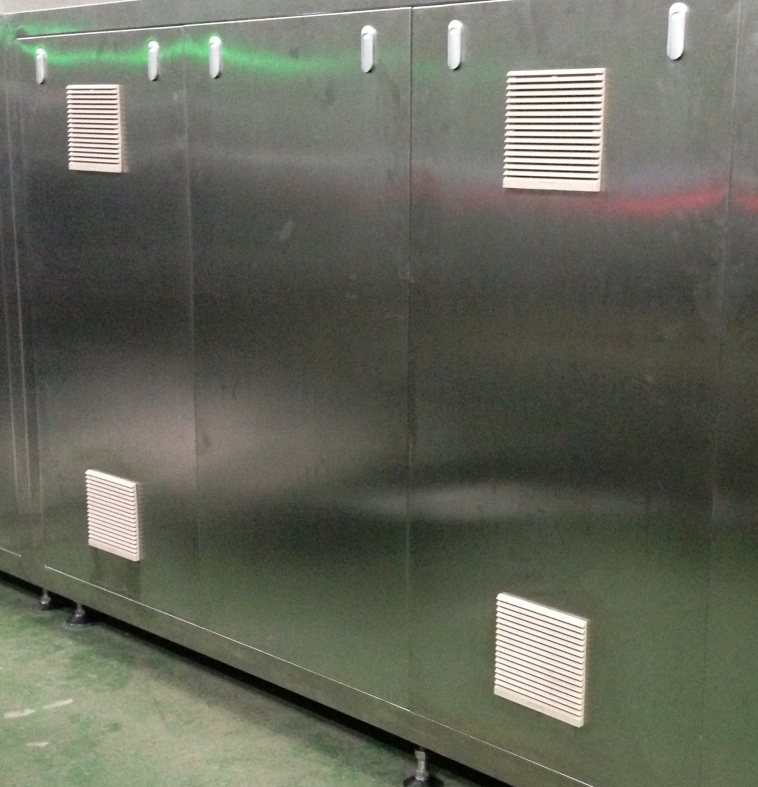

For the hot air discharge inside the machine

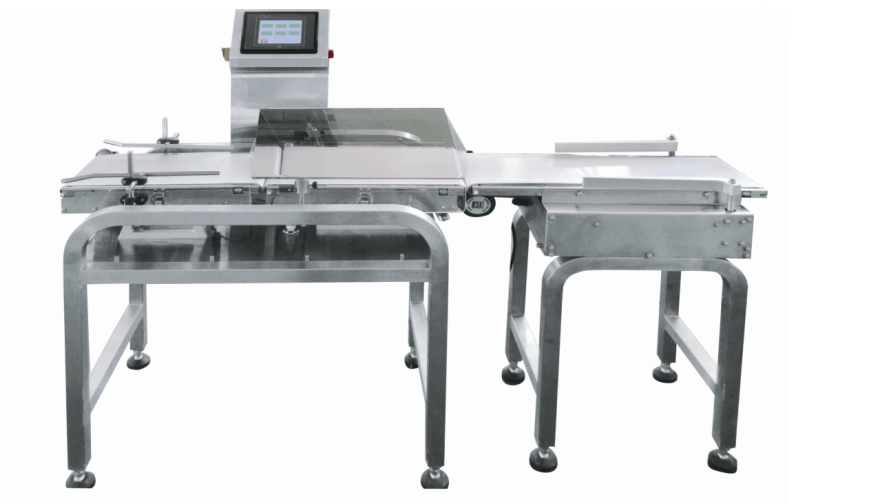

LP-X1 Check Weigher
Description:
Weighing Range: 10-1000g
Accuracy:±0.5gram
Maximum Belt Speed: 52m/min
Max Speed: 90 PCS
Belt Size: L*W=450*220mm
Power Requirement: 220V/500W/50(60)HZ
Packing Dimension: L*W*H = 900*800*1300mm
Reject method: Air blow/Arm-reject
