JKY-50 16000pcs/h Semi Automatic Clay Brick Extruder Machine

JKY-50 Brick Extrusion Automatic Brick Making Machine

1. Product features:

Two-stage vacuum brick making machine is a new type of brick making equipment designed and manufactured by our company, which benefits from advanced technology at home and abroad. Integral steel structure, the main parts of high wear-resistant alloy cast from the high-frequency heat treatment process. Reasonable structure, heavy load, energy saving, high efficiency, easy maintenance, more suitable for shale, coal gangue, fly ash to make porous brick and solid brick.

2 . Techical parameter

3. Product advanced

1. The machine structure design is very unique, operate steadily,machine small occupation area.
2. High vacuum extrusion ,green bricks has a small moisture content ,easy to dry .
3. Produce different size and different type bricks /blocks .
4. The bricks drying process can adopt small drying chamber, tunnel dryer chamber.
5. The bricks fired can adopt local kiln,hoffman kiln, tunnel kiln .
6. Low cost, big capacity ,high profit .
7. The machine of key spare parts to adopt special quenching, spray processing, machine has a long using life .
8. The machine has simple structure, easy operation and maintenance.
9. Long-term stability of parts supply and after-sales service.

4. Product Description

Due to the different raw materials, The Brick Machine can be divided into 2 different type:
Hard-extruder and Soft Extruder. Our extruder is special designed for the soft clay, it will be more suitable

For the country like Bangladesh, India, etc. Clay brick making machine is high-performance vacuum extrusion equipment for forming of various type hollow bricks made from coal gangue, shale, coal dust and other solid wastes. It is designed to be produced with German KWS technology according to German standards and is authorized to use German trademark of GFK. Its mixing reducer is equipped with hardened gears which are all grinded, and the extrusion reducer makes use of planet gears with high drive efficiency, therefore, it is the advanced vacuum extrusion equipment in the world.

1. Auger:
1) Welded by wear resistant electrode, this auger could be reusable; Spraying wear-resistant metal materials (the hardness is 7 times of normal one), which ensure a long service life of auger.
2) High chromium casting material with High wear resistance feature, It has a long service life for producing 24 million bricks.

5. Product Advantage

Automatic red clay brick machine is used to produce solid bricks and hollow bricks with great quantities of holes and large section in all size of hole style.It is applicable to many sorts of materials.

Its features are novel structure,advanced technology,high extrusive pressure,high production and high vacuum degree.It adopts pneumatic clutch to control.It is sensitive,convenient and reliable.

Raw materials such as soil purification through vacuum after entering the fuel tank from the lower auger extrusion molding, when the machine with different models, can produce various specifications of the porous brick.

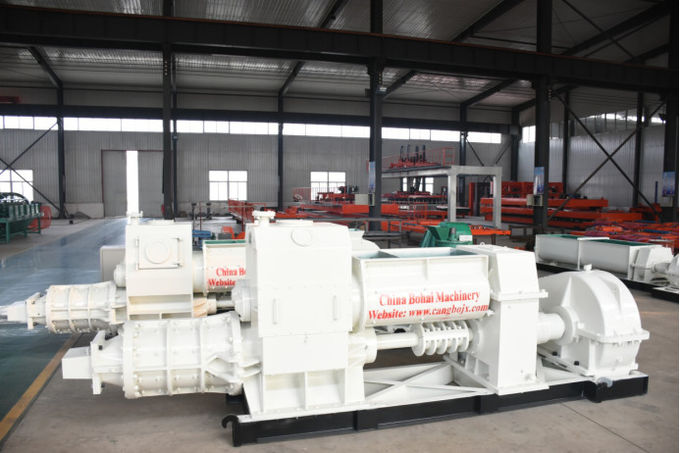

6 . Machine pics
