Hydrulic Full Automatic Brick Cutting Equipment For Brick Factory

1 . Product details

Automatic brick strip cutting machine can adjust the length of bolar strips at will to have no earth-crumbs (the earth-crumbs
length of thin-walled hollow-brick), according to different standards of adobes. It can cut bolar strips automatically and
vertically, and carry them onto the cutting platform to make unmanned operation and remote control.

A, The vertical strip cutting machine can overcome the mud dump,increase production save 7-15% energy ,reduce one or two staffs and decrease working wear.
B, The automatic strip cutting and blank cutting system is matched with automatic production line could realize unmanned operation.

2. Techical parameter

3 . Machine advanced

Brick making machine, column segment cutter is used for cutting the adobe strip from extruder according to the length requirement of adobe piece cutting machine to adobe section, and feed them into piece cutting machine.

This machine is used for cutting brick strips into brick billets by steel wires, usually it works together with auto brick stacking machin. It is made of rollers, dam-board, push plate and steel wires frame etc, suitable for the product line of hard plasticity and semi hard plasticity, in order to realize automatic and semi-automatic operation of starndard brick, hollow brick and perforated brick which use shale, coal gangue, coal ash, clay and mud as raw materials

4 .Product Description

It is achieved by brick cutter.

The clay column which sends by brick cutter will arrived the clay column locating guard plate through the table-board roller,after the optoelectronic switch detect the clay column, through the control program to make the separation cylinder start, and pull-out the separate leader, and connect the combined arm, the power of electromotor is reduced by reducer and spindle box.

The crank rocker will bring the pusher to make reciprocal rectilinear motion, while the pusher move forward, the clay column will be pushed to the steel wire to achieve the brick cutting, while the pusher move back, the separate-leader will bring back to home position by return-tension, and then to separate the combined arm, cut-off the power(rotate speed).

The pusher through the proper braking and return to position nearby the end-stop point(the position for next cutting ) through the inheritance, and then waiting for next cutting.

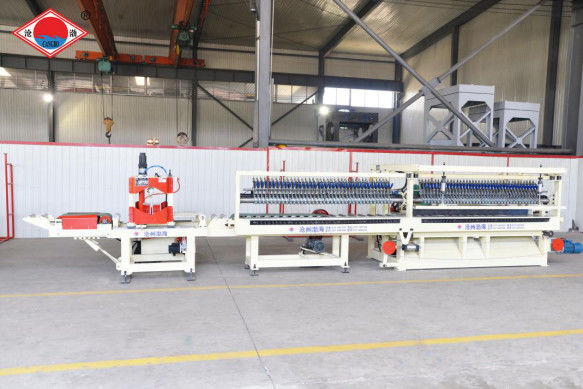

5.Machine pic
