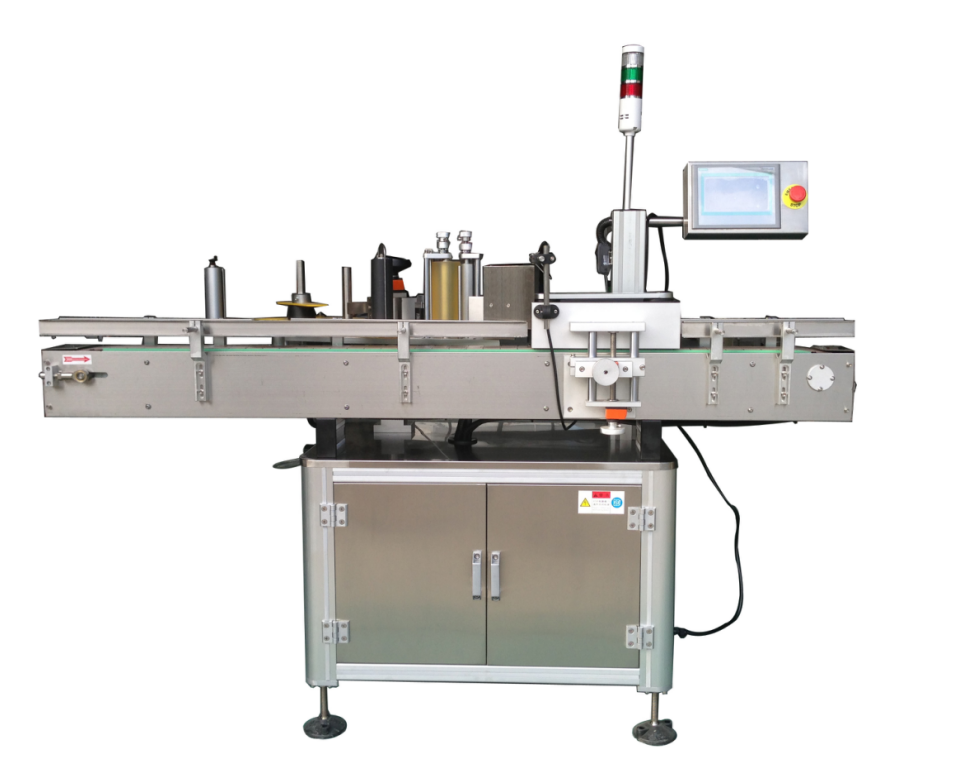

MT-200 Automatic Round Bottle Labeling Machine

MT-200 Automatic Round Bottle Labeling Machine

Summary:

MT-200 model vertical type round bottle Round Bottle Labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.

Working principle:

Put the bottles into the conveyor system (or Auto Bottle Ordering Machine is optional), the conveyor will transport the bottles to labeling station. There is automatic sensor equipped on the machine will sense the passed bottle and feedback to PLC. The PLC gets the signal, then feedback to Step Motor, the step motor supplies the Label to Rotation Pressing Roller which makes the labeling process.

Main Feature:

The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional)

PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand.

The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working.

The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.

Whole body stainless steel 304 with T6 Aluminum Alloy meets GMP Standard.

The position of height and backwards or forwards are adjustable.

***Please see more details by following Pages***

Main Technical Data:

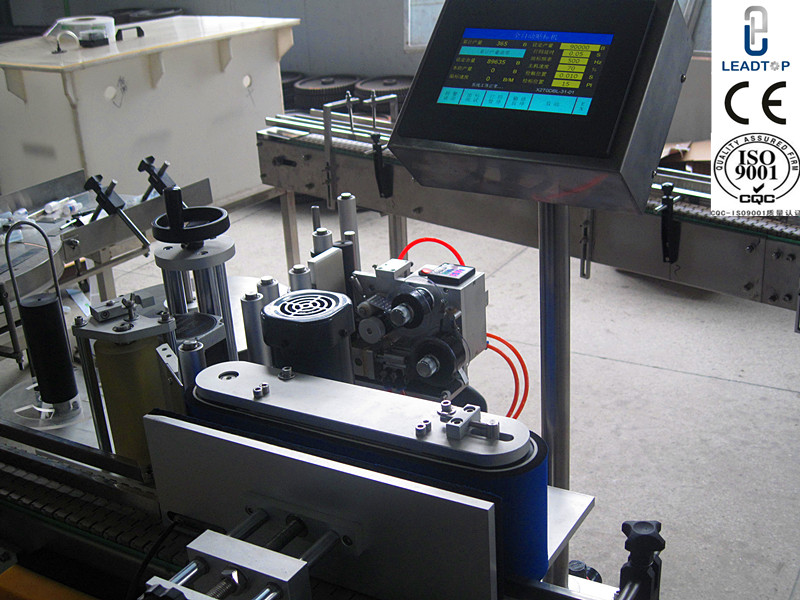

Touch Screen with Compact Machine finishing

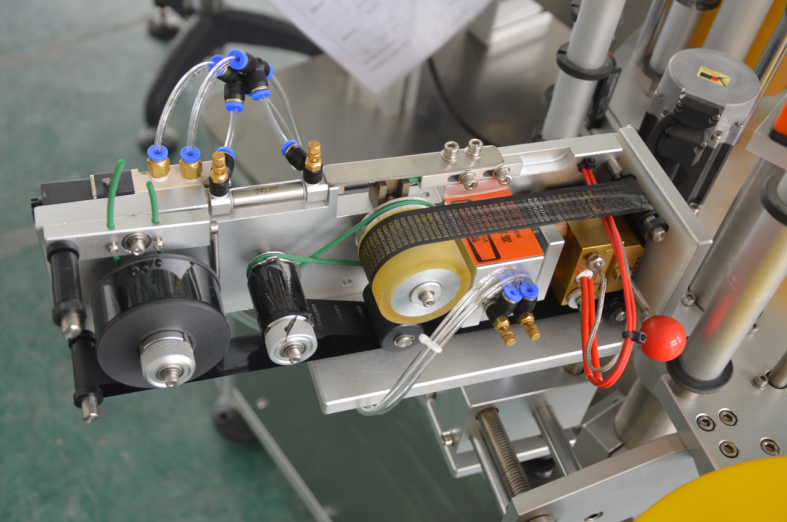

Coding Machine for printing Bach Number(LTPM CHINA special)

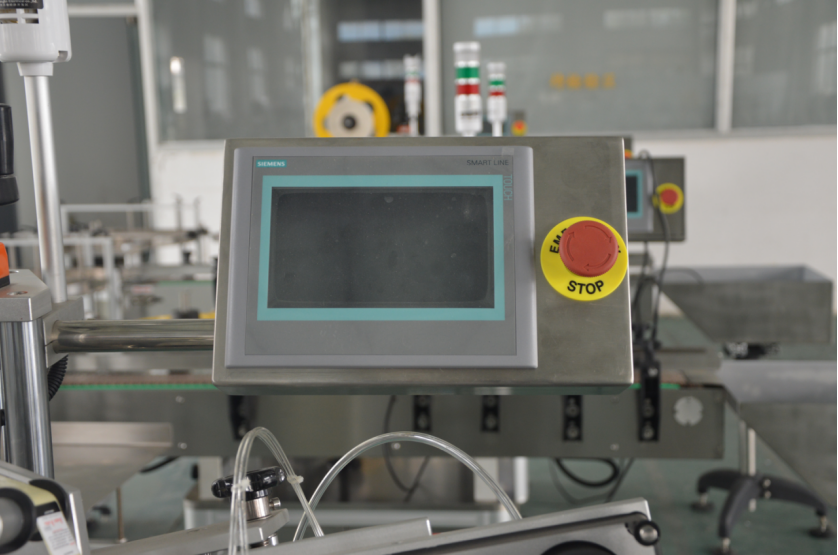

Siemens Touch Screen:

Quotation Sheet

Quotation Subject: MT-200 Single Side Round Bottle Labeling Machine

Price: 4,900USD FOB Ningbo City

The price includes: 1. Single Side Labeling  2.  Batch Number Coding Machine 3. Touch Screen Operation 4. Step Motor for driving

Optional Parts Price:

1. Automatic Bottle Ordering Table(Turn Table): 1,000USD

2. Transparent Label: 500USD

Payment: 50% for deposit, 50% T/T to Seller’s Bank Account before shipment.

Overall Dimension:  2.5 CBM after packaging

Delivery Time:   30 days when receive your T/T.

Installation and after sales service:

Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.

Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.

After sales service:

1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
