Product Category
Manufacturing & Processing Machinery > Apparel & Textile Machinery
Trademark
LEADTOP
I am a Buyer
OR
By clicking Sign in or logging in with Google or LinkedIn, I agree to the User Agreement and the Privacy Policy .
Business Type: Manufacturer
Main Products:Aluminum plastic packaging machineCartoning machineHose filling machineLiquid filling machineEmulsifierLabeling Machine
ID:20082518599
Category: Manufacturing & Processing Machinery Apparel & Textile Machinery
MOQ:1.00 Piece(s)
Encapsulation?MachineLTRJ-005LTRJ
T/T
QUOTATION SHEET
NO. | systerm | size | power | Detail | Price |
1
| Main machine making priduction systerm | LTRJ-005Main Machine(Encapsulation Machine)
| 2KW |
Size : 800X800X1200mm | 25,000 USD |
Electrical control box | Pressure pills between 18-24 degrees Celsius temperature | ||||
Chiller | 1.2KW | Pressure pills between 18-24 degrees Celsius temperature | |||
Electrical parts | Famous foreign brand | ||||
One set mould | Standard mould | ||||
Tumble Dryer
| 2.2KW | Pressure pills between 45-55 percent humidity
| 2,350 USD | ||
2 | Melting systerm | Gelatin Melting Tank
| 2.2KW | a.Three spacer b. 304 Stainless steel
| 2,350 USD |
3 | Preparation systerm | Material Preparation Tank
| 2.2KW | a. 304 Stainless steel Size: Φ 620*1400 mm Weight :150KG
| 2000 USD |
4 | Dry systerm | Drying Tray | a. PET material(10SET)
| 150 | |
Tray Trolley | a. 304 Stainless steel (1SET)
| 150
|
Total price :32,000 USD CNF Chittagong
Note: Output 5000/hour, the load is( 400-600 mg).
Remark:
Payment: LC AT SIGHT
Validity: 90days
Delivery Time: 40 Days after receiving the original LC
Warranty Period:one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all through the machine’s life.
MACIHNE SPECIFICATION

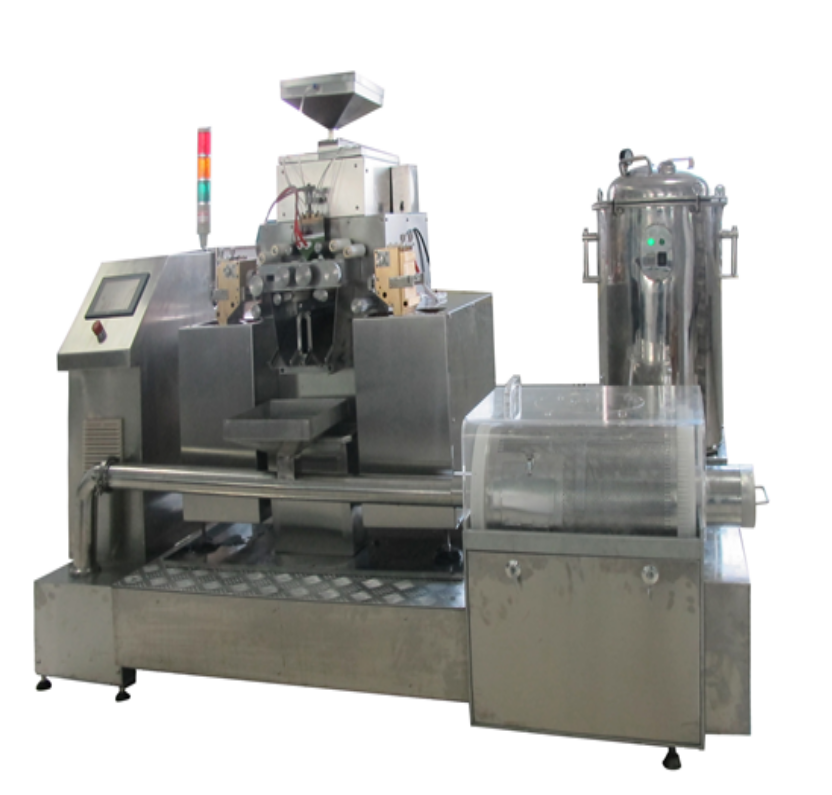

1.LTRJ-005 Lab Scale Soft Gelatin Encapsulation Machine
Specification:
LTRJ-005 Main Technical Specifications:
Stepless Speed Regulation | 0 — 2.5rr/min |
| 2.5rr/min |
| Φ64×75mm |
| 0 — 1.5ml |
| ±2% |
| 0.7kW 1400r/min |
| 150w×4 75 w×2 |
| 55w×2 220v |
| 800×800×1200mm |
| 260(kg) |
Feature:
Laboratory product capacity, it can produce 5000 pcs
Injecting medicine part adopts advanced linearity driving system, and it makes sure that the precision of charging and filling is less than 2%.
Capsule package rate is up to 98%.
The gelatin ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil.The ribbon is lubricated by vegetable oil, so the capsules produced is free of wash.
High quality capsule deferent equipment adopts food conveyer belt authorized by American FDA,without poison and adhibition and easy to clean.
Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to insure the mould's service life.
Advanced process and assembly techniques make the complete appliance quality stabilization, high working rate, and good shape pill.
Adopt automatic system project of supplying capsule and material to reduce workers' labor intensity and improve, the working environment, which accords with the requirement of GMP.
The liquid level in the gelatin box is fixed automatically in the constant position and the centigrade mater display the thickness of rubber, which is easy and accurate in adjustment.
The power of main motor is 2KW, which can avoid the phenomenon of insufficient driving power ,when the content is rather thick.
