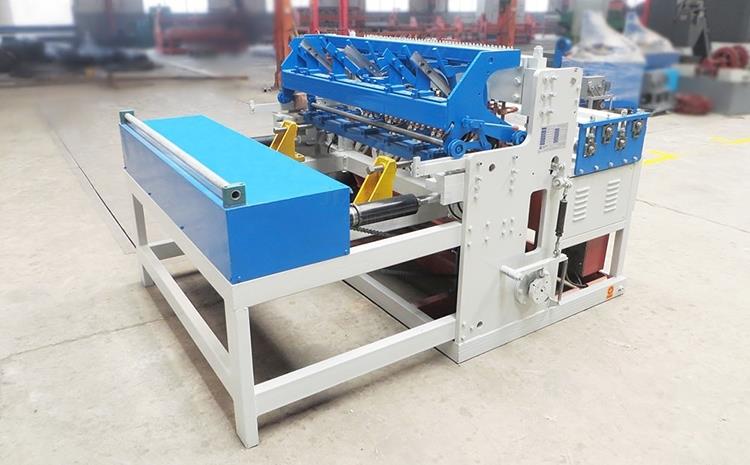

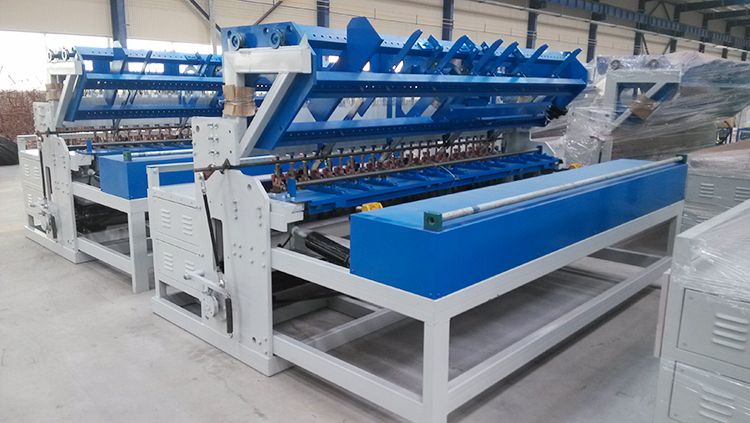

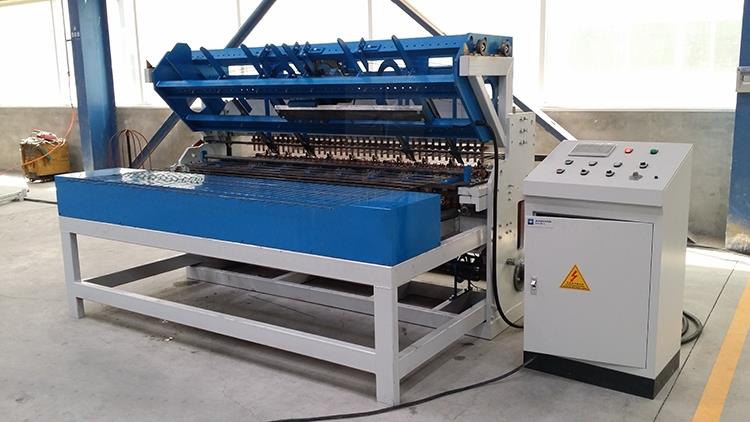

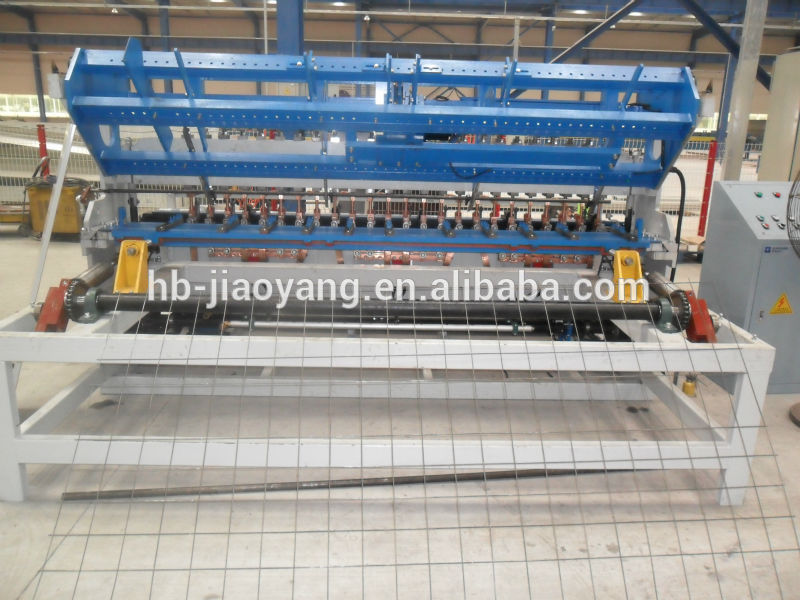

Construction mesh welding machine
| Hebei Jiaoyang Wire Mesh Machine CO., LTD. China |
Basic Information:
| Product Name | Construction mesh welding machine |
| Wire Diameter | 3-5mm |
| Mesh Hole | 25-200mm |
| Mesh Width | 1.2-2.5m |
| Welding Speed | 60t/min |
| Shipping Term | Xingang Port |
| Payment Term | T/T, L/C |
Technical Parameters:
Item | GWCD-1200D | GWCD-1600D | GWCD-2100D | GWCD-2500D |
Number of Electrodes | 24 | 32 | 40 | 48 |
Max. Mesh Width | 1200mm | 1600mm | 2100mm | 2500mm |
Wire Diameter | 3-5mm | 3-5mm | 3-5mm | 3-5mm |
Mesh Length | 3-12m | 3-12m | 3-12m | 3-12m |
Cross Wire Space | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
Line Wire Space | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
Electric Capacity | ≥160KVA | ≥160KVA | ≥160KVA | ≥160KVA |
Welding Speed | 60t/min | 60t/min | 60t/min | 60t/min |
Control System | PLC Control | PLC Control | PLC Control | PLC Control |
Special specification is available according to your requirements. | ||||
Product Advantage:
1. The product model:Construction mesh welding machine
2. The control system:The control panel (button)
3. Power system:Motor
4. Characteristic:

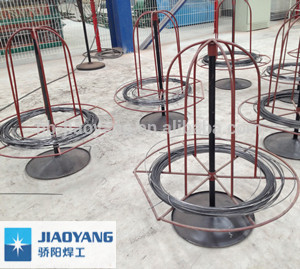

Cross wires are pre-straightening and cutting wires, line wires are coil wire. The machine can weld continuous wire mesh sheets and wire mesh rolls, main functional structures: line wire straightening and locator device, cross wire store hopper, mechanical hauling wire mesh device, mesh size locator device. It is compact in structure, easily to operate and with fully functions. The machine mainly to make construction welded wire mesh.
Auxiliary Machinery:

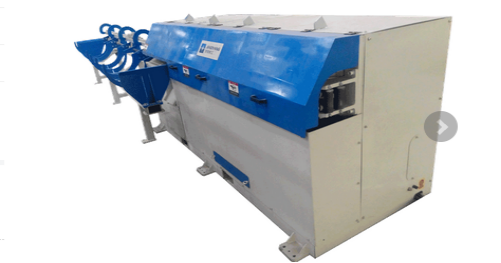

 | Wire Straightening and Cutting Machine Wire Diameter: 3-6mm Cutting Length: 0.8-6m Cutting Speed: 90-110m/min Motor Capacity: 9KW |
 |
Related Products Information:
1. Reinforced mesh / steel mesh welding machine
2. Storage shelves mesh welding machine
3. Mine timbering mesh welding machine
5. Animal cage mesh welding machine
6. Construction mesh welding machine
8. Wire straightening and cutting machine
Below information is required for quick quotation:
2. Line wire space : From mm to mm.
Cross wire space : From mm to mm.
3. Mesh width: 1200mm ~1500mm~2100mm~2500mm~3000mm ( customized)
4. Industrial voltage : 380V 50HZ ( Customized)

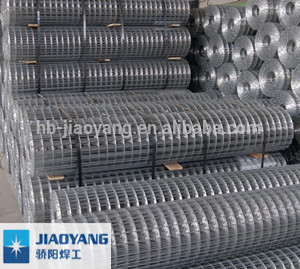

5. Do you want to weld wire mesh panel or mesh in coil ?
6. Is the auxiliary equipment also require ?
Construction mesh welding machine:

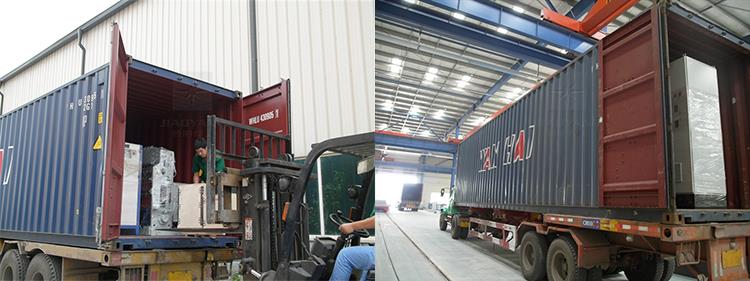

The machine will be packed with plastic bags, spare parts in carton box.
Special packing is available according to customers' requirements.
 |
Our Service:
Best price elecConstruction mesh welding machine
 | |
Pre-Sales Service: * Inquiry and consulting support. * Sample testing support. * View our Factory. * Online visit | After-Sales Service: * Training how to install,operate and maintain the machine. * Engineers available to service machinery overseas. * One year gurantee for the whole machine. * Operation manual is available. |
Sincerely look forward to cooperate with you ! For more details about wire mesh welding machine, welcome to contact with us in any time ! We will fully committed to provide the best quality products and services.

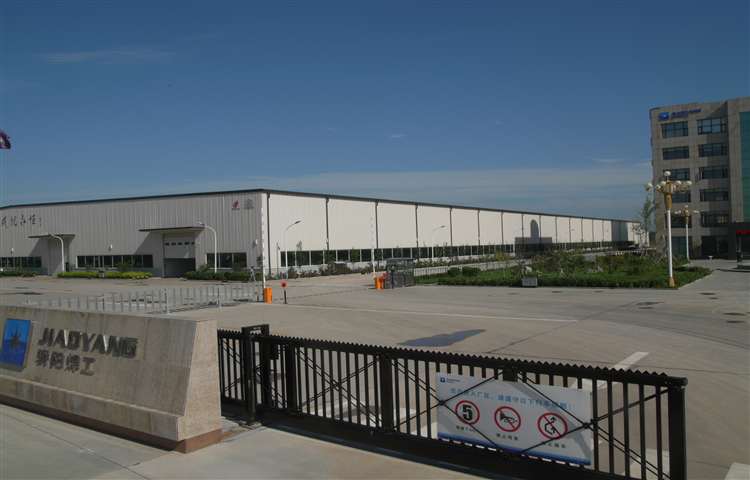

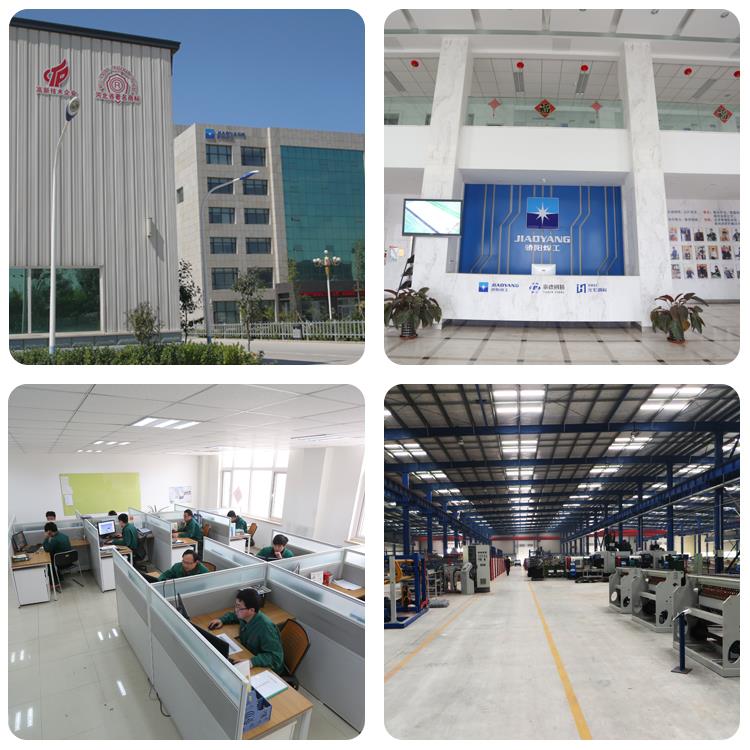

Construction mesh welding machine
Employees: 243
Engineers and technicians: 34
Processing equipment: 105 sets
Plant area: 133,000 square meters
Office area: 3,700 square meters
National patents: 63
Assets: USB 20,000,000
Annual equipment export amount: 360 sets
Annual equipment output: 800 sets
Foreign markets: Asia, Middle East, America, Africa
 |

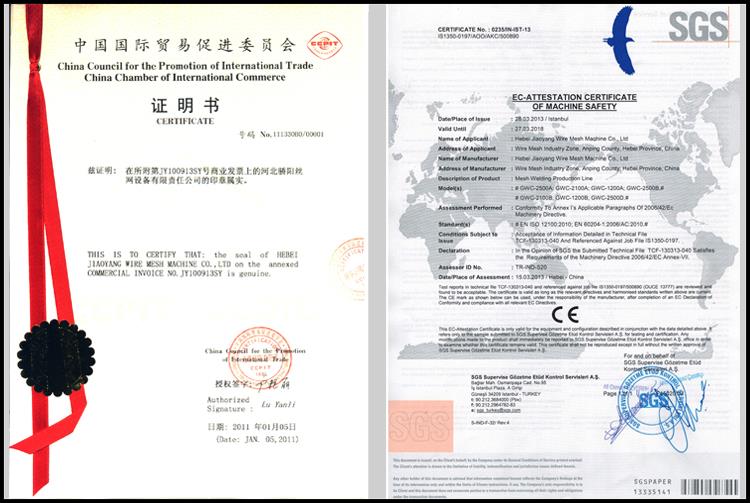

We have gotten the ISO9001, CE certifications for Construction mesh welding machine.
Company Profile:
Hebei Jiaoyang Wire Mesh Machine Co., Ltd. (here-in-after referred to as JIAOYANG), located in the well-known hometown of wire mesh-Anping County, Hebei Province, established in 1988. After nearly 30 years of tempering, industry involves steel welded wire mesh machineries and steel welded mesh processing and distribution. The company implements industrialization, informationization and standardization under the strategic plan of “based on the mesh and serving the society”. The modern management system has become a welding mesh machine integrating R&D, design, manufacture, sales and service. The company is a technology research and development enterprise specializing in the research of wire mesh and steel electric soldering technology equipment.
