Business Type: Manufacturer
Main Products:wire mesh welding machinewire straightening and cutting machine reinforcing mesh Steel Structures
ID:20082718695
Category: Manufacturing & Processing Machinery
MOQ:1.00 Piece(s)
Wire straightening machineWire cutting machine
L/CT/T
| HEBEI JIAOYANG WIRE MESH MACHINE CO., LTD. CHINA |
| 01 | Product Name | Wire straightening and cutting machine GTQ6/1 |
| 02 | Wire Diameter | 6-12mm |
| 03 | Cutting Length | 0.8-6m |
| 04 | Motor Capacity | 34kw |
| 05 | Cutting Speed | 130m/min |
| 06 | Machine Weight | 1200KG |
| 07 | Certification | ISO9001, SGS, CE |
| 08 | Shipping Term | Xingang Port |
| 09 | Payment Term | T/T, L/C |
Product Advantage:
1. The product model:Wire straightening and cutting machine
2. The control system:The control panel (button)
3. Power system:Electromagnetic brake motor
4. Characteristic:
Wire straightening and cutting machine is used to straightening and cutting cold /hot rolling bar into
rod wires.Main features: cutting fixed length straightening wires adopt pneumatic clutch control
system,higher cutting speed,less scratch.The machine operation is simple,convenient and quick top
adjust size.
Features:
1.This machine has national patent ( Patent No: ZL201410807476.6 ).
2.Material the machine can process are cold or hot rolling coils.
3.The straightening main engine is composed of the grab wire device, straightening device, cutting device and power transmission mechanism
4.With safety shield and safety detection switch, the main engine can not be started when the shield is open
5.The payoff reel is welded with metal sheet and the carrying capacity is 2t.
6.The bottom of the support shaft is equipped with pneumatic brake device, according to the actual situation limit the payoff reel speed. When the main engine stops, the payoff reel will stop immediately
7.High speed of straightening and high accuracy (can be ±1mm); it is easy to operate, only need one person to control one more machines.
8.Wires cutting adopts pneumatic clutch control system which has higher speed and less scratch.

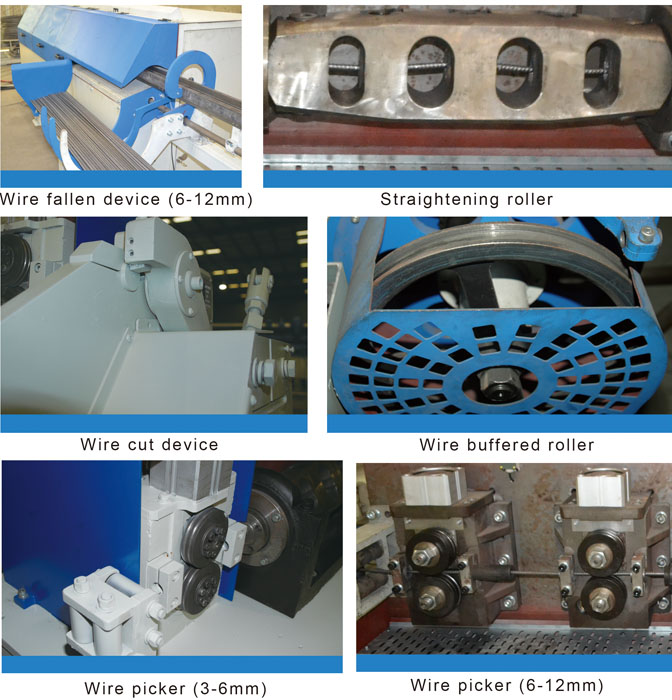

Detail Image:
Our Service:
1.Guarantee the Wire straightening and cutting machine GTQ6/12 for one year.
2.We can design the Wire straightening and cutting machine GTQ6/12 as your requirement.
3.User-friendly English manual for Wire straightening and cutting machine GTQ6/12 using and maintaining.
4.Engineers available to service Wire straightening and cutting machine GTQ6/12 overseas.
 | |
Pre-Sales Service: * Inquiry and consulting support. * Sample testing support. * View our Factory. * Online visit | After-Sales Service: * Training how to install,operate and maintain the machine. * Engineers available to service machinery overseas. * One year gurantee for the whole machine. * Operation manual is available. |
Sincerely look forward to cooperate with you ! For more details about wire mesh welding machine, welcome
to contact with us in any time ! We will fully committed to provide the best quality products and services.

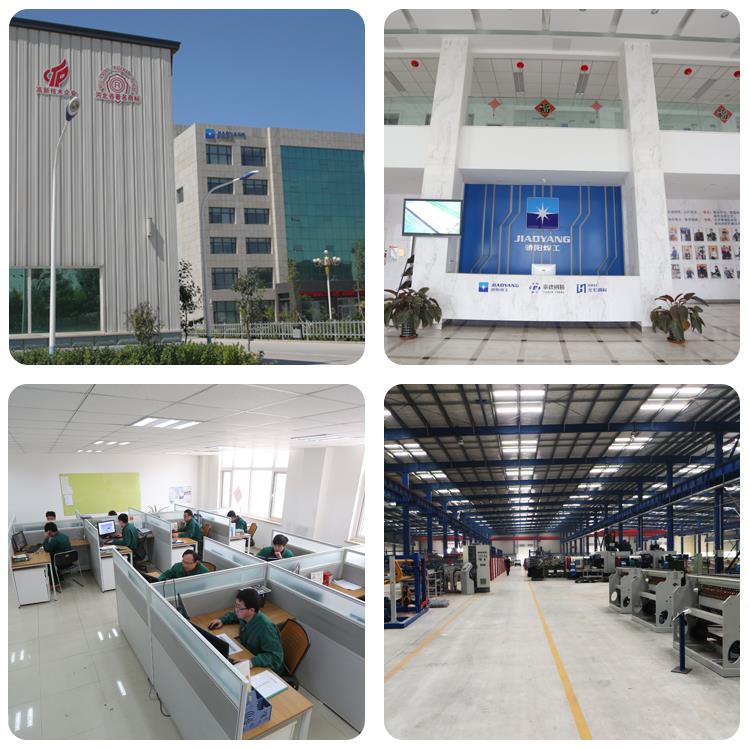

Hebei Jiaoyang Wire Mesh Machine CO., LTD.
Wire straightening and cutting machine GTQ6/12
Employees: 243
Engineers and technicians: 34
Processing equipment: 105 sets
Plant area: 133,000 square meters
Office area: 3,700 square meters
National patents: 63
Assets: USB 20,000,000
Annual equipment export amount: 360 sets
Annual equipment output: 800 sets
Foreign markets: Asia, Middle East, America, Africa
 |
Certifications:
We have gotten the ISO9001, CE, SGS certifications for Wire straightening and cutting machine GTQ6/12.
Below information is required for quick quotation:
1. Wire diameter : From mm to mm.
2. Line wire space : From mm to mm.
Cross wire space : From mm to mm.
3. Mesh width: 1200mm,1500mm, 2100mm, 2500mm, 3000mm ( customized)
4. Industrial voltage : 380V 50HZ ( Customized)
5. Do you want to weld wire mesh panel or mesh in coil ?
6. Is the auxiliary equipment also require?
