Brick force mesh welding machine
Basic Information:
Brick force mesh welding machine is mainly used to produce brick force meshes. Brick force mesh is widely used in construction, hollow wall reinforcement, increase the elasticity, to prevent wall cracks, is a good building auxiliary material.
| Product Name | Brick force mesh welding machine |
| Wire Diameter | 1.6-3.5mm |
| Mesh Hole | 50-230mm |
| Mesh Width | 400mm |
| Welding Speed | 80times/min/2rolls |
| Shipping Term | Tianjin Port |
| Payment Term | T/T, L/C |
Technical Parameters:
| Item | Brick force mesh welding machine I | Brick force mesh welding machine II |
| Number od electrodes | 4 | 2 |
| Max.mesh width | 400 | 300mm |
| Wire diameter | 1.6-3.5mm | 3.5-6mm |
| Cross wire space | ≥20mm | 50-500mm |
| Line wire space | 50-230mm | 50-300mm |
| Welding speed | 80times/min/2rolls | 60 times/min |
| Control system | PLC | PLC |
Product Characteristic:
1. The product model:Brick force mesh making machine in china
2. The control system:The control panel (button)
3. Power system:Motor

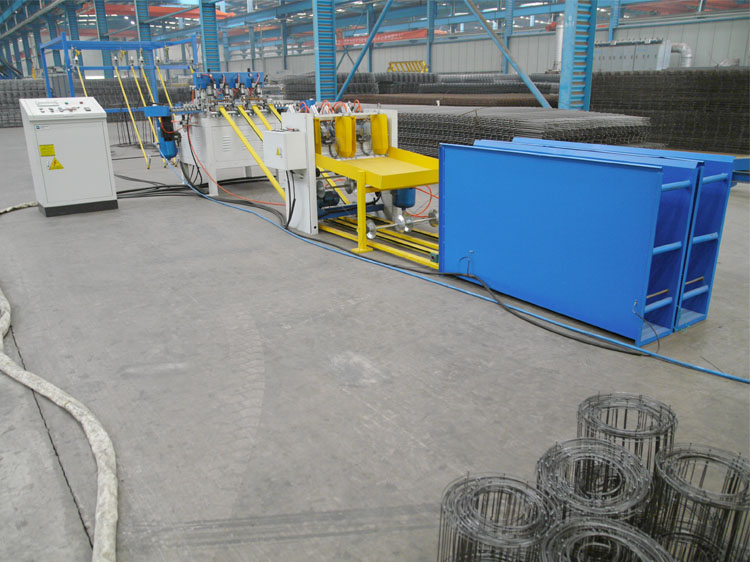

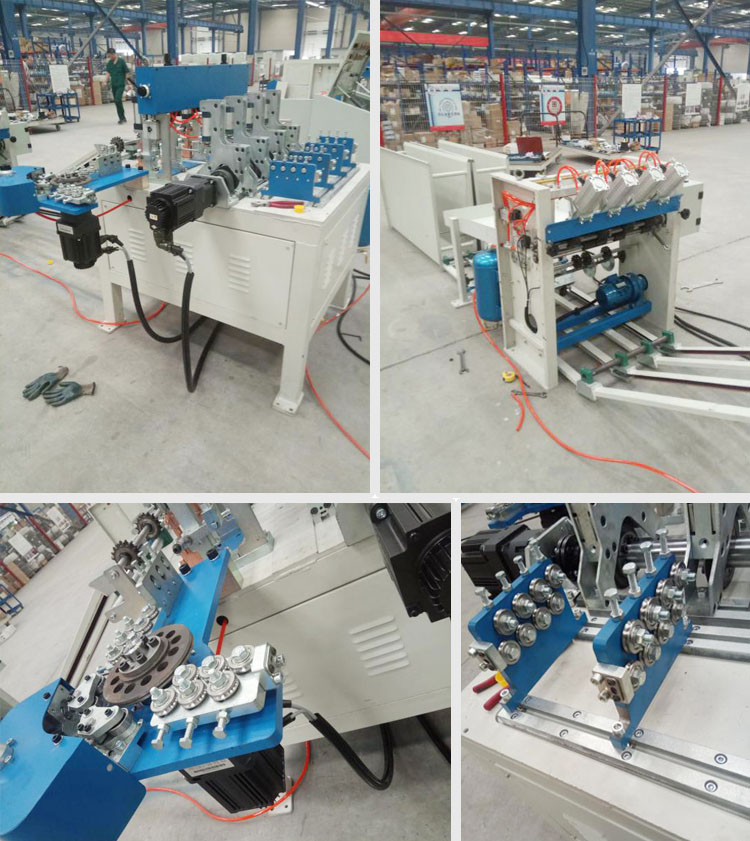

4.The welding main engine has the cross servo feeding system, line servo feeding system, welding system, compact structure, small footprint, high degree of automation.

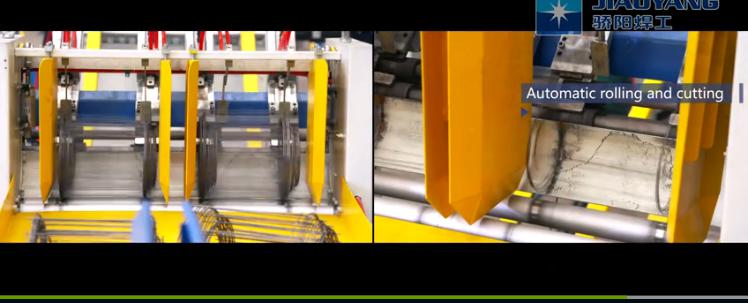

5.Mesh rolling power from a 0.37KW motor. When mesh finished, it will cut & discharge automatic.

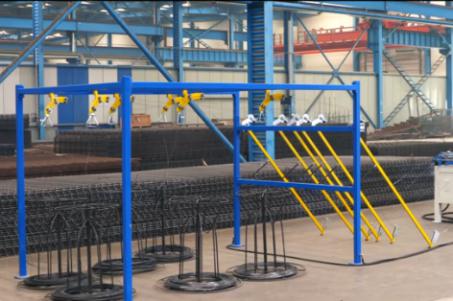

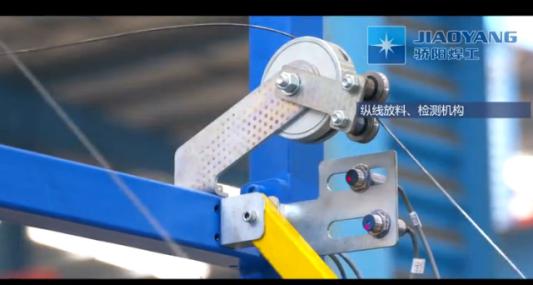

6.The sensors are also equiped to monitor the line wires. It has 6 springs between the yellow device and blue frame,which can regulate 6 wire payoffs are included.
Finished Product:
The machine will be packed with plastic bags, spare parts in carton box.
Special packing is available according to customers' requirements.
 |
Our Service:
 | |
Pre-Sales Service: * Inquiry and consulting support. * Sample testing support. * View our Factory. * Online visit | After-Sales Service: * Training how to install,operate and maintain the machine. * Engineers available to service machinery overseas. * One year gurantee for the whole machine. * Operation manual is available. |
Sincerely look forward to cooperate with you ! For more details about wire mesh welding machine, welcome to contact with us in any time ! We will fully committed to provide the best quality products and services.

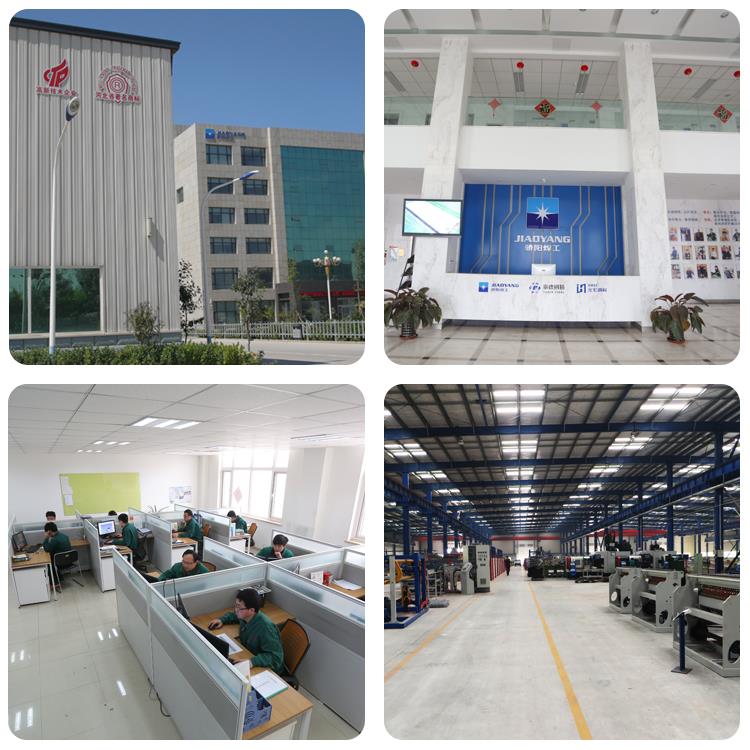

Brick force mesh welding machine
Employees: 243
Engineers and technicians: 34
Processing equipment: 105 sets
Plant area: 133,000 square meters
Office area: 3,700 square meters
National patents: 63
Assets: USB 20,000,000
Annual equipment export amount: 360 sets
Annual equipment output: 800 sets
Foreign markets: Asia, Middle East, America, Africa
 |

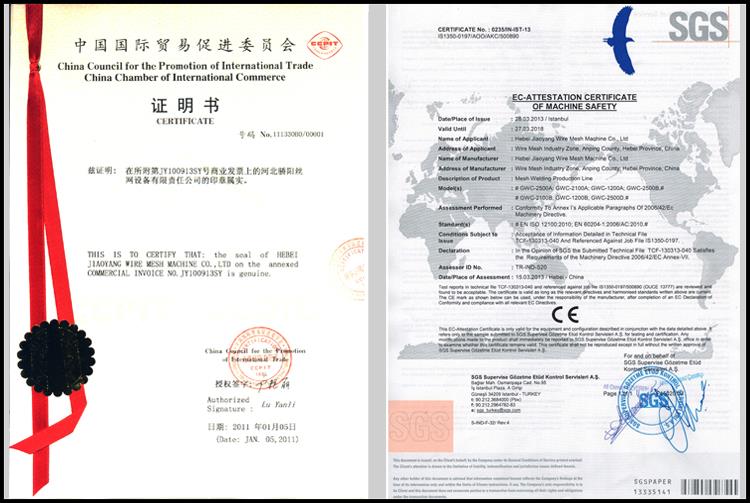

We have gotten the ISO9001, CE certifications for Brick force mesh welding machine.
Below information is required for quick quotation:
1. Wire diameter : From mm to mm.
2. Line wire space : From mm to mm.
Cross wire space : From mm to mm.
3. Mesh width: 1200mm,1500mm, 2100mm, 2500mm, 3000mm ( customized)
4. Industrial voltage : 380V 50HZ ( Customized)
5. Do you want to weld wire mesh panel or mesh in coil ?
6. Is the auxiliary equipment also require?
