01/Product description

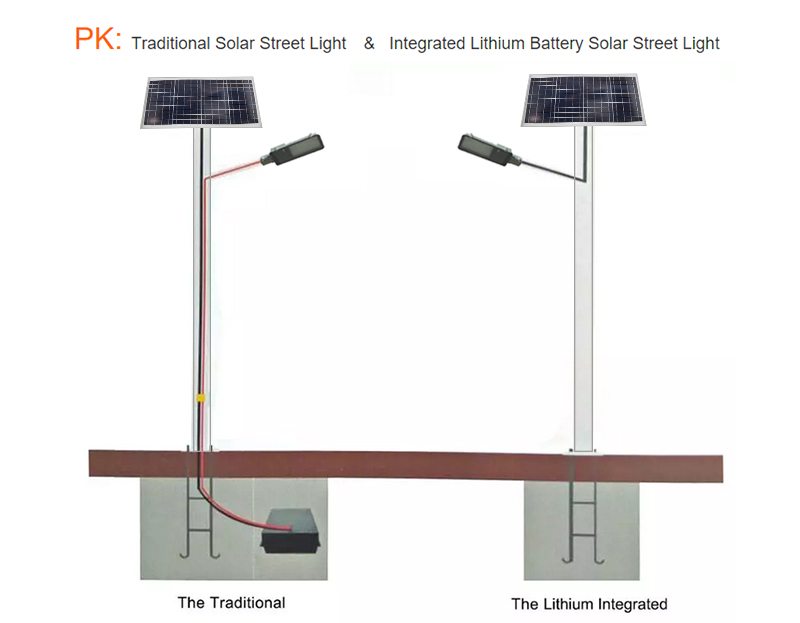

New patented product outdoor solar street light ,large capacity
Convenient transportation
| Item | Specification | Remark | ||
| light power | 60W | 80w | 50w | Standard |
| lithium battery capacity | 12V 30AH | 12V 40AH | 3.2V 65AH | lithium battery |
| solar panel | 80W | 100w | 60w | poly |
| Voltage | 12V | 12V | 3.2V | |
| LED Light intensity | 120-130LM/W | 120-130LM/W | 120-130LM/W | The refraction of the lens isn't included |
| Color temperature | 5800-6500K | 5800-6500K | 5800-6500K | Standard |
| Color rendering index | ≥80% | ≥80% | ≥80% | |
| Light angle | 120° | 120° | 120° | |
| working temperature | -25℃-60℃ | -25℃-60℃ | -25℃-60℃ | |
| storage temperature | -5℃-35℃ | -5℃-35℃ | -5℃-35℃ | |
| working hour | 8-12hrs | 8-12hrs | 8-12hrs | optional |
| controller | Booster controller,Over-charging protection, over-discharging protection, short-circuit protection, inverse connection protection, automatic energyisaving mode | Qualified | ||

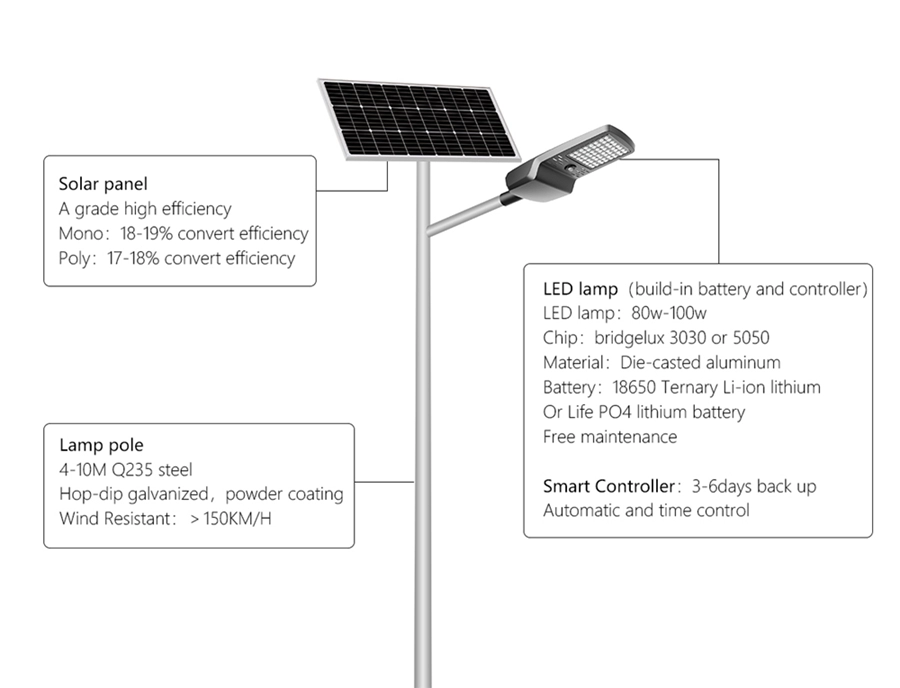

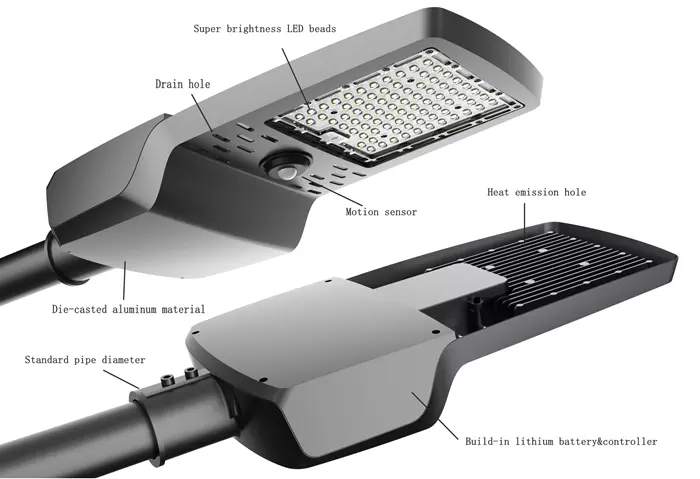

1. LED lamp
? The heat sink is designed to be out in the air to dissipate heat quickly
? Frosted toughened glass, no glare light.
? All-in-one structure, IP65 waterproof and dust-proof.
? Individual LED: 1LED with 1 heat sink, fast heat dissipation makes it over 50,000 hours long life time.
? Sleeve adaptor, no need to open the light fixture when installation.
2. Solar panel
? 3years’warranty, no less than 90% of standard output power is within 10 years, 80% of standard output power is within 25 years.
? high efficiency polycrystalline and adding Aluminum Frame, Tempered Glass.
3. lithium battery
? large capacity lithium battery, 3-6days back up
? 18650 ternary Li-ion battery & Life PO4 lithium battery
4. Controller
? Short-circuit Protection: Once the load is short-circuiting connected, the controller will shut itself off to protect the solar system from damage.
? Reverse Discharging Protection: It prevents the battery from discharging to solar panel.
? effective dust-proof and water-proof
Features of lithium led lamp:
Working mode with microwave motion sensor:
——————————————————————————————————————

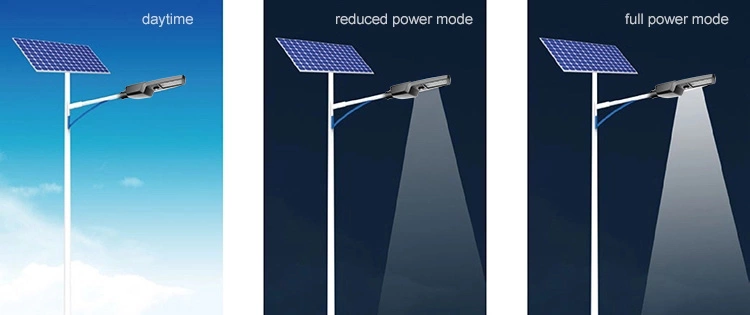

Two working modes for integrated light:
A. full power working mode and Automatic power reduction for energy saving working mode.
B. Energy saving working mode means the light will dim to 70% 50% or 30 % follow the night time. when motion detected people or
vehicle passe by,it will automaticlly lighten up to 100% efficiency .

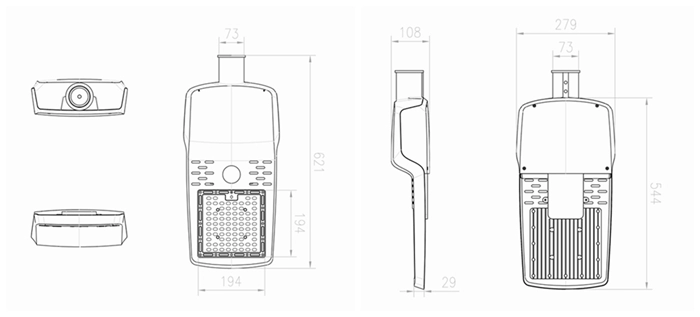

LED light Size (mm):
———————————————————————————————————————————
Soak Testing:
———————————————————————————————————————————
Scene Render :

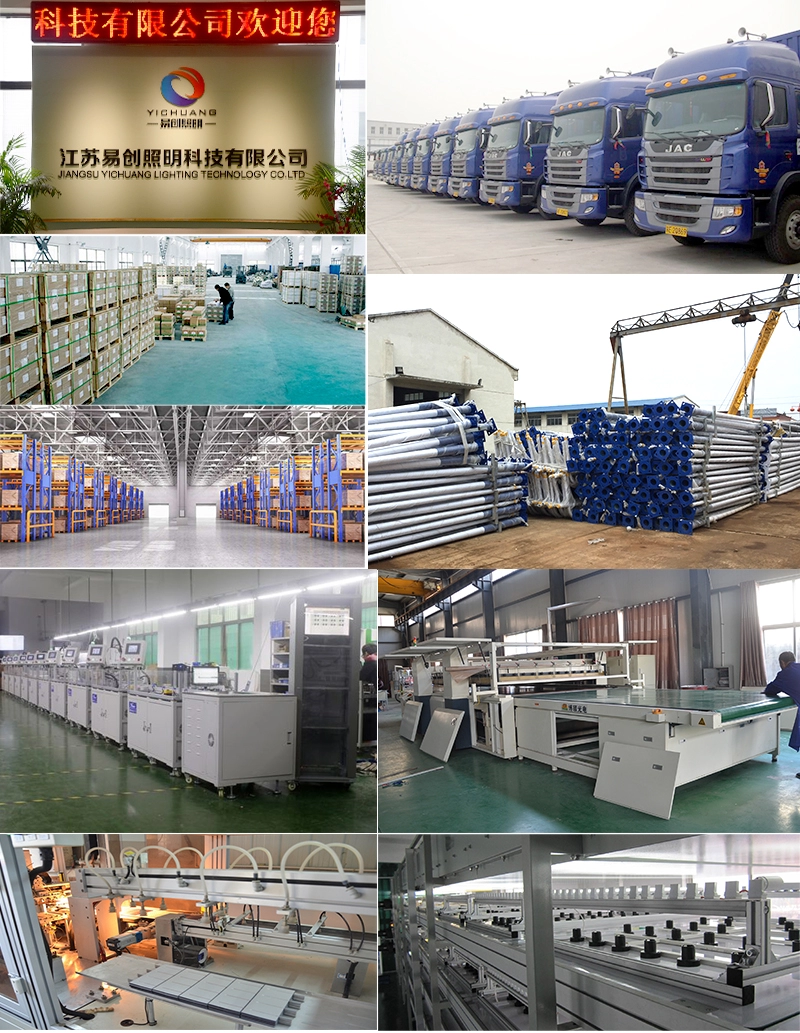

Company Introduce
Jiangsu yichuang lighting technology CO.,LTD , Founded in 2010,
Specialized in solar street light system development
