Business Type: Manufacturer
Main Products:wire mesh welding machinewire straightening and cutting machine reinforcing mesh Steel Structures
ID:20082819084
Manufacturing & Processing Machinery
MOQ:1.00 Piece(s)
Anti climb mesh machinemesh fence welding machineanti climb fence machine358 mesh fence machinewire mesh welding machinemesh welding machine
L/CT/T
| Item | GWC1600 | GWC2500 | GWC3000 |
| Number of electrodes | 32 | 41 | 49 |
| Max.mesh width | ≤1600mm | ≤2500mm | ≤3000mm |
| Wire diameter | 3-6mm | 3-6mm | 3-6mm |
| Mesh lenth | 0.8-3.5m | 0.8-3.5m | 0.8-3.5m |
| Line wire space | ≥50mm | ≥50mm | ≥50mm |
| Cross wire spce | ≥12.5mm | ≥12.5mm | ≥12.5mm |
| Electric capacity | ≥200KVA | ≥200KVA | ≥200KVA |
| Welding speed | 100times/min | 100times/min | 100times/min |
| Control system | PLC | PLC | PLC |

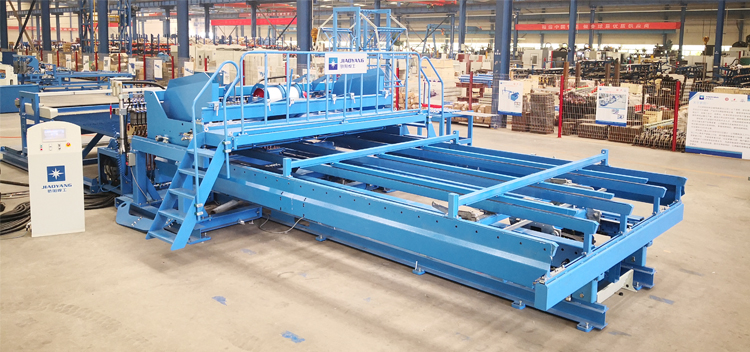

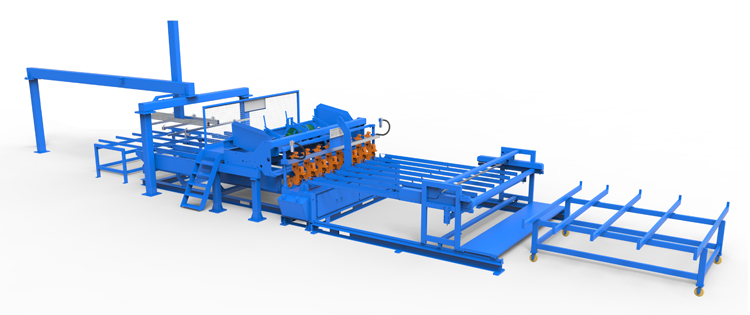

1. The product model:358 Fence mesh welding machine for protection/Welded wire mesh machine
2. Power system:Electromagnetic brake motor
3. Introduction:
This machine mainly for production of anti-climb mesh,high degree of automation.The anti-climb mainly used in industrial,agricultural,prison,municipal,transportation and other industries for fences,decoration,protection and other facilities.
Detailed Information:

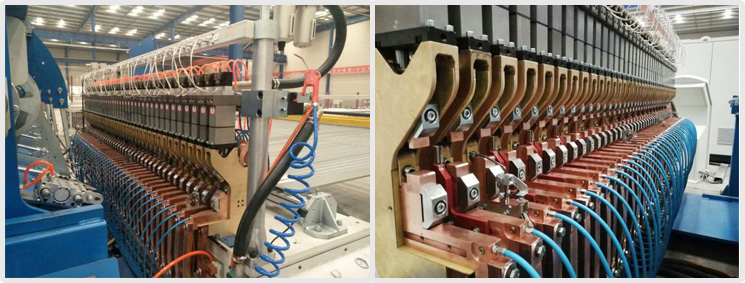

1)Main welding machine:Speed:100times/min.Our welding machine adopts pneumatic pressure system ,which ensure the welding points more firm than mechanical system.

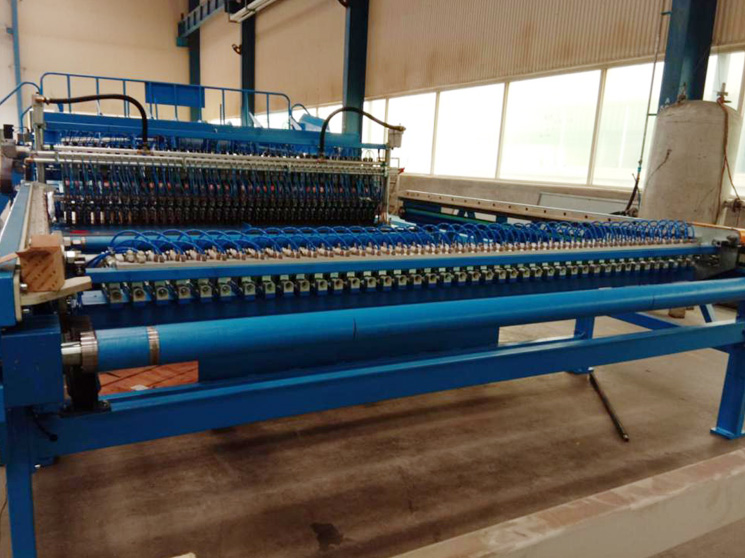

2)Our line wire feeding is from pre-cut,as so the finished mesh panel surface will be more flat than ling wire feeding from coil.And the line wire length can reach max 4.5m.

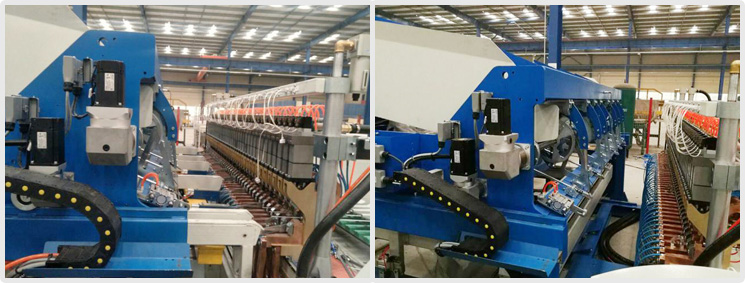

3) The cross hopper with a cross wire storage and automatic feeding device, storage capacity of about 1.5 tons, to reduce the manual reclaim material, improve production efficiency.The pushing power adopts 1.0KW servo motor.

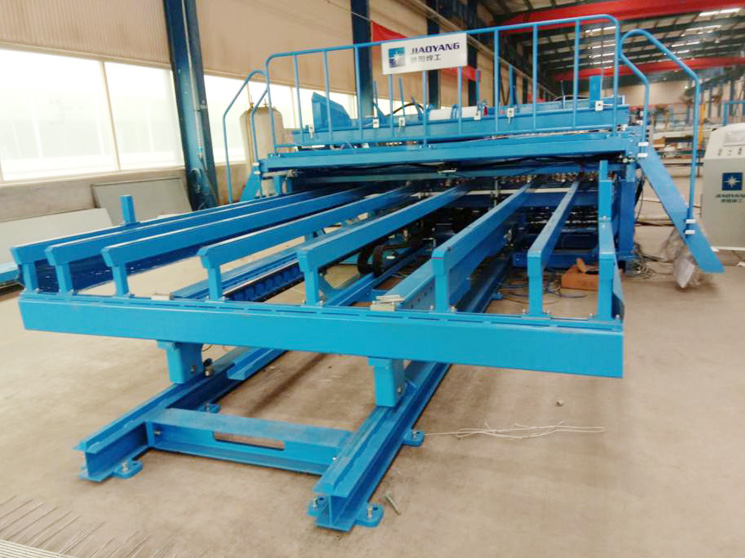

4) The pulling system power is droven by the servo motor.The pulling system adopts the circle model, which save the time and improve the welding speed.Another advantage is the pulling frame is moved, and it is more convenient when the line wire spacing is adjusted.

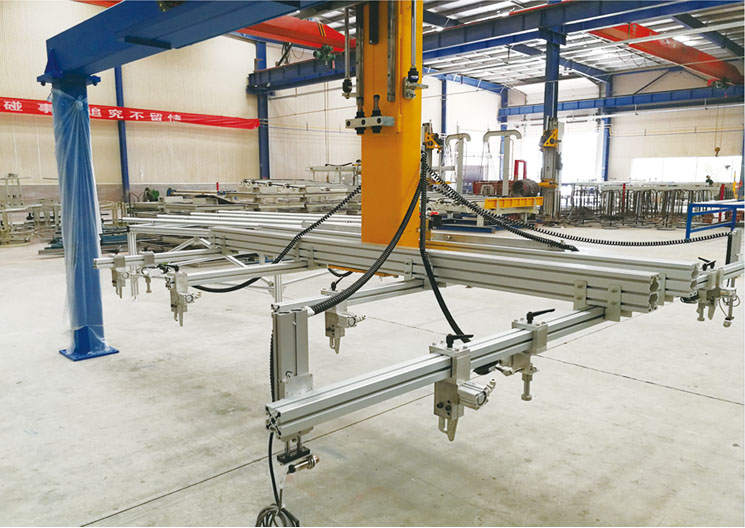

5) After the mesh fence is finished, we equip the grabbing system. It can reduce workers’intensity and improve the automation.
Applications:
Materials : welding machine is good at welding various metal wire : stainless steel wire , low carbon steel wire , round steel bar, ribbed steel bar.

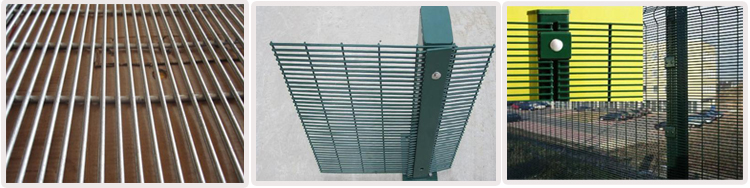

Anti-climb mesh purposes:mainly used in industrial,agricultural,prison,municipal,transportation and other industries for fences,decoration,protection and other facilities.
Auxiliary Machines:

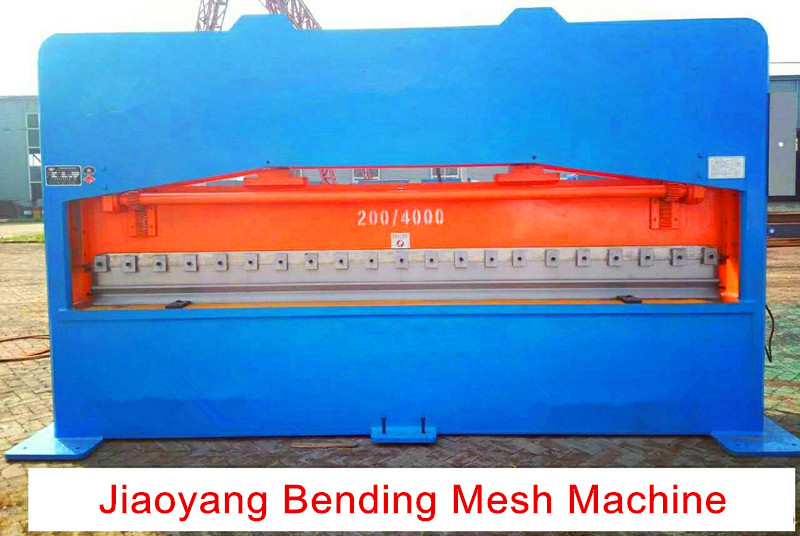

1. Mesh Fence Bending Machine
 | Wire Diameter: 3-6mm Mesh Width: 3m Mesh Hole: 50*100mm Machine Weight: 5.5T |

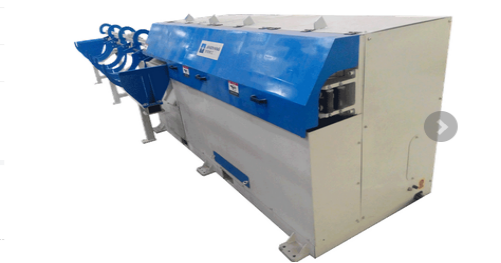

2. Wire Straightening and Cutting Machine
 | Wire Diameter: 3-6mm Cutting Length: 0.8-6m Speed: 100-110m/min Machine Weight: 1200KG |
Related Products Information:
1. Reinforced mesh / steel mesh welding machine
2. Storage shelves mesh welding machine
3. Mine timbering mesh welding machine
4. Animal cage mesh welding machine
5. Construction mesh welding machine
7. Wire straightening and cutting machine

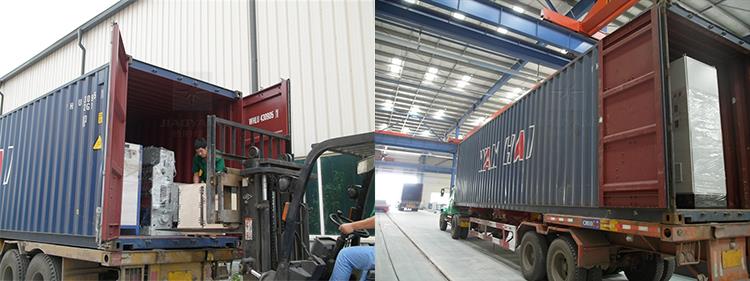

Packaging:
1) The spare parts and control cabinet will be loaded in wooden box.
2) The main machine is plastic bags packing.
3) Special packing is available as customer's request.
Our Service:
1.Guarantee the 358 anti-climb mesh welding machine for one year.
2.We can design the 358 anti-climb mesh welding machine as your requirement.
3.User-friendly English manual for 358 anti-climb mesh welding machine using and maintaining.
4.Engineers available to service anti-climb mesh welding machine overseas.
 | |
Pre-Sales Service: * Inquiry and consulting support. * Sample testing support. * View our Factory. * Online visit | After-Sales Service: * Training how to install,operate and maintain the machine. * Engineers available to service machinery overseas. * One year gurantee for the whole machine. * Operation manual is available. |
Sincerely look forward to cooperate with you ! For more details about wire mesh welding machine, welcome to contact with us in any time ! We will fully committed to provide the best quality products and services.

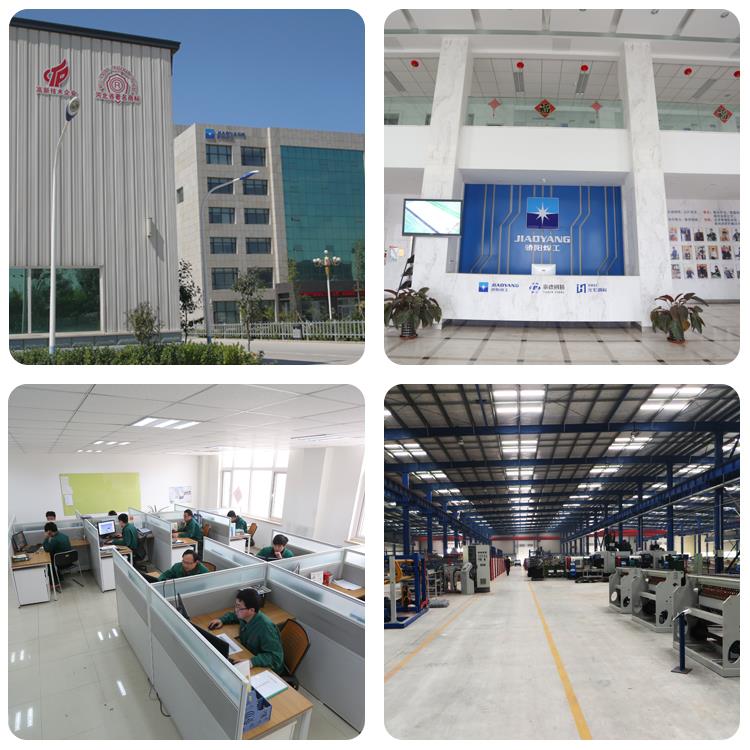

Our Company:
Certifications: ISO9001, CE
 |
Below information is required for quick quotation:
1. Wire diameter: From _ mm to _ mm.
2. Line wire space: From _ mm to _ mm.
Cross wire space: From _ mm to _ mm.
3. Mesh width: 1200mm,1500mm, 2100mm, 2500mm, 3000mm ( customized)
4. Do you want to weld wire mesh panel or roll ?
5. Is the auxiliary equipment also require?
