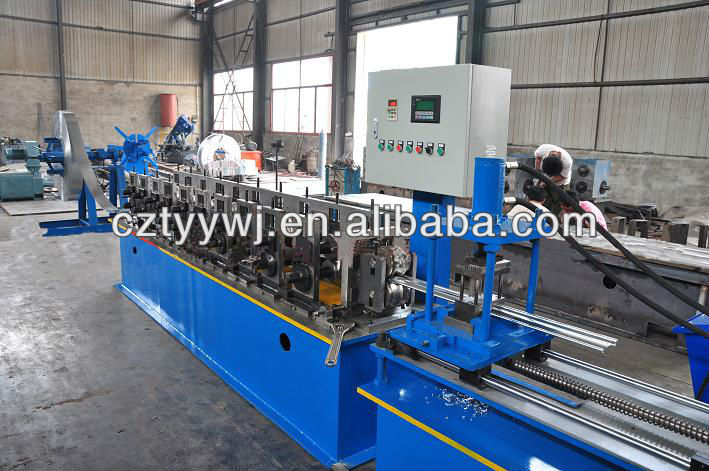

Shutter doorRoll forming machine
L/CT/TD/PWestern UnionPaypalMoney GramOthers
Colored Steel Tile Type and Tile Forming Machine Type equipment for small business at home saw cutting shutter door roll forming machine
This machine is used to produce roof panels, the raw material is colored steel coils, or galvanized steel coils.
It imitates the classical Chinese roof tiles, but much more cheaper and stronger than glazed ceremic tiles.
1. specification of the roll forming machine
1Main motor power: 5.5KW 2Hydraulic station power: 4KW 3Hydraulic oil pump:E310 4Sprocket: P-25.4 5Roller station: 13 6Yield strength: 32MPa 7Diameter of principal axis: 90MM 8Material of roller: 45#steel hard chrome plating 9Processing speed: 8m/min 10Thickness: 0.3-1.2mm 11Installation dimension about(L*W*H): 7.2M*1.3M*1.5M 16Total weight: 4.2T 17Equipment parts: roll forming system, hydraulic system, PLC frequency conversion control system, counter, cutting system,decoiler . |

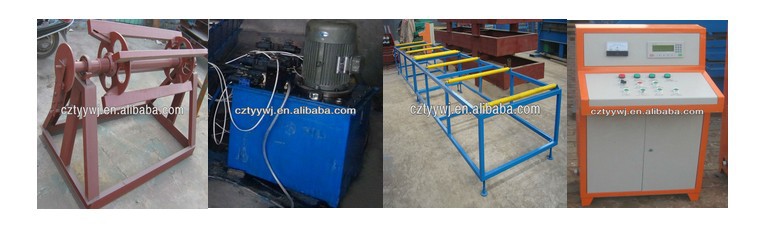

Processing technique and deployment:
Uncoiler
Feeding platform
Molding core
Molding shearing mechanism
Hydraulic station
Computer control cabinet
Counter
Optional equipment:
·Manual uncoiler frame in different tons
·Hydraulic automatic uncoiler

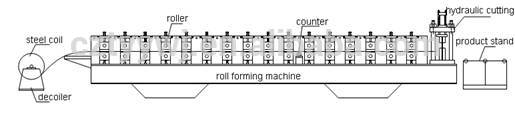

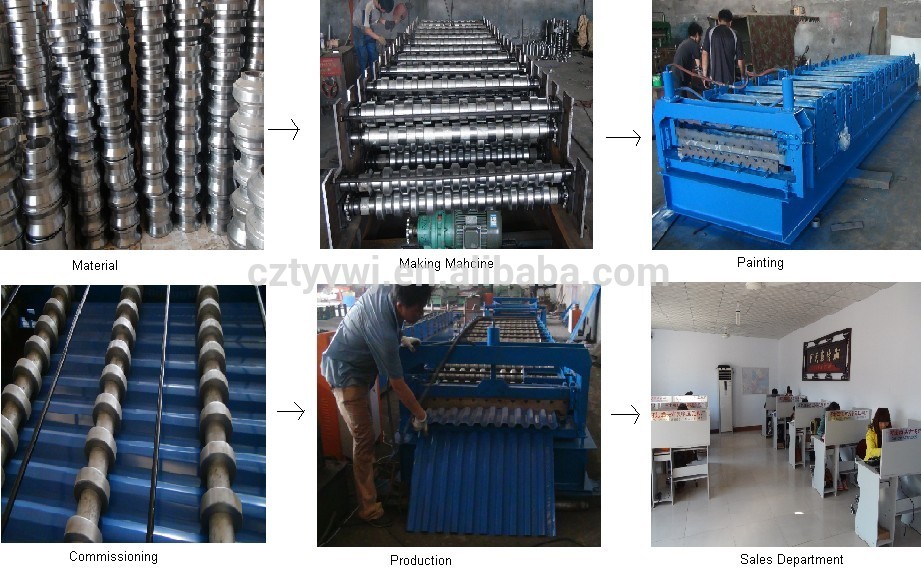

2.process of the roll forming machine
3.Payment terms
T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery )

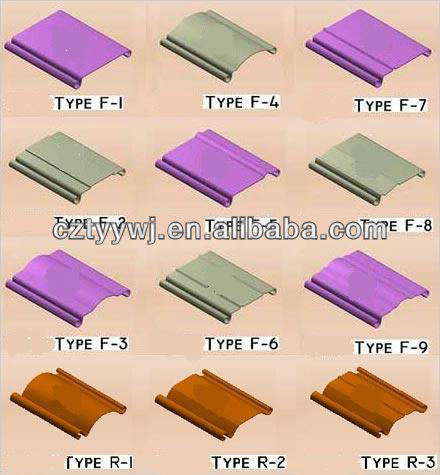

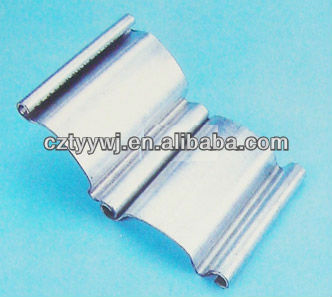

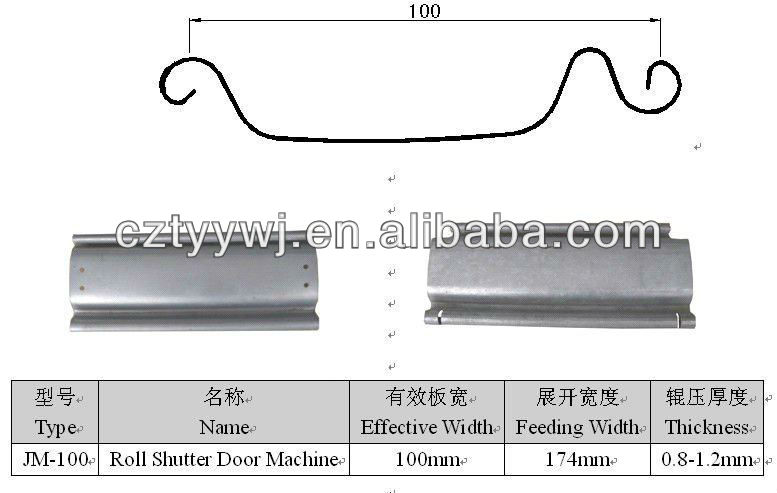

4.Profile and drawings equipment for small business at home saw cutting shutter door roll forming machine
]
Components of machine in this production line
| 1. | Uncoiler | It support to material uncoil |
| 2. | Feeding platform | It support to feed material to molding machine |
| 3. | Main molding parts | It support roll forming the products according your requirement |
| 4. | Control system | It control the machine's operation , such as cutting , speed ,ect. |
| 5. | Hydraulic system | It offer the power for cutting system |
| 6. | Receiving table | It used to receive the finished products |
The machine is bare packing. Usually one machine can be put into one 20-40 feet container.
We use steel wire to fix the machine in the container.

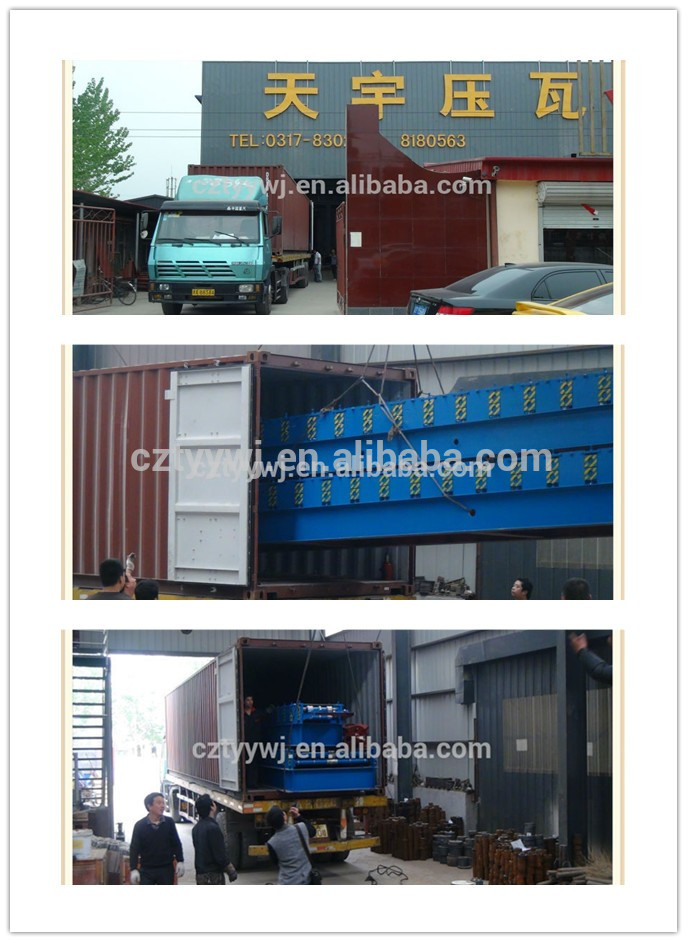

5.Packing and delivery roll forming machine
The machine is bare packing.
Usually one machine can be put into one 20-40 feet container.
We use steel wire to fix the machine in the container.
6.Our guests
Welcome to Botou City Tianyu Roll Forming Machinery Equipment Factory!
Main Markets: | South Asia | |
Total Annual Sales Volume: | US$1 Million - US$2.5 Million | |
Export Percentage: | 31% - 40% |
