| 1. Technical Parameters | |||
| NO | Parameters | YJLED350-R-120W | YJLED350-R-150W |
| 1 | Input Voltage | 100-277V/50/60Hz | 100-277V/50/60Hz |
| 2 | Power | 120W | 150W |
| 3 | LED Chip | Osram/Philips3030 | Osram/Philips3030 |
| 4 | LED QT'Y | 144PCS | 144PCS |
| 5 | Luminous Flux | 13200LM | 15750LM |
| 6 | Light Efficiency(5700K) | 110LM/W | 105LM/W |
| 7 | Color Temp. | 3000-5700K | 3000-5700K |
| 8 | CRI | >70 | >70 |
| 9 | LED Driver | MEAN WELL/Philips | MEAN WELL/Philips |
| 10 | Driver Efficiency | 92% | 92% |
| 11 | Power Efficiency | 95% | 95% |
| 12 | Working Temp. | -25oC-50oC | -25oC-50oC |
| 13 | Package Size | 48.5*48.5*15cm | 48.5*48.5*15cm |
| 14 | Gross/ Net Weight | 9.25/7.87kg | 9.25/7.87kg |
| 15 | IP Rate | IP65 | IP65 |
| 16 | Lifespan LM70 | 50000H | 50000H |
| 17 | Installation | Recessed Mount | Recessed Mount |
| 18 | Light Distribution Curve(cd/kLM) | 90° | 90° |

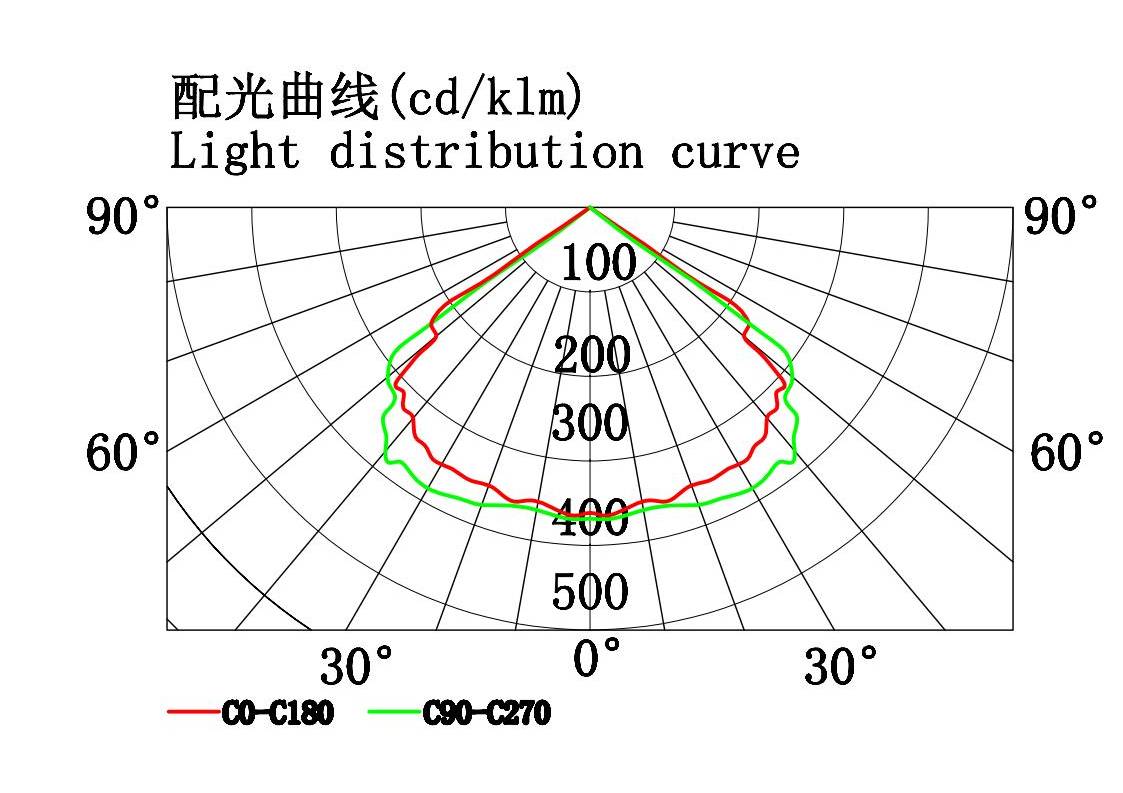

2. Light Distribution Curve (cd/kLM)
90°

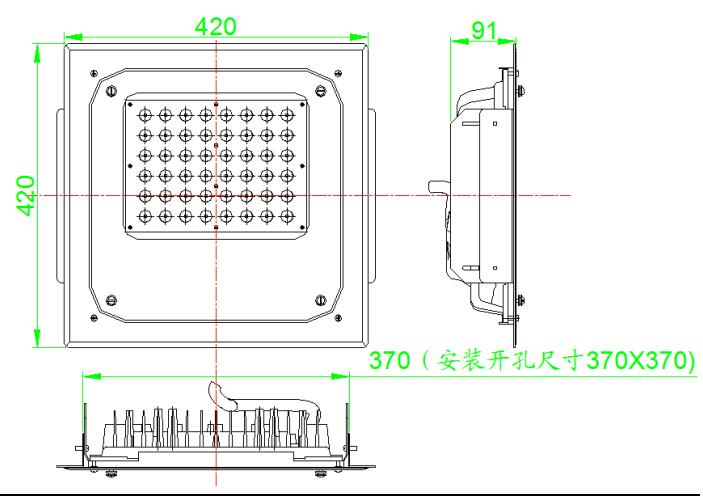

3. Product Dimension

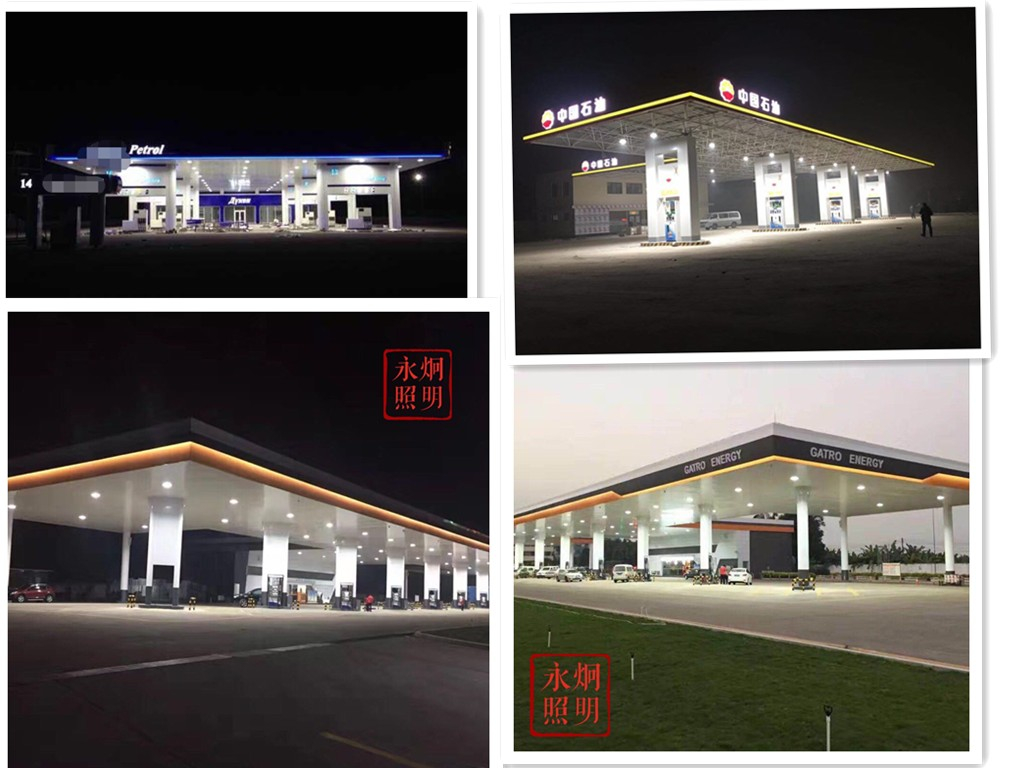

4. Application Area:
A gas station, canopy site, service station, airport, metro station, factory, warehouse, workshop, park, square, parking lot, etc.
5. Replacement of HID Light
Big Frame: 520*520mm/ 600*600mm
6. Product Features
1) The whole die casting aluminum housing is good for heat releasing. Evenly arranged led chips ensure lamps to heat overall and evenly which extend the lifespan.
2) The light has a unique secondary optical design and use 4 mm toughened glass with 92% light transmittance which can improve lighting efficiency and save energy.
3) The lamps have high lumen output and color rendering index. As several color temperature and multifarious lens for option, lamps can meet a variety of lighting needs.
4) Green environmental protection, long life, good impact resistance, strong earthquake resistance, IP66, no fog, no frost, soft lighting effect.
