| 1. Technical Parameters | ||||
| NO | Parameters | YJLED350-IV-80W | YJLED350-IV-100W | YJLED350-IV-120W |
| 1 | Input Voltage | 100-277V/50/60Hz | 100-277V/50/60Hz | 100-277V/50/60Hz |
| 2 | Power | 80W | 100W | 120W |
| 3 | LED Chip | cree xte | cree xte | cree xte |
| 4 | LED QT'Y | 48PCS | 48PCS | 48PCS |
| 5 | Luminous Flux | 7200LM | 8500LM | 9600LM |
| 6 | Light Efficiency(5700K) | 90LM/W | 85LM/W | 80LM/W |
| 7 | Color Temp. | 3000-5700K | 3000-5700K | 3000-5700K |
| 8 | CRI | >70 | >70 | >70 |
| 9 | LED Driver | MEAN WELL | MEAN WELL | MEAN WELL |
| 10 | Driver Efficiency | 92% | 92% | 92% |
| 11 | Power Efficiency | 95% | 95% | 95% |
| 12 | Working Temp. | -25oC-50oC | -25oC-50oC | -25oC-50oC |
| 13 | Package Size | 41*41*17.5cm | 41*41*17.5cm | 41*41*17.5cm |
| 14 | Gross/ Net Weight | 9.1/7.7kg | 9.1/7.7kg | 9.1/7.7kg |
| 15 | IP Rate | IP65 | IP65 | IP65 |
| 16 | Lifespan LM70 | 50000H | 50000H | 50000H |
| 17 | Installation | Bracket Mount | Bracket Mount | Bracket Mount |
| 18 | Light Distribution Curve(cd/kLM) | 60°/90°/120°/140° | 60°/90°/120°/140° | 60°/90°/120°/140° |

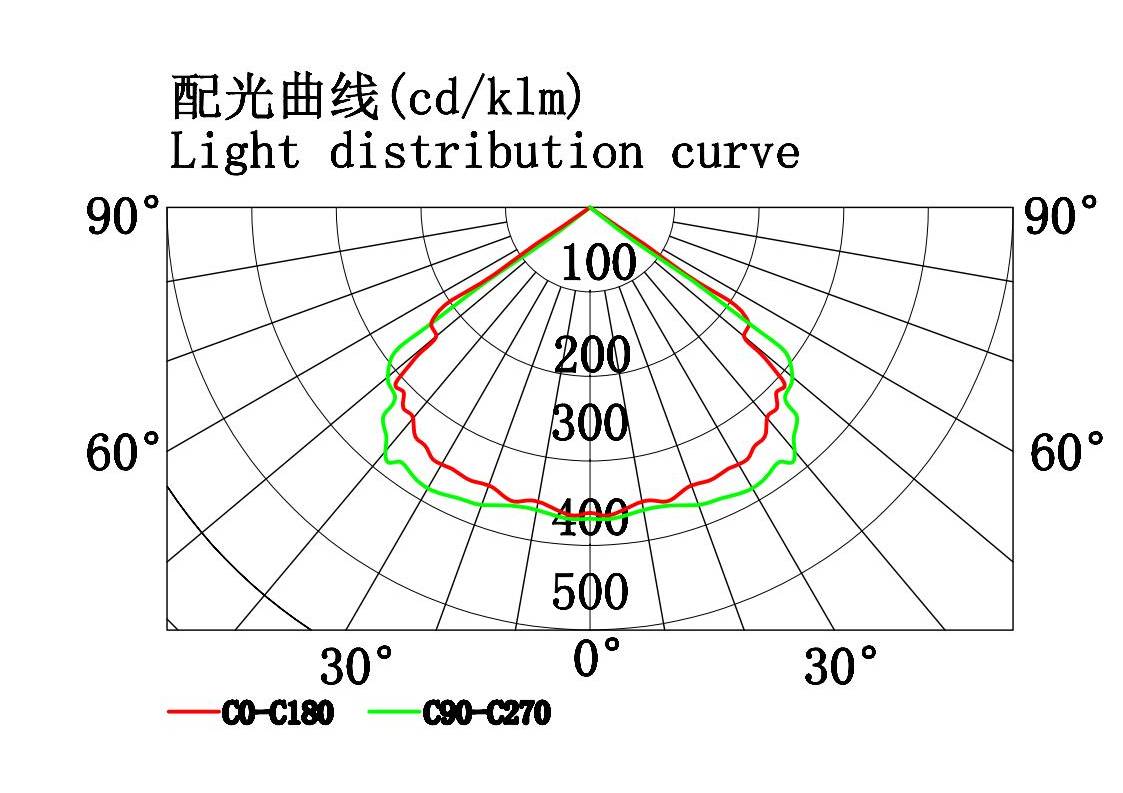

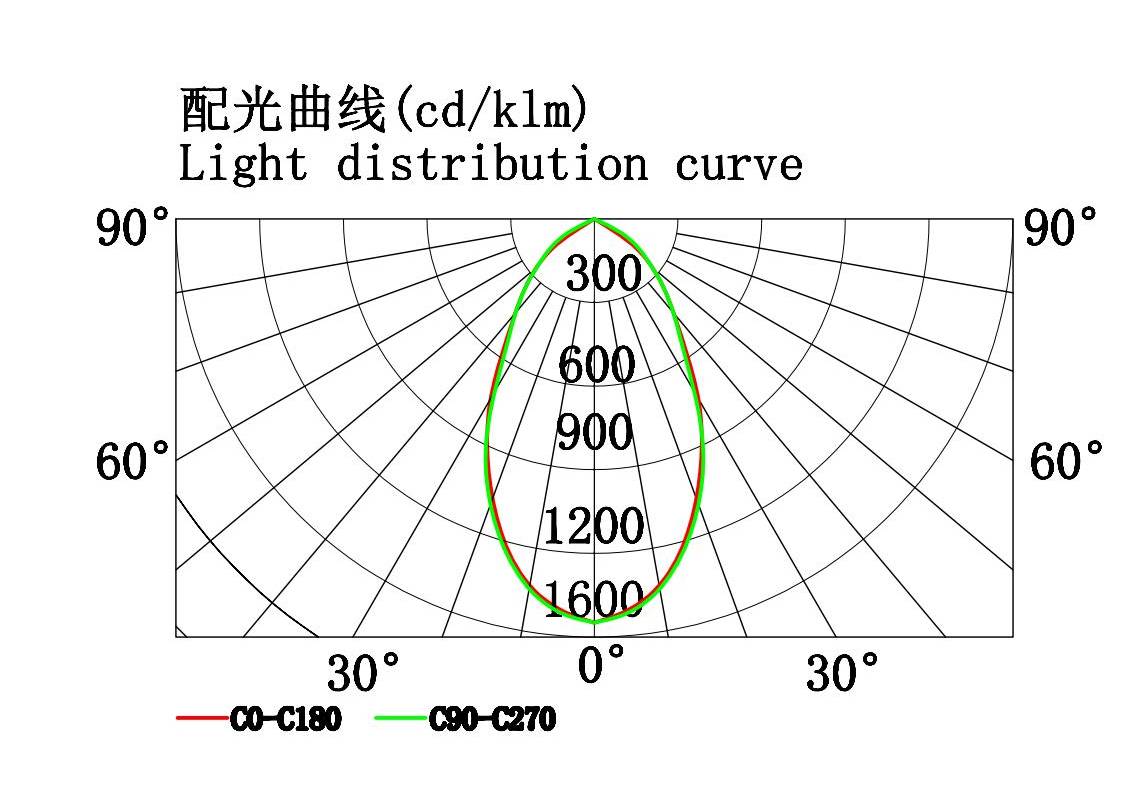

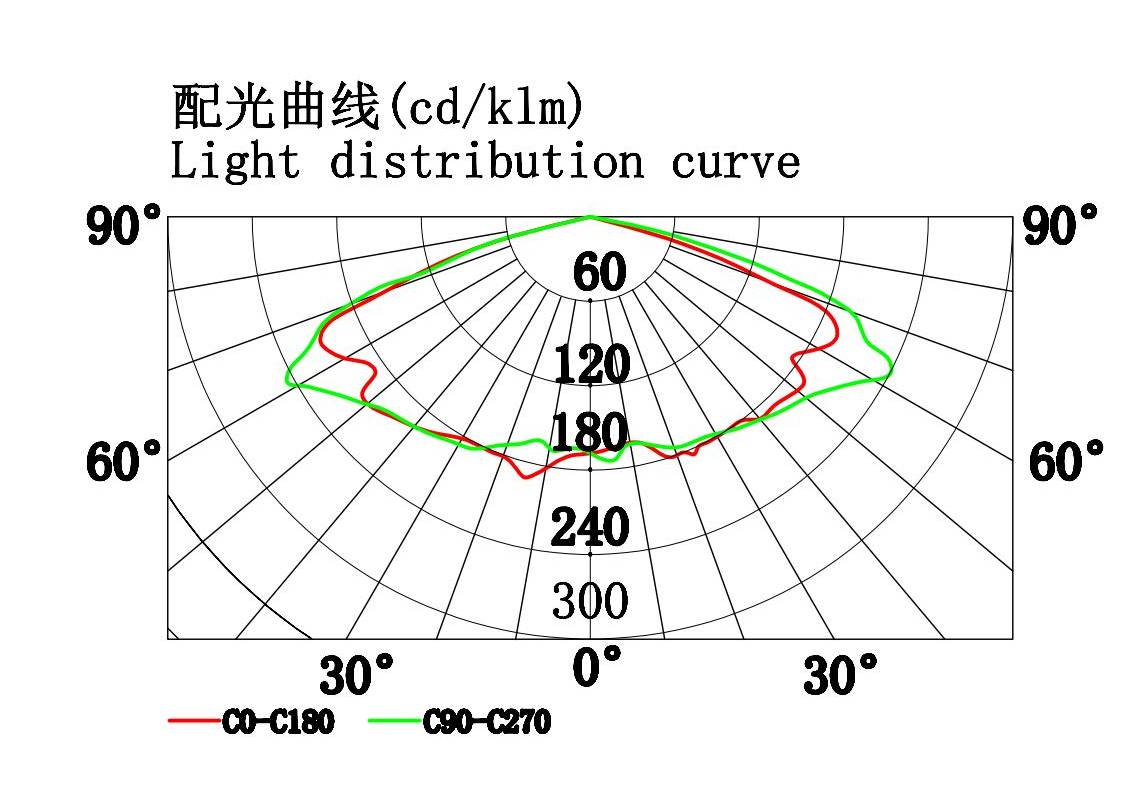

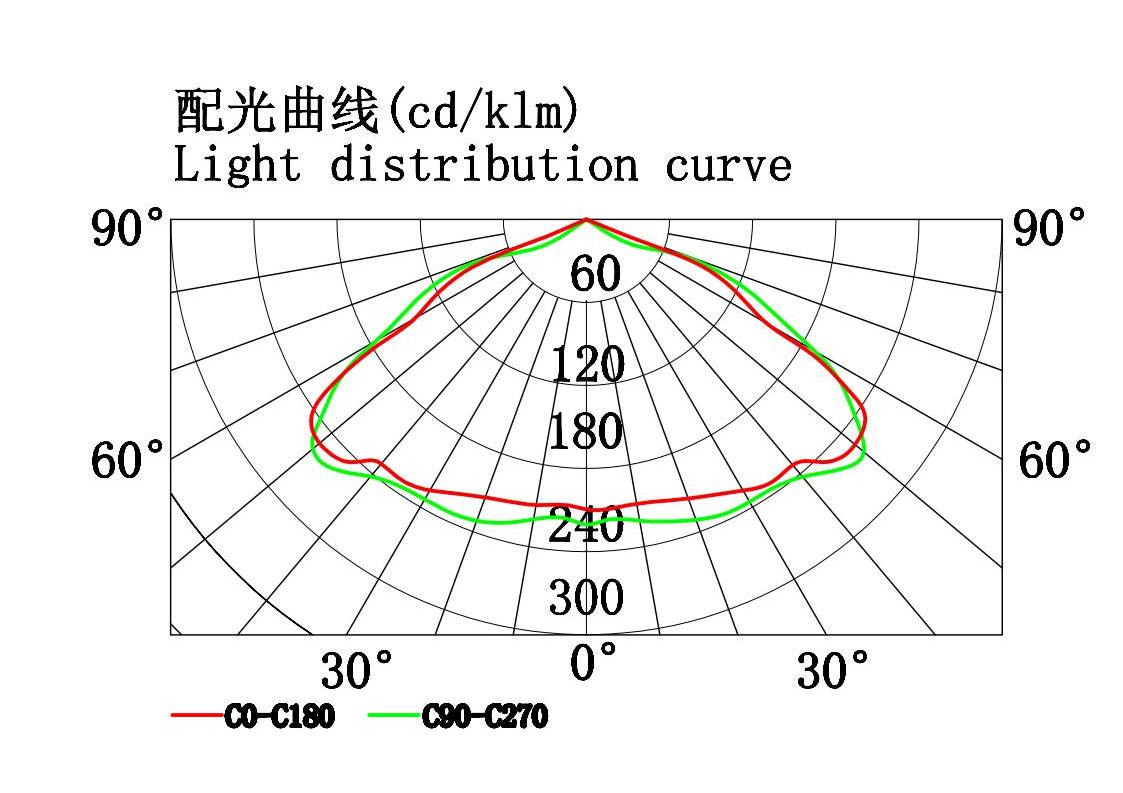

2. Light Distribution Curve (cd/kLM)
60°
90°
120°
140°

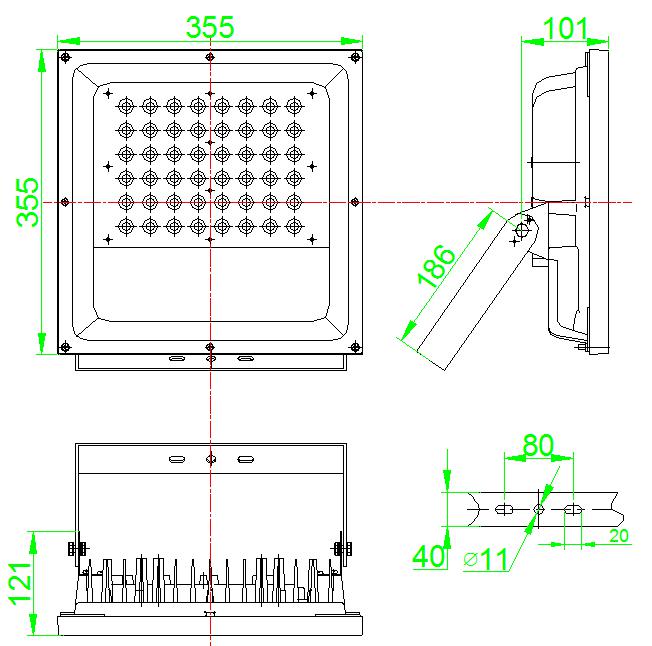

3. Product Dimension
4. Application Area:
Widely used in factories, rope, square, overpasses, outdoor advertising and so on external wall panoramic lighting.
5. Product Features
1) The whole die casting aluminum housing is good for heat releasing. Evenly arranged led chips ensure lamps to heat overall and evenly which extend the lifespan.
2) The light has a unique secondary optical design and use 4 mm toughened glass with 92% light transmittance which can improve lighting efficiency and save energy.
3) The lamps have high lumen output and color rendering index. As several color temperature and multifarious lens for option, lamps can meet a variety of lighting needs.
4) Green environmental protection, long life, good impact resistance, strong earthquake resistance, IP66, no fog, no frost, soft lighting effect.
