Product Description
Product Name | Cold Extruction Press Rebar Coupler |
Material | Carbon Steel ASTM 1020 (20#) |
Standard | Comply with Chinese standard JG/T 163-2013 Couplers for Rebar Mechanical Splicing, Amercian standard ACI318 ACI349, British standards BS8110, French standard NF35-20-1, German standard DIN1045, ISO 15835 and other relevant standards. |
Used for rebar Grade | BS 4449, B500, JG/T 163-2013, HRB 400, HRB 500, HRB600, ASTM A615 Grade 60/Grade 75 |
Size | Suitable for Rebar Size from 18mm to 40mm |
Customization | Customizing based on required major diameter, pitch of thread, minimum tensile strength and rebar strength |
Size of extrusion rebar coupler | |||||
Sleeve Specifications | Bar Diameter | Sleeve dimensions（OD×WT×Length） | Tolerances | ||
OD | WT | Length | |||
T18 | 18 | 33×5.0×110 | ±0.3 | ±0.5 | ±2 |
T20 | 20 | 36×5.5×120 | ±0.3 | ±0.5 | ±2 |
T22 | 22 | 40×6.0×132 | ±0.5 | ±0.6 | ±2 |
T25 | 25 | 45×7.0×150 | ±0.5 | ±0.7 | ±2 |
T28 | 28 | 50×8.0×168 | ±0.5 | ±0.8 | ±2 |
T32 | 32 | 56×9.0×192 | ±0.5 | ±0.9 | ±2 |
T36 | 36 | 63×10.0×216 | ±0.5 | ±1.0 | ±2 |
T40 | 40 | 70×11.0×240 | ±0.5 | ±1.1 | ±2 |

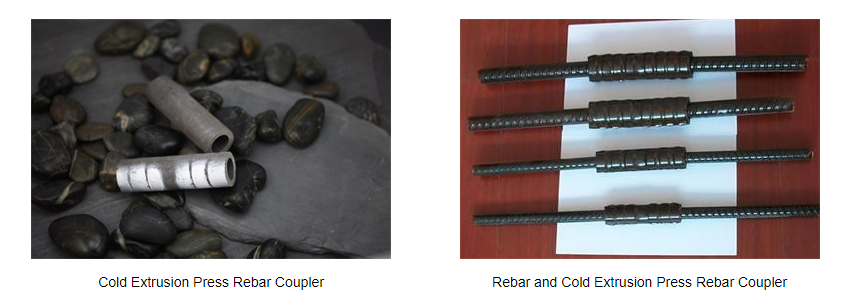

Product Show

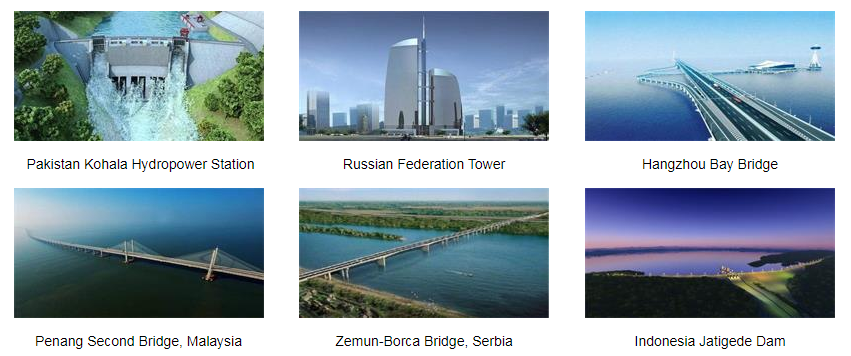

Application
Our products were exported to Europe, America, Japan, South Korea, The Middle East, Southeast Asia and in total six continents over 20 countries, and which has been consistently trusted by customers.
Our Advantage
1. We are one of the most important writers of the standard JG/T163-2013 Couplers for Rebar Mechanical Splicing.
2. We are the steel tube factory which are specialized in producing the high quality carbon steel&alloy steel as the raw material of bolted coupler.
3. Design and manufactured in compliance with ACI318, JGJ107, UBC 1997, BS8110, NF35-20-1, DIN1045, ISO 15835.
4. We are good at designing and customizing according to customers’ requirements based on required major diameter, pitch of thread, minimum tensile strength and rebar strength.
Quality Inspection
Packaging

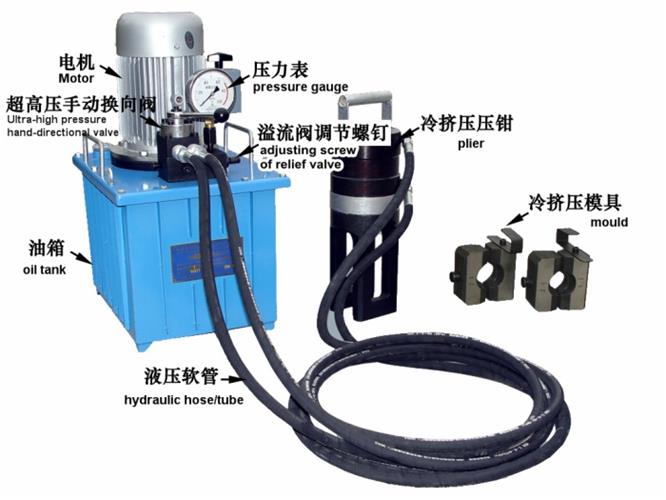

Cold Extrusion Press Machine
Why Choose Tenjan?
(1) Large Scale Production，Strong R&D Capability
The annual production capacity can reach 60,000 tons under years of development. Every-year R&D investment and a team of technicians enable Tenjan with strong R&D capability. Tenjan has full system of production with advanced equipment, such as perforation, pickling, cold rolling, cold drawing, straightening, flaw detection, tensile test and machining.
(2) Quality Control
Every batch of products can be traced and guaranteed by the raw material certificate and steel tube quality certificate. Complete quality control system, following ISO9001, to ensure a full inspection process such as pull force test, chemical composition test and eddy current detection.
(3) Certification
The chairman of Tenjan, Mr. Wensheng Gu, is one of the major constitutors of national standard Couplers for Rebar Mechanical Splicing JG/T 163-2013. And Tenjan has won the Quality System Certificates of ISO9001 and IATF16949.
(4) Major Customer Case
We have long-term relationship with customers such as BMW, MCC, CNNP, CRRC, Midea, Sinohydro, China Pingmei, China Academy of Building Research and so on.
(5) Export Countries
Our products were exported to Europe, America, Japan, South Korea, The Middle East, Southeast Asia and in total six continents over 20 countries, and which has been consistently trusted by customers.
(6) Customer Service
Tenjan provides considerate service to every customer with fast feedback, quality track and technical support.
