A-Series with IP65 18W/36W/52W CCT switching Waterproof Vapor Tight Triproof Light

ID:20082919307

Category: Lights & Lighting Pro,Commercial & Industrial Lighting

FOB Price:US$ 15.200 / Piece(s)

MOQ:1000.00 Piece(s)

Product Keywords:

IP65 IK08Waterproof Vapor TightDIP Switches130lm/wTriproof LightUV Stabilized Body

Payment Method:

Product Category
Lights & Lighting > Pro,Commercial & Industrial Lighting
Trademark
Customizable trademarks/Personlite trademarks
Product Package
1200*78*78mm / 1200*103*83mm / 1500*78*78 mm/ 1500*103*83mm
Specification

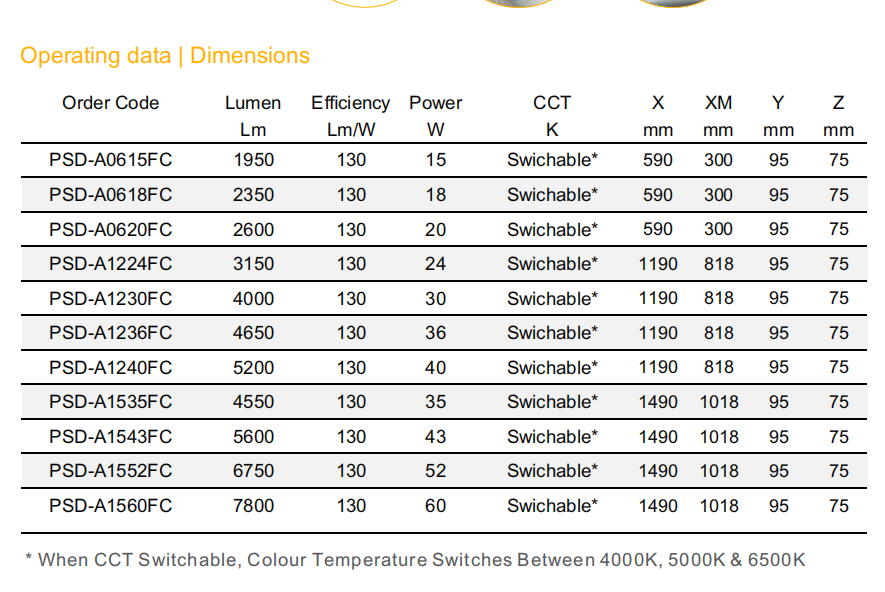

4FT(Single)2100lm 18W 4FT(Twin)4350lm 38W 5FT(Single)3450lm30W 5FT(Twin)6450lm 56W
Place of Origin
Made in China
Port
SHANGHAI

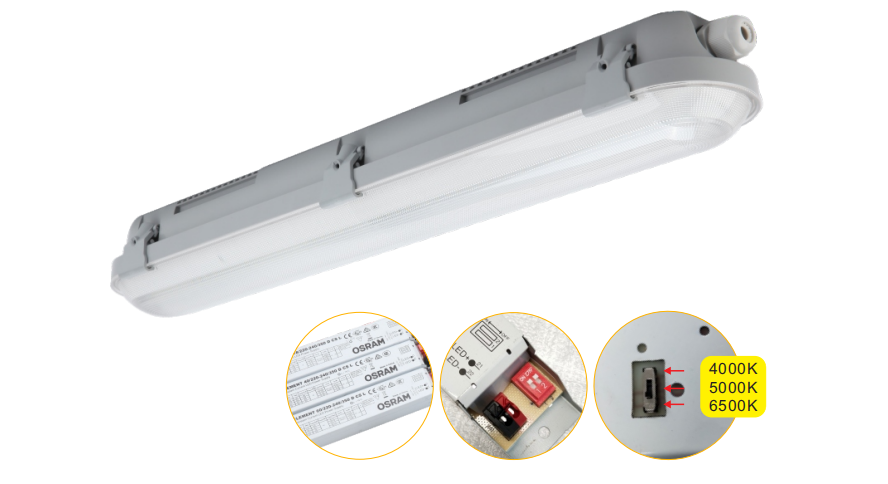

A-Series with IP65 18W/36W/52W CCT switching  Waterproof Vapor Tight Triproof Light

A Series



Non-Corrosive Linear Luminaire With Integrated LED

● Premium Design With Patended High Efficiency Prismatic Diffuser

● UV Stabilized Body

● PC Plastic or SUS201/304 Stainless Clips For Opration

● High Luminous Efficeency Up to 130lm/w

● Built -in Microwave Motion Dimming Sensor

● Philips, & Osram Control Gear Options Available


Application Areas:

 Plant rooms

 Warehouses

 Open and closed parking areas

 Workstations

 Corridors

 Cellars

 Auto shop

 Sheds


Material:

Housing: PC or ABS (RAL 7035)

Diffuser: PC

Gear tray: White laquered steel plate Clips: Stainless steel 201 or 304  PC

Seal Gasket: silicone

Mounting Brackets: SS201

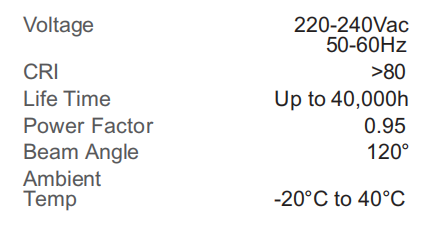

General Specification:



Approvals and marking:

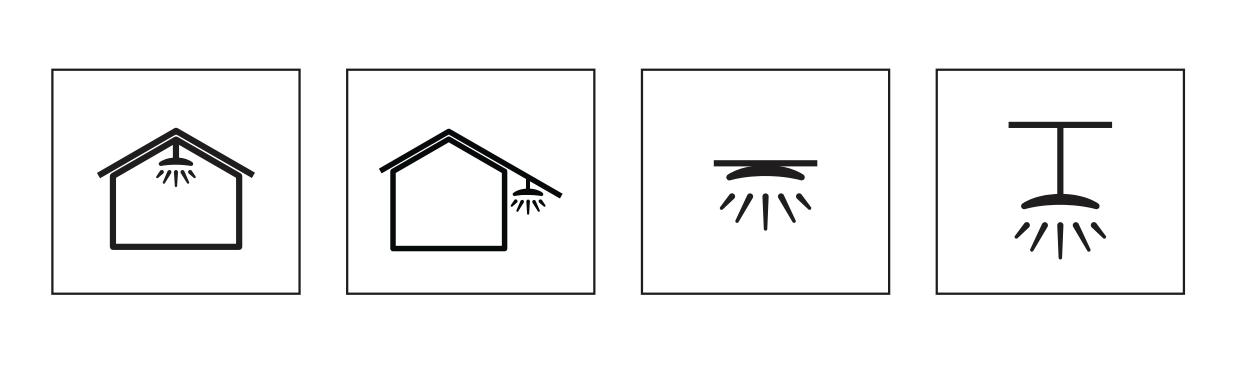

Mounting possibilities:
