Floor deck roll forming machine

ID:20083019320

Category: Manufacturing & Processing Machinery Engineering & Construction Machinery

MOQ:1.00 Set(s)

flock deck tile makerRoll forming machine

L/CT/TD/PWestern UnionPaypalMoney GramOthers

Product Category

Manufacturing & Processing Machinery > Engineering & Construction Machinery

Trademark

TIANYU

Product Package

1:Nude in container with plastic film. 2:We can do the packaging according to your need.

Specification

4000*800*800mm

Place of Origin

China

Port

TIANJINXINGANG

1.precise forming
2.good aftersales service
3.durable quality

I-Product feature

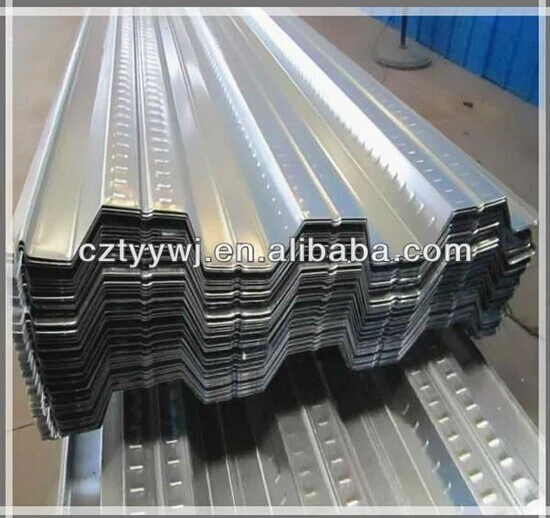

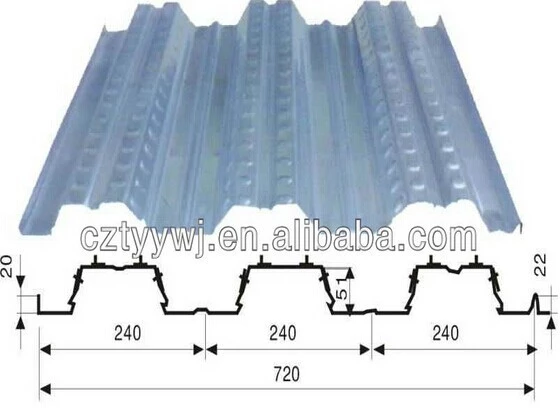

The metal produced by this machine has high strength with big wave length .It adheres well to concrete .

Used on high building ,it not only saves steel model plate , but also reduce the weight of the storey.

With the same bearing capacity , it economized steel and cuts down investment accordingly .

Machine component

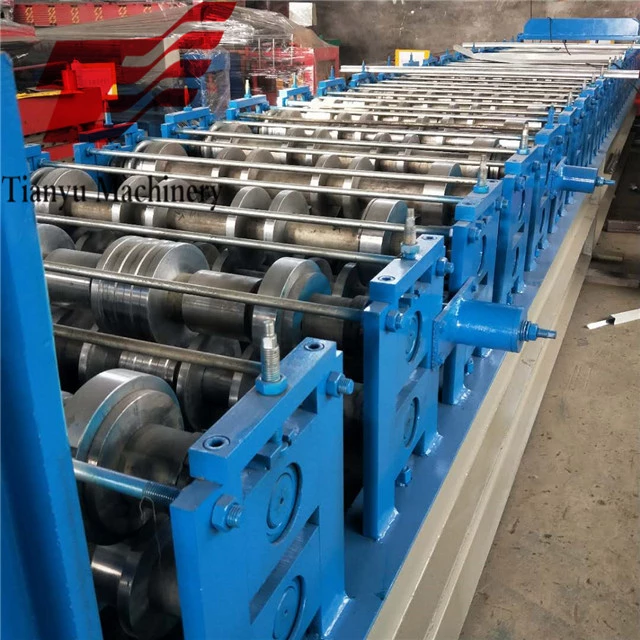

Deck forming machine consist of uncoiler , coil sheet guiding device ,main rol forming system ,

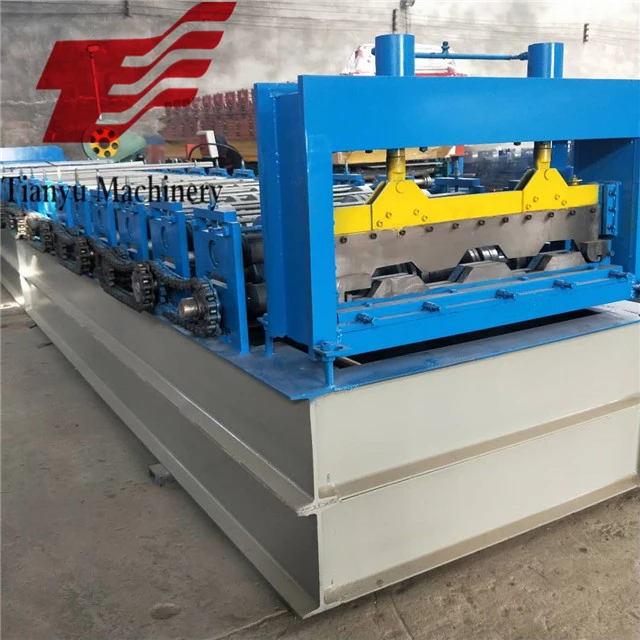

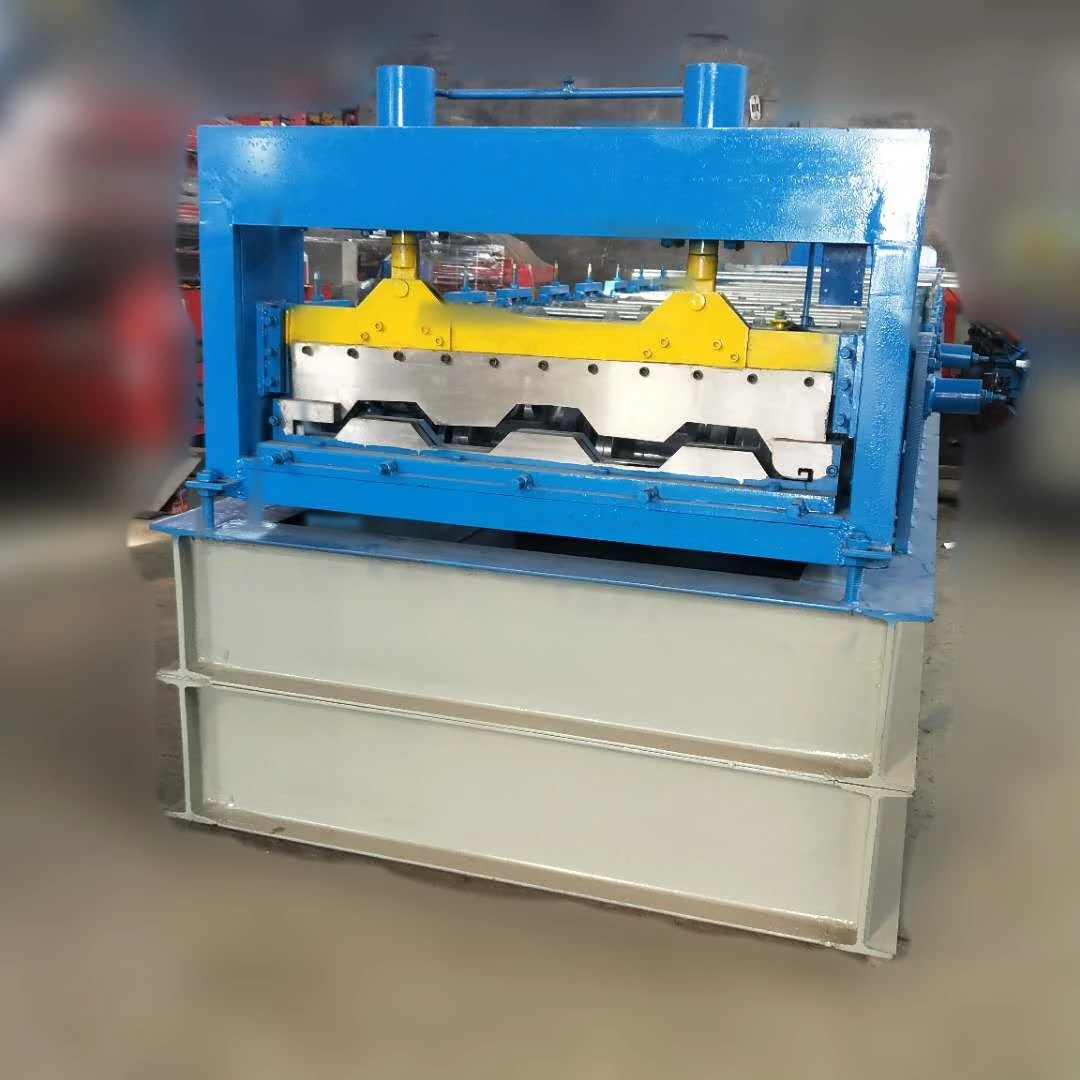

cutting device ,hydraulic station ,PLC control system and support table .

II-Main technical parameters of floor decking sheet machine

1	Suitable material	color steel sheet or galvanized sheet
2	Thickness of raw material	0.8-1.2mm
3	Uncoiler loading capacity	5000kg (can be increased to 10ton )
4	Working speed	12-15m/min
5	Voltage	380V,3phase,50Hz or as per customer’s requirements
6	Power requirement	Main motor power: 18.5KW (Depend on final design ) Hydraulic station power: 5.5KW (Depend on final design )
7	Controlling system	Mitsubishi PLC & converter
8	Machine’s size	about 28m1.5m1.6m (Depend on final design )
