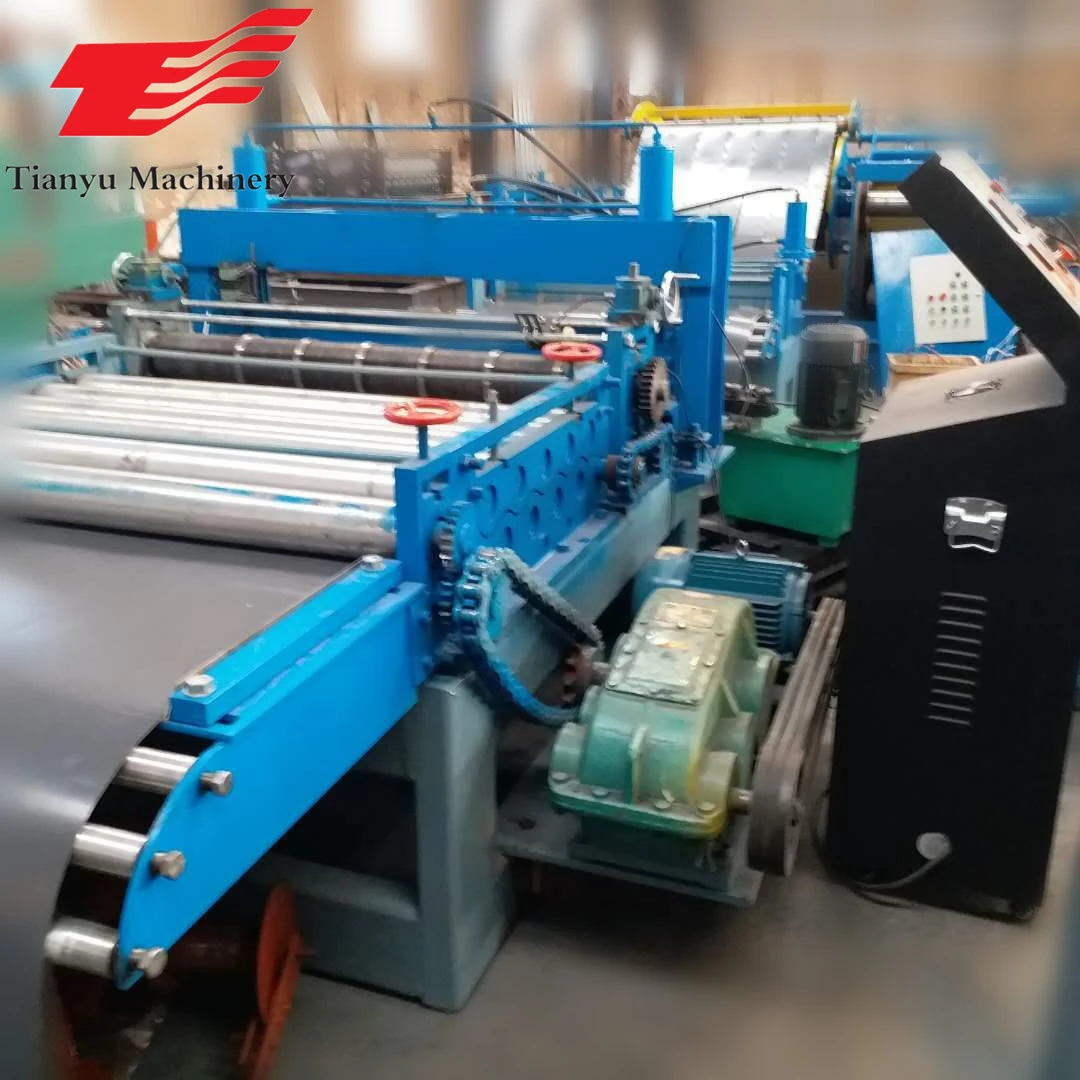

TY PPGI/Sheet metal slip rolling machine manual plate roll bending shaering machine
roof tile price manual metal sheet slitter price
We do Best, About Machine
To produce the best corrugated machine, TIANYU is taking EUROPEAN quality standard
Choose the best material and components, and adopting our 18 years experience
TIANYU achieves that the machine capacity is double of the competitors
The machine working speed can be 25m/min as standard speed
Only 1 worker to operate for corrugated machine .
We do Detail, Machine Parameters
1. Construction machine specification
| 1.Weight capacity of decoiler | 3.8T |
| 2.Appearance Size(L*W*H) | 6500*1300*1100 |
| 3.Raw material /feeding sheet material | colored steel & galvanized steel |
| 4.Roller material | 45# high grade steel |
| 5.Shaft material | 45# high grade steel |
| 6.Kind of drive | chain drive |
| 7.Cutting system | automatic hydyaulic cutting |
| 8.Cutting blade material | Cr 12 high grade steel |
| 9.Frame material | 300 H-high grade steel |
| 10. Control system | totally automatic PLC control system |
| 11.Main power | 3 kw |
| 12.Roller stations | 13 rows |
| 13.Speed of production | 2-4m/min |
| 14.Thickness of colored steel | 0.2-0.8mm |
| 15.Frame material | 300 H-steel |

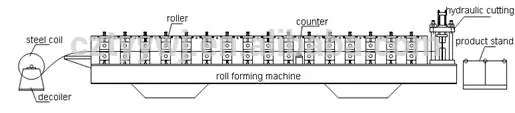

2.process of the roll forming machine
We do Standard, Machine Components
For corrugated machine, according to our company standard, we will offer you following components as the standard configuration.

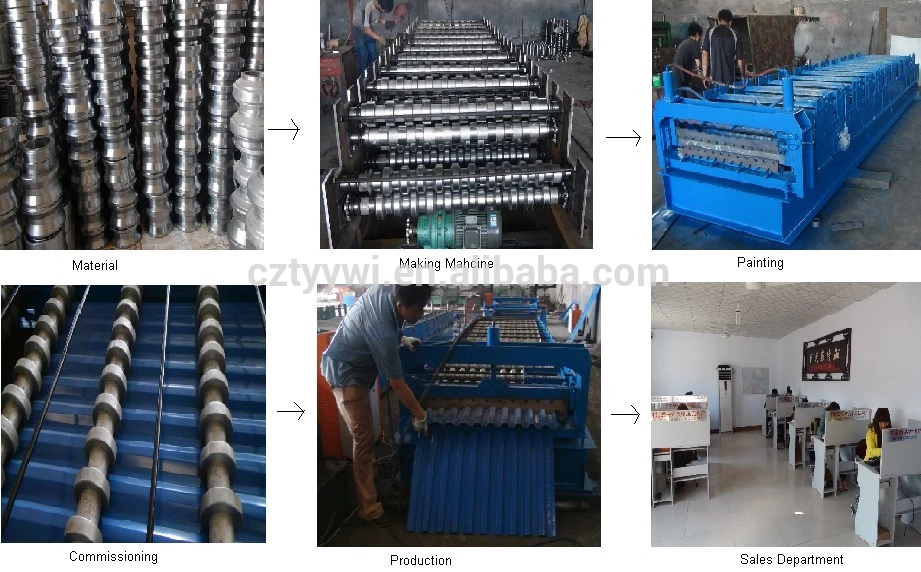

3.Pictures and profile roll forming machine /production line
TY corrugated tile sheet making machine and details
This machine is used to produce roof panels, the raw material is colored steel coils, or galvanized steel coils.
It imitates the classical Chinese roof tiles, but much more cheaper and stronger than glazed ceremic tiles.
