laid scrimnon woven scrimfiberglass scrimpolyester scrim

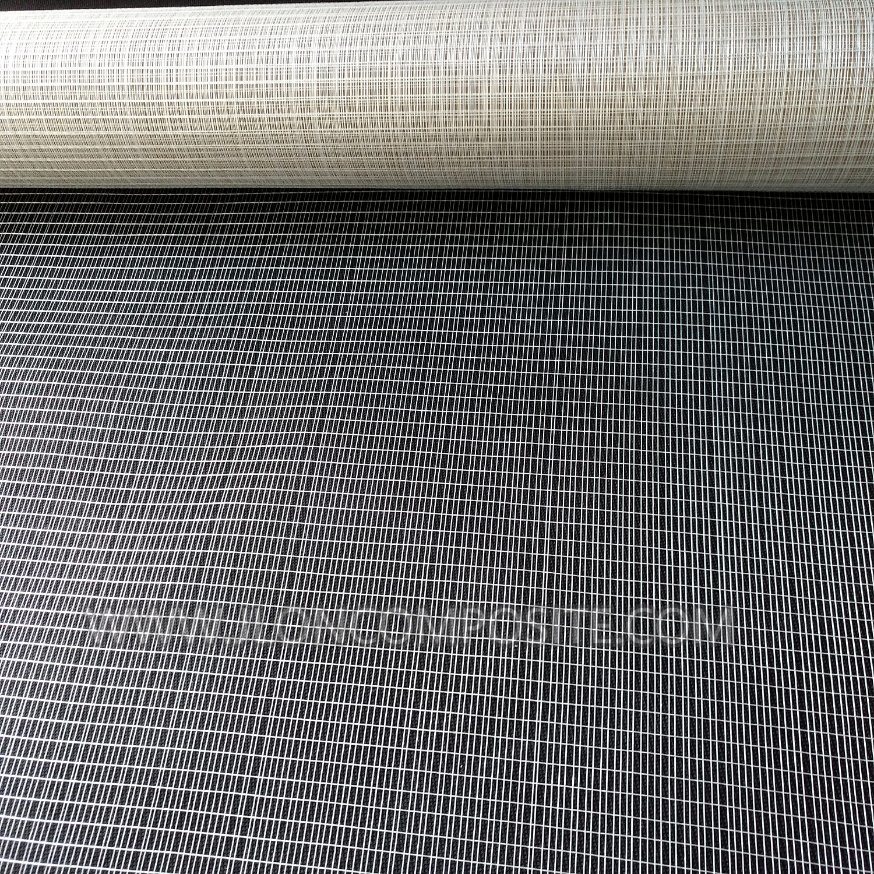

Laid Scrim is a cost-effective reinforcing fabric made from continuous filament yarn in an open mesh construction. The laid scrim manufacturing process chemically bonds non-woven yarns together, enhancing the scrim with unique characteristics.
We make special scrims to order for specific usages and applications. These chemically bonded scrims permit our customers to reinforce their products in a very economical manner. They are designed to satisfy our customers' requests, and to be highly compatible with their process and product.
Find our technical capabilities for our scrims construction by clicking here.
Fibers typically used are:
Fiberglass ,Polyester (carbon fiber and aramid fiber are coming soon).
Features and benefits include:
Dimensional stability
Tensile strength
Alkali resistance
Tear resistance
Fire resistance
Anti-microbial properties
Water resistance
Typical Specification:
| Composition | Value | Min | Max | |
| Construction | Plain | |||
| Warp yarn | Yarns/cm | 3 | ||
| Weft yarn | Yarns/cm | 1 | ||
| Yarn type/Weight of yarn | Warp | Glass 68tex | ||
| Yarn type/Weight of yarn | Weft | Glass 68tex | ||
| Wdith-fringe to fringe | mm | 2060 | 0 | +20 |
| Edges | cut | |||
| Tube (interior diameter) | mm | 152 | ||
| Length of roll | lm | 7000 | ||
| Roll diameter | cm | 72 | ||
| Average weight of roll | g/m2 | 29.0 | 33.0 | |
| Warp tensile | N/50mm | 800 | ||
| Weft tensile | N/50mm | 300 | ||
| Warp elongation | 3% | |||
| Weft elongation | 3% |
Other specification available, for more specification please contact.
| ITEM | |||||
| CONSTRUCTION | 0.8*0.8 ends/cm | 1*1 ends/cm | 2*2 ends/cm | 3*3 ends/cm | 3*1 ends/cm |
| WARP YARN | fiberglass 34tex | fiberglass 34tex | fiberglass 34tex | fiberglass 34tex | fiberglass 68tex |
| WEFT YARN | fiberglass 34tex | fiberglass 34tex | fiberglass 34tex | fiberglass 34tex | fiberglass 68tex |
| WARP TENSILE | 130N/50mm | 150N/50mm | 250N/50mm | 300N/50mm | 800N/50mm |
| WEFT TENSILE | 130N/50mm | 150N/50mm | 250N/50mm | 300N/50mm | 300N/50mm |
| WARP ELONGATION | 3.80% | 3.80% | 3.80% | 3.80% | 3.80% |
| WEFT ELONGATION | 3.80% | 3.80% | 3.80% | 3.80% | 3.80% |
| AREA WEIGHT | 6.6g/m2 | 10.0g/m2 | 15.5g/m2 | 23.5g/m2 | 31.0g/m2 |
| BINDER | |||||
| TISSUE TYPE | none | none | none | none | none |
| TECHNICAL CAPABILITIES | SCRIM CHARACTERISTICS |
| Width | 38 to 3000 mm |
| Roll length | Up to 10 000 lm |
| Yarns | Glass, polyester |
| Construction | Square, tri- & quad-directional |
| Patterns | From 0.4 yarns/cm to |
| 4 yarns/cm (1 yarn/in to 18 yarns/in) | |
| Tensile strength range | From 35.5 to 568 N/5 cm in each direction |
| Bonding | PVOH, SBR, PVC, acrylic,etc |
| Complexes for combination materials | A scrim bonded to: |
| glass non-woven, polyester non-woven | |
