1. Technical Parameters
| No. | Parameters | |||
| 1 | Input Voltage | 100-277V/50/60Hz | 100-277V/50/60Hz | 100-277V/50/60Hz |
| 2 | Power | 180W | 220W | 400W |
| 3 | Driver | MEAN WELL | MEAN WELL | MEAN WELL |
| 4 | LED Type | Cree XTE | Cree XTE | Osram/Lumileds 3030 |
| 5 | LED QTY | 96PCS | 96PCS | 96PCS*4 |
| 6 | Electrical Connection | / | / | / |
| 7 | Drive Current/LED Chip | 125MA | 125MA | 125MA |
| 8 | Luminous Flux(5700K) | 17100lm | 19800lm | 44000lm |
| 9 | Light Efficiency | 95lm/W | 90lm/W | 110lm/W |
| 10 | Color Temp. | 3000-5700K | 3000-5700K | 3000-5700K |
| 11 | CRI | >70 | >70 | >70 |
| 12 | LENS | PC LENS | PC LENS | PC LENS |
| 13 | Beam Angle | 90°/ 135*85° | 90°/ 135*85° | 45°/ 90°/ 135*85° |
| 14 | Driver Efficiency | 92% | 92% | 92% |
| 15 | Power Efficiency | 95% | 95% | 95% |
| 16 | Working Temp. | -25oC-40oC | -25oC-40oC | -25oC-40oC |
| 17 | Screws | Stainless Steel 304 | Stainless Steel 304 | Stainless Steel 304 |
| 18 | Color | White, Black, Grey | White, Black, Grey | White, Black, Grey |
| 19 | Package Size | 70*45*20cm | 70*45*20cm | 70*45*20cm |
| 20 | Gross/ Net Weight | 13/11.5kg | 13/11.5kg | 13/11.5kg |
| 21 | IP Rate | IP65 | IP65 | IP65 |
| 22 | Lifespan L70 | 50000h | 50000h | 50000h |
| 23 | Installation | Pole | Pole | Pole |

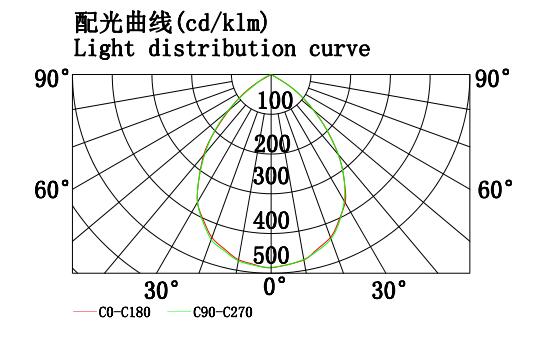

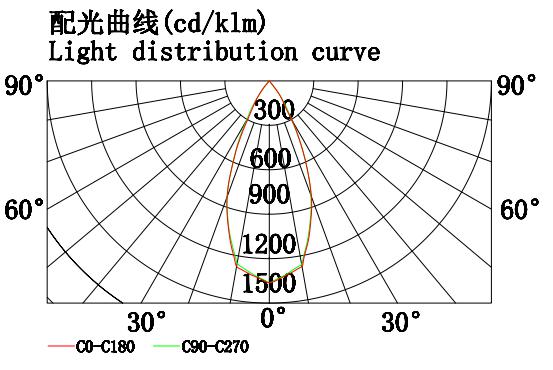

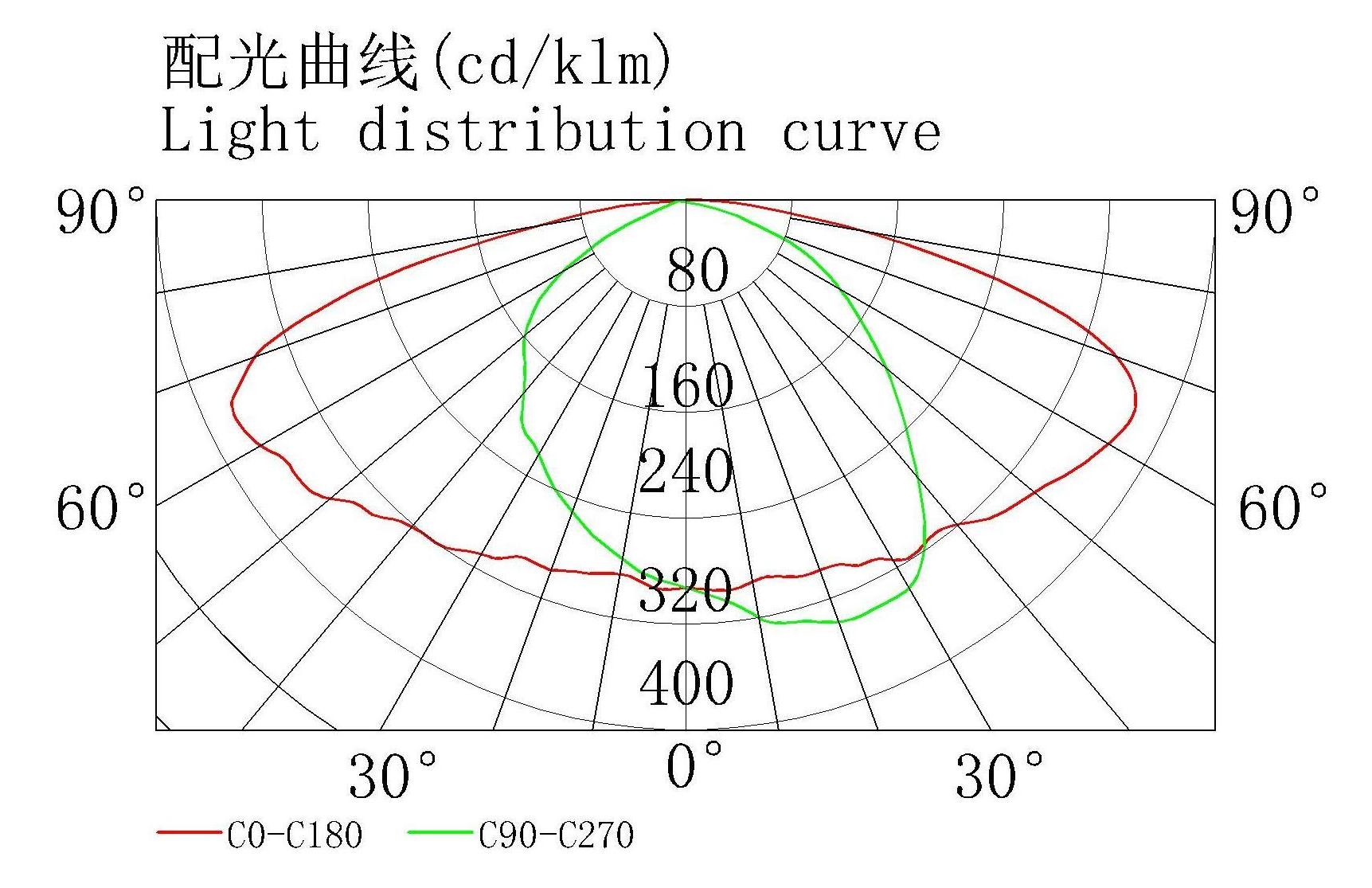

2. Light Distribution Curve (cd/kLM)
135*85°
90°
45°

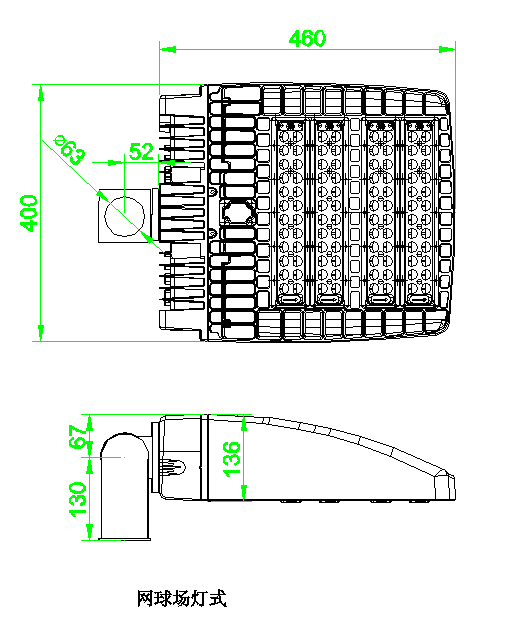

3. Product Dimension
4. Product Features
1) The overall thicken aluminum die casting structure is convenient to heat dissipation. The fixture has stable light input and long service life.
2) With flexible drive configuration scheme, meet the requirements of different areas of the power configuration.
3) Light control and human body induction control for option. It realize the secondary energy saving as well as having the effect of safety and security.
4) There are a number of light distribution for option which adapt to different road scene.
5) Optional standby control, achieve more gear power, more energy saving.
