1. Technical Parameters
| No. | Parameters | YJZD19 | ||
| 1 | Input Voltage | 100-277V/50/60Hz | 100-277V/50/60Hz | 100-277V/50/60Hz |
| 2 | Power | 50W | 80W | 100W |
| 3 | Driver | MEAN WELL | MEAN WELL | MEAN WELL |
| 4 | LED Type | Osram/Lumileds 3030 | Osram/Lumileds 3030 | Osram/Lumileds 3030 |
| 5 | LED QTY | 24PCS*3 | 24PCS*3 | 48PCS*3 |
| 6 | Electrical Connection | / | / | / |
| 7 | Drive Current/LED Chip | 125MA | 125MA | 125MA |
| 8 | Luminous Flux(5700K) | 6000lm | 8800lm | 12000lm |
| 9 | Light Efficiency | 120lm/W | 110lm/W | 120lm/W |
| 10 | Color Temp. | 3000-5700K | 3000-5700K | 3000-5700K |
| 11 | CRI | >70 | >70 | >70 |
| 12 | LENS | PC LENS | PC LENS | PC LENS |
| 13 | Beam Angle | 135*85° | 135*85° | 135*85° |
| 14 | Driver Efficiency | 92% | 92% | 92% |
| 15 | Power Efficiency | 95% | 95% | 95% |
| 16 | Working Temp. | -25oC-40oC | -25oC-40oC | -25oC-40oC |
| 17 | Screws | Stainless Steel 304 | Stainless Steel 304 | Stainless Steel 304 |
| 18 | Color | White, Black, Grey | White, Black, Grey | White, Black, Grey |
| 19 | Package Size | 54*31*20cm | 54*31*20cm | 54*31*20cm |
| 20 | Gross/ Net Weight | 9.4/4.1kg | 9.4/4.1kg | 9.4/4.1kg |
| 21 | IP Rate | IP65 | IP65 | IP65 |
| 22 | Lifespan L70 | 50000h | 50000h | 50000h |
| 23 | Installation | Pole | Pole | Pole |

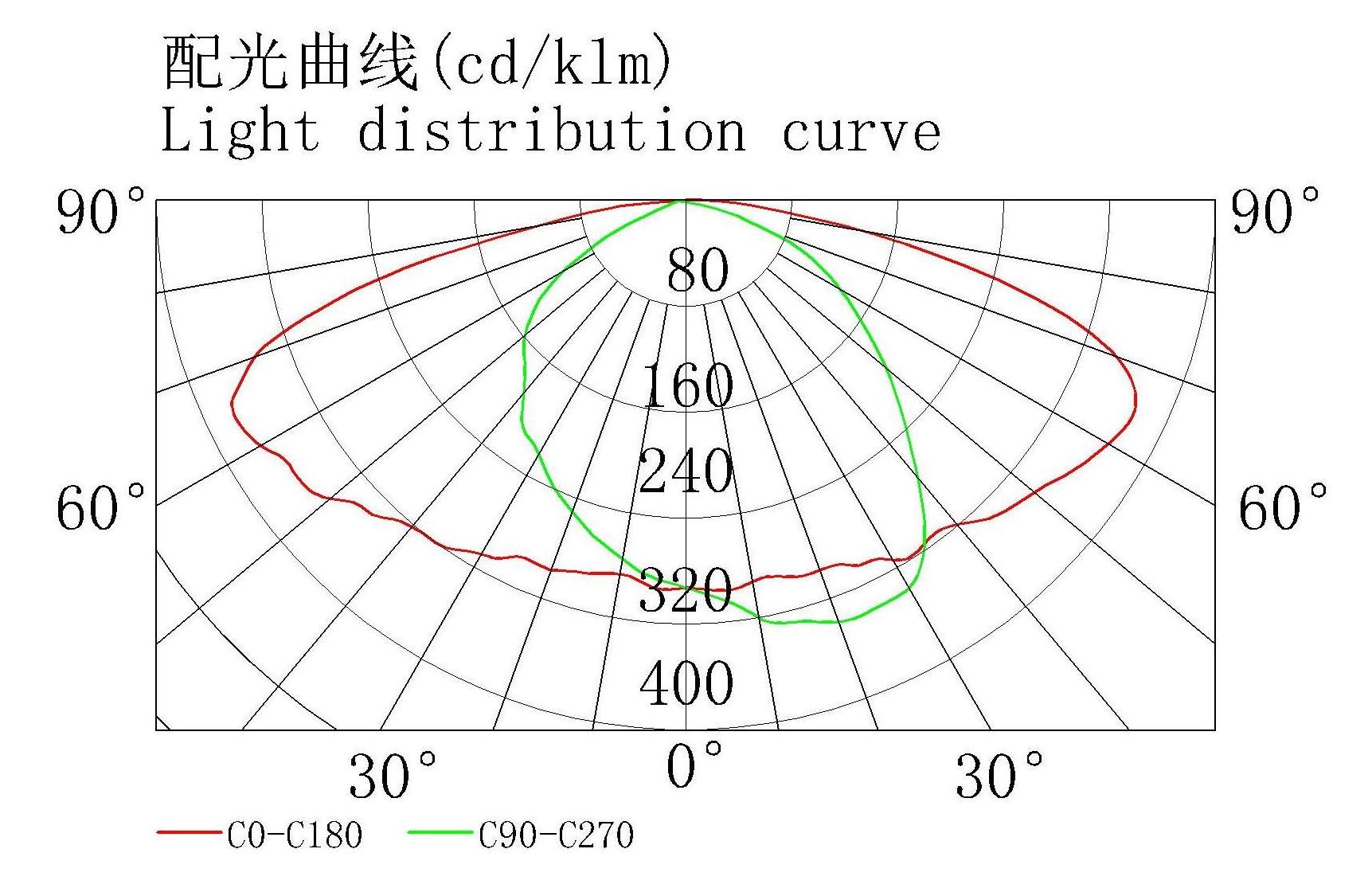

2. Light Distribution Curve (cd/kLM)
135*85°

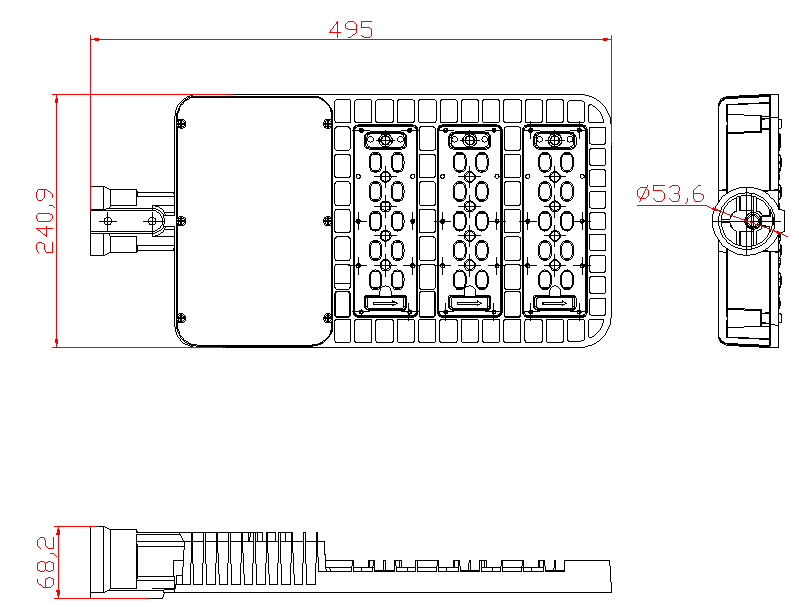

3. Product Dimension
4. Product Features
1) Patent cross ventilation structure, which can guarantee long service life and low light failure of LED chip.
2) With flexible drive configuration scheme, meet the requirements of different areas
3) Adjustable light angle, to adapt to the upgrading of the traditional street lamp faster
4) There are a number of light distribution for option which adapt to different road scene.
5) Use lighting protection device and the surge device to protect LED lamps better
6) Photocell and infrared sensor for option. Suitable for many projects.
