Business Type: Distributor
Main Products:Toilet BowlsGarden fenceWire MeshNailsFence Post Louver GlassLouver FrameSeptic TankElbow MachineScrews
ID:20083119393
Category: Manufacturing & Processing Machinery Pipeline Engineering & Equipment
MOQ:1.00 Set(s)
Steel coil slit line machinesteel coil cut to length linepipe machineslitting and cut machine
L/CT/TWestern UnionOthers
Main Technical datas for steel coil cut to length line:
1. | application | Stainless steel,Aluminium,Hot rolled,Cold Rolled |
2. | Thickness of coiled plate | 0.3-3mm |
3. | Width of coiled plate | 1300mm |
4. | Line speed | 0-50m/min |
5. | Loading capacity | 15T |
6. | Coil I.D | 510/610mm |
7. | Coil O.D | ≤2000mm |
8. | Diameter of leveling roller | 65 |
10. | Number of leveling rollers | 19 |
11. | Length accuracy | ±0.5mm/m |
12. | Levelling accuracy | ±1.2mm/ m2 |
13. | Direction of feed material | from Right to Left or Left to Right(customized |
14. | Power Supply | customized |
LIST OF EQUIPMENTS UNDER SCOPE OF SUPPLY for high speed decoiler straightening machine decoiler and shearing machine steel coil cutting machine:
1. Hydraulic Coil car
2. Hydraulic Decoiler
3. Hydraulic entry guide
4. Four/Six hi leveler
5. Loop bridge
6. Side guide roller
7. NC servo feeder leveler
8. Measure system
9. Shearing Machine
10. Conveyor table
11. Pneumatic discharge device
12. Hydraulic lifting table
13. Unloading stacking car
14. Hydraulic Systems
15. Pneumatic Systems
16. Electrical System PLC Control
Packaging & Shipping
1. Package: Machine devices will be Naked and all the roller parts will be antirust treatment to protect the rollers. All the spare parts will be collected into the homemade steel boxes.spare parts in wooden packing.
2. Delivery: 40-90 days
3. Container: 2x40HQ and 1x20GP
4. Shipping: All the parts in the containers will be strengthened with the container to prevent the deveices from being slipped.
Welcome to contact with my email or wechat. Thanks.

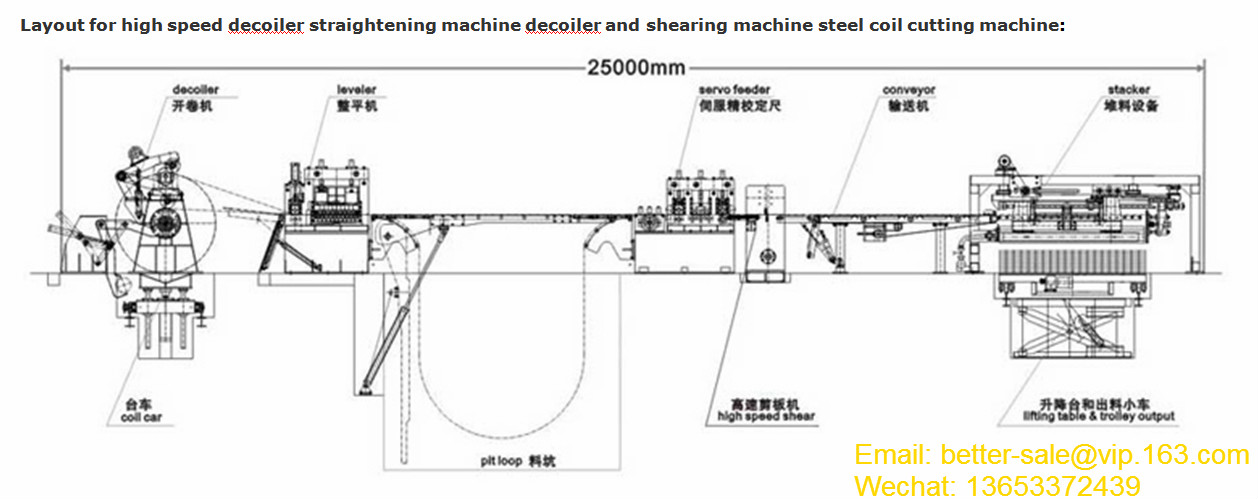

Layout for high speed decoiler straightening machine decoiler and shearing machine steel coil cutting machine:
