1. Technical Parameters
| No. | Parameters | Spec. |
| 1 | Input Voltage | 100-277V/50/60Hz |
| 2 | Power | 150W |
| 3 | Driver | MEAN WELL |
| 4 | LED Type | Osram/Lumileds 3030 |
| 5 | LED QTY | 96PCS*2 |
| 6 | Electrical Connection | 8 in series & 24 parallel |
| 7 | Drive Current/LED Chip | 125MA |
| 8 | Luminous Flux | 18000lm |
| 9 | Light Efficiency | 120lm/W |
| 10 | Color Temp. | 3000-5700K |
| 11 | CRI | >70 |
| 12 | LENS | PC LENS |
| 13 | Beam Angle | 45°/ 90°/ 135*85° |
| 14 | Driver Efficiency | 92% |
| 15 | Power Efficiency | 95% |
| 16 | Working Temp. | -25℃-40℃ |
| 17 | Screws | Stainless Steel 304 |
| 18 | Color | White, Black, Grey |
| 19 | Package | 420*375*115mm |
| 20 | Gross/ Net Weight | 5/4.5kg |
| 21 | IP Rate | IP65 |
| 22 | Lifespan L70 | 50000h |
| 23 | Installation | U-Type Bracket |

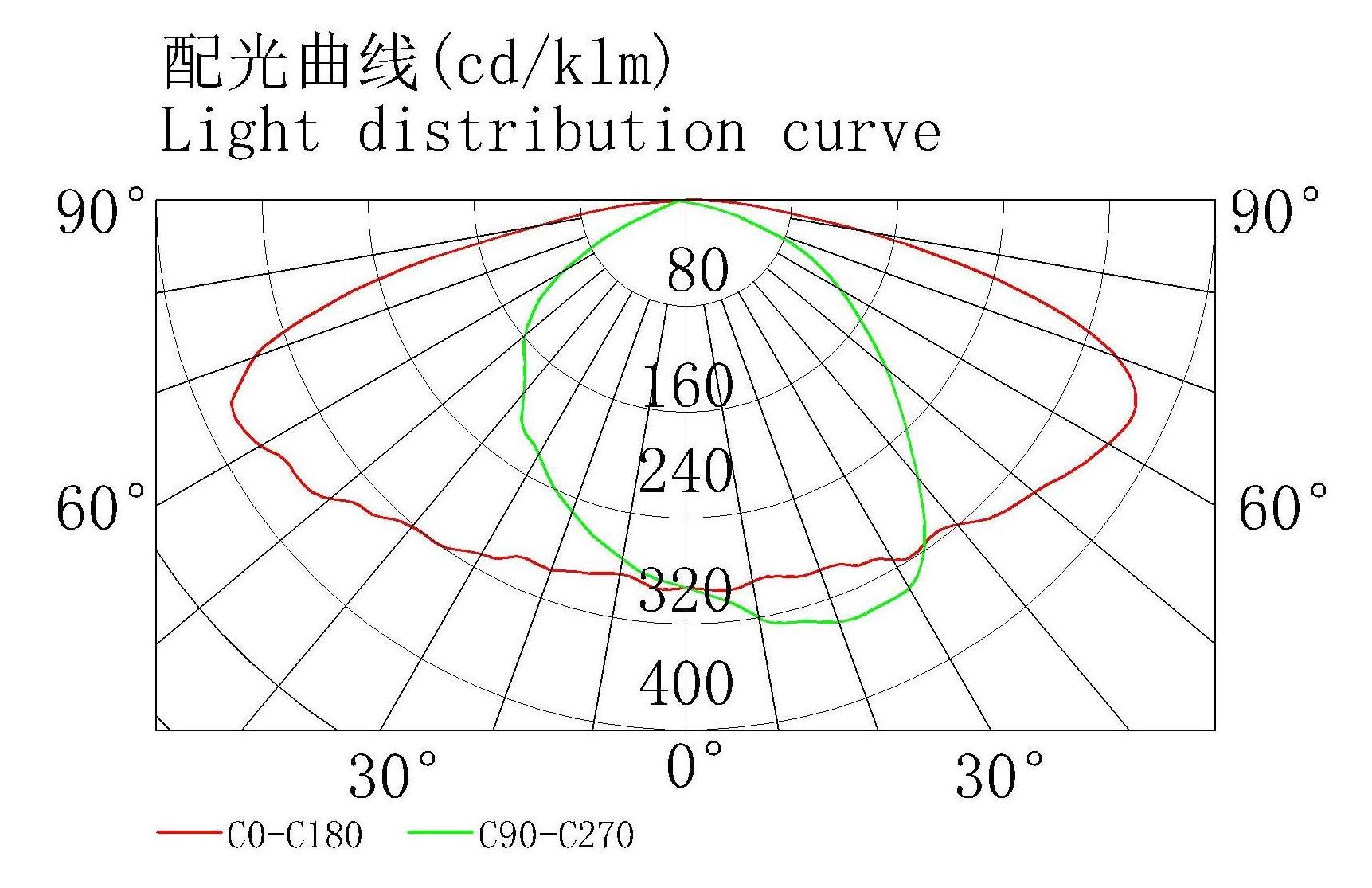

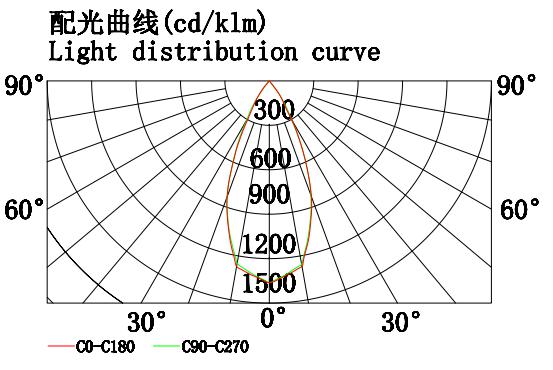

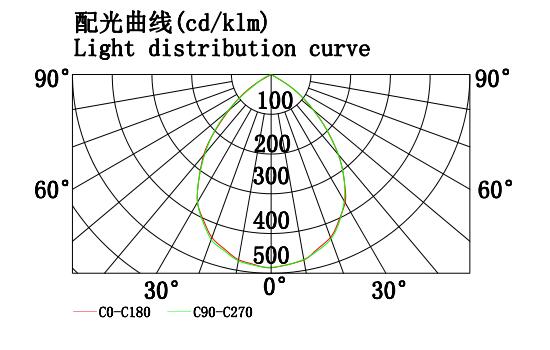

2. Light Distribution Curve (cd/kLM)
135*85°
90°
45°

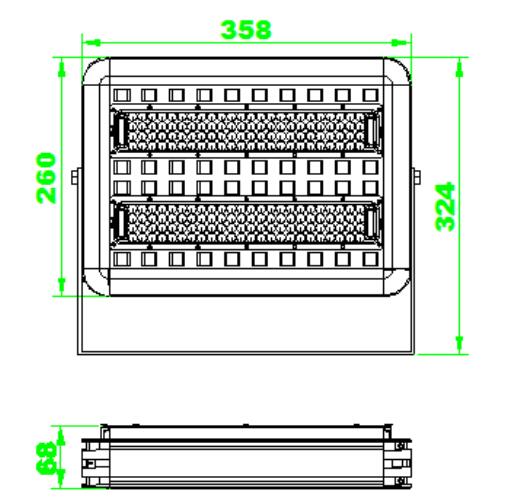

3. Product Dimension
4. Related Product
5. Product Features
1) The lamp body uses aviation aluminum, bent by 1070 aluminum plate, with efficient thermal conductivity, improving the service life of lamps.
2) The design of integrated module is good for heat releasing, The hollow design between modules can strengthen the ventilation cooling.
3) The lamps use high-quality PC lens which have integrated combination, to ensure that the lamp has good waterproofness and strong anti ultraviolet ability. The light transmission rate is up to 92%.
4) The lamps have high lumen output and color rendering index. As several color temperature and multifarious lens for option, lamps can meet a variety of lighting needs.
5) Green environmental protection, long life, good impact resistance, strong earthquake resistance, IP65.
