1. Technical Parameters
| No. | Parameters | 400W | ||
| 1 | Input Voltage | 100-277V/50/60Hz | 100-277V/50/60Hz | 100-277V/50/60Hz |
| 2 | Power | 400W | 400W | 400W |
| 3 | Driver | MEAN WELL | MEAN WELL | MEAN WELL |
| 4 | LED Type | Osram/Lumileds 3030 | Cree XTE | Cree XTE |
| 5 | LED QTY | 96PCS*4 | 66PCS*4 | 30PCS*4 |
| 6 | Electrical Connection | / | / | / |
| 7 | Drive Current/LED Chip | 125MA | 125MA | 125MA |
| 8 | Luminous Flux(5700K) | 48000lm | 48000lm | 440000lm |
| 9 | Light Efficiency | 120lm/W | 120lm/W | 110lm/W |
| 10 | Color Temp. | 3000-5700K | 3000-5700K | 3000-5700K |
| 11 | CRI | >70 | >70 | >70 |
| 12 | LENS | PC LENS | PC LENS | PC LENS |
| 13 | Beam Angle | 45°/ 90°/ 135*85° | 20° | 8° |
| 14 | Driver Efficiency | 92% | 92% | 92% |
| 15 | Power Efficiency | 95% | 95% | 95% |
| 16 | Working Temp. | -25oC-40oC | -25oC-40oC | -25oC-40oC |
| 17 | Screws | Stainless Steel 304 | Stainless Steel 304 | Stainless Steel 304 |
| 18 | Color | White, Black, Grey | White, Black, Grey | White, Black, Grey |
| 19 | Package Size | 46*43*21.5cm | 46*43*21.5cm | 46*43*21.5cm |
| 20 | Gross/ Net Weight | 14.1/12.7kg | 14.1/12.7kg | 14.1/12.7kg |
| 21 | IP Rate | IP65 | IP65 | IP65 |
| 22 | Lifespan L70 | 50000h | 50000h | 50000h |
| 23 | Installation | U-Type Bracket | U-Type Bracket | U-Type Bracket |

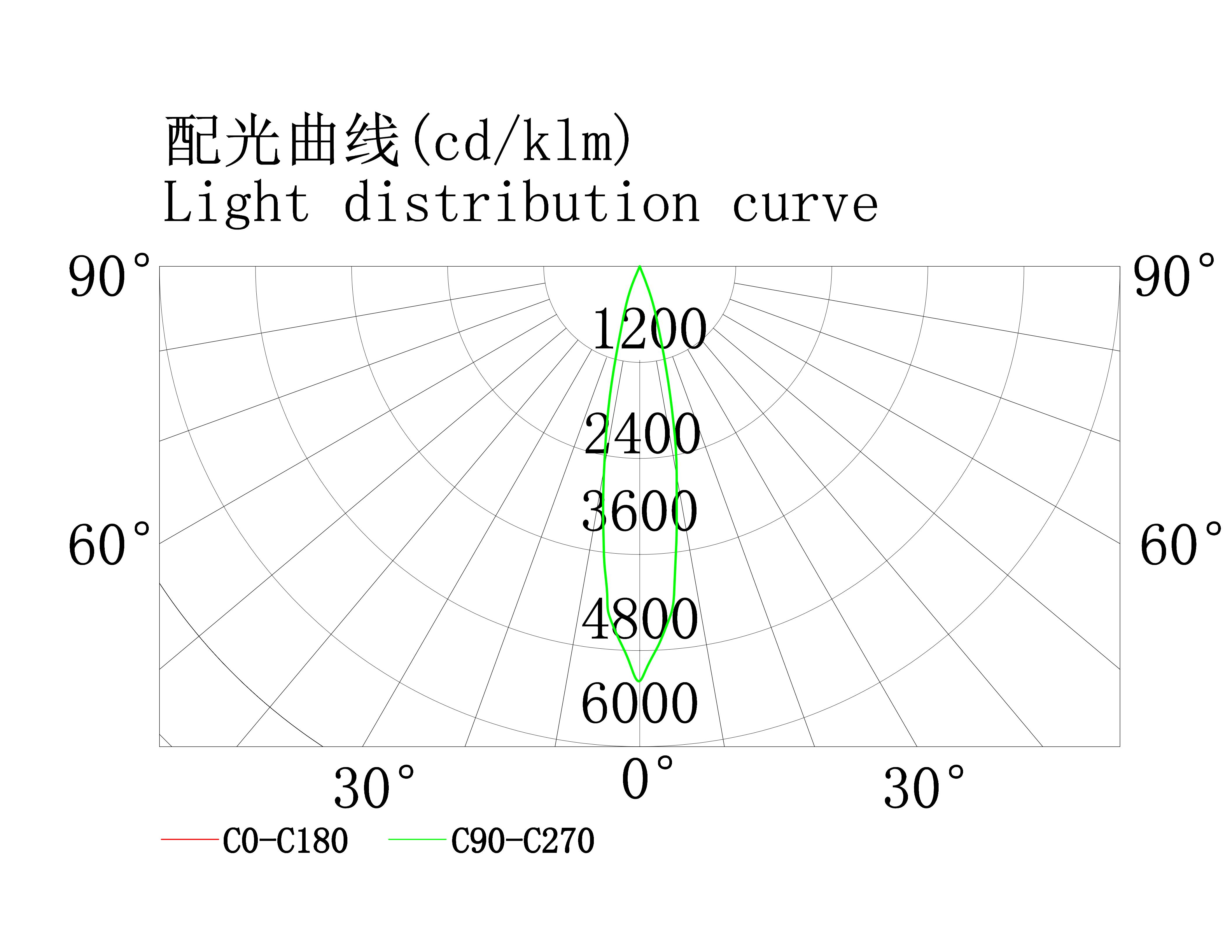

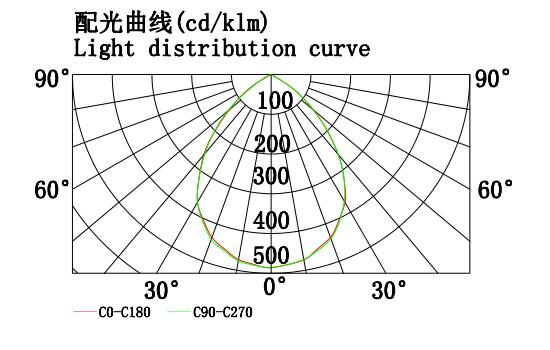

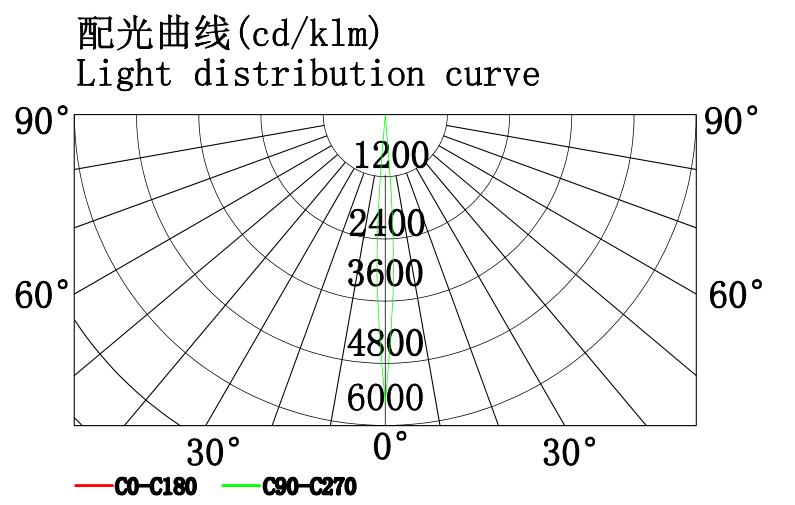

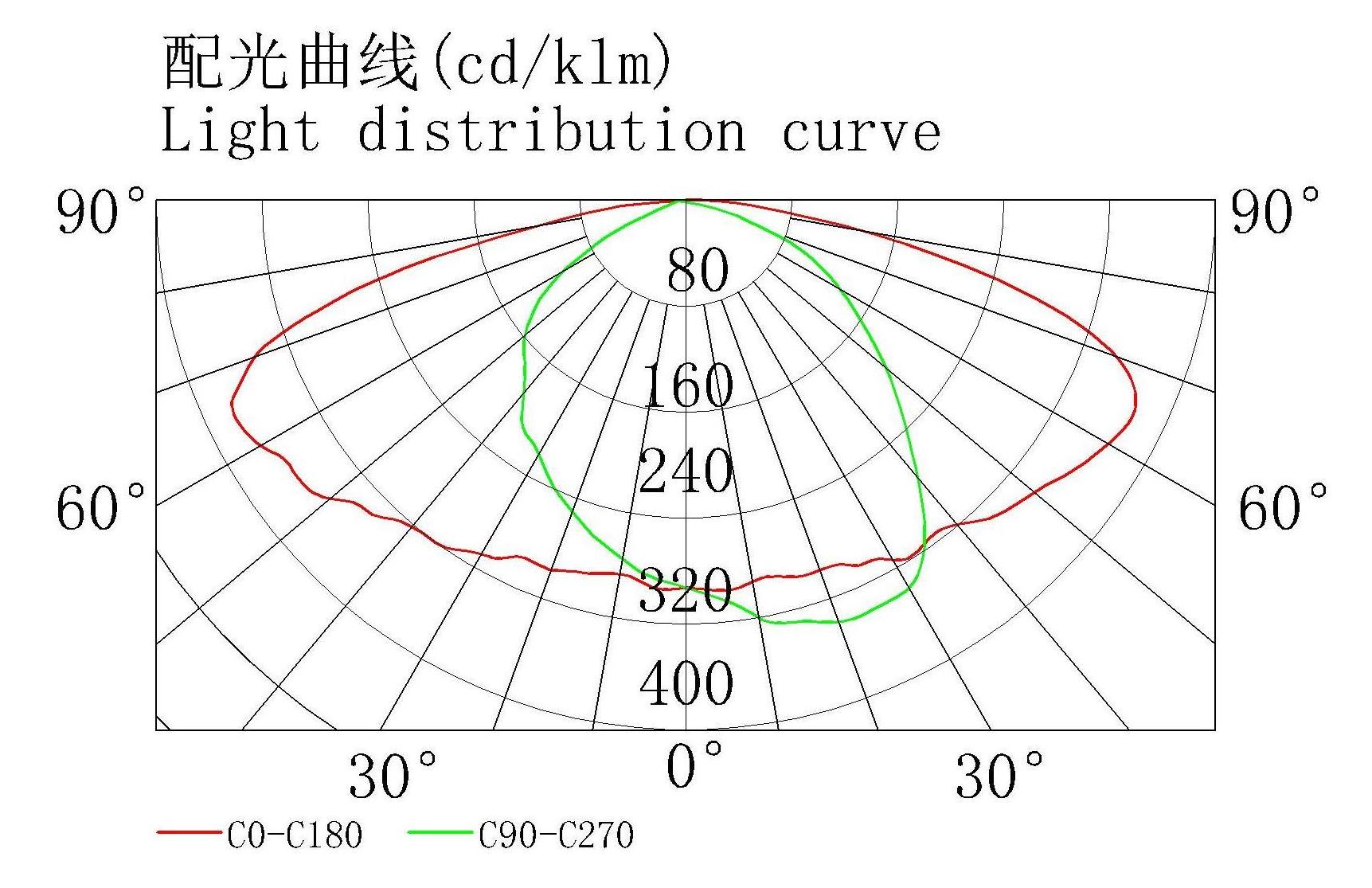

2. Light Distribution Curve (cd/kLM)
135*85°
90°
45°
20°
8°

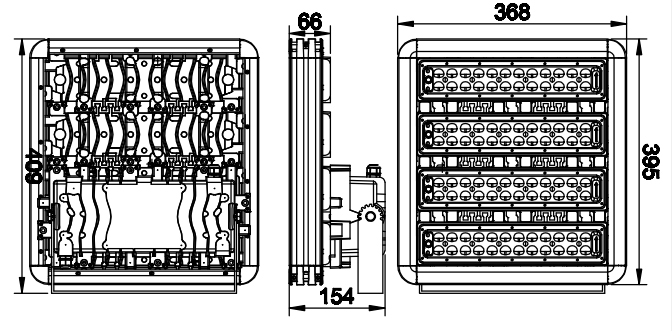

3. Product Dimension
4. Product Features
1) The whole die casting aluminum housing is good for heat releasing. Rear strong convection design improves the efficiency of heat releasing. Module design, flexible and practical patent splicing way, can meet the needs of higher power lighting.
2) The lamps use high-quality PC lens which have integrated combination, to ensure that the lamp has good waterproofness and strong anti ultraviolet ability. The light transmission rate is up to 92%.
3) The lamps have high lumen output and color rendering index. As several color temperature and multifarious lens for option, lamps can meet a variety of lighting needs.
4) Green environmental protection, long life, good impact resistance, strong earthquake resistance, IP65.
5. Accessory Option
