air stapler8016 staple gunPneumatic Stapler
L/CT/TD/PWestern UnionPaypalMoney GramOthers

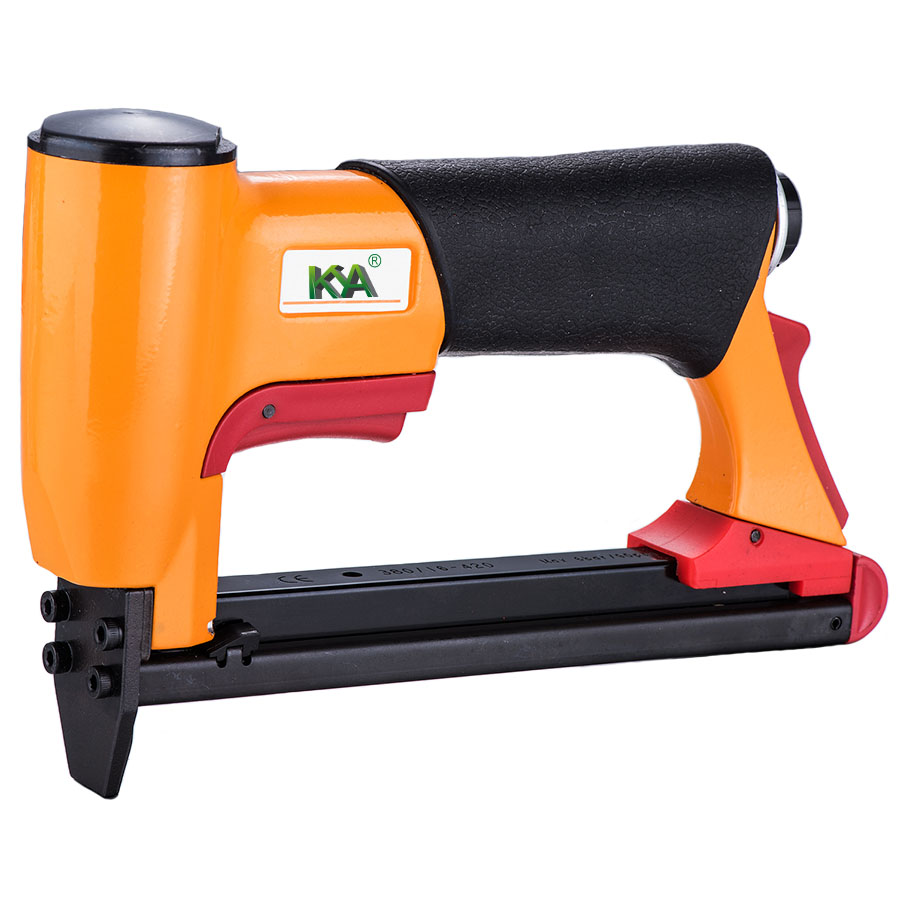

 21 Gauge 1/2 Inch Wide Crown Pneumatic Stapler 8016/42021 Gauge 1/2 Inch Wide Crown Pneumatic Stapler 8016/420 is a top of the line professional grade pneumatic fine wire stapler. It can be used for interior decorative finishes, automotive vinyl etc. ● Comfortable rubber grip. ● Uses same fasteners as BEA 80 and possibly Bostitch and Senco models. ● Ultra-lightweight at 2.2 lbs. ● Slim body to easy fit into tight spaces. ● Quick release magazine for easy loading. |
| Model: | 21 Gauge 1/2 Inch Wide Crown Pneumatic Stapler 8016/420 |
| Air Tool Type: | Air Stapler |
| Tool Diamensions: | 150mm x 45mm x 220mm |
| Net Tool Weight: | 1.0kgs (2.20 lbs) |
| Operate Pressure: | 60-100psi (4-7bar) |
| Load Capacity: | 157 staples |
| Staples Type: | 21 Guage 80 Series Fine Wire Staples |
| Staples Crown: | 1/2"(12.8mm) |
| Staples Shank Diameter: | 0.037"(0.95mm) x 0.025"(0.65mm) |
| Staples Length: | 1/6"(4mm)~5/8"(16mm) |

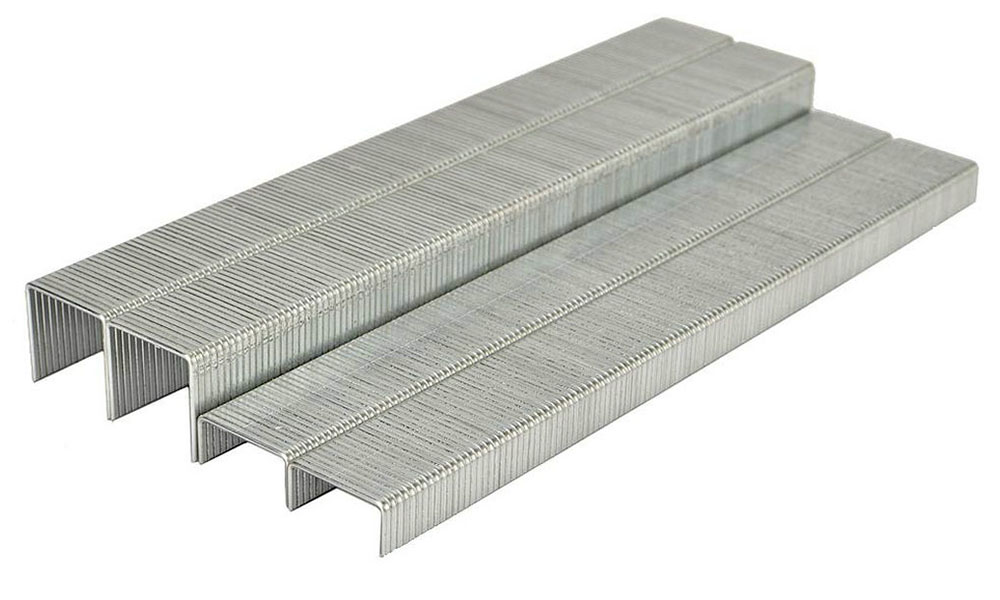

| 21 Guage 80 Series Fine Wire Staples |
| Staples Crown:1/2"(12.8mm) |
| Staples Shank Diameter:0.037"(0.95mm) x 0.025"(0.65mm) |
| Staples Length:1/6"(4mm)~5/8"(16mm) |
Lightweight body for easy operation.
Low noisy have good feedback from suctoerm.
Powerful strength and excellent durability.
Same as 380/16-420
Furniture manke and repair.
Cloth and wood connection.
Picture frams.
Decoration.
| No. | Symptom | Problems | Solutions | |
| 1.1 | Air Leak | Air leak in the cylinder cap when tools don't work | 1.Loose head valve piston seal or o-rings . | Check and replace the head valve piston set |
| 2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap | Check and replace o-ring or cylinder cap gasket under the cylinder cap | |||
| 1.2 | Air leak in Trigger area when tools don't work | 1.Damaged o-ring in trigger valve | Check and replace o-ring | |
| 2.Damaged o-ring in trigger valve stem | Check and replace o-ring | |||
| 3.Dirt in the trigger valve | Check and clean the trigger valve | |||
| 1.3 | Air leak in cylinder cap when tools are working | 1.Damaged head valve piston o-rings | Check and replace o-rings | |
| 2.Damaged seal under cylinder cap | Check and replace seal | |||
| 1.4 | Air leak in nose when tools are working | 1.Worn or damaged bumper | Check and replace bumper | |
| 2.Loose driver(piston unit) thread | Check and replace driver(piston unit) | |||
| 1.5 | Air leak in Trigger area when tools are working | 1.Worn or damaged trigger valve head | Check and replace trigger valve head | |
| 2.Damaged head valve piston o-rings | Check and replace head valve piston o-rings | |||
| 2 | Failed to get driver(piston unit) back to the correct position completely. | 1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled. | Straighten the driver(piston unit) or verify driver guide(nose) and magazine | |
| 2.Worn or damaged nozzle | Check and replace nozzle | |||
| 3.The space between piston o-ring and cylinder is too tight. | Check if the cylinder is adequate lubrication or replace the o-ring on the piston. | |||
