Chain Link Fencing

Chain link fence is one kind of netting fence, also called diamond net. It is made of high-grade galvanized wire, zinc coated is about 40-80g/m2, and PVC coated is around 150μ-200μ,so will be not fold or tear when weave mesh fence, and it is not easy to damage cracking during production preparation.  Chain link fence can also be used as temporary fence.

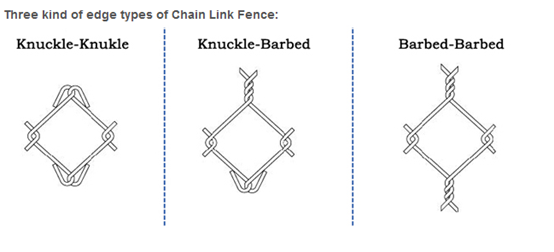

There are also three types of edges, the folded side and the two twisted side. Raw materials can be galvanized steel wire or PVC coated steel wire.

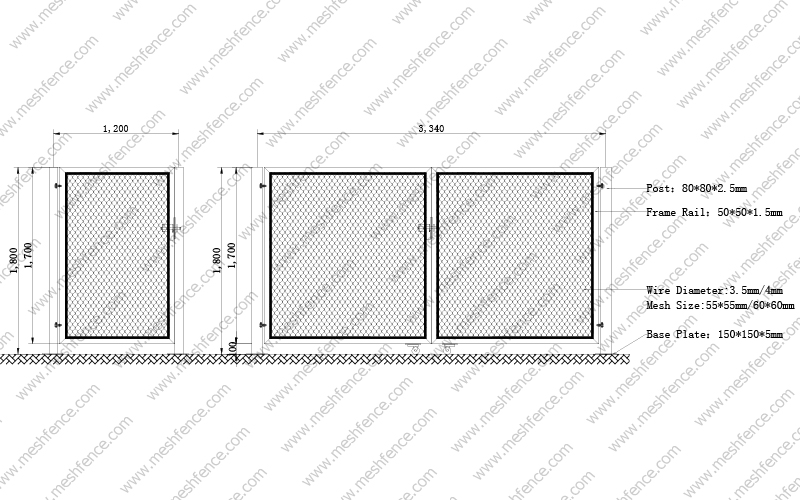

A.         WIDTH: 2000mm / 2500mm / 3000mm

B.         HEIGHT: 1200mm / 1400mm / 1600mm / 1800mm / 2000mm / 2200mm

C.         POST: Round Post (diameter  42mm / 48mm / 50mm / 60mm / 75mm)

D.         WIRE THICKNESS: 2.5mm / 3.0mm / 3.5mm / 4.0mm / 4.5mm / 5.0mm

E.         MESH SIZE: 40mm*40mm / 50mm*50mm / 75mm*75mm

F.          CLAMP: Metal Clamp

G.        POST CAP: Metal Rain Cap / Anti-UV PP Cap

H.         SURFACE: Pre Hot Dipped Galvanized (100 / 200 / 250 / 280g/m2) Galvanized + PVC Coated (All colors in Ral)

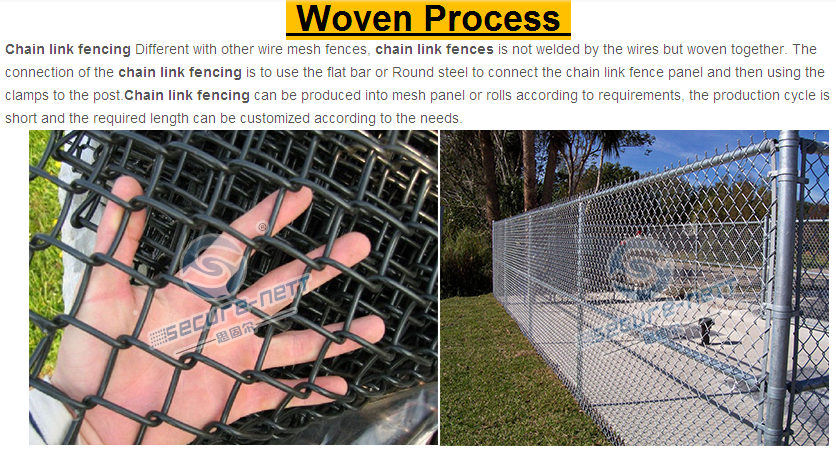

There are two kinds of production techniques of the chain link Fence.

No.1 Use the high-quality low-carbon steel wire to be directly woven by automatic machine, and the surface is processed after the frame is embedded. Pre Hot Dipped Galvanized (100 / 200 / 250 / 280g/m2) or  Galvanized + PVC Coated (All colors in Ral) are available.

No.2 The high-quality low-carbon steel wire is wrapped by PE plastic. After 300 °C high-temperature plasticization, the inner low-carbon steel wire is closely adhered to the surface plastic. It is not easy for air to penetrate into the steel wire surface and prevent rust caused by oxidation. The unique weaving technology ensures that there are no cracks in the bend of the product during production.

Our Service

? Free sample is available ,specifications based on your require.

? CE .SGS or other Certifications can be provided based on your require.

 As engineers we offer an evaluation of your designs and provide a workable solution.

? OEM requires are accepted, We can deliver conceptual drawings to support your plans.

? As manufacture ,we got the competitive price and we can ensure the shortest delivery time.

? Factory located in mainland of China, you are welcome to visit and we will accompany with you.

? Our factory has established for 17 years and got ISO9001 quality certificate, High quality can be ensured.
