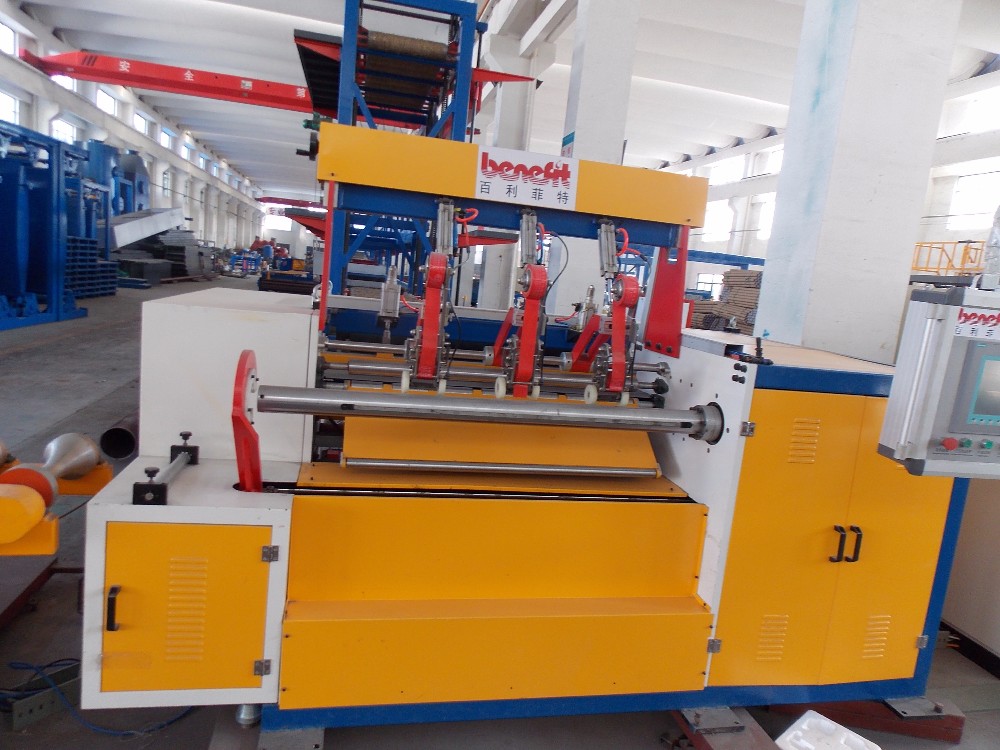

High Speed Automatic Membrane Roll Rewinder

Machine Introduction

1. The roll felt equipment is one of the indispensable and important systems in the modified asphalt waterproof roll material production line, especially in the large scale roll material production line.

2. The use of the automatic reeling machine can not only greatly reduce the labor intensity of the operator.

3.  At present, some domestic manufacturers use imported equipment. Although the equipment has good performance, it is expensive and not suitable for the actual situation of most domestic production enterprises.

4.  Our company has developed a fully automatic roll felt machine suitable for both abroad and domestic which improves the speed and the precision of winding length. The equipment has a comprehensive function, stable and reliable, and moderate price.

1.Use programmable controller, servo, drive, man-machine interface control;

2. Powerful, easy to operate, easy to maintain, structure delicate;

3.Roll out of the coil tight, accurate length;

4.Equipment and high cost performance and reliability, strong operablity.

5. The machine can adapt to a bad working environment

The rewinding process of full - automatic servo winder comprises the following seven actions of  incoming head , slow winding , fast winding , slow winding , press felt , cut felt , tape felt , and push felt ;

1.The incoming head is driven by the low - speed running of the felt motor to drive the traction roller to feed the coiled material into the drum;

2.Then the felt motor and the felt servo quickly rotate to start winding work , and meanwhile , the length of the felt can be intuitively displayed on the touch display screen during the rolling felt process;

3. When the set length is reached ,the felt motor are stopped and the winding action is finished , the pressing felt cylinder is in place , and then the felt motor drives the cutter to cut the coiled material ;

4.The winding tape device is freely slid into position , the felt motor rotates at low speed , tape felt ;

5.The cylinder will push the plate, the felt motor is started to push the coiled material from the winding roll to the felt roller way.

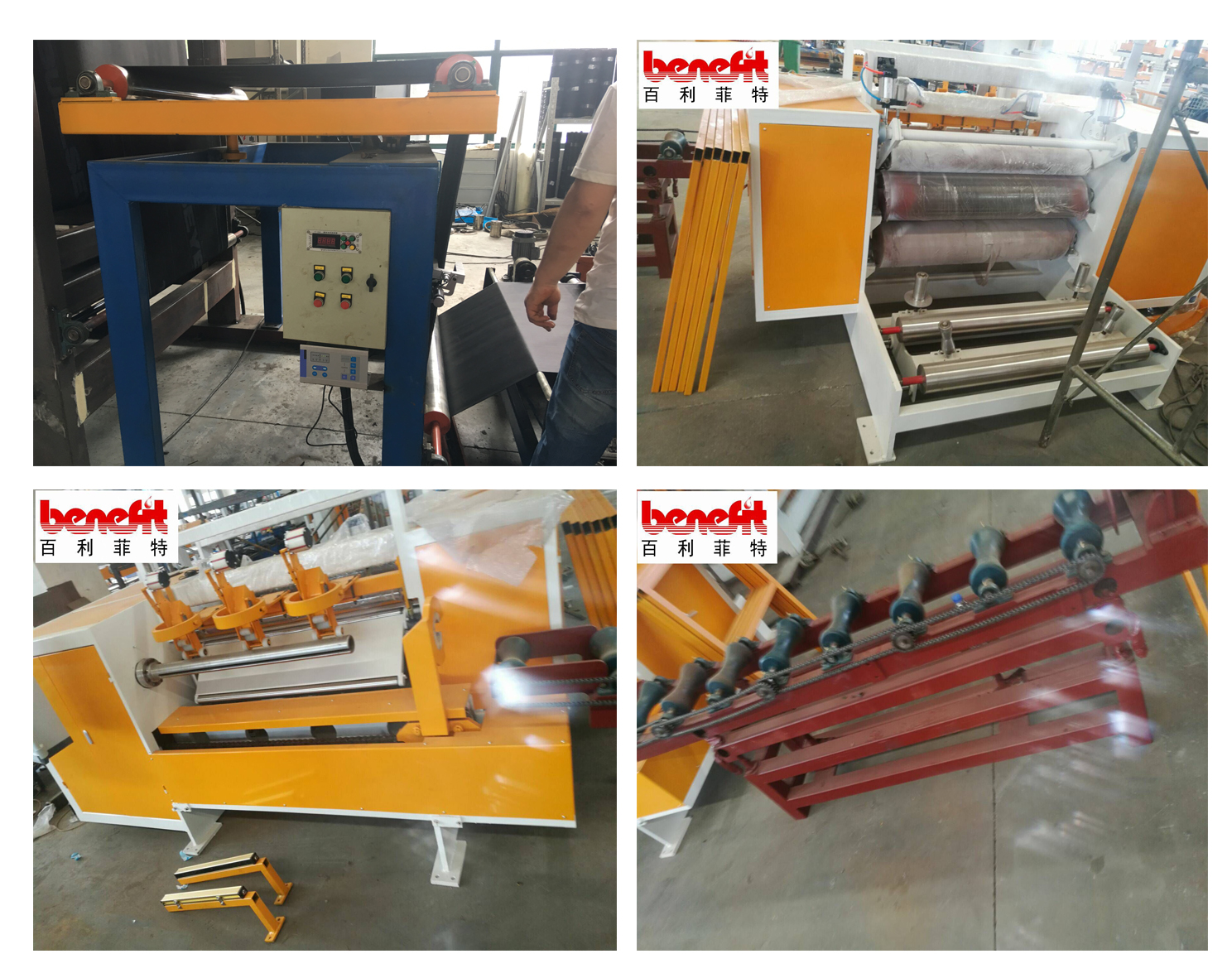

Servo felt feeding device

1.Servo system

2.Traction drum

3.Rubber pressing roller

Rewinding device

1.Air expansion shaft

2.Photoelectric detection

3.Winding system including motor,belt

4.Pressure arm

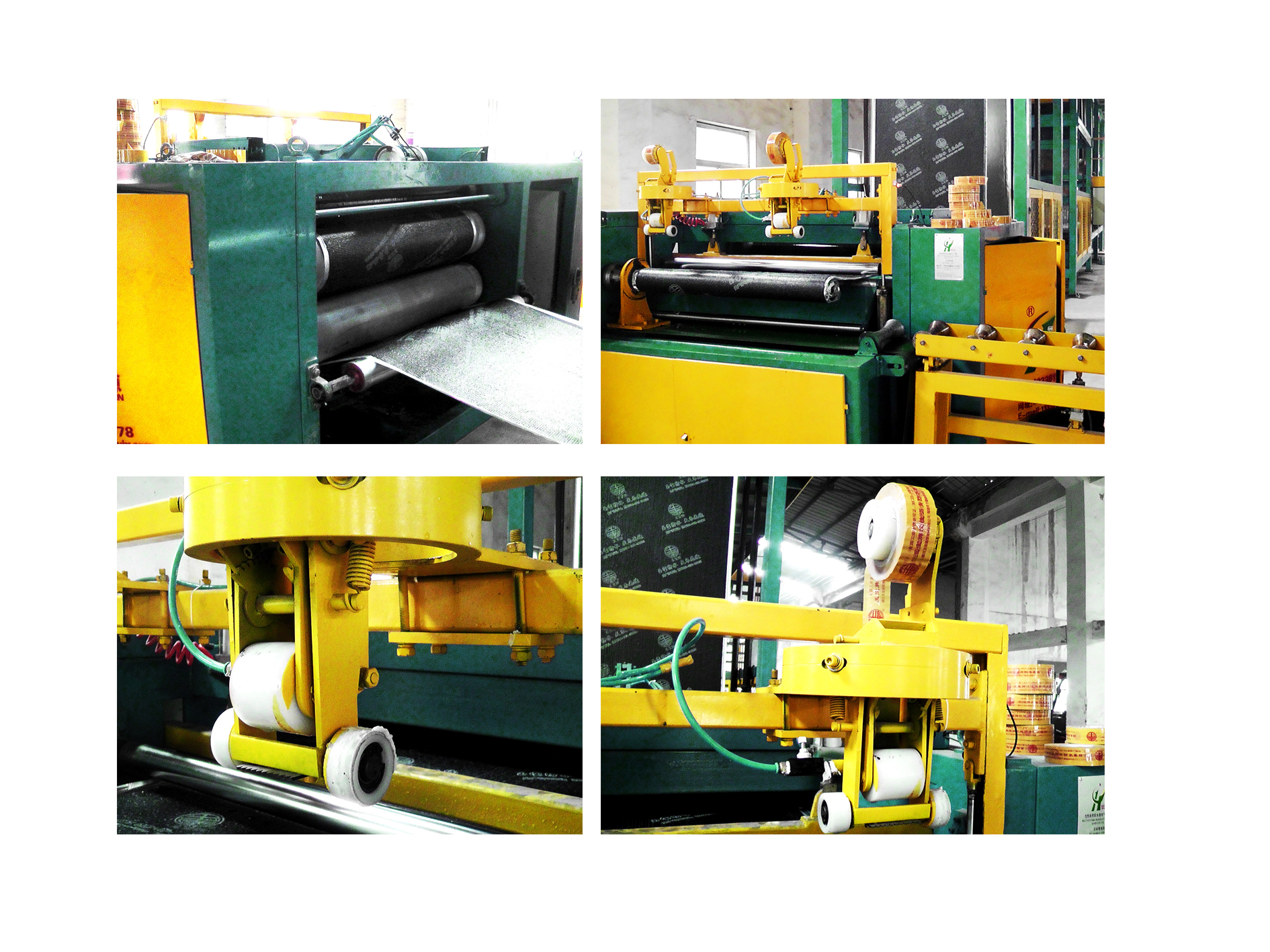

Cutting device

1.Several pressing cylinders

2.Cutter and cutter motor,chain

Tape device

1.usually equip with three tapes

Pushing felt device

1.Roller table

2.push felt motor chain

Control system

1.Electric operation panel

2.Taida PLC touch screen

3.All parameter are displayer on the monitor

4.Automatic fault display and alarm

5.Low voltage electrical appliances all from Taiwan

Optional part

Safety guard for the rewinding machine

Working power

380V

Working temperature

5-50℃

Working moisture

5%-90%

Working elevation area

Below 2000 meters

Max rewinding length

10 m

Max rewinding width

1 m

Max rewinding diameter

320 mm

Max rewinding speed

50-60 m/minute(adjustable )

Rewinding thickness

2-5mm

Weight

3T

Machine power

12kw

Membrane Dimension

3060mm*1350mm*1720mm

Rewind shaft

76mm open-air expand shaft

Voltage

380V050HZ
