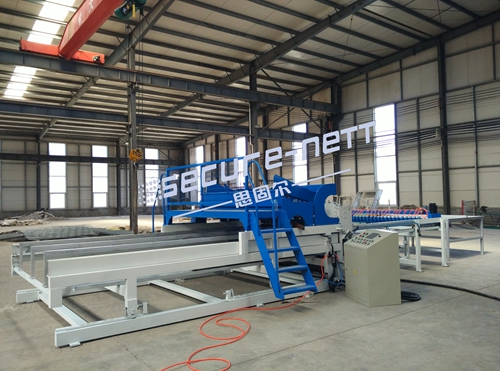

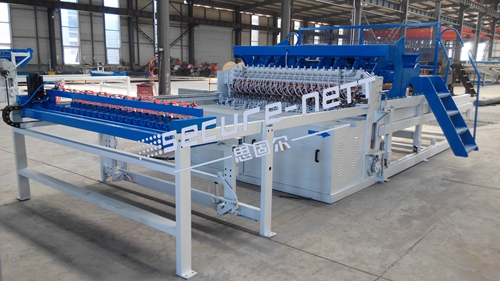

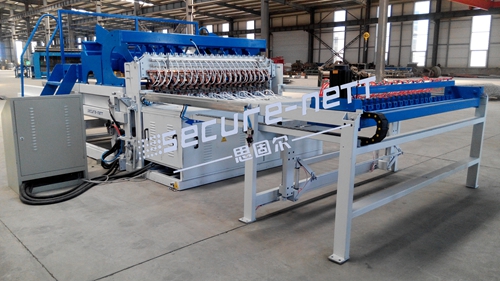

3.0-8.0mm Automatic Welded Mesh Welding Machine

ID:20090119769

Category: Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 23500.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

automatic welded mesh machineWelded Mesh Welding Machinewire mesh welding machinewelded wire mesh machinespot welding machinewelding machine factoryCage Welding Machinewelding machine pricefence welding machine

Payment Method:

L/CT/T

Product Category

Manufacturing & Processing Machinery > Industrial Processing Machinery

Trademark

Secure-net

Product Package

Control box and spare parts with wooden box

Specification

wire diameter:3.0-8.0mm cell size:100-300mm welding width:2.5m or as request

Place of Origin

Anping,Hengshui,Hebei,China

Port

Xingang Port

Find us:

Marrisa Gao

Hebei Secure-net Fence Facility Co.,Ltd

Phone(whatsapp): +8615632889931

E-mail:marrisa@secure-net.cn

Wire Diameter3.0-8.0mm

Mesh Size 100*100-300*300

Pre-cut cross/line wire

PLC Program System

Automatic Line Wire Feeding

Output:Sheet

Servo Motor Driving Force

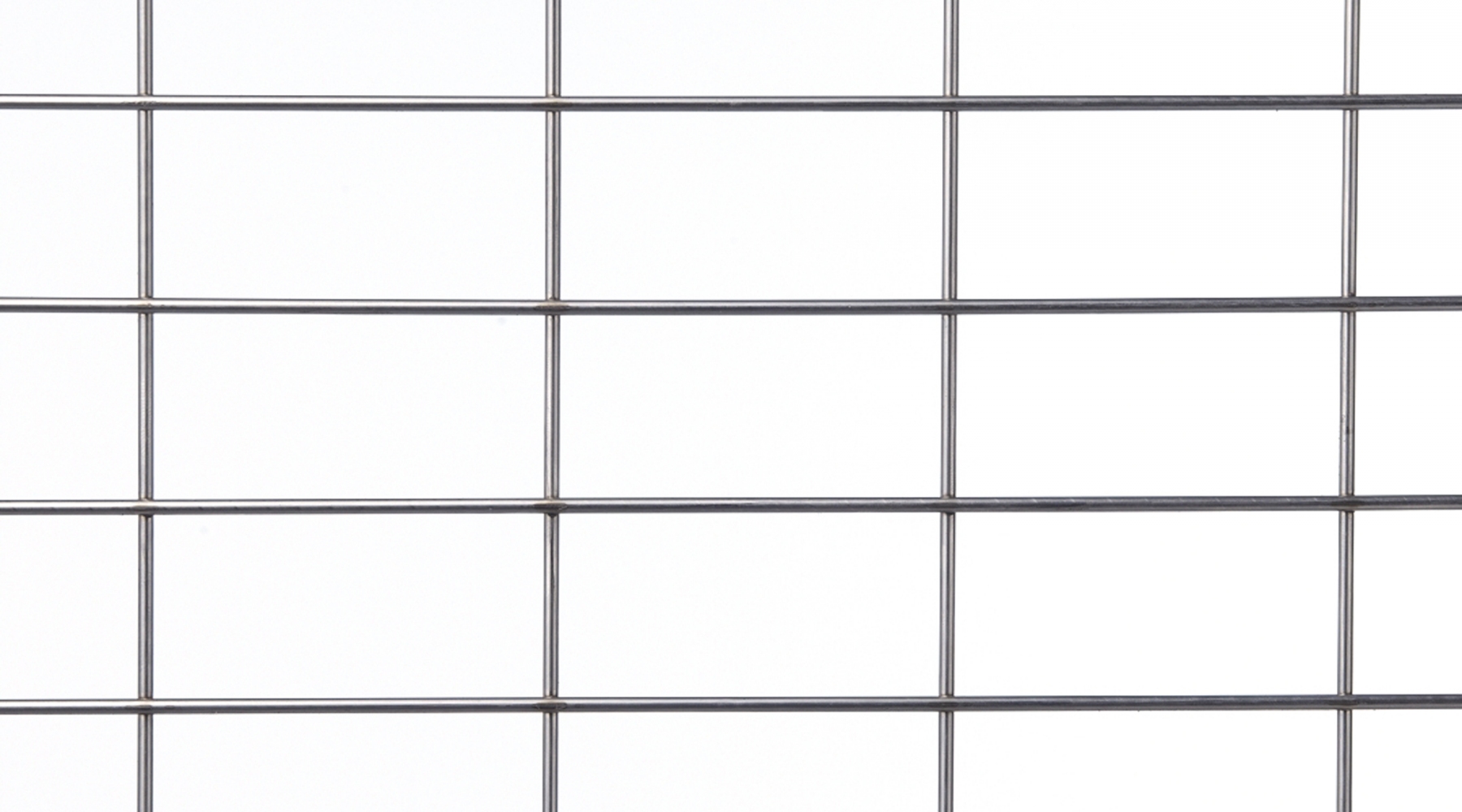

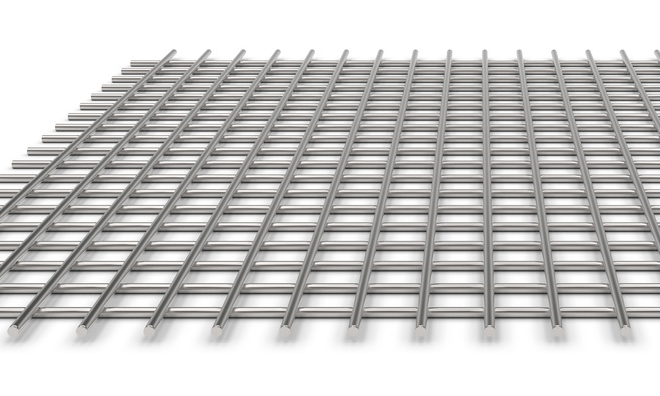

Application:Welded Mesh/Welded Mesh Fence

This equipment adopts synchronous control technology,separate-phase welding and welding time is composed of digital programming of PLC system .There are two kinds of tablet PC input panel,One kind is touch panel ,another is Keyboard .The operation is more intelligent and rationalization.The machine can press the panel tightly once , and weld by several times .

On the same panel,this machine can weld 30 kinds of different size of meshs between weft and weft.That is the biggest advantages of this machine.
The machine adopts new type of high efficient welding transformer ,greatly expand the scope of welding diameters.(This fully automatic wire mesh welding machine has high degree of automation, the same time reduce a lot of manual operation).

1.Cross wire feeding way: drop from cross wire hopper automatically,position of drop wire is accurately.

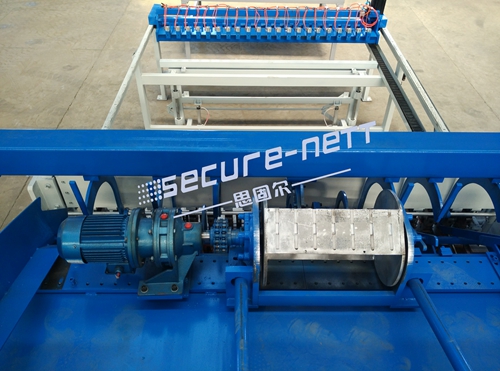

2.Mesh panel pulling way:adopt the serve motor, pull the panel back and forth ,pneumatic lock the cross wire,ensure position is accurate.

3.Stacking mesh panel way: fully automatic wire mesh panel transmission mechanism,stack wire mesh panel automatic, Neatly stacked, facilitate transportation, save manpower and material resources.

Program

SN-GW-1500A8

SN-GW-2000A8

SN-GW-2500A8
