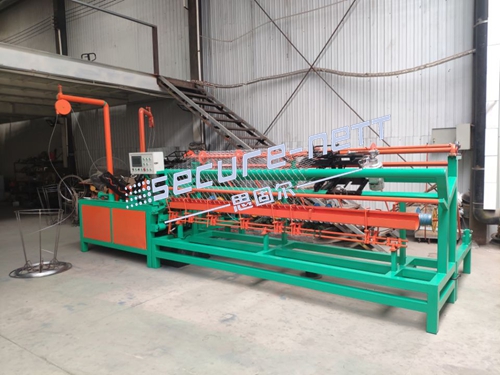

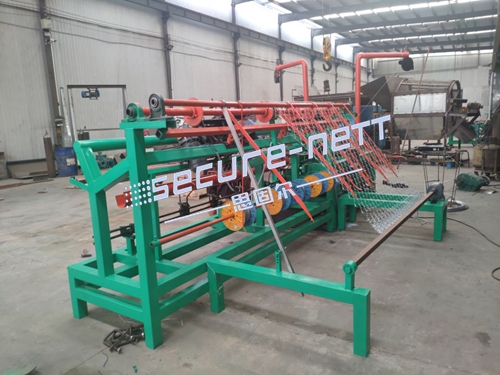

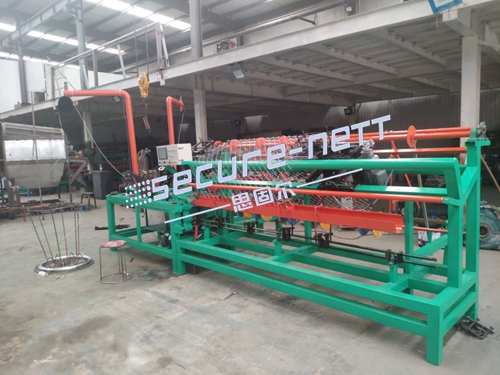

Chain link fence machine for manufacturing different sizes chain link fences . The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete, the woven is automaticlly glided down to enable the next stitch to take place.
· The chain link is automatically wound to form rolls when the desired length is manufactured.
· The machine is controlled by PLC automatic controller, so only one person is needed to operate it.
· One side or both sides of the end of net hole is twisted or with burr in edge.
· Use compacting machine to make it into rolls.
Parameter：
1、 | Width :2-4m, suitable for weaving various electric galvanized, hot dip galvanized, PVC diamond net. |
2、 | Mesh :30-100mm, according to need, to provide two different specifications of the molding die. |
3、 | Braided wire range (wire diameter):2-4mm |
| Mesh width3m Wire diameter 2.0-4.0 Note: The requirements of each bundle of wires uniform hardness, or affect the continuous operation | |
4、 | Molding cutter shaft speed :275-1100sqm , with frequency control PLC automatic control. |
5、 | Yield per minute: 50 * 50mm mesh, 2m width ≥ 1m2 |
6、 | Total power:4.75kw |
7、 | Total weight：1500kg |
8、 | Equipment Dimensions: 4500x1000x2000mm |
9、 | PLC of MITSUBISHI |
10、 | Applicable woven material: high quality low carbon steel wire, galvanized wire, stainless steel wire, aluminum alloy wire, plastic coated wire. |
11、 | Features: small footprint, automatic folding, bending, shear, finished automatic folding volumes, low cost of raw materials, saving manpower, time, one person can operate several machines production. |

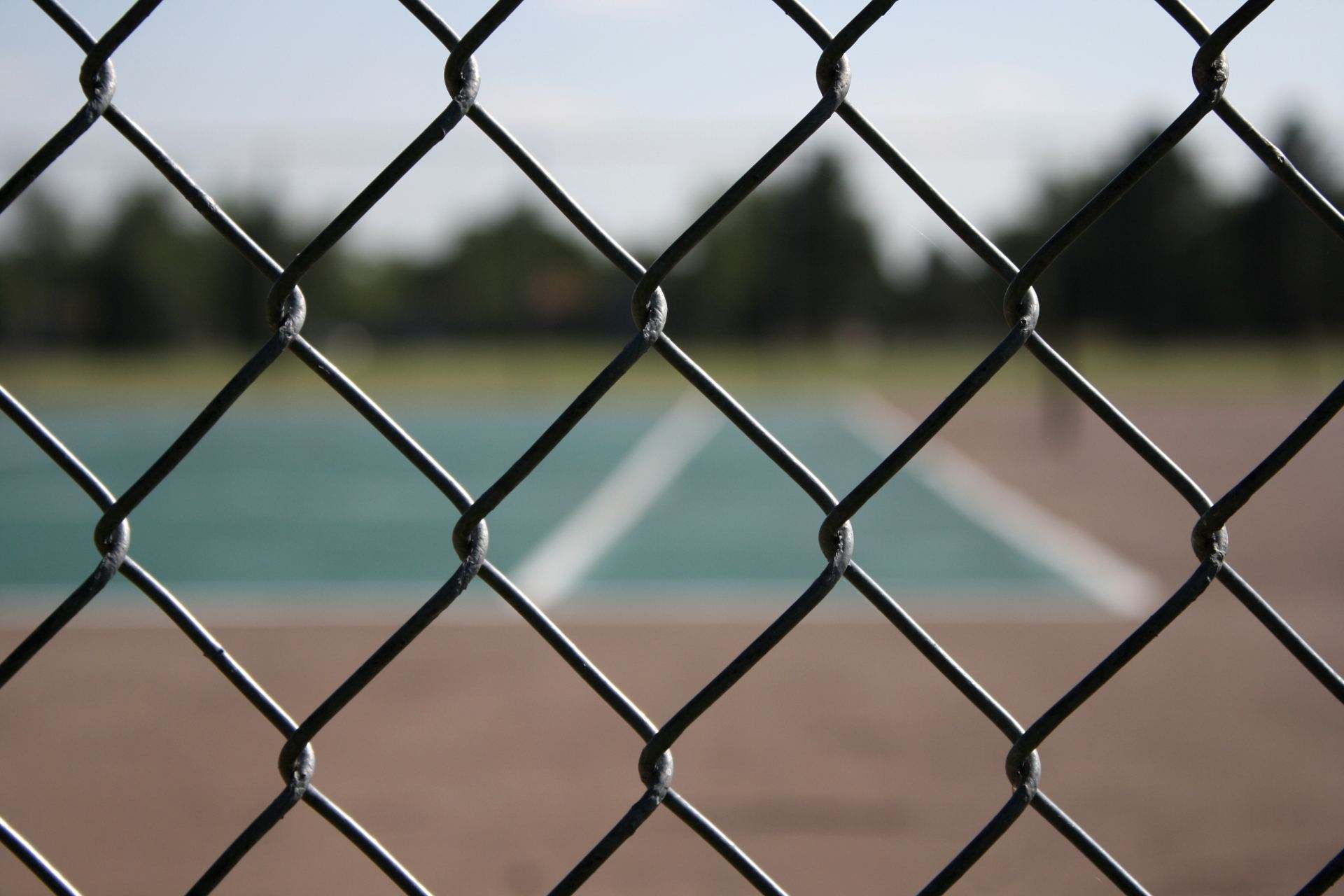

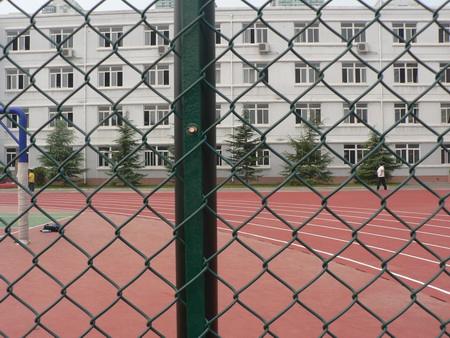

12、 | Uses: widely use, raising chickens, ducks, geese, rabbits and zoo fence. Machinery and equipment protection, highway guardrail, sports venues fence, the road green belt protection. The screen in the production of a box-shaped containers, cages filled with rocks, etc., can be used to protect and support the seawall, hillsides, road and bridge, reservoirs and other civil engineering works. Flood control and fighting a flood. Can be used for the manufacture of handicrafts, machinery and equipment of the transmission grid. For the production of various specifications of diamond mesh, the mesh is widely used in national defense, mining, railways and highways, fences, such as a protective fence. |
