Trapezoidal sheet machinecorrugated sheet machineroofing sheet making machineroofing sheet machineroll forming machinesheet roll formingtile making machinesheet making machine
L/CT/TD/P
Profile drawing:as customer's request
Material:PPGI/PPGL/ GI/ aluminum
Thickness:0.3-0.8mm
Packing list:
| Decoiler | 1 | 5T |
| Main roll former | 1 | |
| Cutting system | 1 | |
| PLC control system | 1 | |
| Hydraulic pump station | 1 | |
| Run-out table | 1 | 3m length |
Main paramters of the production line:
5T Manual decoiler | Capacity | 5T |
Coil inner diameter | 450-550 mm | |
Roll forming machine | Rolling shaft | Shaft Material: 45# steel with quenched treatment |
Shaft diameter: 80 mm | ||
Roller | ||
Rolling station | Rolling number: 18 stations | |
Work speed | 0-20m/min | |
Bearing | Chinese famous brand Harbin | |
Work power | 5.5 kw | |
Transmission | By double chains | |
Control station | Frequency brand | Delta |
PLC brand | Delta | |
Screen language | English/Chinese/as request | |
Feature | The control system support multi orders input, it can match different production needs, please check the photos | |
Function | Cutting length control, cutting quantity control, and speed control | |
Cutting system | Type of cutting | Hydraulic cutting |
Hydraulic motor power | 4 kw | |
Cutter material | GB-Cr12 | |
Cutting length tolerance | ±1 mm | |
Cutting feature | Steady and safe working condition and low sounds | |

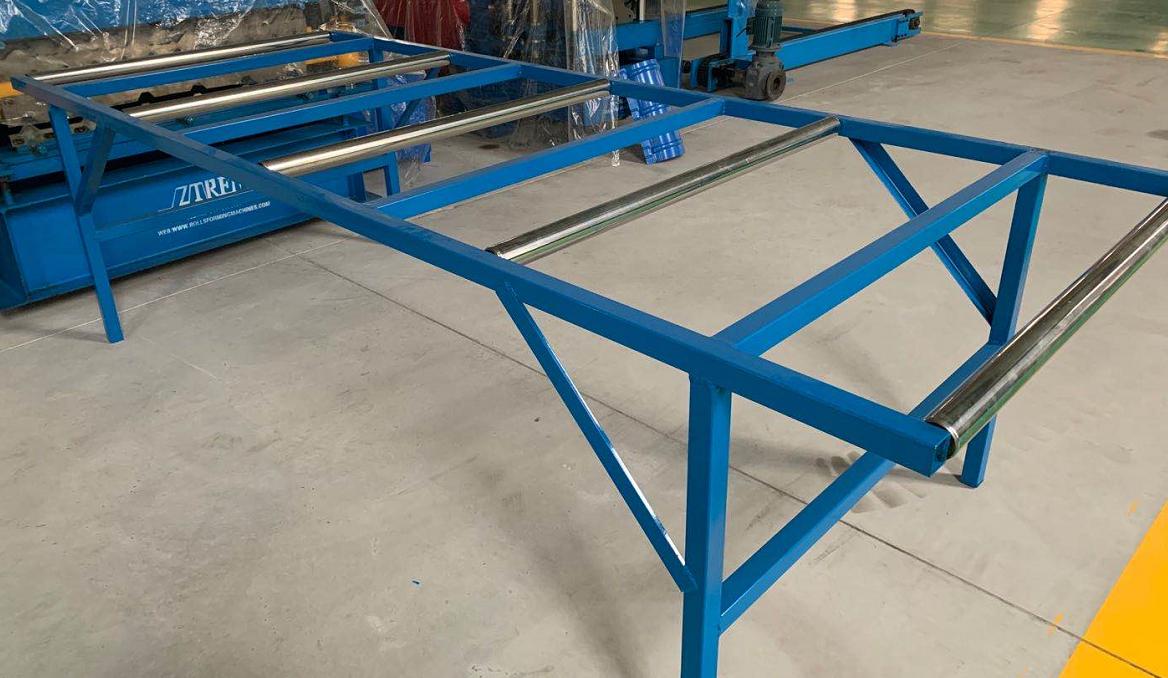

Run-out table | Length:3m | |

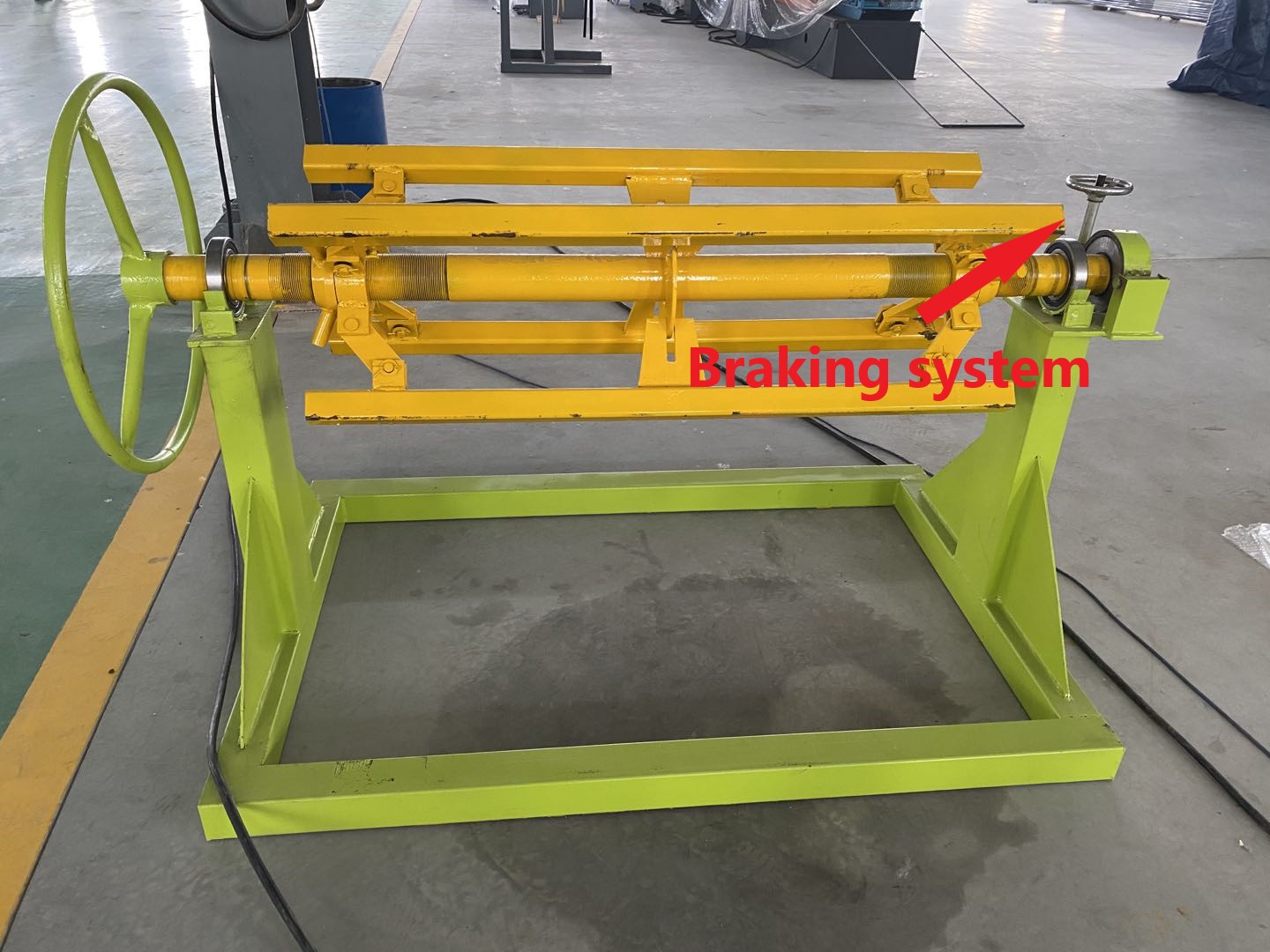

1.5T manual decoiler

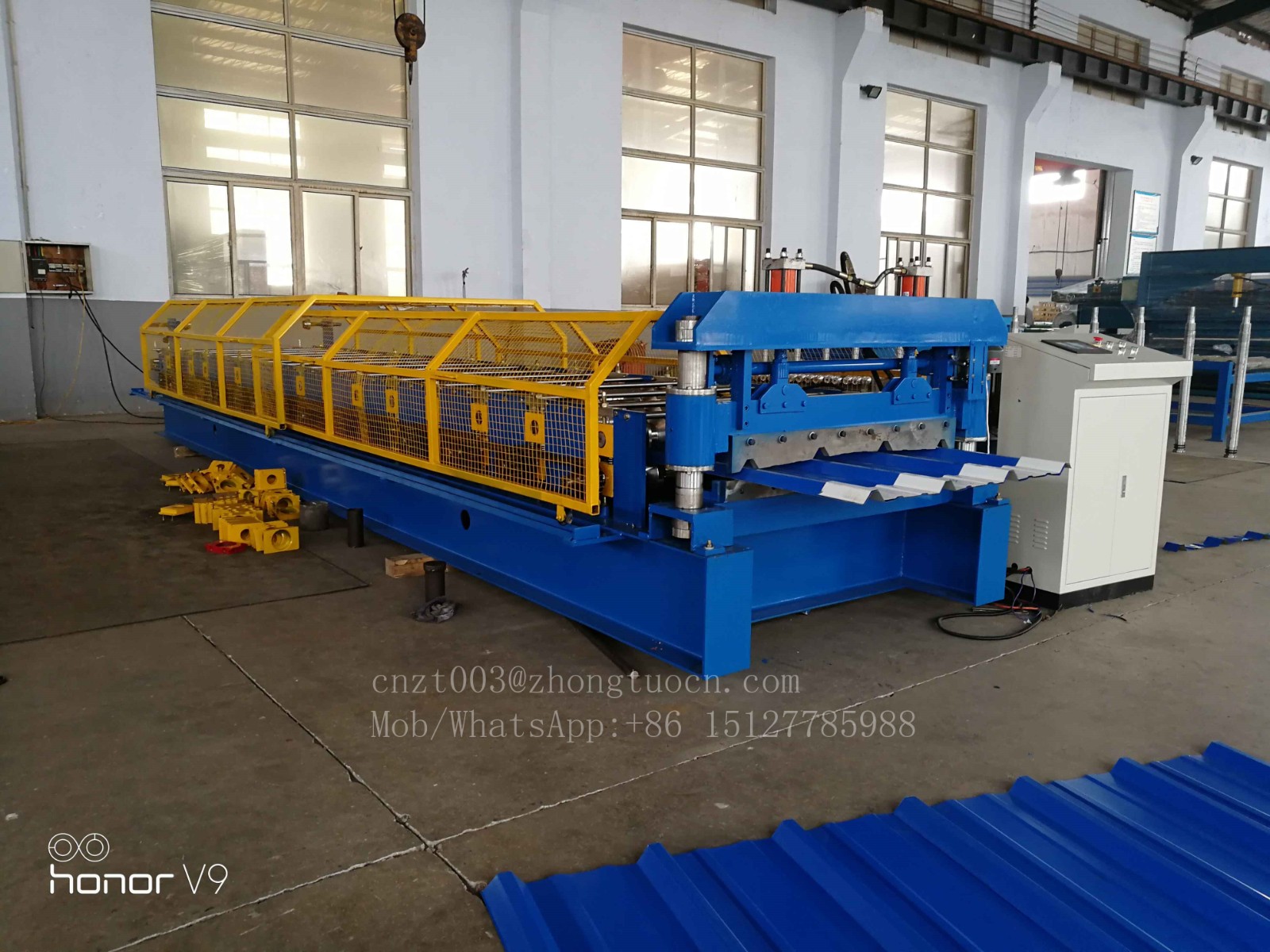

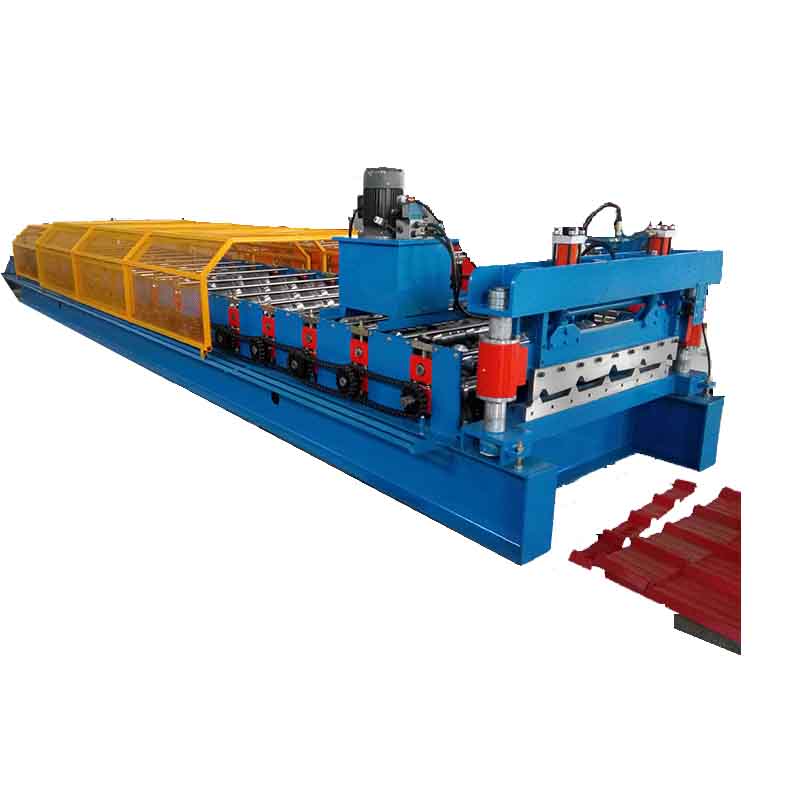

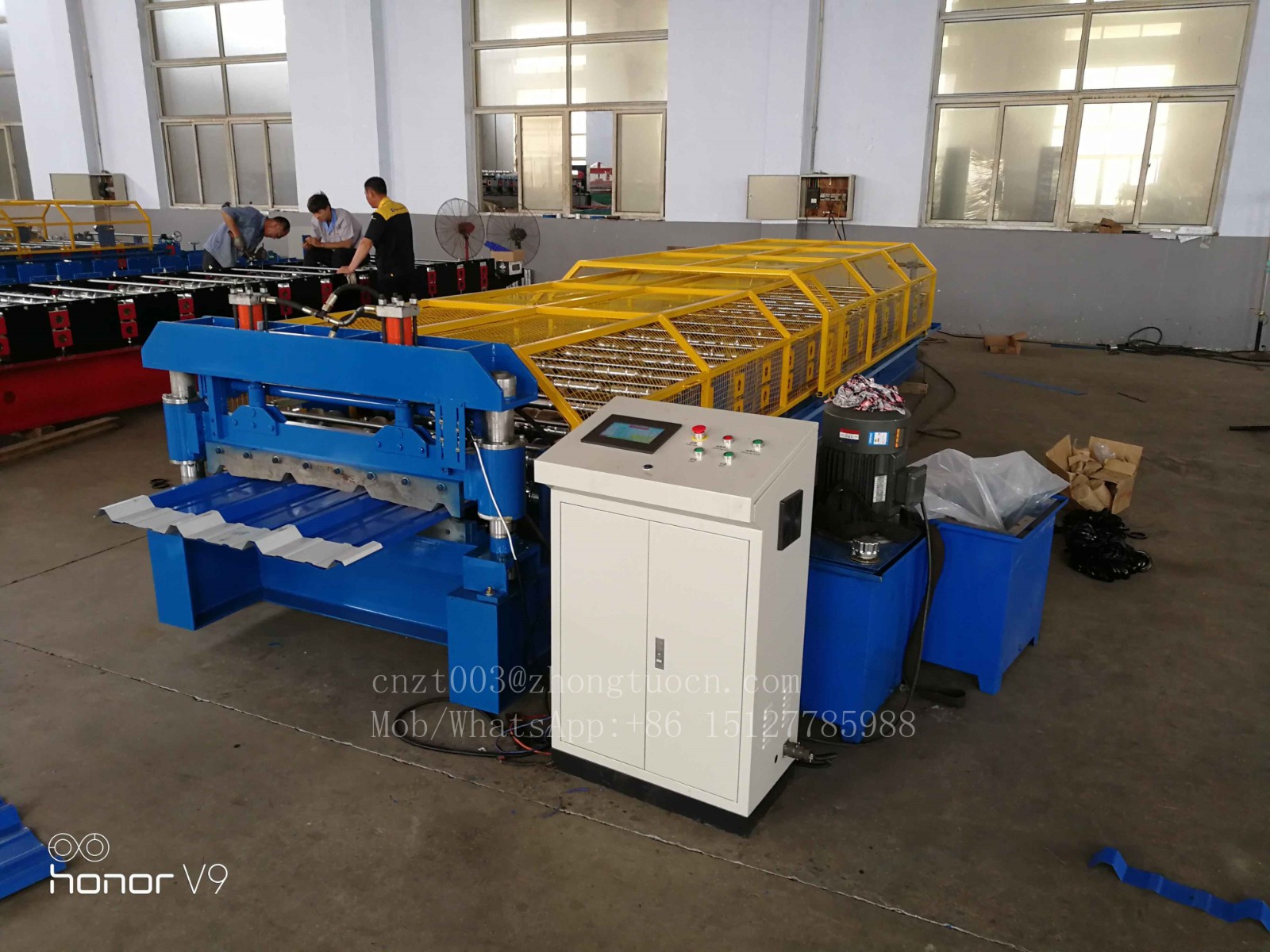

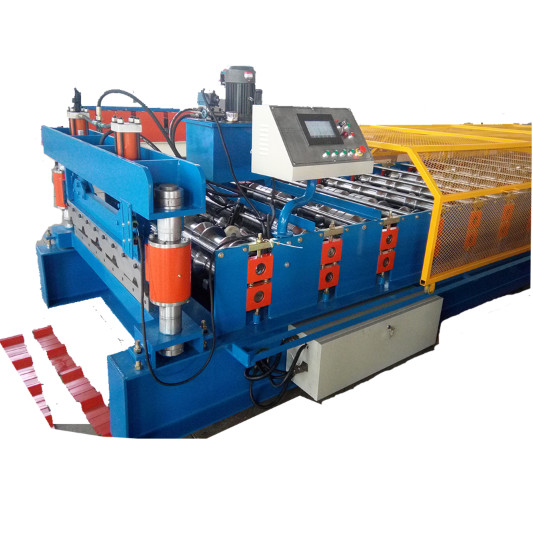

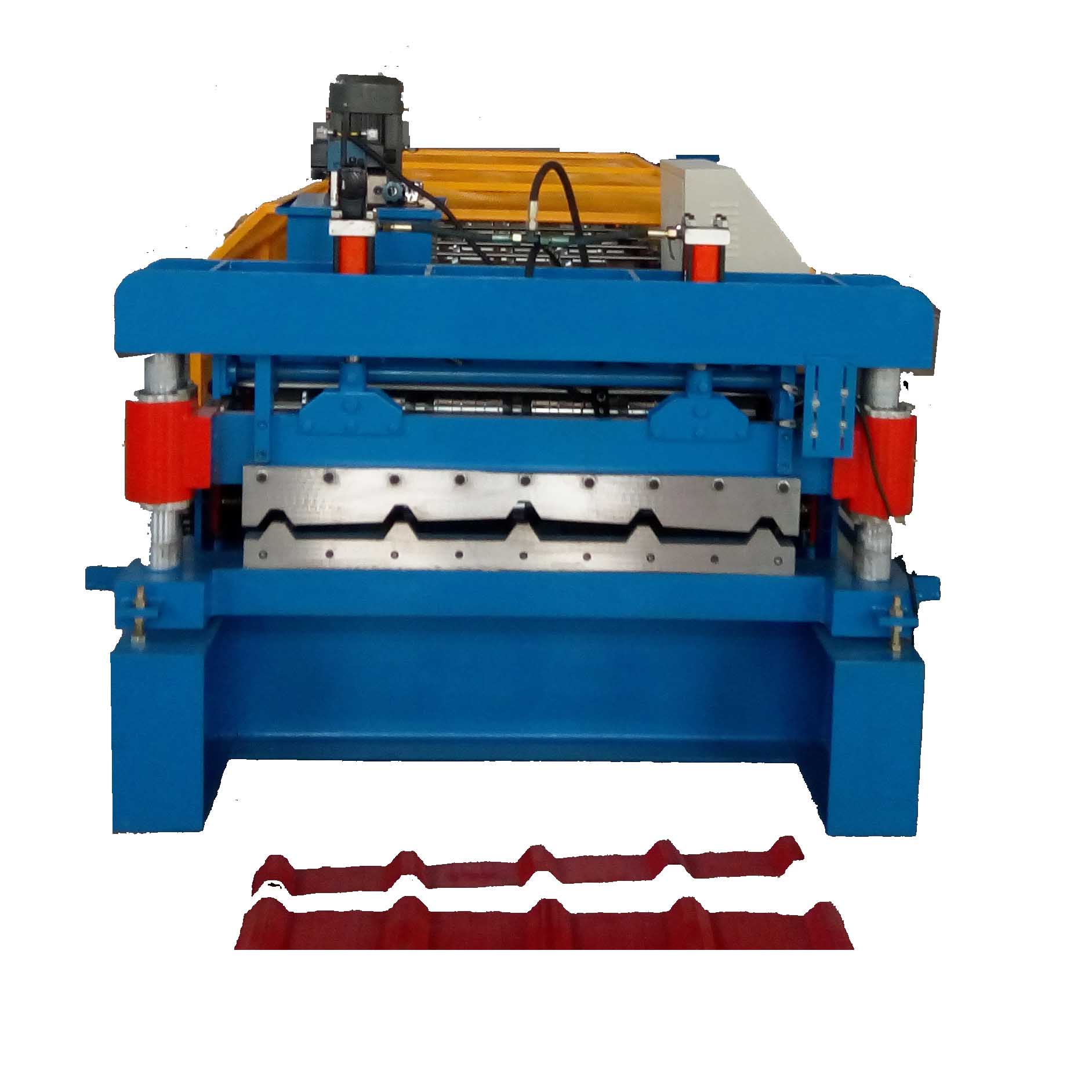

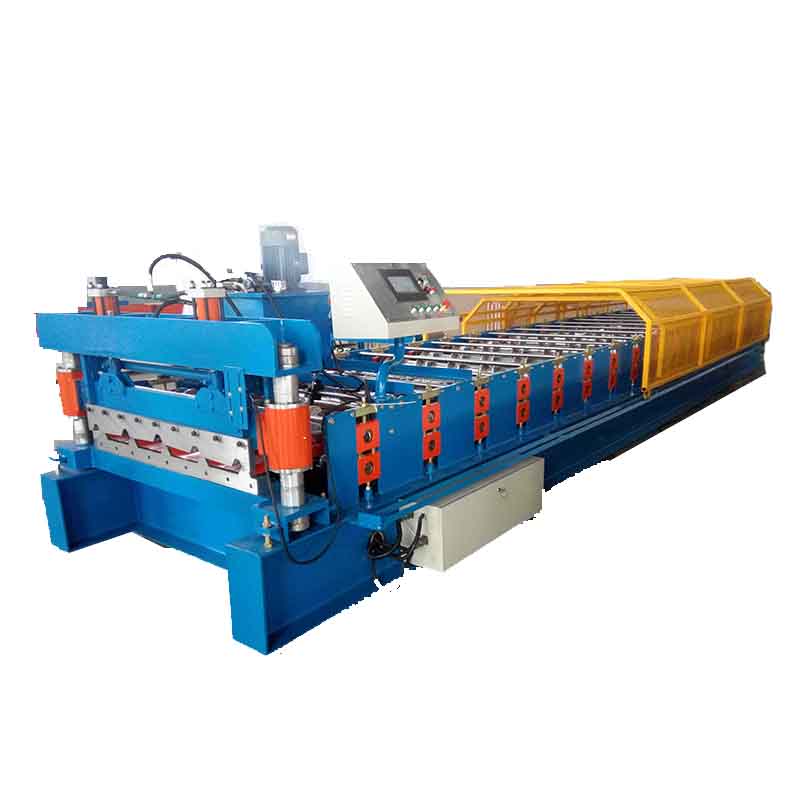

2.Main forming machine

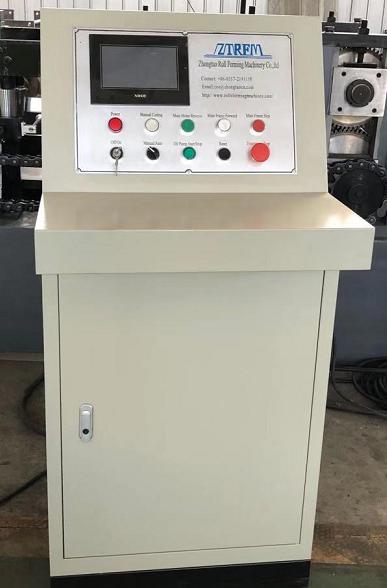

3.Control station

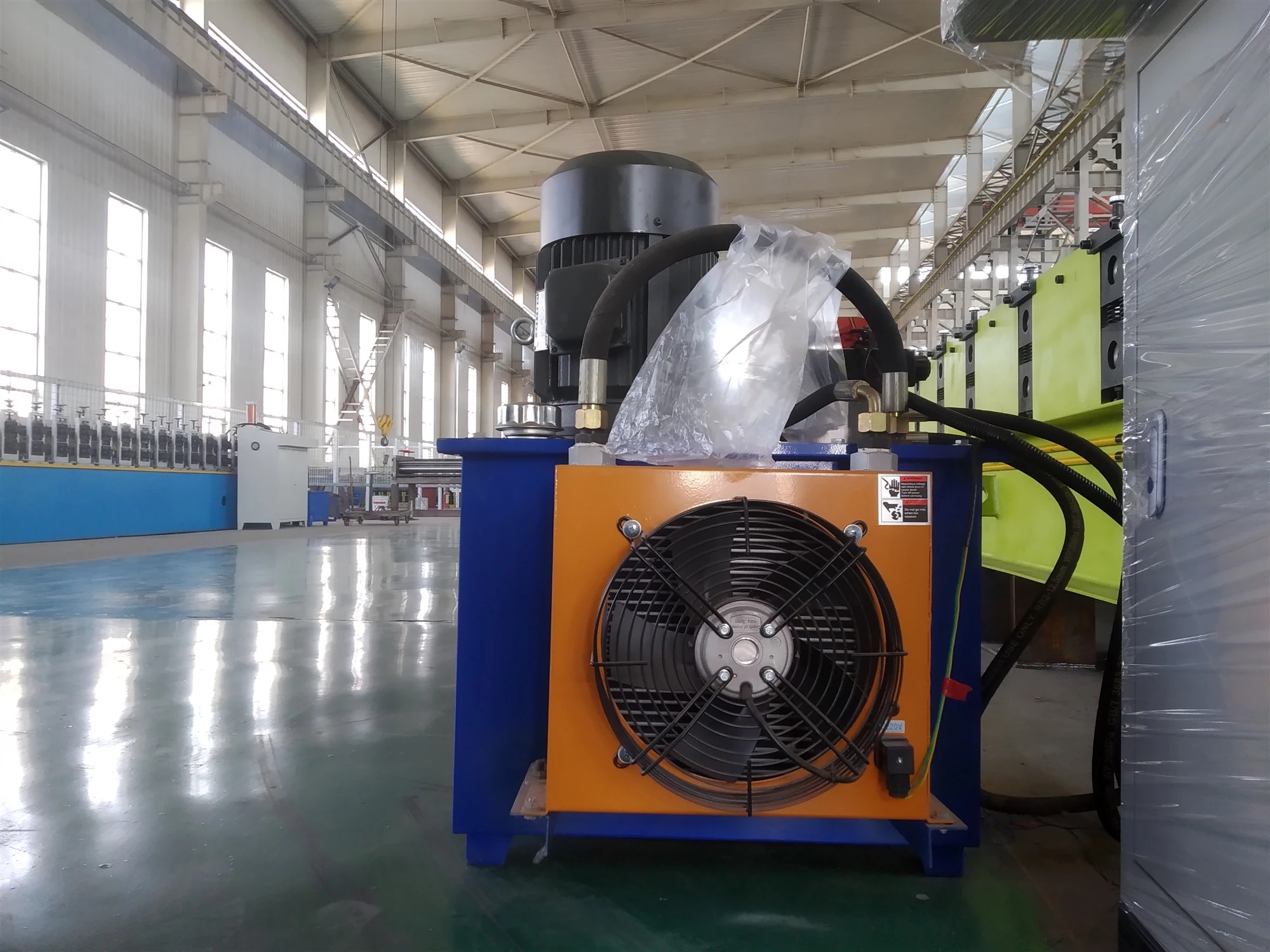

4.Hydraulic station
5.Run-out table
