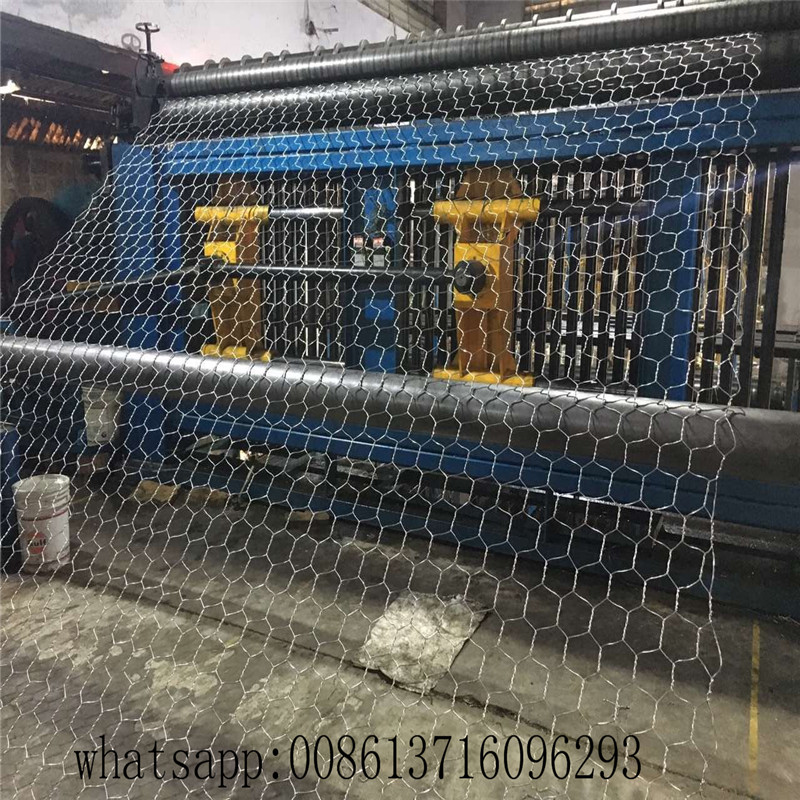

Gabion machine
重型六角网捻网机
Performance parameters
重型六角网捻网机性能参数：
产品规格 Product specification (mm) | 最大门幅Largest width of shell fabric (mm) | 最大丝径 Largest wire diameter (mm) | 电机功率 Motor power (kw) | 编制速度Weaving speed （m/hour） | 外形尺寸Boundary dimension (mm) | 重量Weight (t) |
60*80 | 3500 | 4 | 18 | 165 | 6200*1400*2400 | 14.5 |
4500 | 4 | 22 | 7200*1400*2400 | 15 | ||
5500 | 4 | 30 | 8200*1400*2400 | 15.5 | ||
80*100 | 3500 | 4 | 18 | 200 | 6200*1400*2400 | 14.5 |
4500 | 4 | 22 | 7200*1400*2400 | 15 | ||
5500 | 4 | 30 | 8200*1400*2400 | 15.5 | ||
100*120 | 3500 | 4 | 18 | 220 | 6200*1400*2400 | 14.5 |
4500 | 4 | 22 | 7200*1400*2400 | 15 | ||
5500 | 4 | 30 | 8200*1400*2400 | 15.5 | ||
120*150 | 3500 | 4 | 18 | 230 | 6200*1400*2400 | 14.5 |
4500 | 4 | 22 | 7200*1400*2400 | 15 | ||
5500 | 4 | 30 | 8200*1400*2400 | 15.5 |
1. 25mm steel plate 原材采用25毫米厚的钢板
2. bearing drive 轴承传动
3. parallel bars 双杠更平稳运作
4. cast steel gear 铸钢件大齿轮
Performance parameter
绕簧机性能参数：
簧杆数量 Spring rod quantity | 6 |
簧杆速度 Spring rod rotate speed | 385 |
饶簧最大长度 Maximum length of spring | 2000mm |
簧杆外径 Spring rod diameter | 25mm |
饶簧层数 Spring layer quantity | ≥6 |
最大镀锌丝 Maximum zinc-plated wire diameter | 4mm |
包塑后最大外径 Maximum outside diameter after being covered by plastic | 5mm |
电机功率 Motor power | 2.2kw |
总重 Total weight | 480kg |
外形尺寸 Overall size | 1960*600*1450mm |

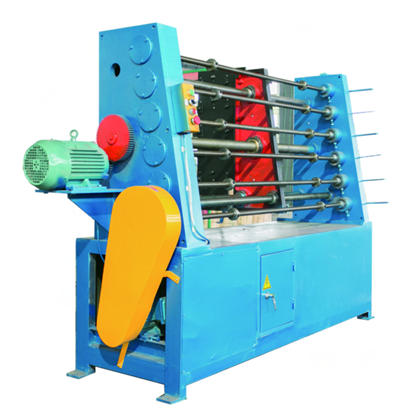

This machine is the supporting equipment for gabion machine to wind.
The equipment is set with six spring rods. After starting up, six rods operate at the same time. It automatically winds by cycles to increase spring length, decrease spring-
change times, and increase weaving efficiency.
The machine can adopt to different-diameter spiral function if the changing gear is replaced.
此机专供重型六角网机饶簧的配套设备。
此设备设有六根簧杆，开机后六根簧杆同时旋转，自动饶簧，并可来回转绕层数，以增加饶簧长度，减少捻网时的换簧次数，提高捻网效率。
该绕簧机只要变换设定的交换齿轮就能适应不同丝径的饶簧功能

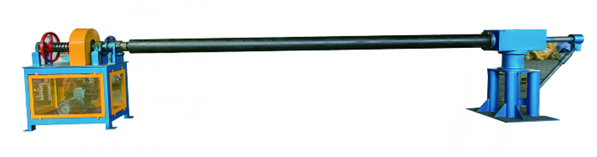

Netting Winding Machine
收网机
Netting winding machine is equipment of hexagonal wire netting machine. For pulling out wire harvest volume from hexagonal wire netting machine.
收网机是六角网机的一种辅助设备，用于将从六角网机冲拉出来的铁丝网收成卷。
Performance parameter
收网机性能参数：
前座 Front seat | 1000*750*1100mm |
后座 Back seat | 1000*800*700mm |
收网棍 Net roller | Ф180*4800mm |
电机功率 Motor power | 1.5kw |
总重 Total weight | 850kg |
The roller’s material is seamless steel pipe.收网棍采用无缝钢管。

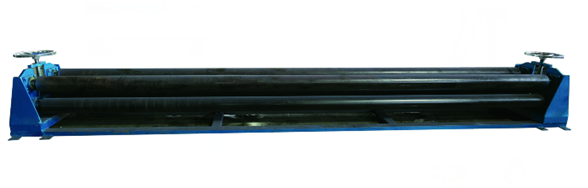

MF Wire Tension Machine
整经机
This machine has the features of high efficiency of warping, beam density uniform, smooth.
本机具有整经效率高，经轴密度均匀、平整的特点。
Performance parameter;
外形尺寸 Overall size | 5000*680*710mm |
上压轴 Upper roller | 4600*Ф133mm, 2ps |
下压轴 Under roller | 4600*Ф133mm, 3ps |
总重量 Total weight | 650kg |
The roller’s material is seamless steel pipe
压轴采用无缝钢管

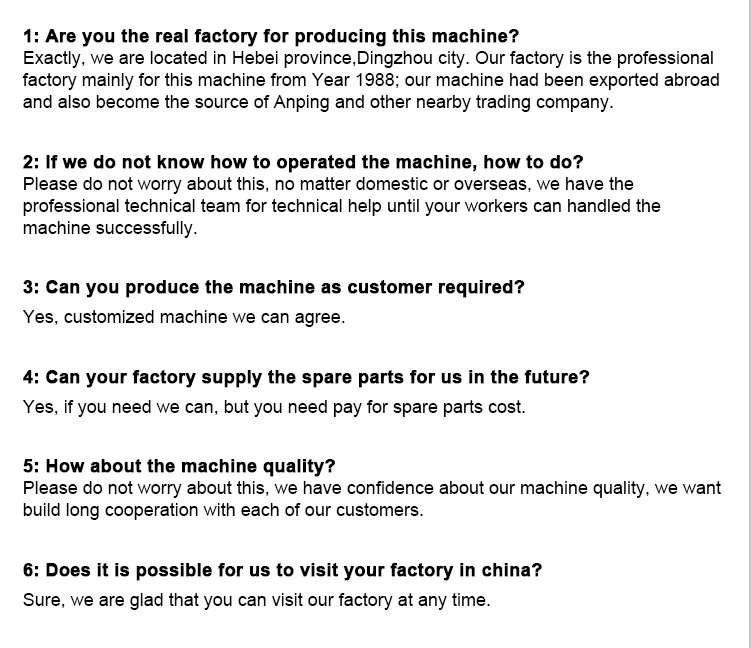

FAQ:
