Gate Valvescast iron valvevalvessluice valveresilient seated gate valvesoft seated gate valve
L/CT/TD/PWestern Union
Features
2 The ductile iron core is fully vulcanized with EPDM rubber, no iron parts are exposed to the medium and the excellent rubber vulcanization prevents creeping corrosion underneath the rubber.
2 Guides in the wedge and on the valve body ensure a uniform closure, safe operation ensured as the guides prevent overloading of the stem.
2 Stainless steel stem with rolled threads for high strength.
2 The valve can replace stem seals under pressure.
2 Full bore.
2 Body inside and outside fusion bonded epoxy coating with excellent corrosion resistant performance
Standard
Design standard | DIN3352 F4, EN1171 |
Flange drilling standard | EN1092-2 PN10/PN16 |
Face to face standard | EN558-1 Series 14 |
Hydraulic test standard | EN1074-1 and 2 /EN12266 |
Seat:1.1*PN(in bar), Body:1.5*PN(in bar) |
Technical Parameters
Nominal diameter(mm) | 40～600 | 40～600 | |
Nominal pressure(Mpa) | 1.0 | 1.6 | |
Testing pressure | Shell(Mpa) | 1.5 | 2.4 |
Seal(Mpa) | 1.1 | 1.76 | |
Suitable temperature | -40°C～150°C | ||
Suitable medium | Drinking water、sewage、seawater、irrigation,or other neutral liquid. | ||
Main Raw Material
1 | Body | Ductile Iron | 9 | Top-nut | Brass |
2 | Wedge | Ductile Iron+EPDM | 10 | Washer | PTFE |
3 | Stem | Stainless steel | 11 | Thrust collar | Brass |
4 | Wedge Nut | Brass | 12 | Washer | PTFE |
5 | Bonnet | Ductile iron | 13 | Dust Cover | NBR |
6 | Bonnet gasket | EPDM rubber | 14 | Handwheel | Ductile Iron |
7 | Bonnet | Ductile Iron | 15 | Bonnet bolt | Steel gr.8.8 |
8 | O-ring | EPDM rubber |
Components may be substituted with equivalent or higher class materials.

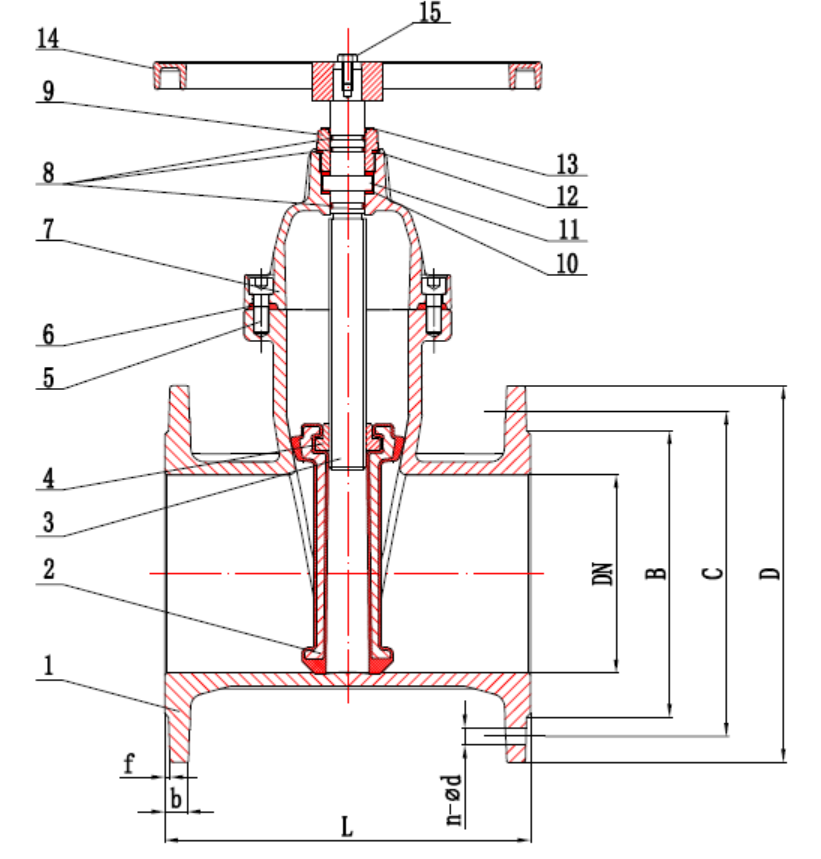

Dimension
Size | L | D | C | B | n-d | b | f | H | |||
DN50 | 150 | 165 | 125 | 99 | 4-19 | 19 | 3 | 280 | |||
DN65 | 170 | 185 | 145 | 119 | 4-19 | 19 | 3 | 305 | |||
DN80 | 180 | 200 | 160 | 133 | 4-19 | 8-19 | 19 | 3 | 350 | ||
DN100 | 190 | 220 | 180 | 154 | 8-19 | 19 | 3 | 390 | |||
DN125 | 200 | 250 | 210 | 184 | 8-19 | 19 | 3 | 470 | |||
DN150 | 210 | 285 | 240 | 210 | 8-23 | 19 | 3 | 525 | |||
DN200 | 230 | 340 | 295 | 265 | 8-23 | 12-23 | 20 | 3 | 630 | ||
DN250 | 250 | 405 | 350 | 355 | 319 | 12-23 | 12-28 | 22 | 3 | 780 | |
DN300 | 270 | 460 | 400 | 410 | 370 | 12-23 | 12-28 | 24.5 | 4 | 870 | |
DN350 | 290 | 520 | 460 | 470 | 429 | 16-23 | 16-28 | 26.5 | 4 | 1100 | |
DN400 | 310 | 565 | 580 | 515 | 525 | 480 | 16-28 | 16-32 | 28 | 4 | 1200 |
DN450 | 330 | 640 | 565 | 585 | 548 | 20-28 | 16-32 | 30 | 4 | 1300 | |
DN500 | 350 | 670 | 715 | 620 | 650 | 582 | 20-28 | 20-32 | 31.5 | 5 | 1450 |
DN600 | 390 | 780 | 840 | 725 | 770 | 682 | 20-31 | 20-37 | 36 | 5 | 1650 |
