Strainer
L/CT/TD/P
tandard
Design standard | BS2080 |
Flange drilling standard | EN1092-2 PN10,PN16 |
Face to face standard | EN558-1 |
Hydraulic test standard | EN1074-1 and 2 /EN12266 |
Seat:1.1*PN(in bar), Body:1.5*PN(in bar) |
Technical Parameters
Nominal diameter(mm) | 50～600 | 50～600 | |
Nominal pressure(Mpa) | 1.0 | 1.6 | |
Testing pressure | Shell(Mpa) | 1.5 | 2.4 |
Seal(Mpa) | 1.1 | 1.76 | |
Suitable temperature | -40°C～200°C | ||
Suitable medium | Drinking water、sewage、seawater、irrigation,or other neutral liquid. | ||
Main Raw Material
1 | Body | Ductile Iron | 4 | Sealing | EPDM/Graphite |
2 | Screen | SS304 | 5 | Bolt/Washer | SS304 |
3 | Bonnet | Ductile Iron | 6 | Drain outlet | Carbon Steel |
Components may be substituted with equivalent or higher class materials.

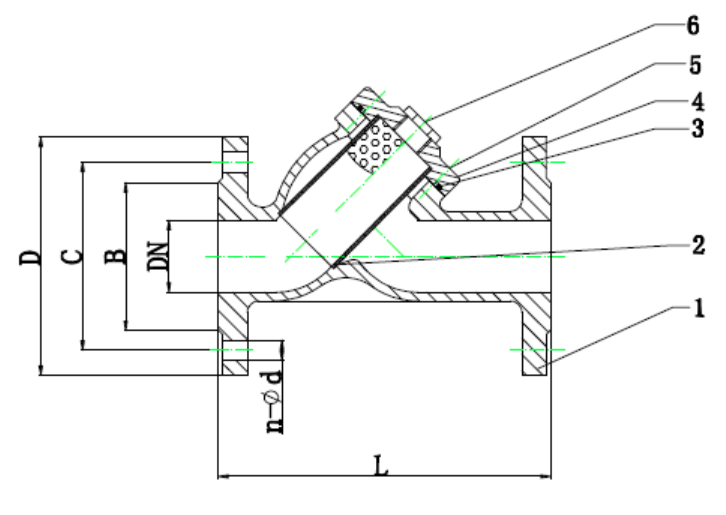

Dimension
Size | L | D | C | D1 | n-d | b | f | ||
DN50 | 225 | 165 | 125 | 99 | 4-19 | 19 | 3 | ||
DN65 | 273 | 185 | 145 | 119 | 4-19 | 19 | 3 | ||
DN80 | 292 | 200 | 160 | 133 | 4-19 | 8-19 | 19 | 3 | |
DN100 | 352 | 220 | 180 | 154 | 8-19 | 19 | 3 | ||
DN125 | 416 | 250 | 210 | 184 | 8-19 | 19 | 3 | ||
DN150 | 470 | 285 | 240 | 210 | 8-23 | 19 | 3 | ||
DN200 | 543 | 340 | 295 | 265 | 8-23 | 12-23 | 20 | 3 | |
DN250 | 660 | 405 | 350 | 355 | 319 | 12-23 | 12-28 | 22 | 3 |
DN300 | 762 | 460 | 400 | 410 | 370 | 12-23 | 12-28 | 24.5 | 4 |
