1. Product introduction

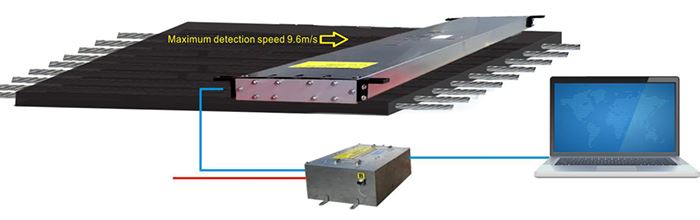

This mobile detector was developed mainly used for those belt service providers who want to detect multiple steel-cord conveyor belts in different lengths and widths with one detector. This mobile fault detector is simpler in structure, lighter in weight and easier to install than the previous fixed one, which is able to detect several steel-cord conveyor belts within a short time.
2. Features & Advantages
Remote operation
Device users can remotely complete all equipment operation and status monitoring.
Real-time display
The operating status of the belt is displayed on the computer screen in real time.
Holographic storage
The belt data acquired is completely stored in the hard disk.
Automatic recognition
The device can automatically analyze the belt data without the assistance of personnel.
Video playback
Reproduce the entire operating process of the belt, and adjust the running speed of the belt.
Defect location
Accurately locate each defect recognized through the pixel data, and display the location information in the observation window and report.
High magnification
Realize subtle observation of various defects, such as wire splitting and corrosion, with the principle of magnifying glass.
Accurate distant measurement
The distance between any two points in the belt can be measured through simple operation, which is accurate to 1mm.
3. Product Parameter
S/N | Item | Parameter |
1 | Running Speed of Belt | 0-9.6m/s; |
2 | Belt Width | 800mm-3,000mm |
3 | Joint Vulcanization Grade | Automatic recognition of Grade 1- 4 or lapped joints |
4 | Operating Temperature | 40℃-35℃; Operating Humidity: 95% RH at 25℃ |
5 | System Power Supply Voltage | AC 127v/220v |
6 | The error of judging longitudinal distance and transverse distance of joints and wire breakage | The error of judging longitudinal distance and transverse distance of joints and wire breakage is±50 mm and 10 mm, respectively |
7 | Resolution | 0.8mm |
8 | Signal Transmission Mode | Cable transmission for a distance less than 70m; optical fiber transmission for a distance of 70m or more |
9 | Transmission Protocol | TCP/IP protocol is adopted |
10 | Software Operating Environment | Windows 7/8/10 X86 |
4.Product Size and Weight
Components of detector | Length | Width | Thickness/Height | Weight |
X-ray generator | 590mm | 510mm | 170mm | 39.2kg |
X-ray receiving controller | 1130-2330 mm | 430mm | 80mm | 21.5-38.5kg |
