gabion mesh machinegabion machinehexagonal wire mesh machine
L/CT/TD/PWestern UnionPaypalMoney Gram

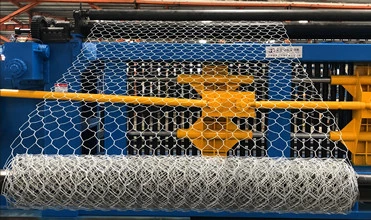

Gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth.
The product has widely purpose, with its good corrosion resistance and oxidation resistance, serves well as strengthen, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.
gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
We can produce machinery according to customers'requirements. For example, the normal gabion mesh twisting is three times ,length is 35 mm . We can produce 5 times twisting gabion mesh ,length canbe 50-55 mm.
Gabion mesh machine Specifications
Model | Mesh size | Width | Wire diamater | Spindle Speed | Power of motor | Theoretic output |
(mm) | (mm) | (mm) | (r/min) | (kw) | (m/h) | |
KY23-60-3T | 60X80 | 2300 | 1.6-3.0 | 25 | 11 | 165 |
KY23-80-3T | 80X100 | 1.6-3.0 | 25 | 195 | ||
KY23-100-3T | 100X120 | 1.6-3.2 | 25 | 225 | ||
KY23-120-3T | 120X150 | 1.6-3.5 | 20 | 255 | ||
KY33-60-3T | 60X80 | 3300 | 1.6-3.0 | 25 | 15 | 165 |
KY33-80-3T | 80X100 | 1.6-3.2 | 25 | 195 | ||
KY33-100-3T | 100X120 | 1.6-3.5 | 25 | 225 | ||
KY33-120-3T | 120X150 | 1.6-3.8 | 20 | 255 | ||
KY43-60-3T | 60X80 | 4300 | 1.6-2.8 | 25 | 22 | 165 |
KY43-80-3T | 80X100 | 1.6-3.0 | 25 | 195 | ||
KY43-100-3T | 100X120 | 1.6-3.5 | 25 | 225 | ||
KY43-120-3T | 120X150 | 1.6-3.8 | 20 | 255 |

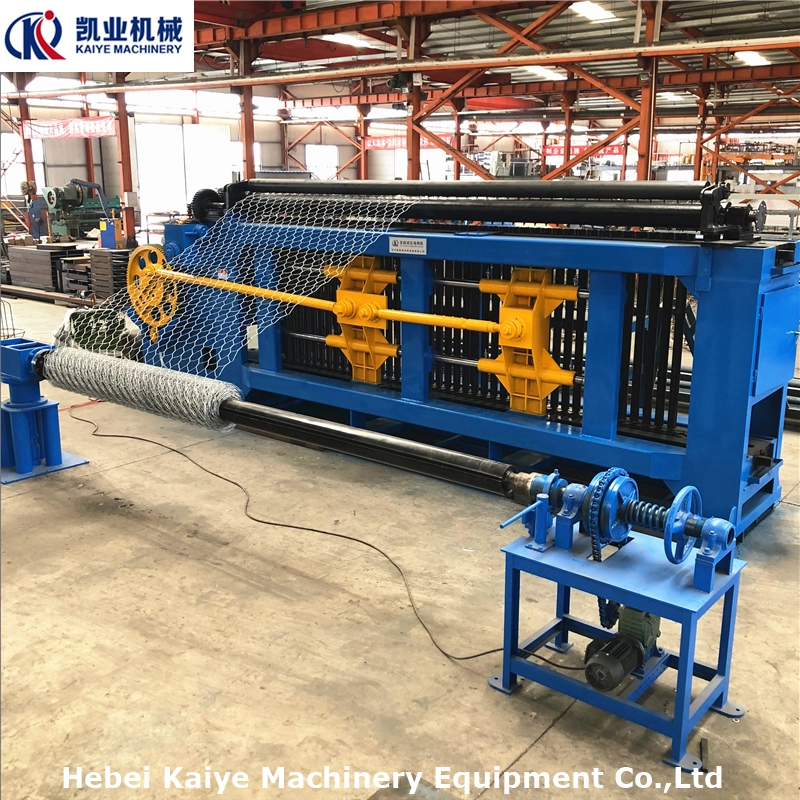

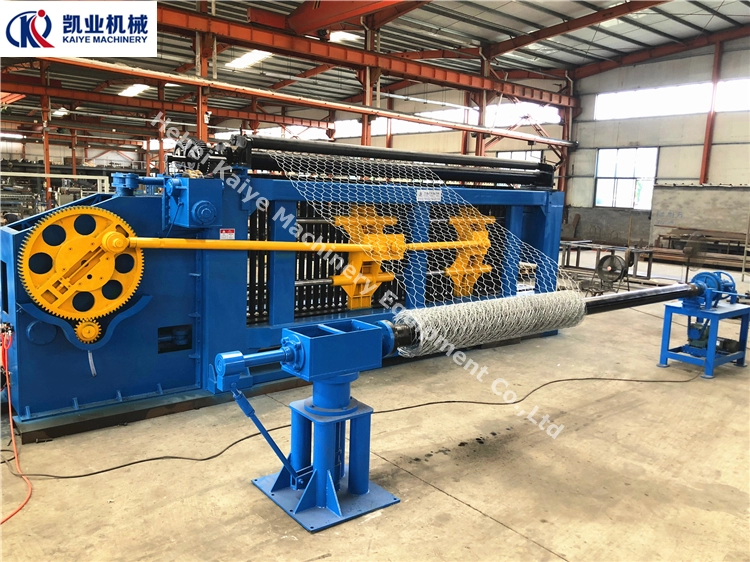

Twist Gabion Hexagonal Wire Netting Machines With Automatic Oil System
1) It is electric cabinet button control.
2) It has the function of frequency control of motor speed according to different of wire diameter.
3) It has buffer function when speed increase or decrese in very short time.
4) It can count output every day or every year.
5) It can save about 30% energy.

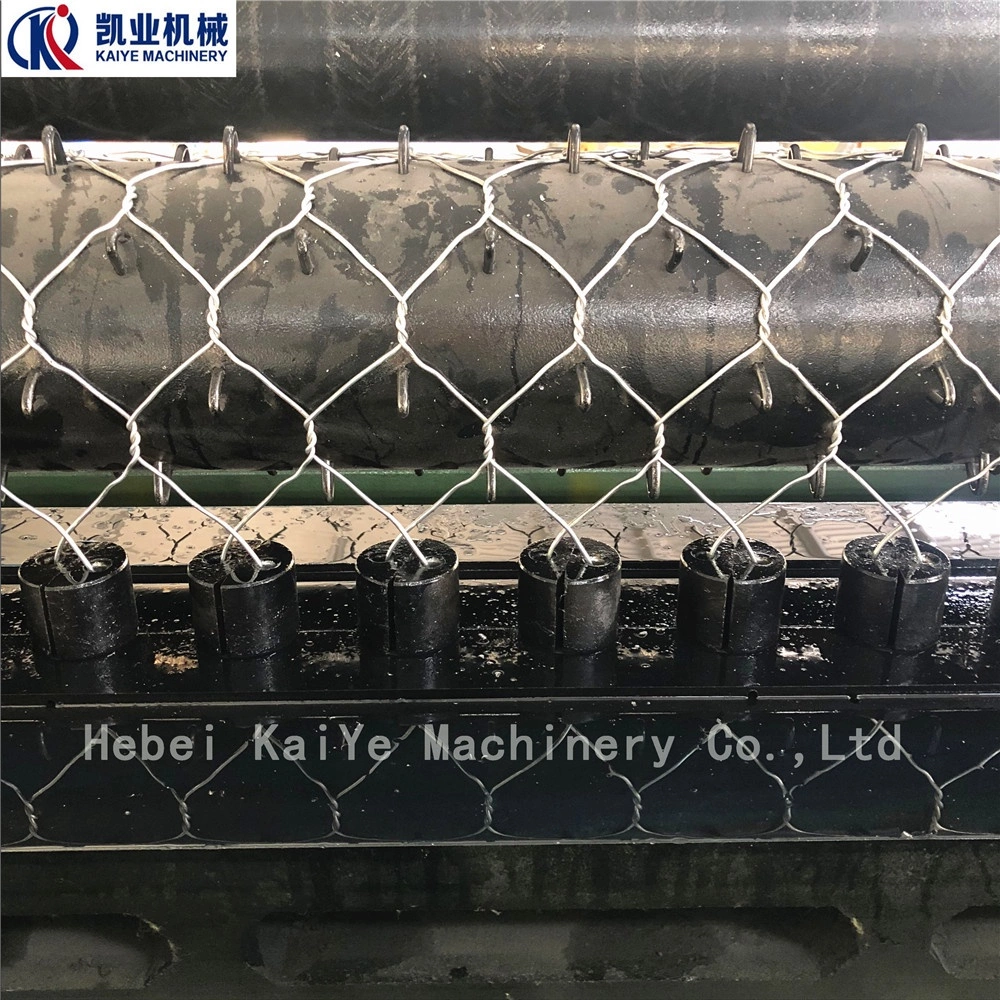

Name: gabion mesh twist system
The gabion mesh twist system has been corrected accurately to ensure the neatness and beauty of mesh standards.

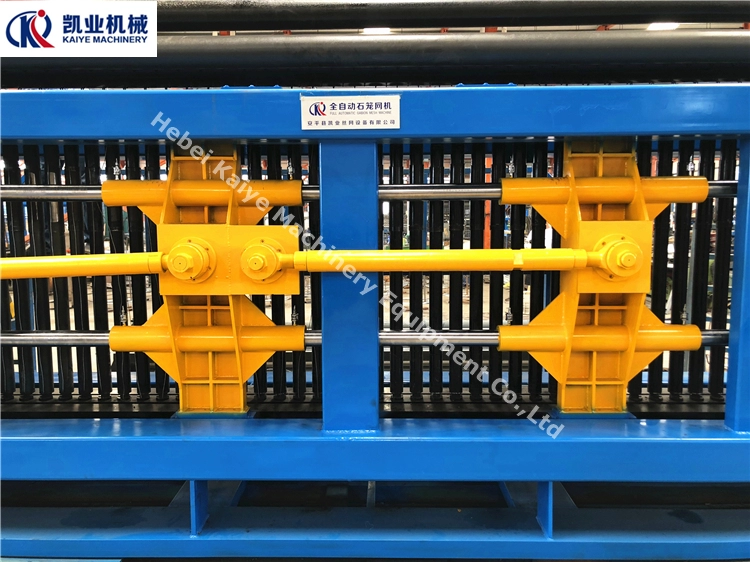

Name: Move block system
The system is designed with two blocks to ensure the stable operation of the machine and larger wire diameter.

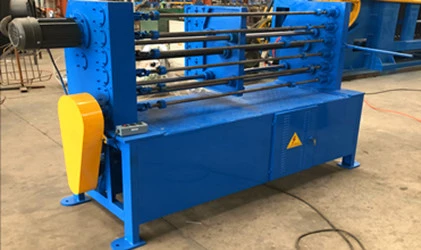

Name: Spring making machine
Spring machine uses six shaft , can produce six springs at the same time, and the mechanical speed can be adjusted.
It is more convenient to use one or two handles for machinery.

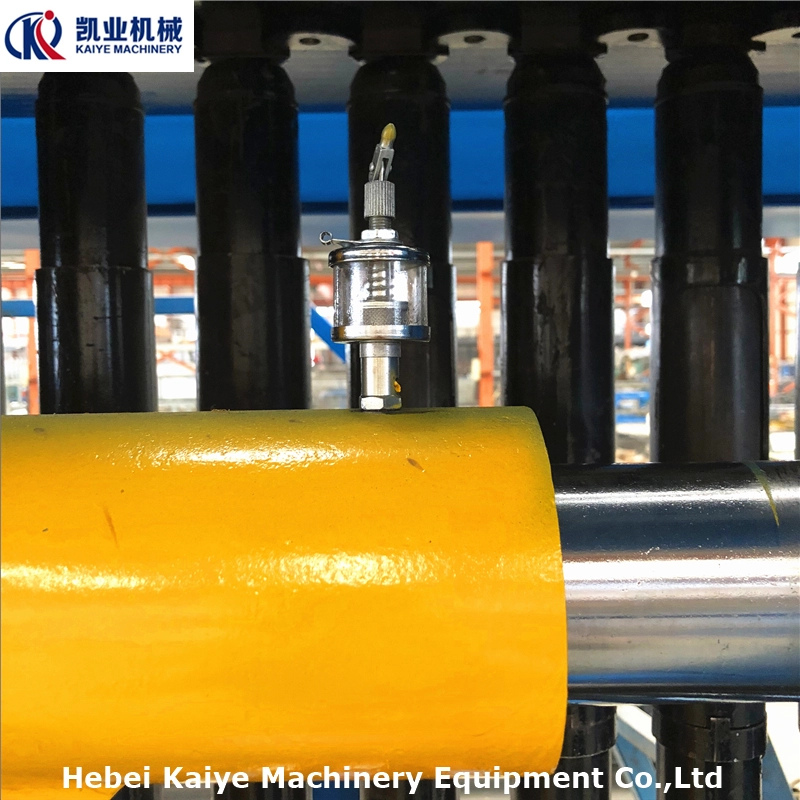

Name: Automatic oil cup
We designed automatic oil cups where it was not easy to add lubricants.This can make the machine run better and prolong the service life of the machine.
* Inquiry and consulting support.
* Sample testing support.

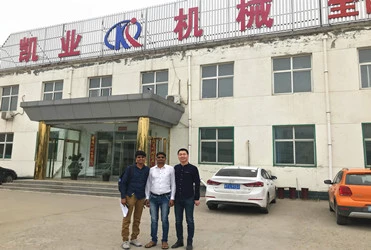

* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | |
Size | 7200mm (L) * 1400mm (W) * 2300mm (H) |
Weight | 18T |

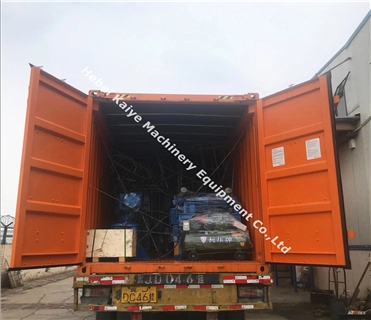

Packaging Details | The normal package is Plastic packing wire rope of main machine is fixed in container. |
Packaging | |
Size | 1200mm (L) * 600mm (W) * 1500mm (H) |
Weight | 18T |
Packaging Details | All accessories are packed in wooden cases.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |

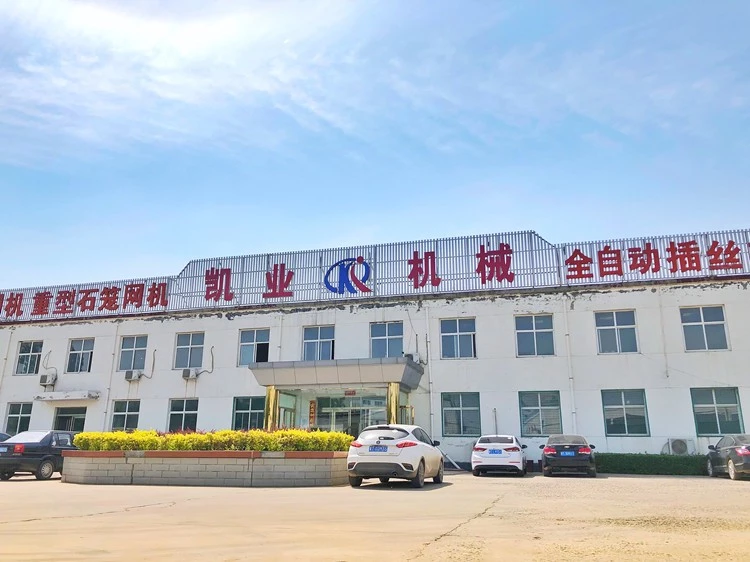

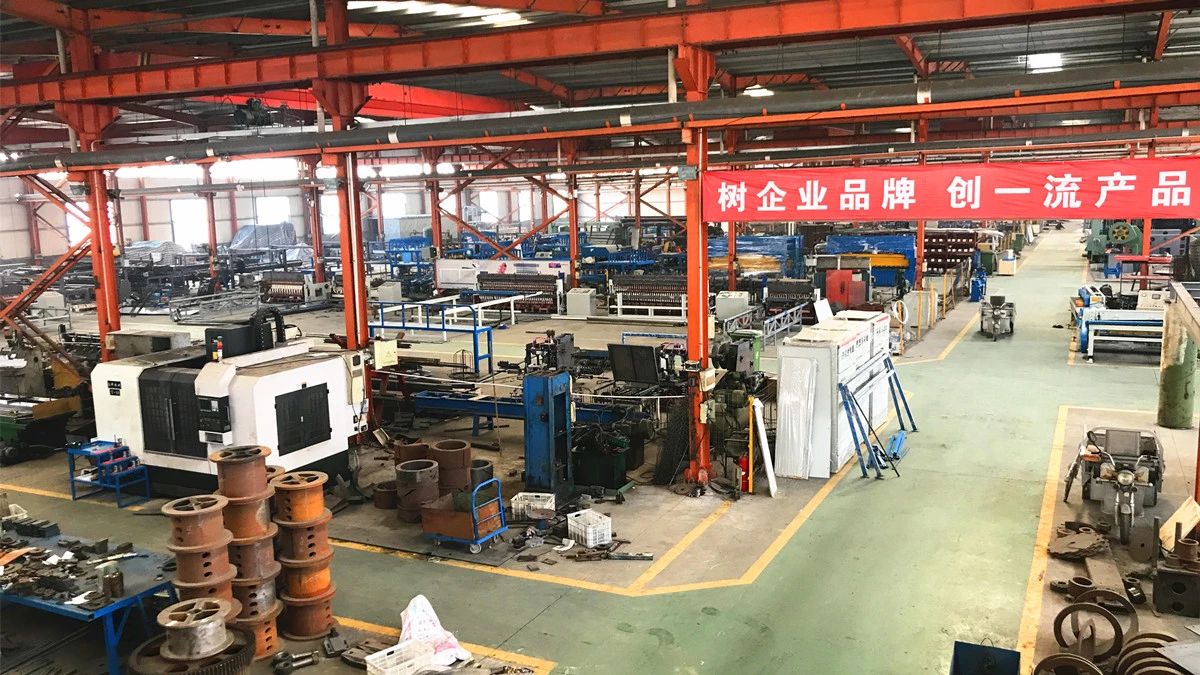

We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.Our main products: wire mesh welding machine, 3D panel production line, reinforcement mesh welding machine, CNC fence mesh welding equipment, EPS panel production line,3D panel welding machine (bevel inserting combination joint machine) , welding equipment of mine sieve mesh, floor warming mesh welding machine, hexagonal mesh weaving machine, expanded metal machine, razor wire machine, Diamond mesh machine, pneumatic spot welding machine and straightening & cutting machine.
Kaiye's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to the Romania, Turkey, poland, Ukraine, Russia, Kazakhstan, Saudi Arabia, Vietnam, Philippines, India, Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia and Brazil.
