Good description:
Rotogravure printing machine is mainly suitable for flexible packaging such as plastic film, aluminum foil, paper, etc.
Features:
l Easy operation, soft start, accurate color registration.

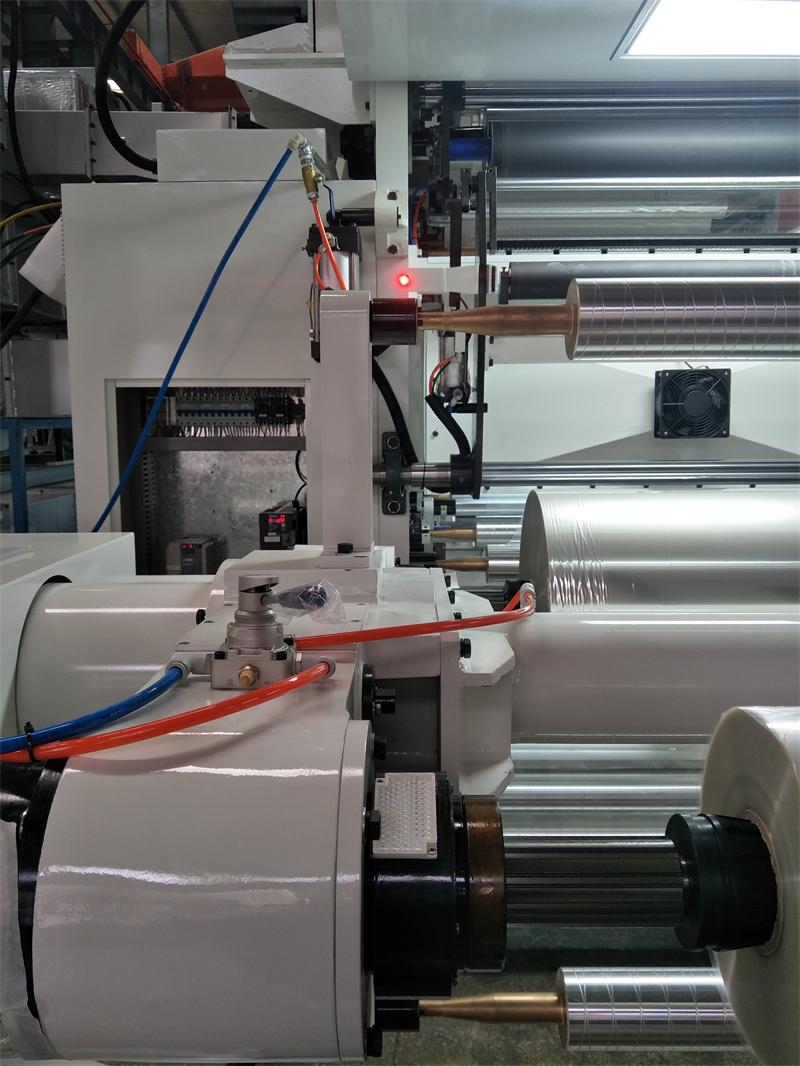

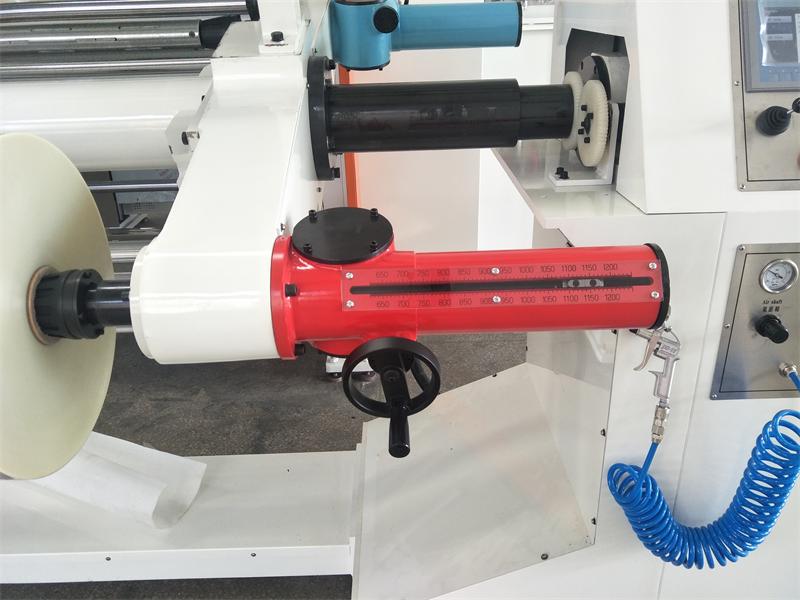

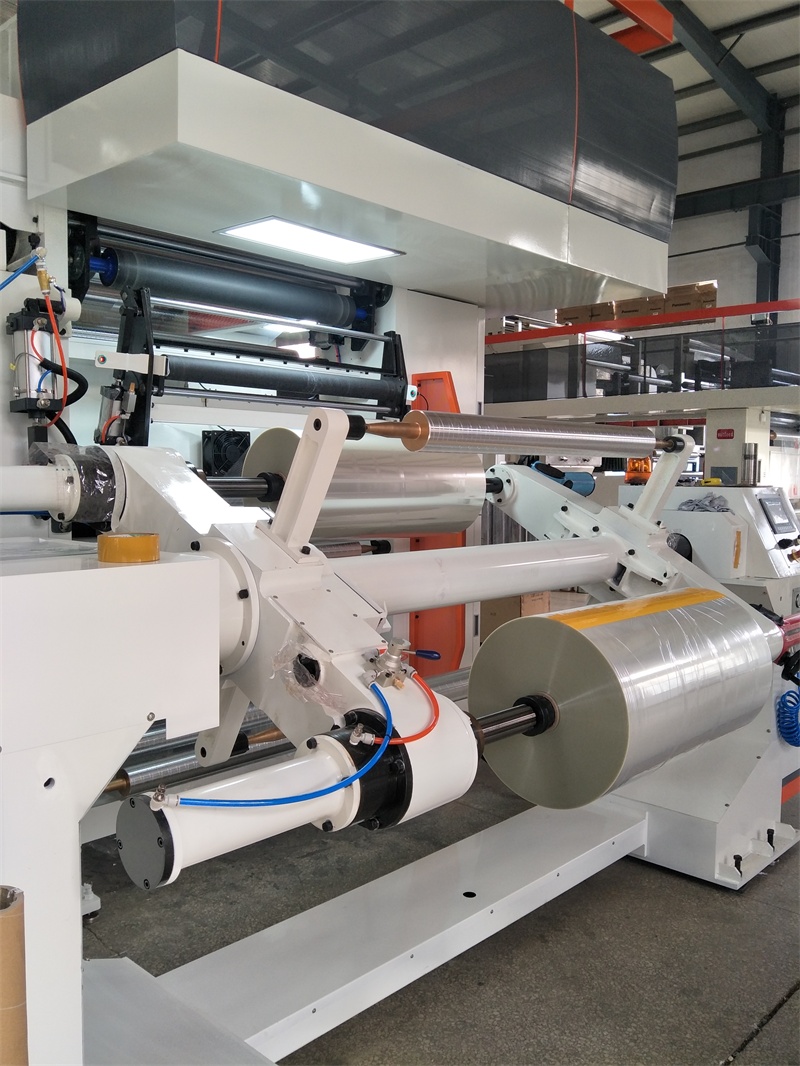

l Unwind & Rewind: independent tower double-station unwind and rewind rack, adjustable length shaftless air top device, quick replacement, safe and reliable, high-speed non-stop material refueling, automatic cutting.

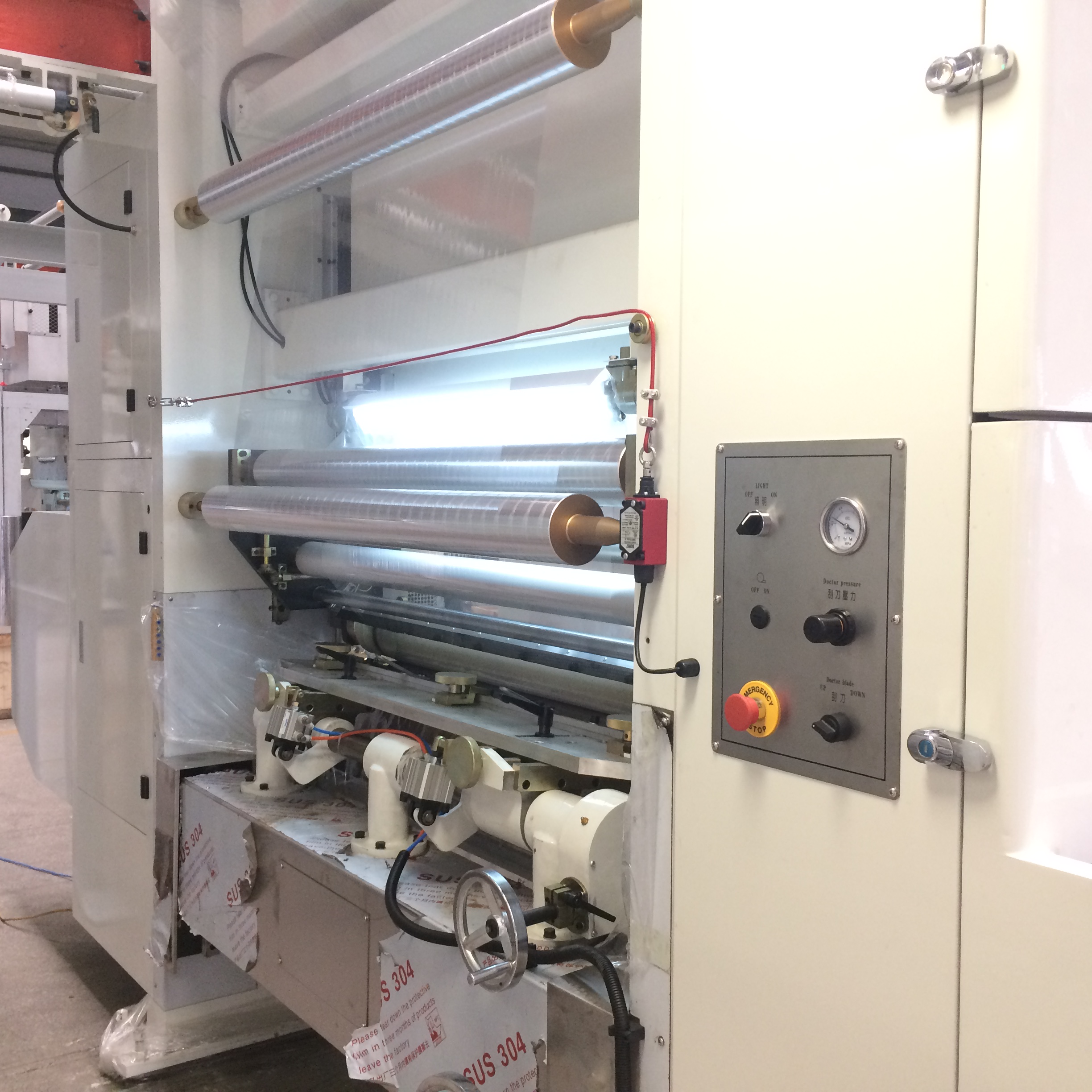

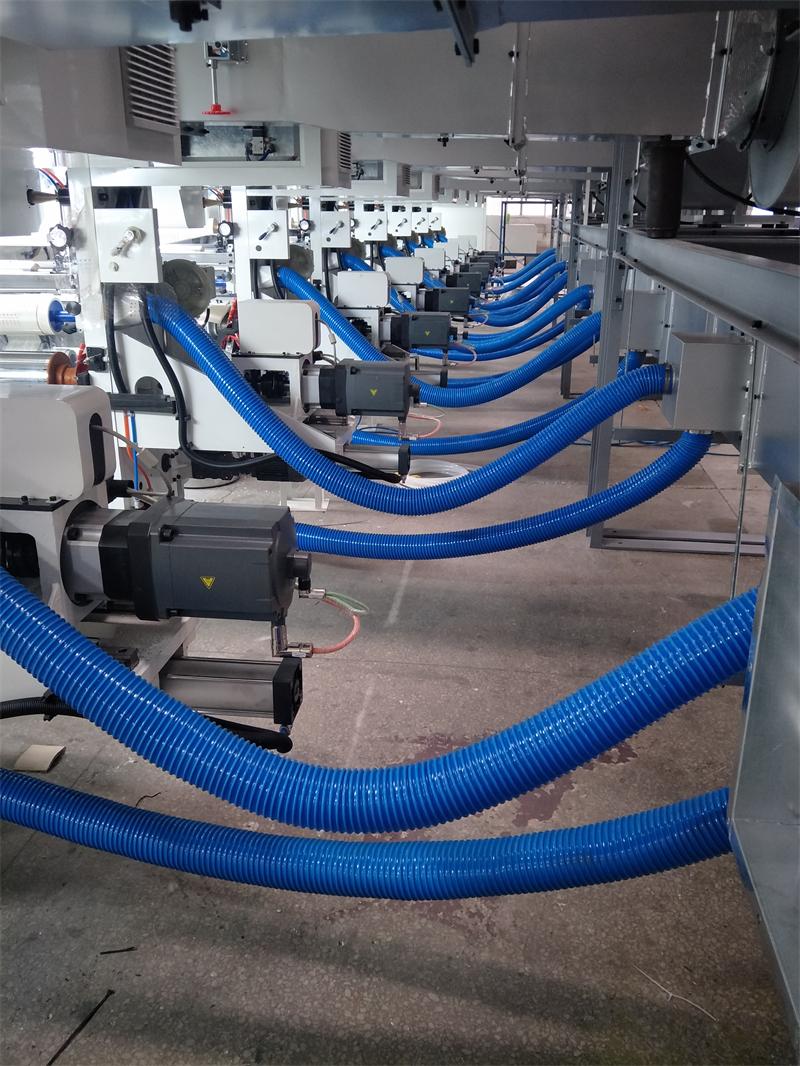

l Printing: The whole machine adopts high-precision non-backlash servo drive, and the shaftless top plate device is an inner and outer sleeve type. Vertical and horizontal automatic color registering and pre-registering devices improve the accuracy of registering. The blade movement is controlled by independent motors. The three-position adjustable box-type heavy-duty scraper, and the constant torque transfer roller transfer ink device.
l Drying: The oven adopts an overall heat preservation design. The intake and exhaust air and secondary circulation air of the whole machine are automatically controlled by PLC to adjust the electric damper to achieve the effect of enrichment and emission reduction.

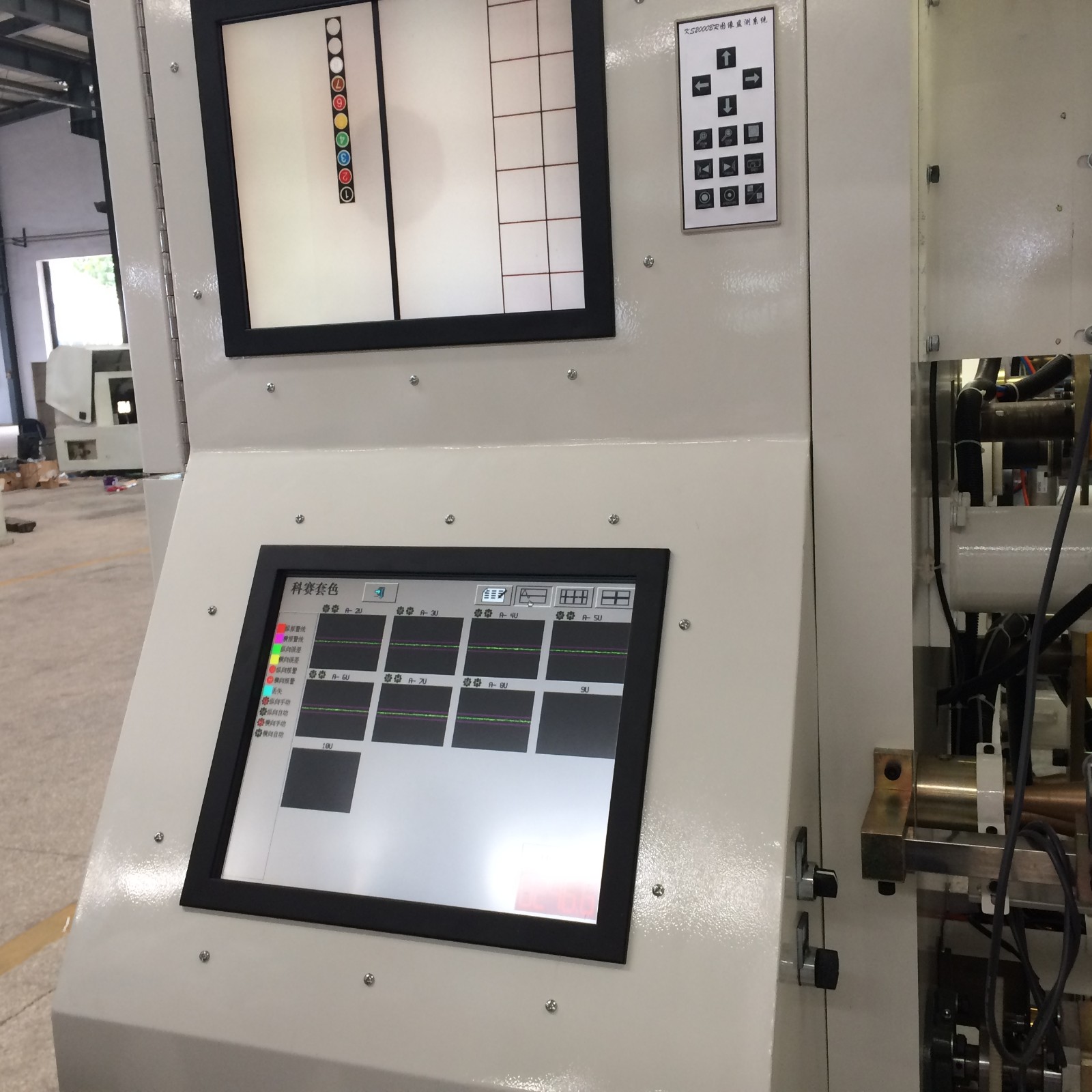

l Whole Machine: Imported Siemens servo motor tension control system, and the main components are imported brands. The use of DC bus technology effectively reduces motor energy consumption. The centralized touch screen controls and monitors the working status of the whole machine, has a complete safety protection function, and can intelligently identify the working status of the whole machine and judge faults.
主要技术参数 Main Technical Parameters
Material | Plastic Film, Aluminum Foil, Paper, etc |
printing Speed | 350 m/min |
Web Width | 850. 1050. 1250. 1450. 1650 mm |
register print Accuracy | ≤± 0.10 mm |
Unwind/ Rewind Diameter | Ф600, 800 mm |
Cylinder Diameter | Ф120 mm - Ф300 mm |
Drying Method | electric heating, steam heating, thermal oil heating or gas heating |
Optional Function | Tower/disc rewinding and unwinding, inking trolley, reverse printing, LEL energy-saving system |

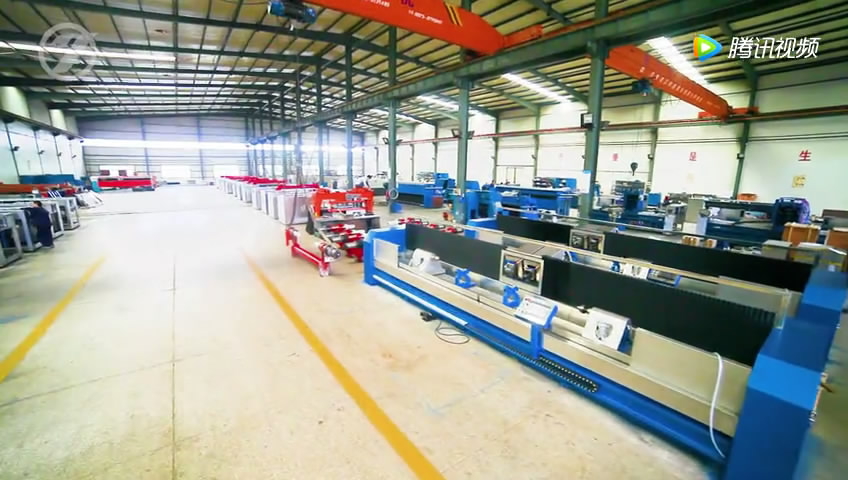

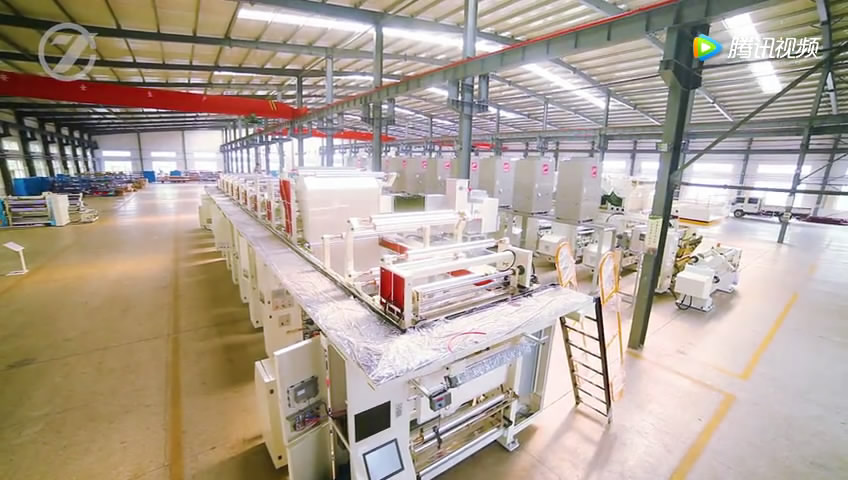

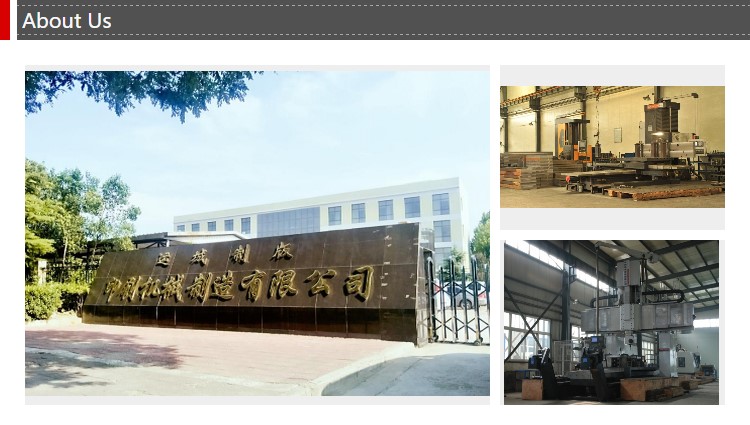

Company Introduction
Yuncheng Plate Making Printing Machinery Co., Ltd, subsidiary of Yuncheng Plate Making Group, is the professional manufacturer of rotogravure printing press and plate making machines. Now it has been fully developed after many years pursuit for a faith of good quality, creativity and service at great passion.
Our company has introduced and grasped many advanced technology on the product design and manufacture among the first class. For the customer's consideration, we are longing to aware and explore the customer's real and potential requirements for providing a better service for customer, and devote ourselves to optimizing the press operation and control, so that to provide the press with stable and lowest consumption on raw material. By right of the world influence of our group. Yuncheng Plate Making Group, our selling networks have completely spread all over the world. By use of strong economic strength and rich work experience, we aspire at making our brand become well-known and trustworthy in rotogravure printing press and plate making machine field.

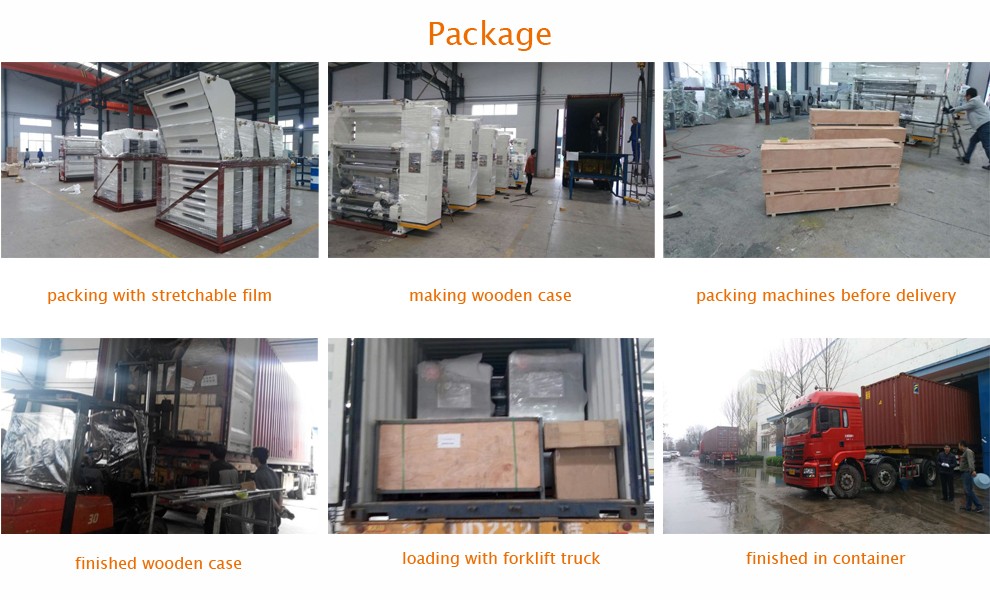

Machine package and delivery
