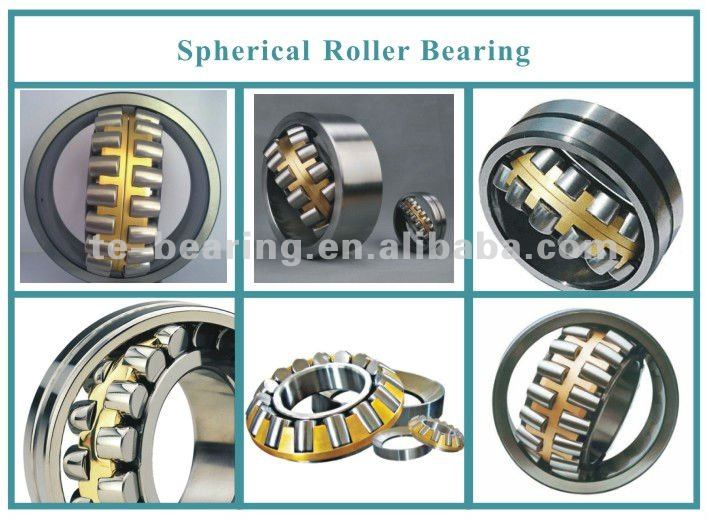

China export chrome steel spherical roller bearings
Spherical Roller Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection and with relatively heavy radial loads and some axial loads in either direction.
They are also extremely resistant to shock loads and their self-aligning feature allows full capacity loading despite shaft deflection. They are very similar in purpose to Self-Aligning Double Row Ball Bearings, except the Spherical Roller Bearings are designed to be more robust by carry heavier loads but at lower maximum speeds .
Brand | TEBearing or OEM | ||||||
Name | Spherical roller bearing | ||||||
Model | 21300,22200,22300,23000,23100,23200,23900,24000,24100,29000 | ||||||
CC,E,W33,CCW33,EW33,EK,CCKW33,CCK,CA,MB,EAE4 | |||||||
Material | GCr15 | Certificate | ISO9001:2001 | ||||
Precision | P0, P6, P5 | ||||||
Bore Size: | 25mm-200mm | Outside diameter | 52mm-420mm | ||||
Clearance | C0,C1,C2,C3,C4,C5 etc. | ||||||
Cage Type | Brass cage or Stainless cage | ||||||
Seals Type | RS, 2RS, R2, Z, 2Z, 2RZ etc | ||||||
Features | Spherical Roller bearings are designed to carry heavy loads, even under misalignment or shaft deflection. Spherical Roller bearings can also handle axial loading in either direction and heavy shock loads. Available with a cylindrical or a tapered bore for mounting with or without a sleeve adapter. Available with many internal clearance (C2 to C4) and retainer options. Available bore dimension range is 20mm to 900mm. | ||||||
Application | It is used widely for the application of rotary welding machinery, medium and small series crane and excavators etc. | ||||||
Package | pallet, wooden case,industrial package or as customers' requirement | ||||||
Price | FOB, CRF, CIF | Delivery Time | 20-30 days | ||||
Payment Terms | A.100% irrevocable L/C at sight | ||||||
B.30% T/T in advance, 70% L/C or T/T | |||||||
C. Documents against Payment | |||||||
D. Others | |||||||
Contact Details | Tel:0086-355-8502930 Fax: 0086-355-3022969 | ||||||
Contact person:Mr.Liu | |||||||
Web | WWW.TEBEARING.COM | ||||||
Link on Alibaba | http://te-bearing.en.alibaba.com | ||||||

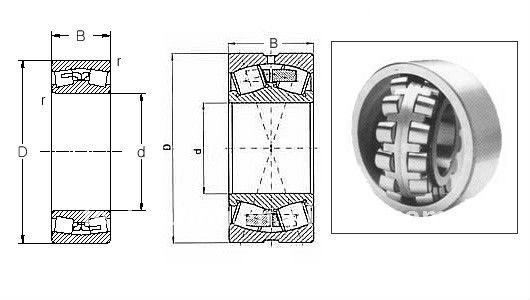

Spherical bearing No. | d | D | B | Cr(KN) | Cor(KN) | Weight(KG) |
22205CA | 25 | 52 | 18 | 45.3 | 49.1 | 0.175 |
22206CA | 30 | 62 | 20 | 56.69 | 61 | 0.289 |
22207CA | 35 | 72 | 23 | 72.3 | 77.7 | 0.435 |
22208CA | 40 | 80 | 23 | 82.9 | 90.9 | 0.523 |
22308CA | 40 | 90 | 33 | 130 | 135.2 | 0.998 |
22209CA | 45 | 85 | 23 | 83.6 | 101 | 0.566 |
22309CA | 45 | 100 | 36 | 152.1 | 161.5 | 1.36 |
22210CA | 50 | 90 | 23 | 85.9 | 118 | 0.619 |
22310CA | 50 | 110 | 40 | 185 | 201 | 1.817 |
22211CA | 55 | 100 | 25 | 98.7 | 129 | 0.831 |
22311CA | 55 | 120 | 43 | 225 | 247.7 | 2.34 |
22212CA | 60 | 110 | 28 | 135.5 | 157.4 | 1.138 |
22312CA | 60 | 130 | 46 | 254.8 | 291 | 2.959 |
22213CA | 65 | 120 | 31 | 159.1 | 191.2 | 1.55 |
22313CA | 65 | 140 | 48 | 270 | 305 | 3.484 |
22214CA | 70 | 125 | 31 | 164.7 | 197.2 | 1.602 |
22314CA | 70 | 150 | 51 | 320.8 | 377.8 | 4.302 |
22215CA | 75 | 130 | 31 | 171.4 | 212.5 | 1.781 |
22315CA | 75 | 160 | 55 | 375.2 | 455.1 | 5.4 |
22216CA | 80 | 140 | 33 | 189 | 238 | 2.256 |
22316CA | 80 | 170 | 58 | 419 | 485.9 | 6.414 |
22217CA | 85 | 150 | 36 | 232.9 | 291.5 | 2.691 |
22317CA | 85 | 180 | 60 | 462.5 | 570.6 | 7.703 |
22218CA | 90 | 160 | 40 | 301 | 342.2 | 3.381 |
22318CA | 90 | 190 | 64 | 504.2 | 632.7 | 8.736 |
22219CA | 95 | 170 | 43 | 314.5 | 379.2 | 4.178 |
22319CA | 95 | 200 | 67 | 550 | 692 | 9.98 |
22220CA | 100 | 180 | 46 | 345 | 446 | 4.962 |
22320CA | 100 | 215 | 73 | 648.2 | 828.7 | 12.874 |
22222CA | 110 | 200 | 53 | 443.1 | 598.2 | 7.405 |
Packaging detail: pallet, wooden case,industrial package or as customers' requirement
Delivery detail:15-30 days
1. More than ten years bearing products exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Many sizes of bearing are available. Large quantity bearing can be provided.
4. To respect customer, you can choose loading port, then we can accept inland transport of short distance
5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.
High Quality, Competitive Price, Reliable Service, On-Time Delivery !
TEB Can Be Your Trusted Partner in Bearing Field !!!!

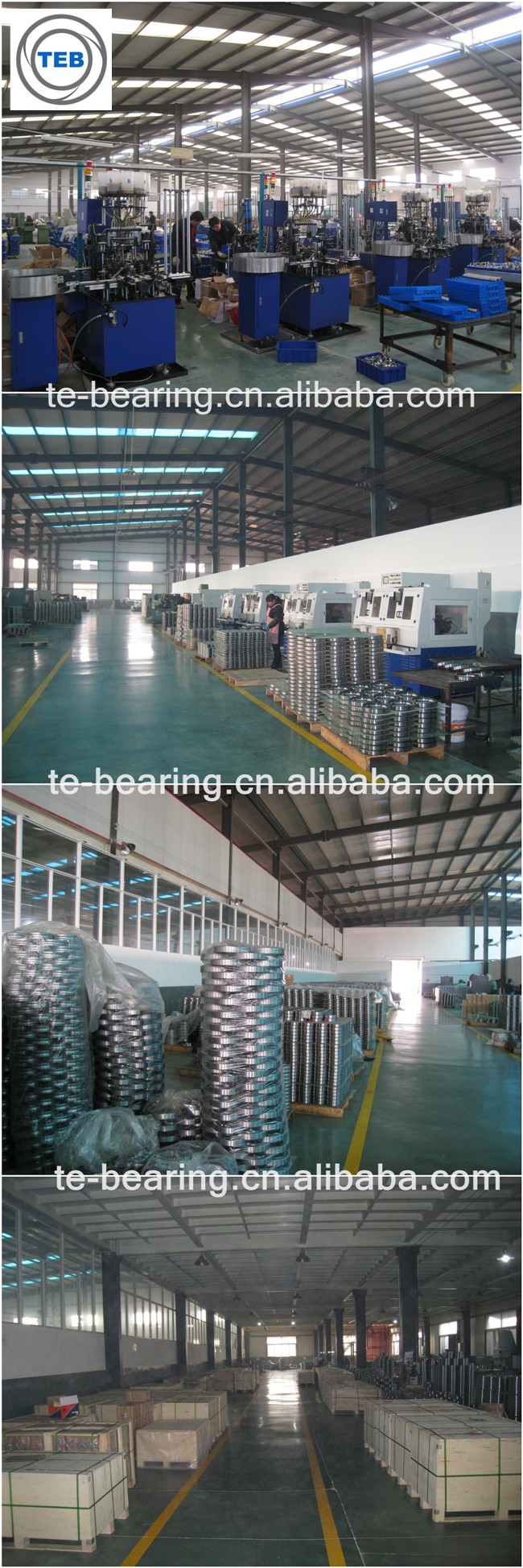

Changzhi TEBearing Corp.,Ltd is located in Changzhi, which a city with very convenient transportation and advanced information exchange in Shanxi Province, North of China.
The company has been engaging in exporting mechanical and electrical products for more than 10 years. In the period, it's growing up step by step, with more than 100 well-cooperated manufacturers. the company has been selected as long-term and stable supplier by many customers from Germany, Italy, Belgium, France, Russia, Ukraine, Canada, South America, Southeast Asia,Taiwan and Hong Kong as well as domestic.
The company specializes in exporting all kind of bearings, steel balls and bearing accessories, as well as other relevant mechanical and electrical product. Such as, deep groove ball bearings, thrust bearings, angular contact ball bearings, self-aligning ball bearings, tapered roller bearings (both inch system and metric system), spherical roller bearings, cylindrical roller bearings, spherical plain bearings as well as cages and forgings. Adhering to the principal of “High Quality, Excellent Service, Eternal Reputation”, the company always gains high praise and trust from different customers for constantly improved product quality, increased product types and satisfying service. We will do our best to continue extensive and sincere cooperation with friends around the world.
