Product description
Application:
Rotogravure printing machine used to print multi-color on different kinds of films like OPP,BOPP,PET,PVC,PE,PAPTER and Aluminum foil etc.One time ,Continuous printing
PET:12~60μm BOPP: 20~60μm
CPP:20~60μm OPP: 20~60μm
cellophane:20~30μm
Main parameters:
| Film running direction from unwind to rewind | From left to right |
| Printing colors | 1-14 |
| Max. material width | 1250mm |
| Maximum printing speed | 200/250/300/350 m/min |
| Unwinding /rewinding diameter | 800mm |
| Rewinding and unwinding reels chucking style | Pneumatic cone top chucking reels |
| Accuracy of registration | Longitudinal/Horizontal ±0.1mm |
| Tension range | 3~28kg |
| Paper core diameter | Φ76mm× Φ92mm |
| Diameters of cylinders | Φ120mm~Φ300mm |
| Length of cylinders | 1000-1350mm |
| Reciprocation of doctor blades | ±5 mm |
| Recycling rate of hot air | 0~50% |
| Heating style | electricity |
| Space between units | 1.7m |
| Power supply | 3-phase,50Hz,380V±10% |
| Machine dimension | 23950x4850x4000mm (10 color) |
| Machine power | 168kw+279kw (10 color) |
| Machine weight | 52T (10 color) |

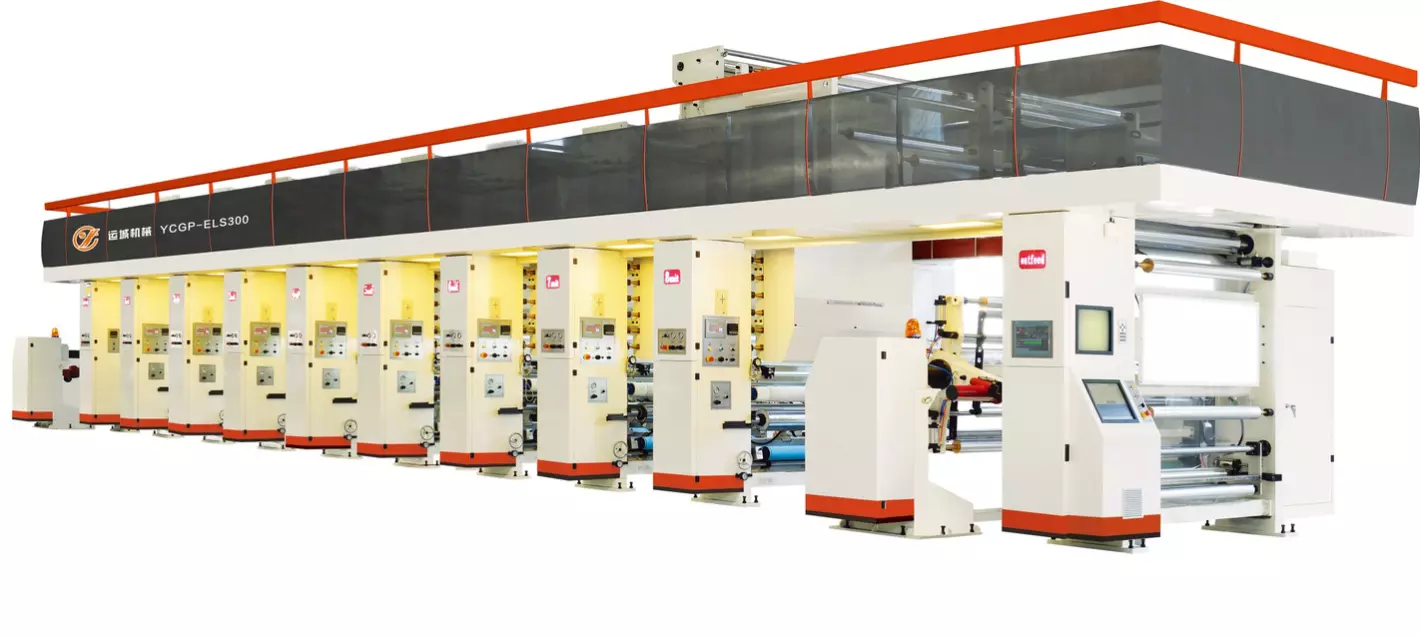

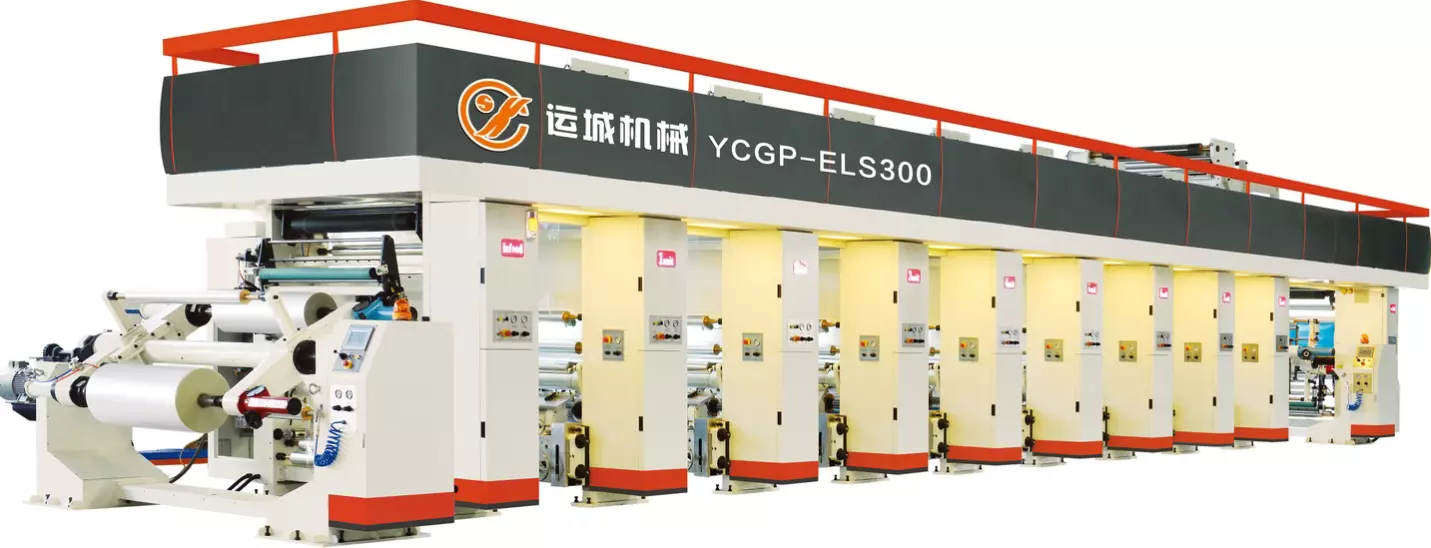

Product display

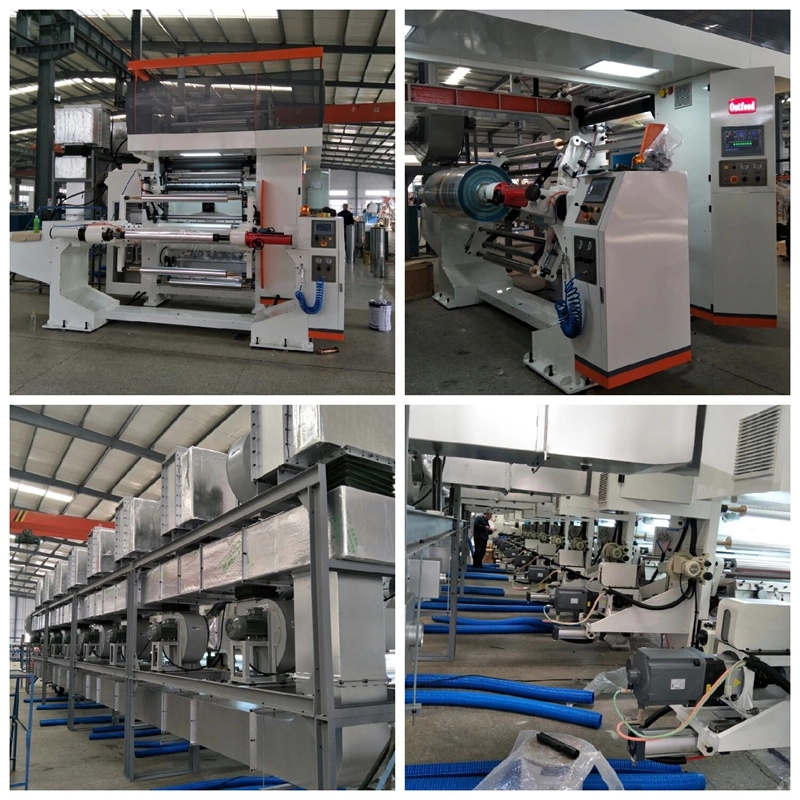

Detailed Images

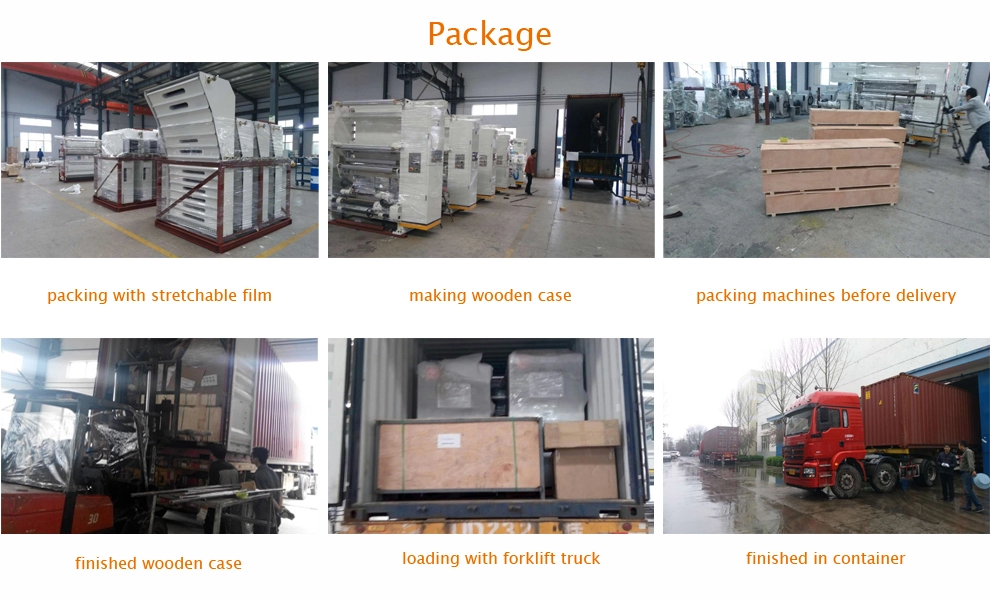

Product package
Shipment & Payment
Company profile
FAQ
Q: Are you factory?
A: Yes! We are professional manufacturer in China for 15 years. Welcome to visit our factory.
Can I customized according to the requirements of me?
Yes! Our engineer has over than 20 experiences in this area.
What is after-sales services?
24 hours around the clock and 12 months warranty and life-long maintenance overseas service for the product.
If I didn't use press machine before, how can I install and operate the machine?
Our technician will train your workers one week for free and user manual in English is available.
Shall I see the machine work before I order?
1) Please send us inquiry and we will check whether there are customers in your country.
2) You may come our factory, we will teach you how to operate.
3) We may send you video.
